Precision Cnc Circular Saw Machine Metal Saw Blade Cutting Machine for New Energy Vehicle Aluminum Profile Cut off

Product Overview

Description

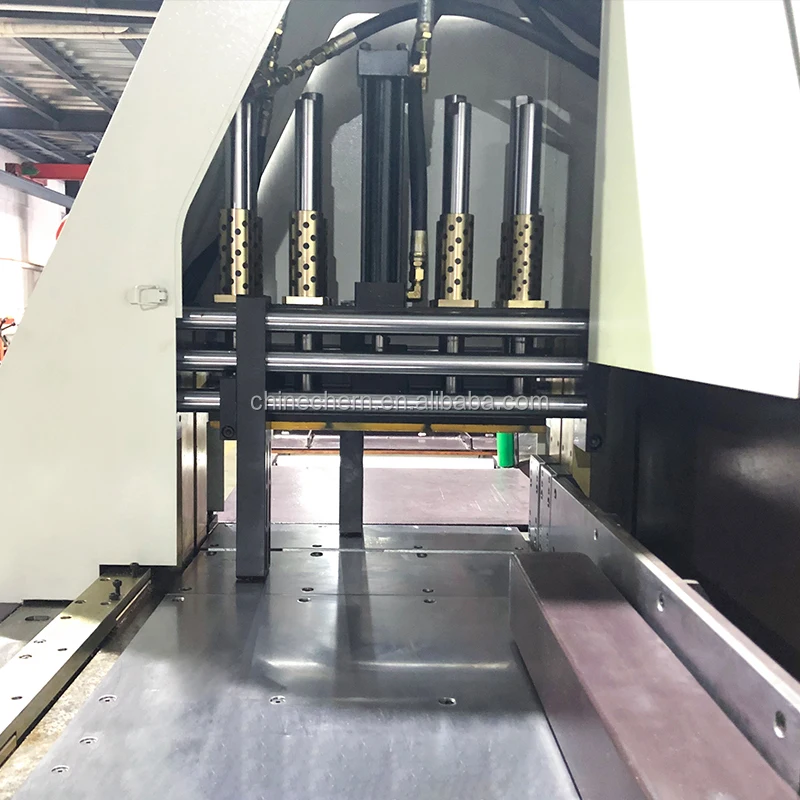

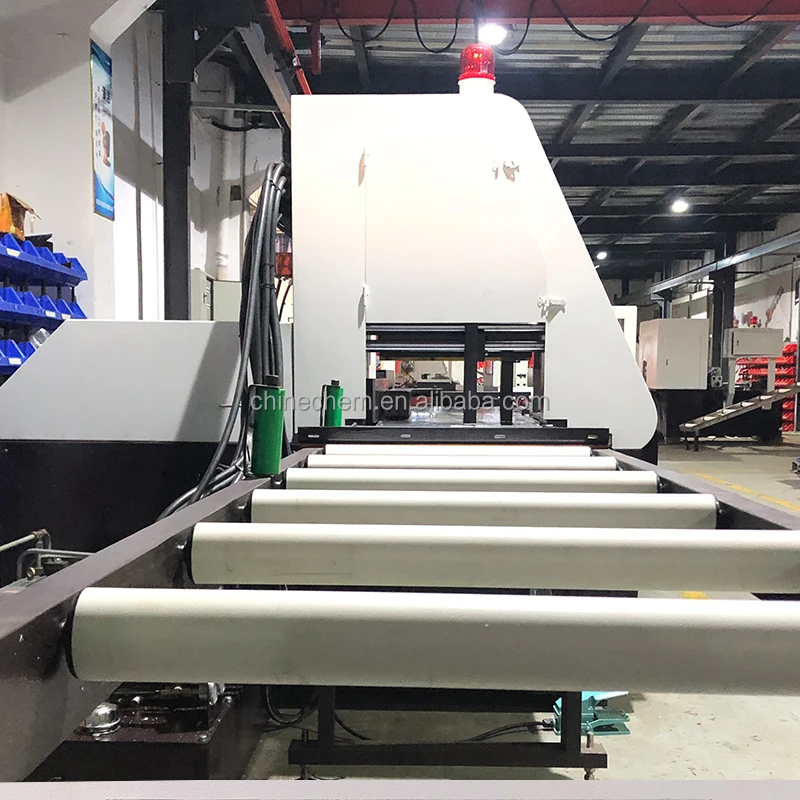

Precision Cnc Circular Saw Machine Metal Saw Blade Cutting Machine for New Energy Vehicle Aluminum Profile Cut-off



Feature

1.Using Servo drive controlling to advance and retreat from back to front,stable feed and are of long life use of the saw blade. High cutting precision.

2.Elaborate design of floating feeding system so as not to damage the surface of workpieces,high precision feeding,feeding length set at 1350(2500/0.00mm)/mz

3.Unique up and down,front and back main clamp design, clamping force is strong and firm.

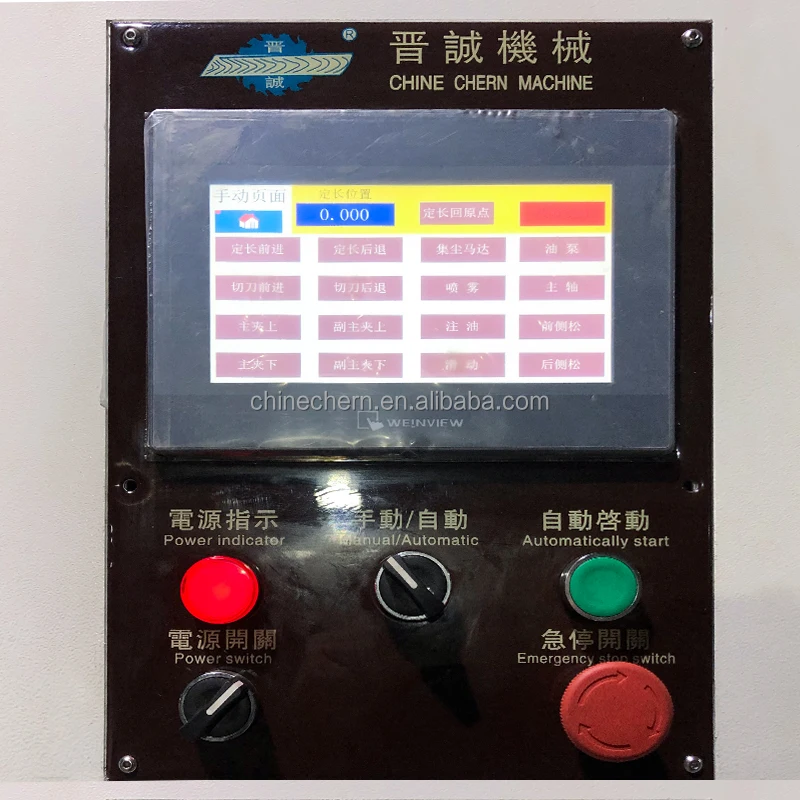

4.Use touch screen controller,no connected points,no rough edges, easy to maintain

5.Cooling liquid circulate automatically,to ensure the cutting surface is smooth

6.Equipped with electric cutting quantity setting and accouting

7.Saw chips are centralized for disposal which is convenient and clean





Model	JC-610
Project	Specification
Cutting range	Hydraulic type	Servo
	Rectangular tube :         W130 mm*H350mm
	Round tube:                 ¢200mm*2pieces
Feeding mode			Servo motor
Control mode	PLC+Touch screen
Work mode	Servo motor feeding,Automatically cutting,Material seprate and retreat the cutterhead
Host motor	5HP,Or as per the order
Feeding speed	30m/min
Height from bench to floor	845mm
max.weight for the bench	200kg
Saw blade specificition	¢510mm-610mm alloy saw blade
Cooling mode	Oil mist cooling
Oil pressure pump	30*Double-pump
Standard fittings	One piece saw blade,One user maunal,One tool box
Machine size(L*W*H)	3250mm×2750mm×1900mm
Machine Weight(kg)	2600kg

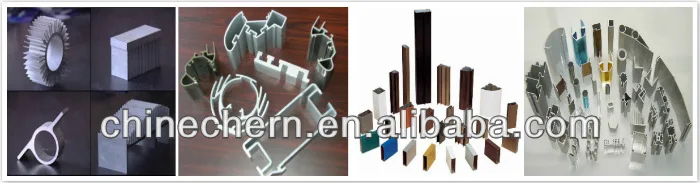

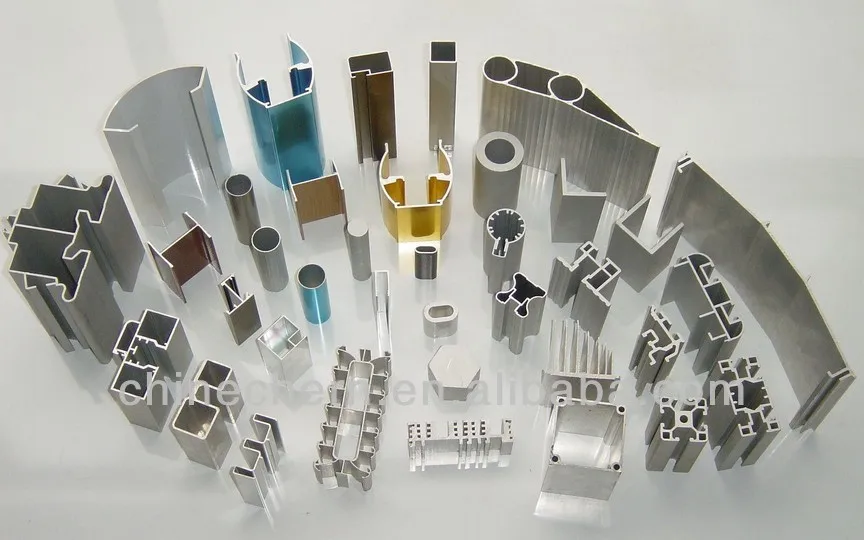

scope of application

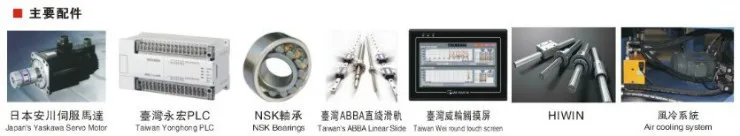

Main parts











Certificate

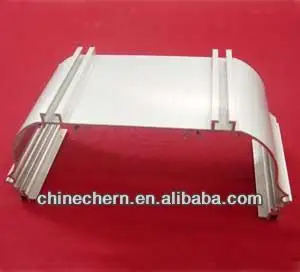

Application Instance
