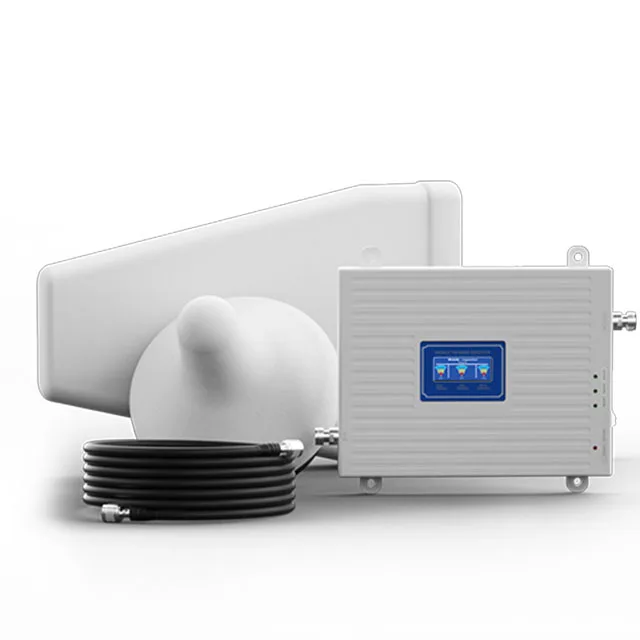

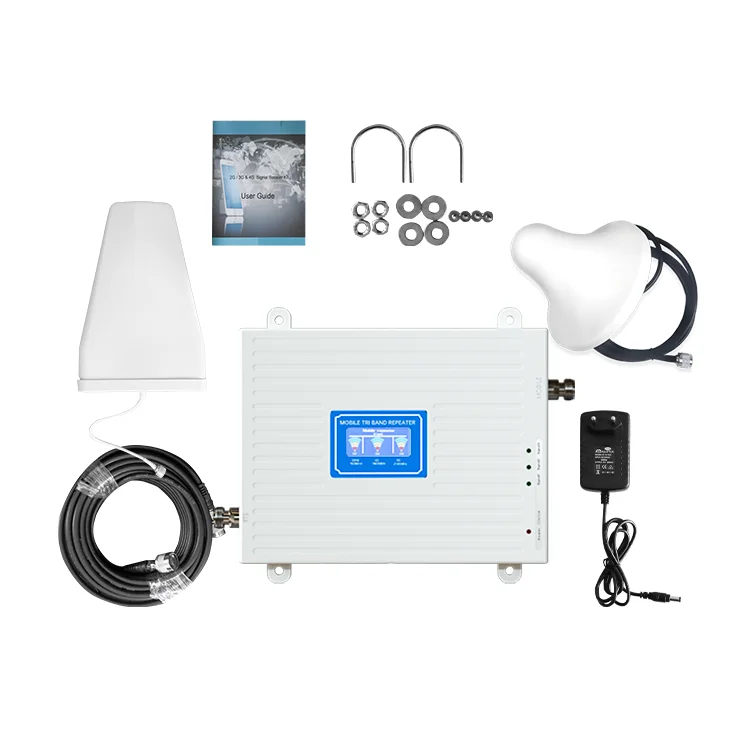

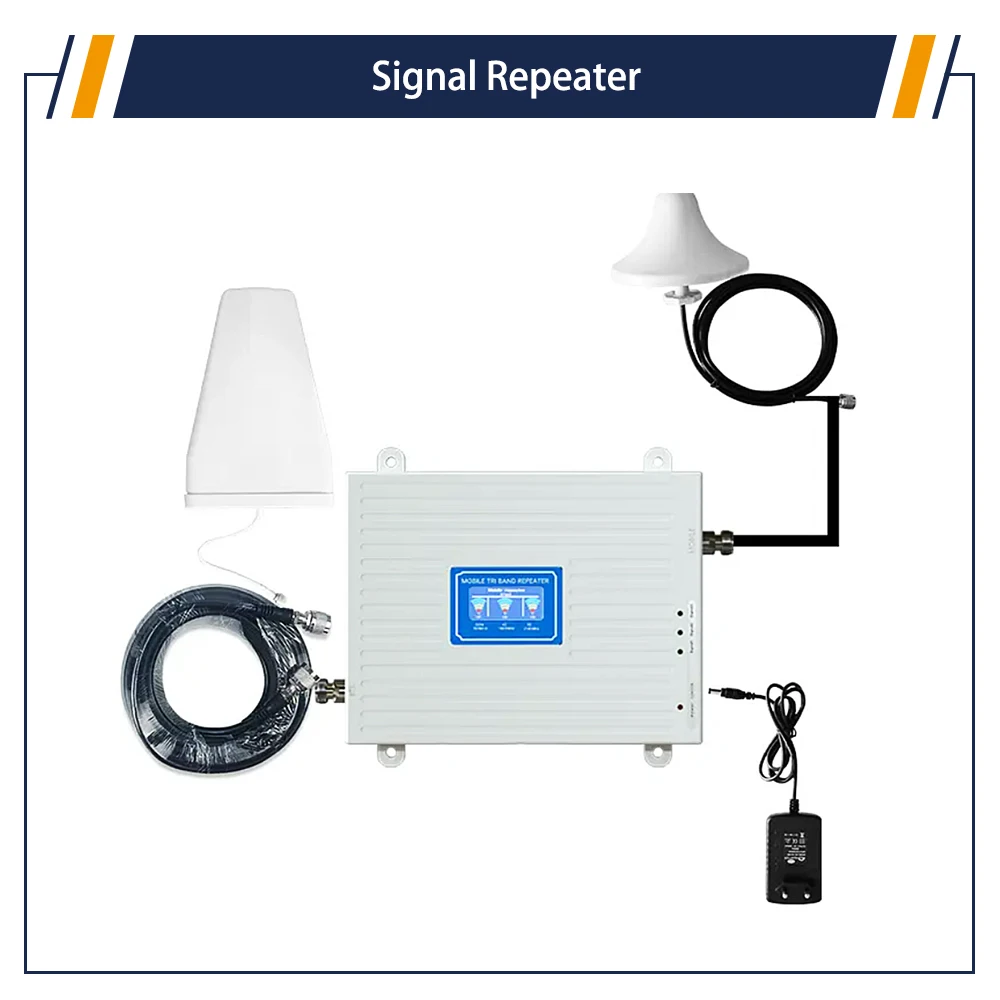

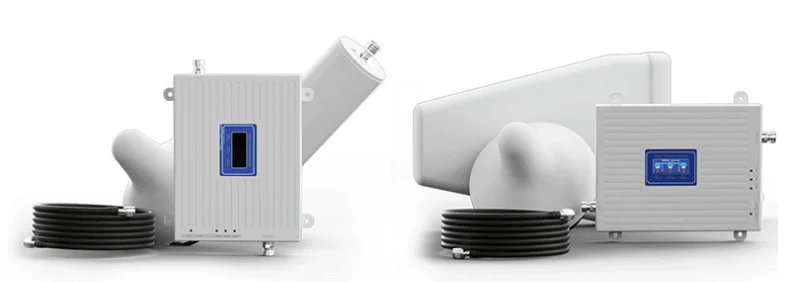

GSM 2G 3G 4G Triband 900 1800 2100mhz Cellphone Signal Repeater LTE Network Cellular amplifier Mobile signal Booster Wifi
- Category: >>>
- Supplier: Nanjing Shinewave Technology Co. Ltd.
Share on (1600721801552):
Product Overview
Description
SPECIFICATIONS
Model NO. | SWT-S3GDWR-D |

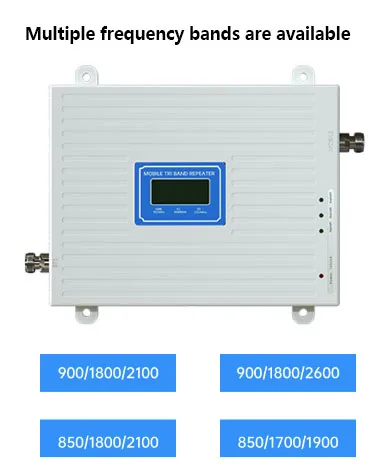

Frequency range:900/1800/2100 (b8, b3, b1) | 900/1800/2100 mhz |
Gain | 65-70DBi |

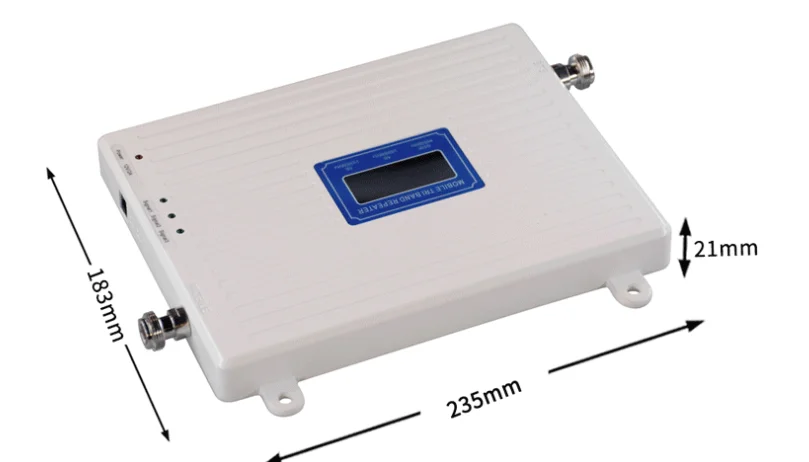

Products Size | 24.5*18.2*2 cm |
Coverage Area | 500-2000m² |
AC/DC | Input AC100 240V 50/60HZ, output DC 12V 2A |
Host weight | 0.85KG |
weight with packaging | 1.15kg |
OUT PUT POWER | 15-20DB |
up link (Mhz) | 883-920 1696-1779 1901-2003 |
downlind (Mhz) | 924-968 1791-1893 2092-2191 |
operating Temperature | -25ºC~+55ºC |
package dimensions | 33*22*6cm |
Nanjing Shinewave Technology Co.,Ltd. is established in year 2008,and it's a company specialized in the research and development,production and sales of RF microwave active,passive components and subsystems.Based on the academic research team of Nanjing University of Aeronautics and Astronautics, our company has established an innovative research and development team with doctor and master degree talents, and constantly attracts outstanding talents in the industry and outstanding students from famous universities to expand the team.
Our company has about 20 authorized invention patents in active,passive device phase shifter reconfigurable antenna, etc. The application fields are related to radar electronic countermeasures, aerospace, navigation and other military fields. At the same time, it is also widely used in microwave communication, mobile communication and other civil market products, covering RF microwave devices components and antennas, among which, active products include high power solid-state microwave power amplifier, low noise amplifier transceiver module, up and down frequency converter, frequency source, etc. Passive products include microwave filter,duplexer power divider, coupler, power synthesizer, etc. The antenna products are mainly based on various high gain horn antennas, which covers VHF, UHF, L-band, S-band, C-band, X-band, Ku band and so on.
Our company is located in the beautiful ancient capital of six Dynasties, in Nanjing Yuhuatai District Big Data Industrial Base.
To meet the special needs of customers and higher index requirements, in addition to the standard products, we also provide customers with customized products development methods, dedicated to provide customers with fast and high-quality products and services.
Over ten years' OEM/ODM experience.
R&D team with doctor,master degree talents.
Products covers a wide range of applications.
