Product Overview

Description



Product Details

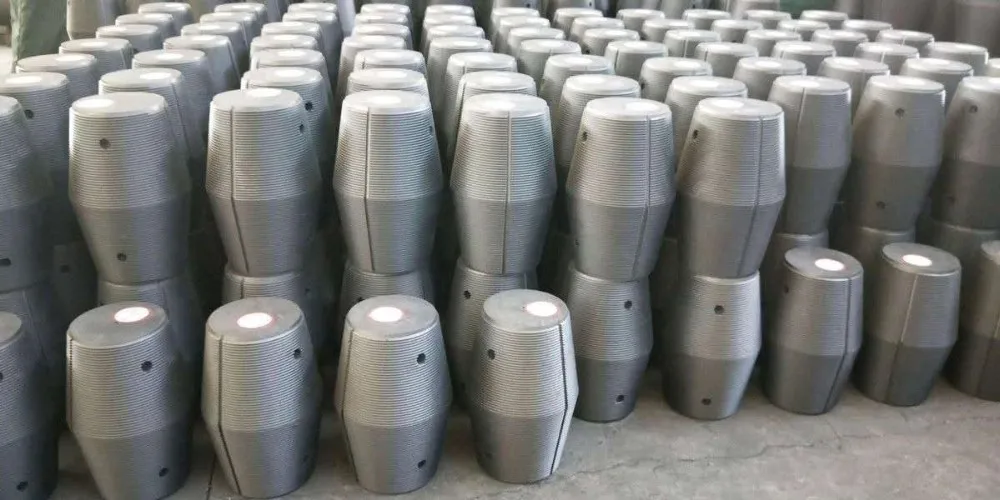

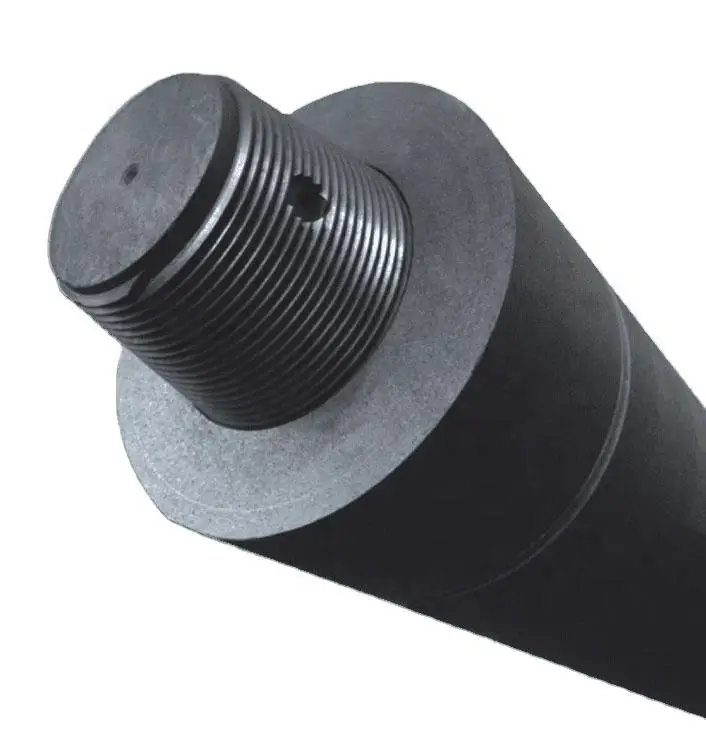

Graphite electrode product


Graphite electrode is made of high quality calcined petroleum coke,imported needle coke and modified coal asphalt,the grade are RP,HD(impregnation),HP and UHP graphite electrodes,the specification is Ø75-700mm.

Graphite electrode produced by our company has the advantages of low resistivity,high electrical conductivity and thermal conductivity,good oxidation resistance,good thermal shock resistance,high mechanical strength,easy to machine,etc.

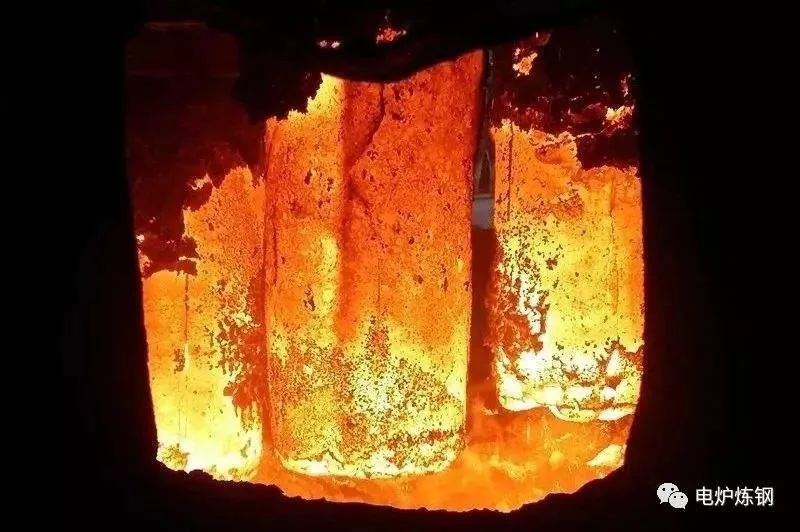

Graphite electrode is widely used to smelt the steel,alloy steel and other metal or nonmetal material in electric arc furnace.



Product Introduction






Product Parameters


PHYSICAL & CHEMICAL PROPERTIES OF UHP GRAPHITE ELECTRODE AND NIPPLE





Item


Unit
Nominal diameter(mm)
UHP graphite electrode
350-500
550-750
Guaranteed
Typical
Guaranteed
Typical
Specific resistance
≤
Electrode

uΩ.m
6.3
5.0-6.0
5.8
4.8-5.5
Nipple
5.3
3.8-4.5
4.3
3.5-4.1
Flexural strength ≥
Electrode

MPa
10.5
11-13
10.
10-13
Nipple
20
20-25
23
24-30
Elastic modulus ≤
Electrode

GPa
14
8-12
14
7-10
Nipple
20
12-16
22
16-21
Bulk density ≥
Electrode

g/cm3
1.66
1.68-1.73
1.68
1.69-1.73
Nipple
1.75
1.76-1.82
1.78
1.79-1.84
CTE (100℃-600℃) ≤
Electrode

10-6 /℃
1.5
1.3-1.5
1.5
1.3-1.5
Nipple
1.4
1.0-1.3
1.3
1.0-1.3
Ash ≤
%
0.5
0.2-0.4
0.5
0.2-0.4




RECOMMENDED CURRENT LOAD OF ELECTRODE




Grade

Nominal Dia(mm)
Allowable current (A)
Current density (A/cm2)
AC
DC
AC
DC
350
20000-32000
-----
20-32
----
400
25000-41000
-----
20-32
----
450
32000-49000
-----
20-30
-----
500
40000-60000
------
20-30
-----
550
45000-68000
49000-78000
18-28
20-32
600
52000-81000
58000-93000
18-28
20-32
650
60000-85000
64000-100000
18-28
20-32
700
71000-100000
79000-120000
18-27
20-30
750
82000-123000
91000-135000
18-27
20-30

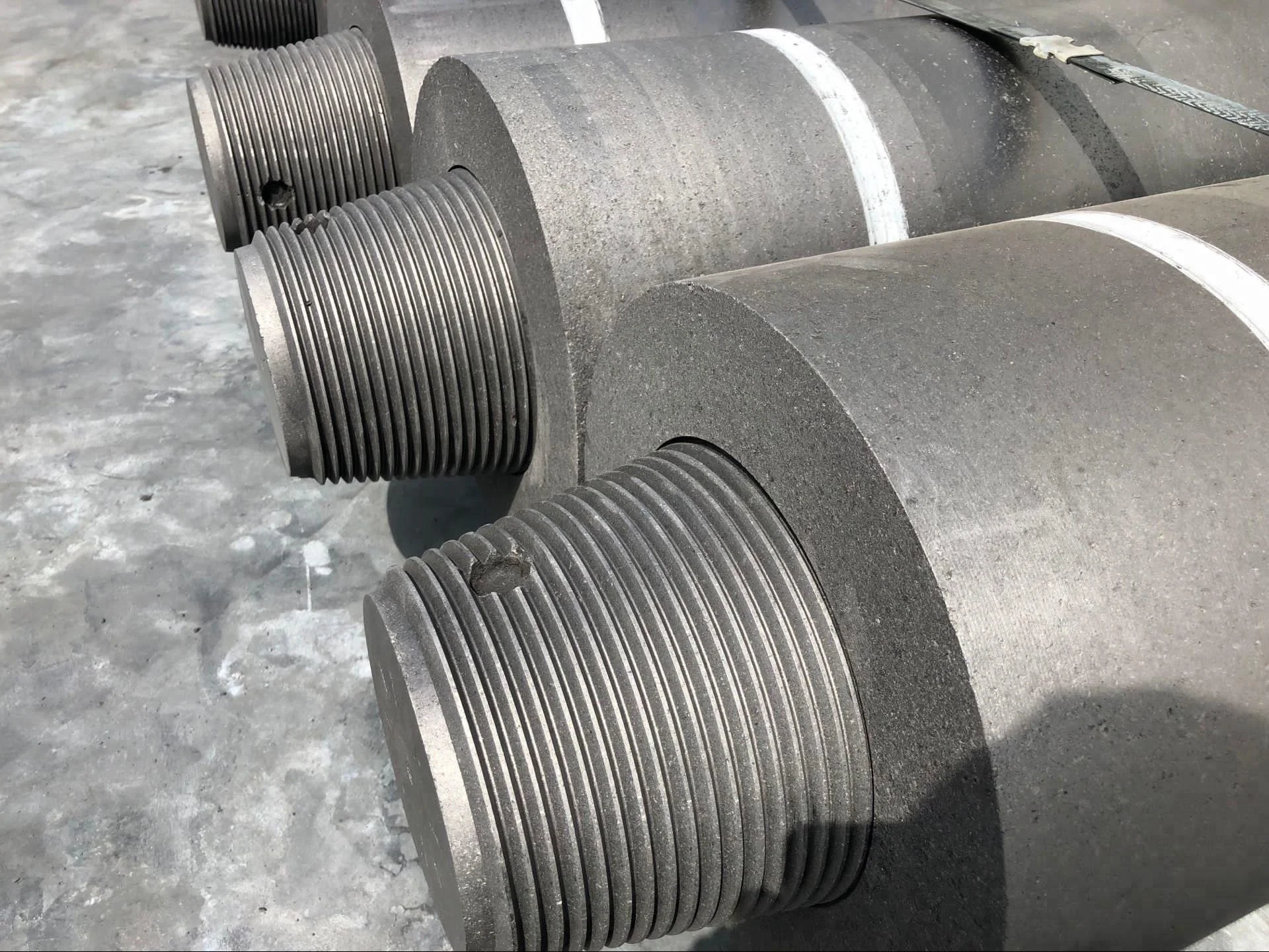

Product processing


We have a full set of production line:

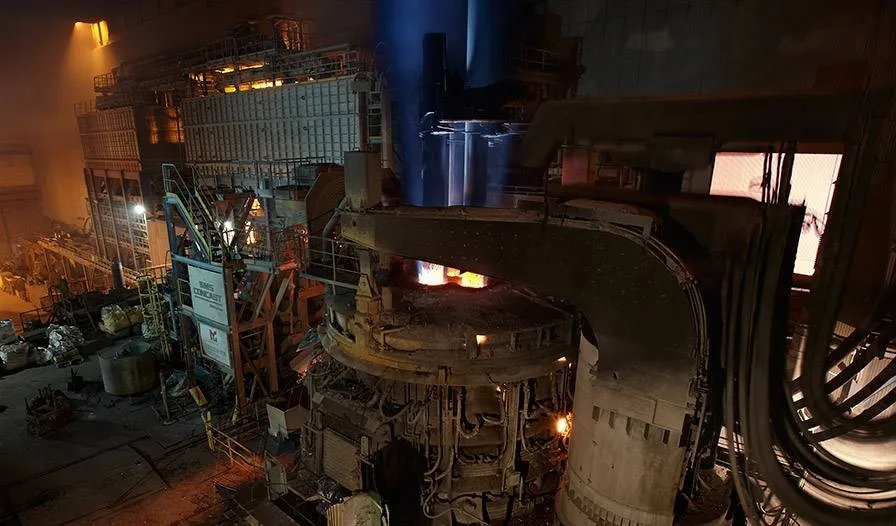

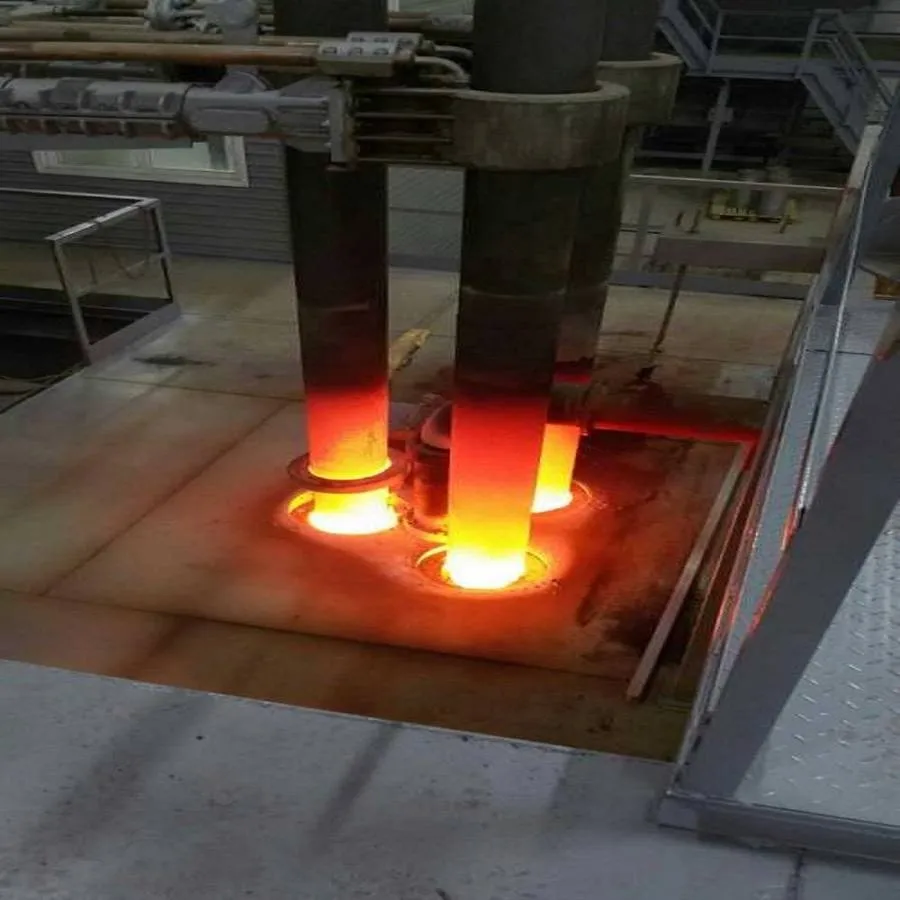

Application

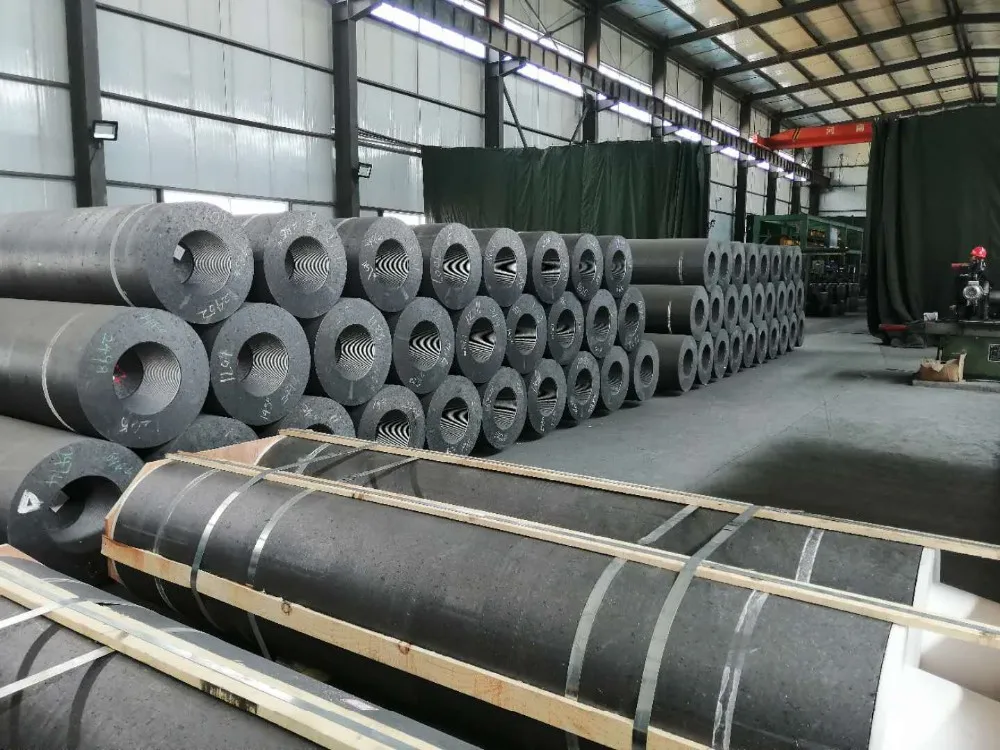

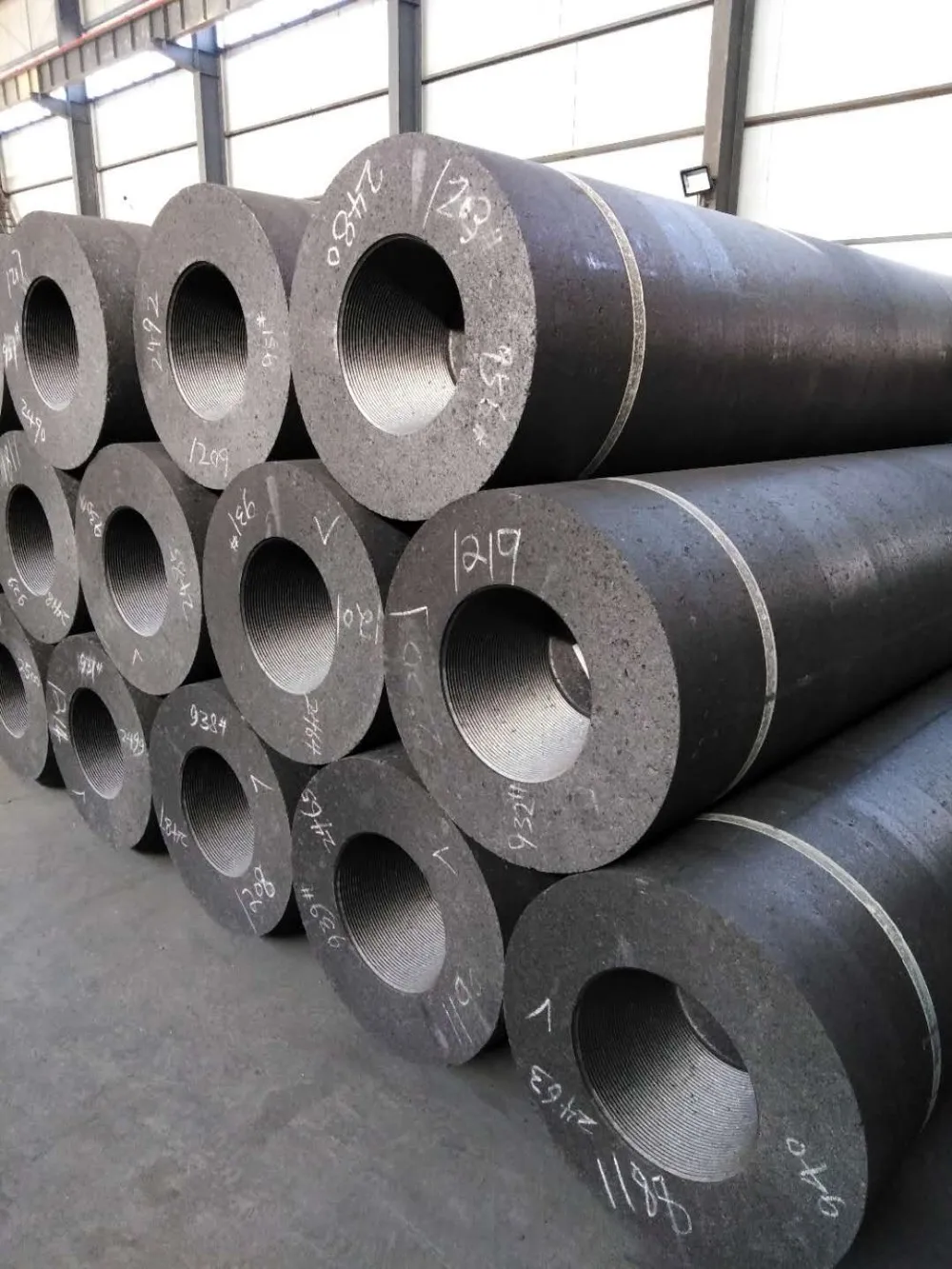

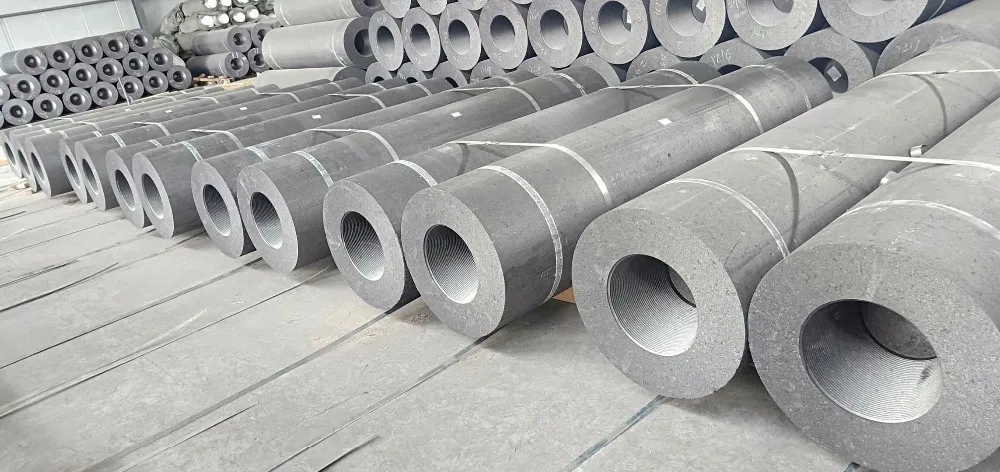

Packing&Delivery



PACKING AND SHIPPING











PAYMENT





EXHIBITION

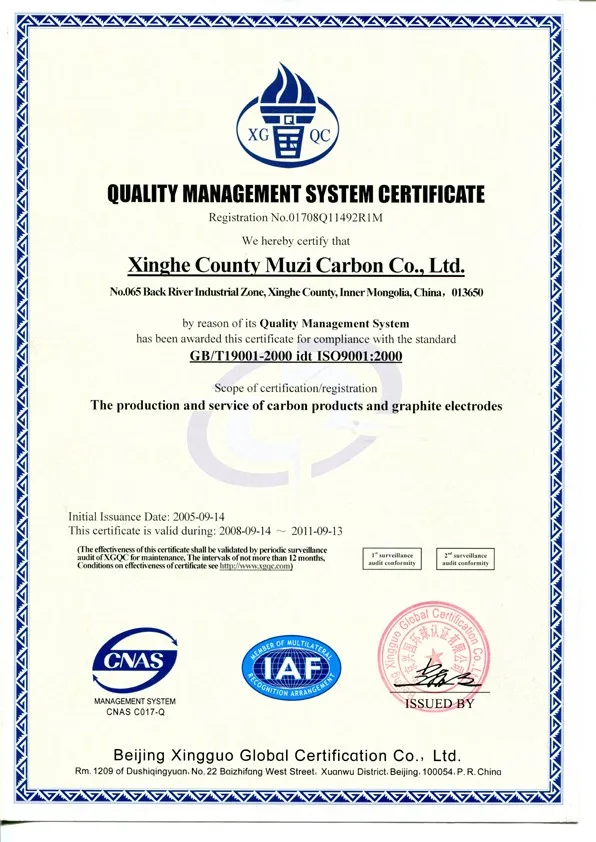

CERTIFICATION







FAQ


1.When can I get the price?
     We usually quote within 1 hours after getting your detailed requirements,like size,quantity etc. .
     If it is an urgent order, you can call us directly.


2.Price?

   Before inquiry us the price, pls be kindly send us the detail data of the material you need.
   We will give you our best price.

3.MOQ?
    If for trial order,we accept 1-100 pcs.

4. Do you provide samples?
     Yes, samples are available for you to check our quality.

5.What is your terms of delivery?
    We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you. Besides that, we can also send          the product to you by Air and Express.

6.Product packaging?
    The product will be packed in bags and boxes, or according to your requirements.

7.Notice
    Please note that the price on alibaba is a rough price.The actual price will depends on raw
    materials,exchange rate, and your order quantity
