Starway Multi tone two speaker horn alarm siren amplifier ambulance low frequency speaker
- Category: >>>
- Supplier: Ningbo Starway Security Equipment Co. Ltd.
Share on (1600721979593):
Product Overview
Description
Specification
Model | SY-JH8000SY |
voltage | 9-15 VDC |
Dim. (H x L x D) | Amplifier – 2.4 in (6 cm) x 6.3 in (16 cm) x 4.7 in (12cm) Pair of Woofers - 8.5 in (21.6 cm) x 7.3 in (18.4 cm) |
Materials | Nylon plastics and Aluminum alloy body |
Frequency Ranges | 182 to 400 Hz |
Output Voltage | 64 VDC (nominal) peak-to-peak |
Output Power | 80W |
Brand | StarwaySignal |
Operating Temperature Range | -30˚C to +65˚C |
Ship Weight | 7.6KGS |
Product Description
The JACK HAMMER is a low frequency amplifier, which, together with a 100W Siren, will add supplemental warning to an emergency response vehicle. Please be advised that in order to activate the low frequency tones of the JACK HAMMER, the regular siren tone must be operating, as the tones outputted are based off the vehicle’s original siren system. Together, the system increases close proximity warning effectiveness by generating siren signals that better penetrate a vehicle’s interior.
Physical Installation:
The JACK HAMMER Amplifier comes equipped with two mounting brackets, which enable the unit to be mounted in a variety of
positions. The unit has no user operated controls on the amplifier, so it can be mounted underneath the seats, trunk, or in any
other concealed area of a vehicle. The amplifier must be installed in an adequately ventilated area. Never install near heater
ducts or under the vehicle’s hood.
positions. The unit has no user operated controls on the amplifier, so it can be mounted underneath the seats, trunk, or in any
other concealed area of a vehicle. The amplifier must be installed in an adequately ventilated area. Never install near heater
ducts or under the vehicle’s hood.
The JACK HAMMER speakers should be mounted securely using the supplied brackets, with the vents face downward, for maximum output.
The JACK HAMMER speakers should be mounted securely using the supplied brackets, with the vents face downward, for maximum output.
The JACK HAMMER is a low frequency amplifier, which, together with a 100W Siren, will add supplemental warning to an emergency response vehicle.
Please be advised that in order to activate the low frequency tones of the JACK HAMMER, the regular siren tone must be operating,
as the tones outputted are based off the vehicle’s original siren system. Together, the system increases close proximity warning
effectiveness by generating siren signals that better penetrate a vehicle’s interior.
as the tones outputted are based off the vehicle’s original siren system. Together, the system increases close proximity warning
effectiveness by generating siren signals that better penetrate a vehicle’s interior.
FEATURES:
●Improves emergency vehicle operator safety
●Produces penetrating/vibrating low frequency siren sound waves
●Interacts with most 100/200-watt emergency vehicle siren amplifiers
● Enabled via any emergency vehicle steering wheel horn ring
●Eight second safety timer provides automatic tone shutdown
● Highly effective in dense urban environments with heavy vehicle traffic
●Produces penetrating/vibrating low frequency siren sound waves
●Interacts with most 100/200-watt emergency vehicle siren amplifiers
● Enabled via any emergency vehicle steering wheel horn ring
●Eight second safety timer provides automatic tone shutdown
● Highly effective in dense urban environments with heavy vehicle traffic
●The JACKHAMMER, intersection-clearing system, demonstrates the long-standing commitment to continue as the technological
leader in audible warning and operator safety. The JACKHAMMER is particularly effective for Fire/EMS applications when used in dense urban environments with heavy vehicle and pedestrian traffic.
● Improves Intersection Warning Effectiveness
The JACKHAMMER introduces a revolutionary new concept to audible warning through its ability to interact with most 100/200-watt
siren amplifiers and provide secondary, low frequency duplicate tones. Low frequency tones have the distinct advantage of
penetrating solid materials allowing vehicle operators and nearby pedestrians to FEEL the sound waves.
● Secondary System with Built-in Safety
The JACKHAMMER system senses the primary siren tone signal, and reduces the amplifiers.
leader in audible warning and operator safety. The JACKHAMMER is particularly effective for Fire/EMS applications when used in dense urban environments with heavy vehicle and pedestrian traffic.
● Improves Intersection Warning Effectiveness
The JACKHAMMER introduces a revolutionary new concept to audible warning through its ability to interact with most 100/200-watt
siren amplifiers and provide secondary, low frequency duplicate tones. Low frequency tones have the distinct advantage of
penetrating solid materials allowing vehicle operators and nearby pedestrians to FEEL the sound waves.
● Secondary System with Built-in Safety
The JACKHAMMER system senses the primary siren tone signal, and reduces the amplifiers.
signals’ frequency by 75%. It then amplifies the
sound through a pair of high output woofers. The system’s timer allows the tone to sound for eight seconds, providing highly

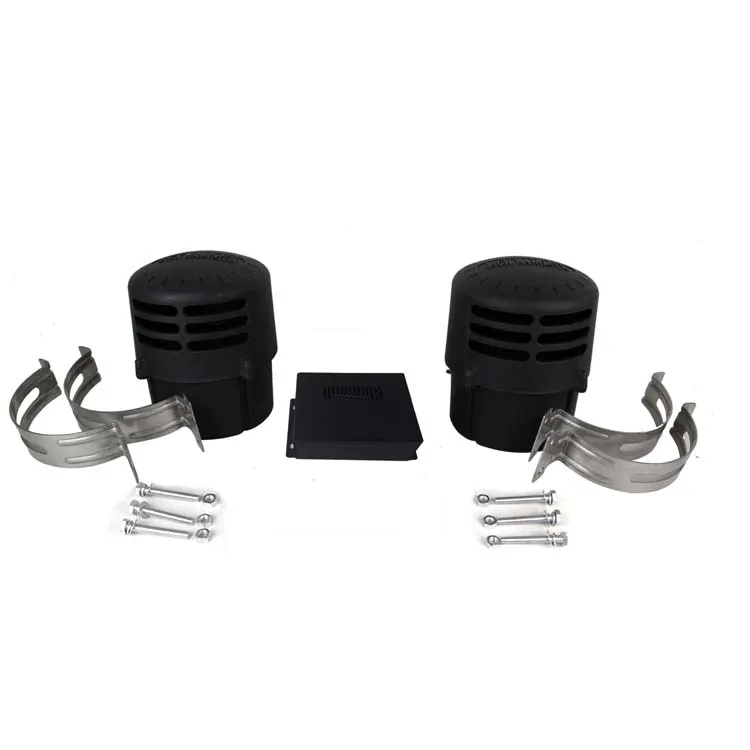

effective warning at hazardous intersections, ● A complete JACKHAMMER intersection-clearing system consists of an amplifier, with built-in timer and two subwoofers. Vehicle
specific mounting hardware is ordered separately. This system can be paired with most 100/200-watt emergency siren
sound through a pair of high output woofers. The system’s timer allows the tone to sound for eight seconds, providing highly
effective warning at hazardous intersections, ● A complete JACKHAMMER intersection-clearing system consists of an amplifier, with built-in timer and two subwoofers. Vehicle
specific mounting hardware is ordered separately. This system can be paired with most 100/200-watt emergency siren
Packing & Delivery
Company Profile
NINGBO STARWAY SECURITY EQUIPMENT CO.,LTD is the manufacturer in China which specializes in R&D. production and sale of warning systems, emergency light bars and sirens for police, fire truck, Motorcycle, Construction and School Bus Industries. It's our responsibility to make R&D of new stuffs continuously and satisfy customer's needs. Our line of products incorporates the latest technology and all our products are designed and engineered in China and overseas customers . It's also our target to create the products with low costs and high quality.
At present, our products are exported to USA, Canada, Southern American and European countries. Competitive price, superior quality and best services are our offering to all of customers. Any of your requirements will always be met, OEM & ODM are welcomed.
Our factory insists on having excellent goods & punctual delivery. We will also make our efforts to make all customers absolutely be satisfactory on our services.
The safety of our customers is paramount.
At present, our products are exported to USA, Canada, Southern American and European countries. Competitive price, superior quality and best services are our offering to all of customers. Any of your requirements will always be met, OEM & ODM are welcomed.
Our factory insists on having excellent goods & punctual delivery. We will also make our efforts to make all customers absolutely be satisfactory on our services.
The safety of our customers is paramount.
Certifications
FAQ
Q1: Are you manufacturer or trading company?
A: We are Professional Manufacturer and welcome to visit our factory and we have much experienced for exporting our goods also we have import and export right .
Q2: Can I get the sample before making order ?
A: Yes ,sample charged !
Q3:What's the leading time?
A:1.It is based on order quantity. For small order,it spends 3-5 days and For large order, 25 days or so .
Q4:What the warranty terms for your products?
A:All of our products have at least 3 year warranty.
Q5: Do you accept customized design ?
A: Yes , we accept the kind of orders .
Q6: I have new product , can you develop it for me ?
A:Yes ,we can develop it also we can share some molds costs to develop together .
A: We are Professional Manufacturer and welcome to visit our factory and we have much experienced for exporting our goods also we have import and export right .
Q2: Can I get the sample before making order ?
A: Yes ,sample charged !
Q3:What's the leading time?
A:1.It is based on order quantity. For small order,it spends 3-5 days and For large order, 25 days or so .
Q4:What the warranty terms for your products?
A:All of our products have at least 3 year warranty.
Q5: Do you accept customized design ?
A: Yes , we accept the kind of orders .
Q6: I have new product , can you develop it for me ?
A:Yes ,we can develop it also we can share some molds costs to develop together .
