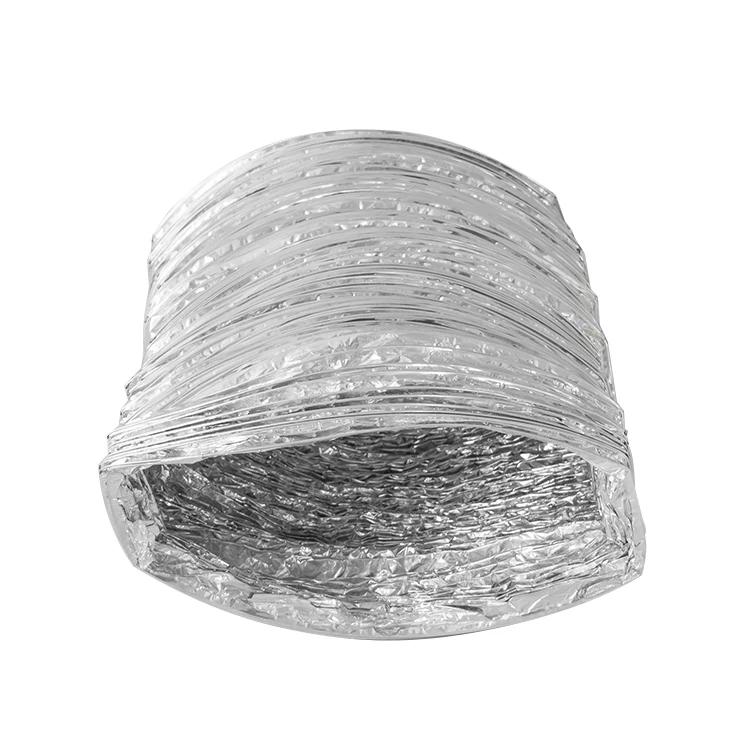

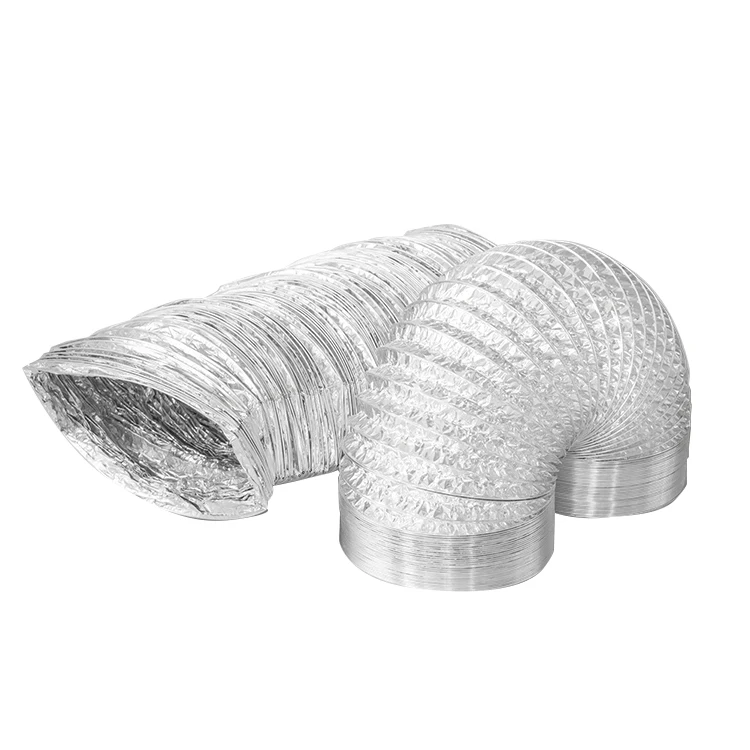

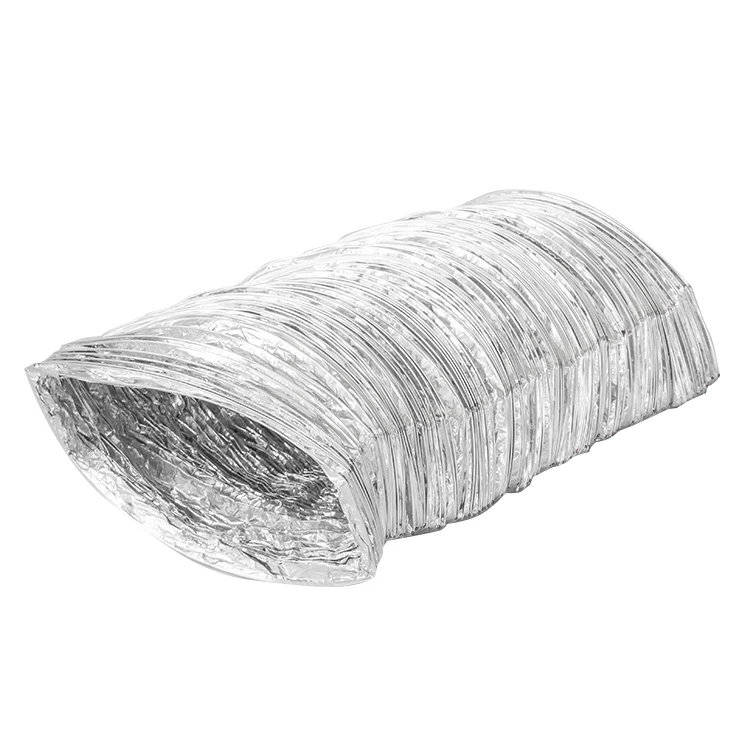

High quality Rectangle aluminum flexible duct 12 inch aluminum foil hose flexible duct
- Category: Home Appliance Parts >>>
- Supplier: Shanghai,Qianjing,Ducting,Co.,Ltd.
Share on:
Product Overview
Description
Production Paramenters
Product Code | XY-111 | |
Construction | 2 Aluminum Foil + 1 PET | |
Color | Silver | |
Available Diameter | customized | |
Carbon Steel Wire Diameter | 0.6mm-2.5mm | |
Standard Length | 10m(Max) | |
Thickness | 0.032mm-0.035mm | |
Fire Resistance | Class A2(Max) | |
Compress Ratio | 1：25 | |
Temperature Range | -30℃/+150℃ | |
Operating Pressure | 3000Pa | |
Maximum Air Velocity | 30m/s | |
Features:
1.Rectangle aluminum flexible duct is made of 2 Aluminum Foil+1PET and carbon steel wire.2.No need special tools for cutting and it is easy to connect to ducting.
3.In case of fire no toxic gas are emitted, excellent resistance to chemicals.
4.The product has been successfully tested for fire resistance.
5.The product has been successfully tested for pressure.
6.Can be bent in any direction(Small bending radius).
7.Standard length is 10 meters or as customized request.
8.Space saving, compress rate 25:1.
9.Easy installation with long service life. Ideal for using in general purpose exhaust applications.
Production Packing
Carton Measurement for packing(length 10m/pc) | ||||||||
Diamter(mm) | PVC Duct | COMBI PVC Duct | Aluminum Duct | Insulated Duct | ||||
75mm | 100*100*300mm | 100*100*900mm | 100*100*410mm | 150*152*1010mm | ||||
102mm | 125*125*300mm | 130*130*450mm | 125*125*410mm | 182*182*1010mm | ||||
125mm | 150*150*300mm | 150*150*450mm | 150*150*410mm | 200*200*1010mm | ||||
152mm | 175*175*260mm | 180*180*410mm | 175*175*370mm | 230*230*1010mm | ||||
165mm | 185*185*260mm | 190*190*410mm | 185*185*370mm | 240*240*1010mm | ||||
203mm | 225*225*260mm | 230*230*410mm | 225*225*370mm | 280*280*1010mm | ||||
254mm | 275*275*260mm | 280*280*410mm | 275*275*370mm | 330*330*1010mm | ||||
305mm | 325*325*260mm | 330*330*410mm | 325*325*370mm | 380*380*1010mm | ||||
315mm | 340*340*260mm | 340*340*410mm | 340*340*370mm | 390*390*1010mm | ||||
355mm | 375*375*260mm | 380*380*410mm | 375*375*370mm | 430*430*1010mm | ||||
405mm | 425*425*260mm | 430*430*410mm | 425*425*370mm | 480*480*1010mm | ||||
455mm | 475*475*260mm | 480*480*410mm | 475*475*370mm | 530*530*1010mm | ||||
505mm | 520*520*260mm | 530*530*410mm | 520*520*370mm | 580*580*1010mm | ||||
555mm | 575*575*260mm | 580*580*410mm | 575*575*370mm | 630*630*1010mm | ||||
