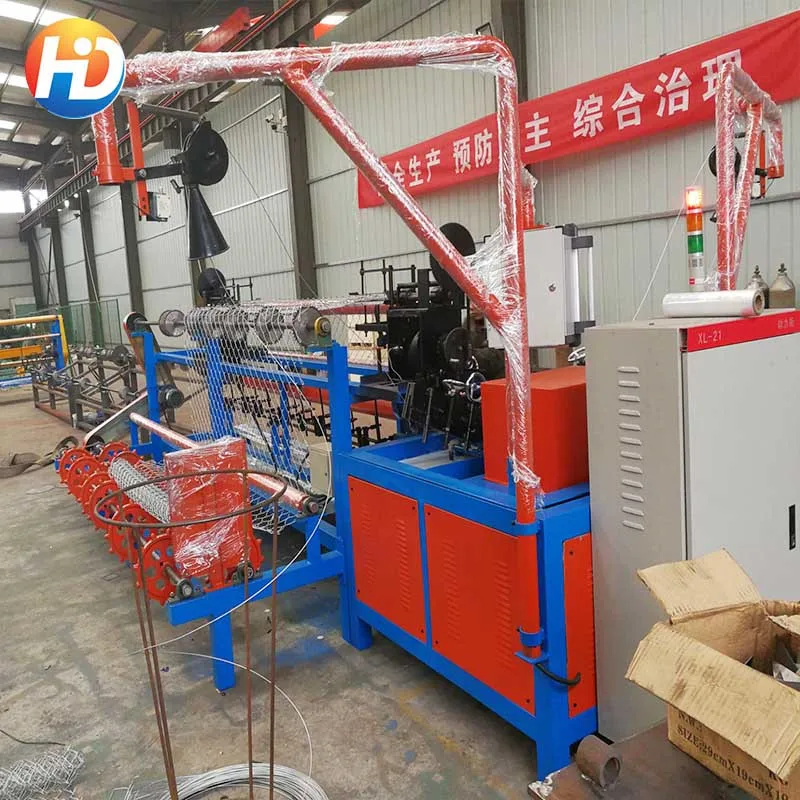

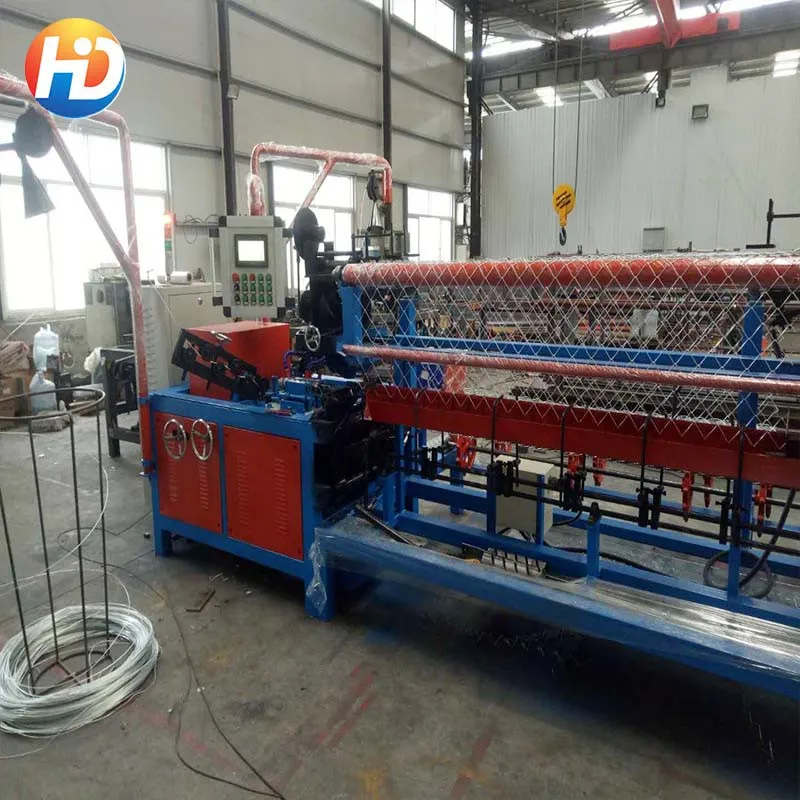

Heavy Duty Automatic Cyclone Fence Mesh Machine / Chain Link Hot Dipped Galvanized Fence Machine

Product Overview

Description





latest version Haodi Machine Automatic Automatic Cyclone Fence Mesh Machinery Factory 2 motor



Product Description

Chain link fence machine is one of Wire Mesh Fencing Machine .This mesh fence machine use servo motor controlling.Servo motor can produce with high speed, high quality. high accuracy. it contain rolling part and edge folded or twisted part.



· Designed for continuous working system as 24 hours.

· Automatically fencing, cutting, and roll wrapping process.

· All the information about metering, wire fencing and speed can be set can set via touch screen.

· Intervening immediately via internet connection on event of a technical failure.Video or phone all ok

· Just one technical person is enough to wire fencing process.



machine to make fencing wire

Chain link fence machine also called Diamond mesh making machine.It's CNC PLC Controller fully automatic fence weaving machine.This Wire mesh fence machine is used servo motor controlling with high speed, high quality. high accuracy.





Machine	Dimensions	mm	4800*2100*1400 (3m type)
	Power	Kw	8.8
	Weight	Kgs	2200
Wire mesh	Mesh Width	m	0.8-3
	Wire Diameter	mm	1.6-4.2 (PVC coated wire : 1.8-5.8 )
	Hole size	mm	25-125(1"-5")
Others	wire materials	Galvanized Wire,PVC Coated Wire,Stainless Steel Wire,etc.
	capcity	m2/hour	60-120
	Rated Voltage	V	380  (customer design)

Fully-automatic Haodi Machine Automatic Automatic Cyclone Fence Mesh Machinery Factory mainly weaves wire diameter range is 1.6mm-4.2mm, this machine includes wire fence weaving machine, fence edge bending machine (knuckle part and twsited part), rolling machine or compact machine and mould. And the aperture is 1" - 5", the weaving width can reach 3m (special type 6 meters).





· Wire fencing capacity (speed) :120m2 / hour – ( as result of tests 70mm mesh size)

· Wire fencing option up to 6 meters height.(the minimum could be any size)

· Rolling models is 4 types. (Normal,Combi, Partially Compact, Compact) So transfer costs decrease 70%.

· Designed for continuous working system as 24 hours.

· Dual-wire input,Dual mold technology

· Can Working with galvanized Wire.PVC coated wire.Stainless steel wire,Black Annealed wire,

· Automatically fencing, cutting, and roll wrapping process.

· All the information about metering, wire fencing and speed can be set can set via touch screen.

· Informs the wire fencing errors with light and sound.



Machine Dimensions	mm	4800*2100*1400 (3m type)
Power	Kw	10
Weight	Kgs	1800
FENCE Width	m	0.8-3
Wire Diameter	mm	1.6-4 (PVC coated wire : 1.8-5.8 )
Hole size	mm	25-125(1"-5")
capcity	m2/hour	80-150
