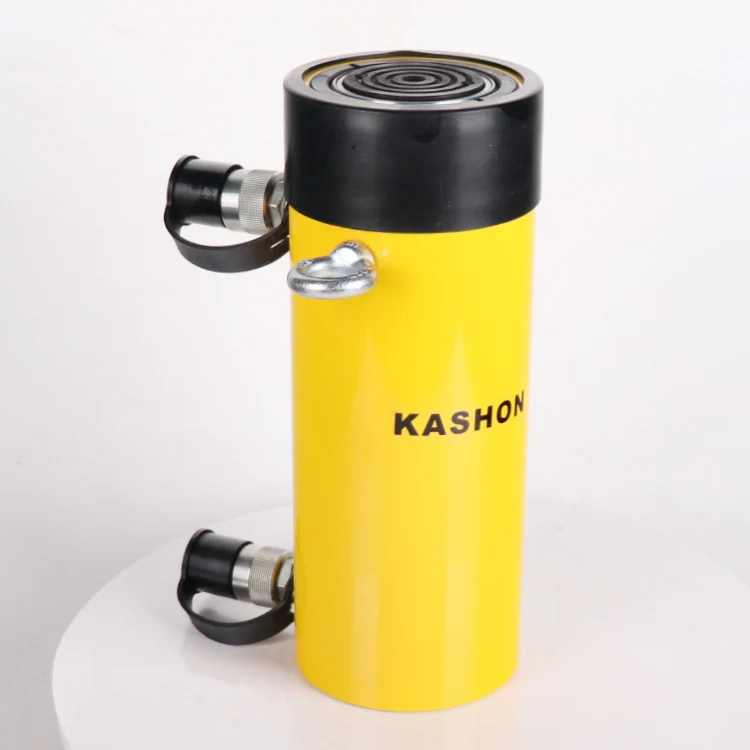

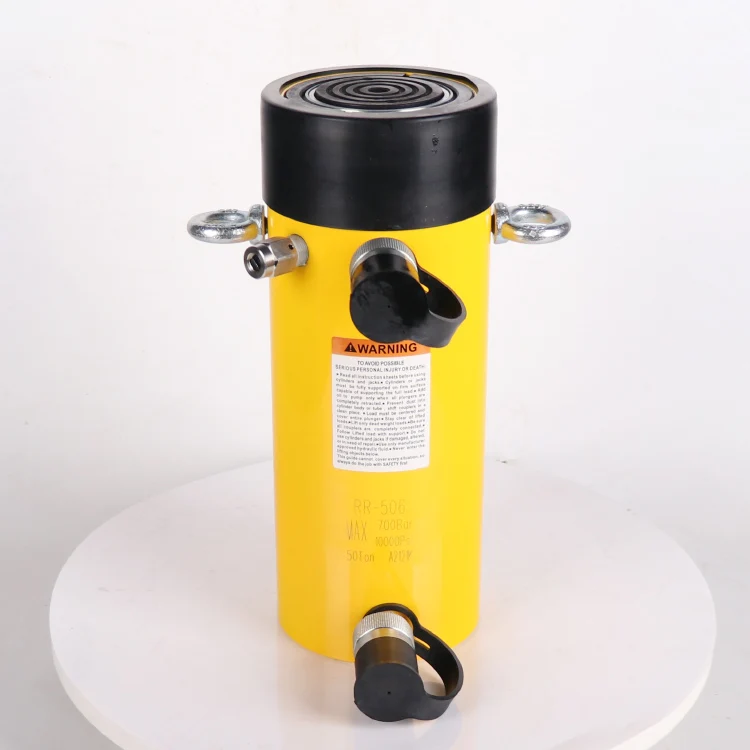

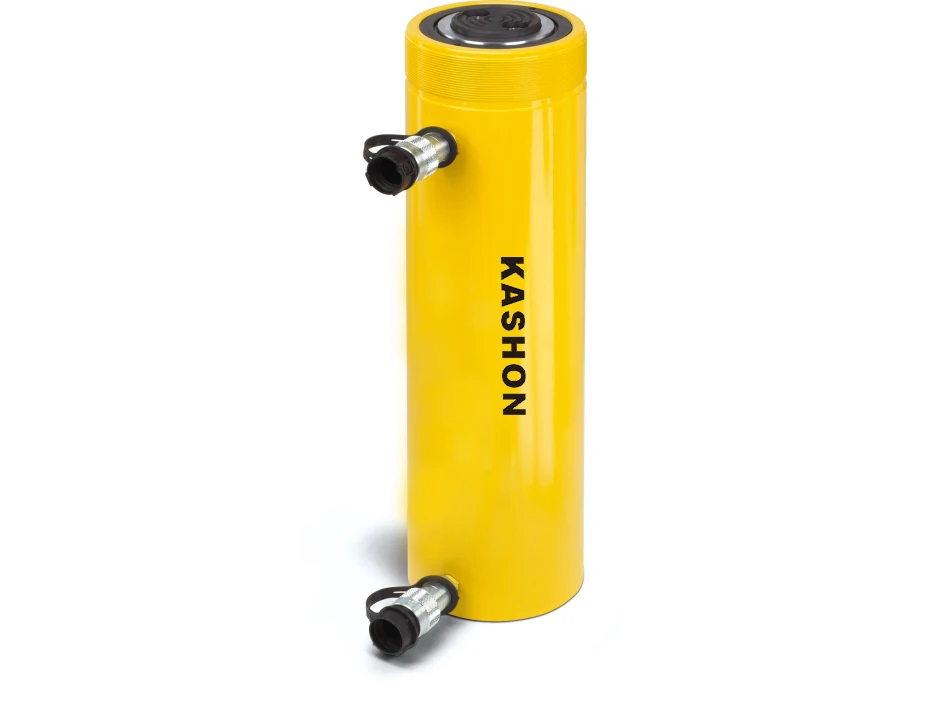

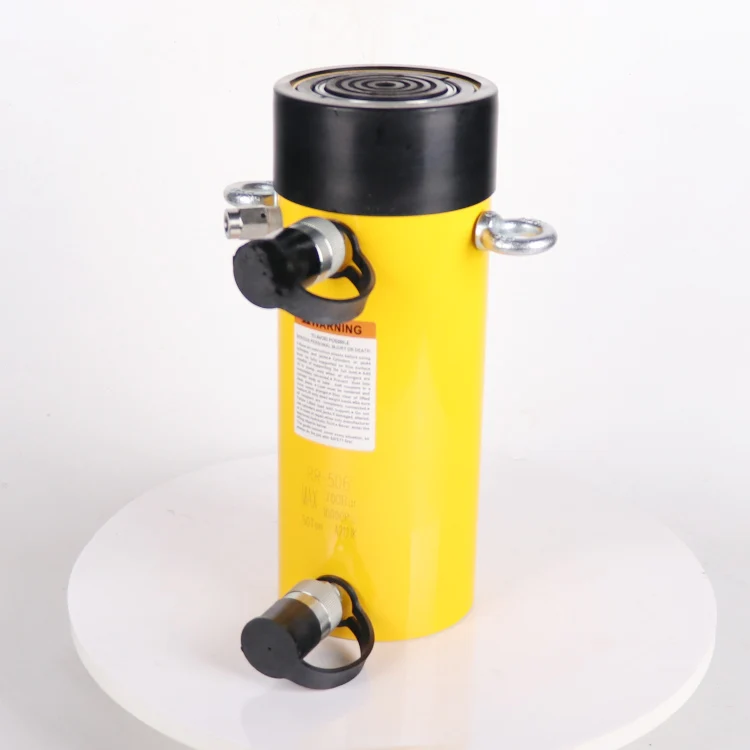

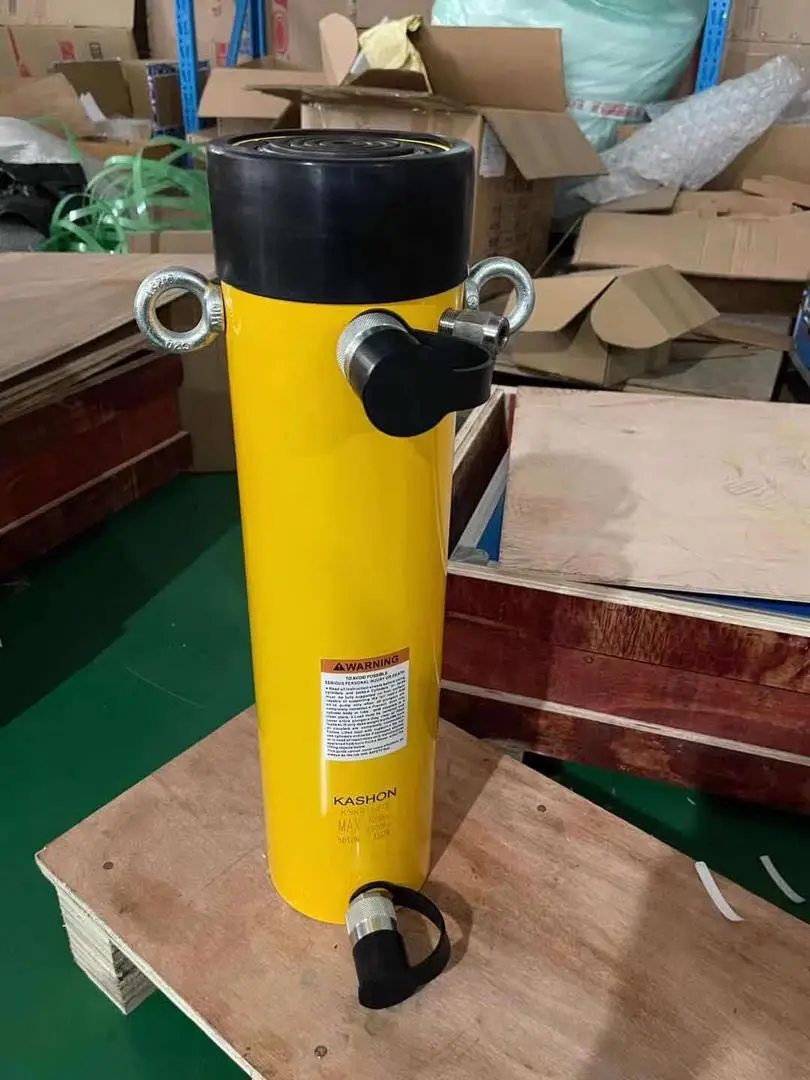

Enerpac equivalent KSRR 50 ton Double Acting Hydraulic Jack Cylinder
- Category: >>>
- Supplier: Taizhou Kashon Power Equipment Co. Ltd.Taizhou Ltd.
Share on (1600722693418):
Product Overview
Description
1. Collar threads, plunger threads and base mounting holes for easy fixturing
2. Baked enamel finish for increased corrosion resistance.

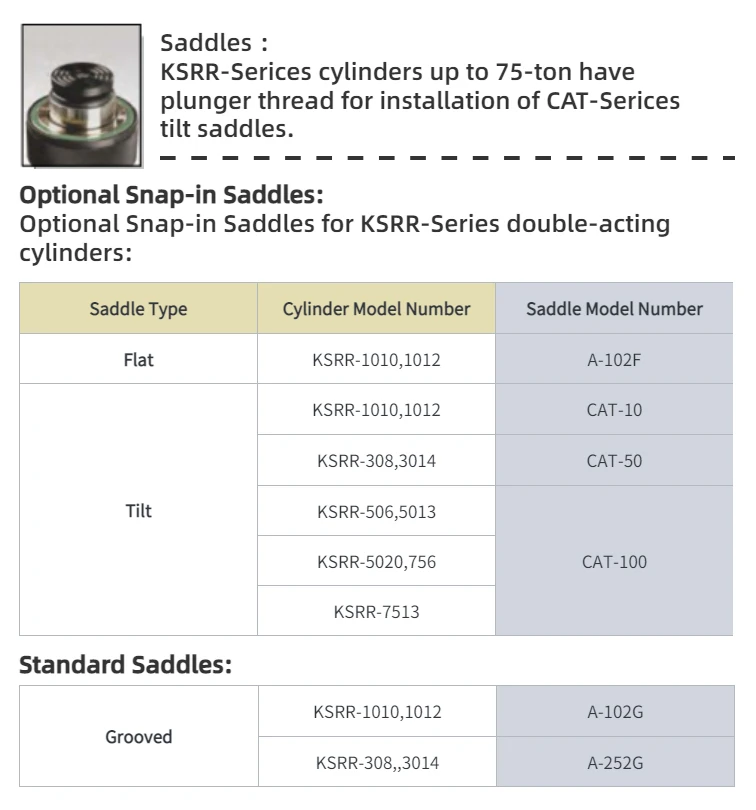

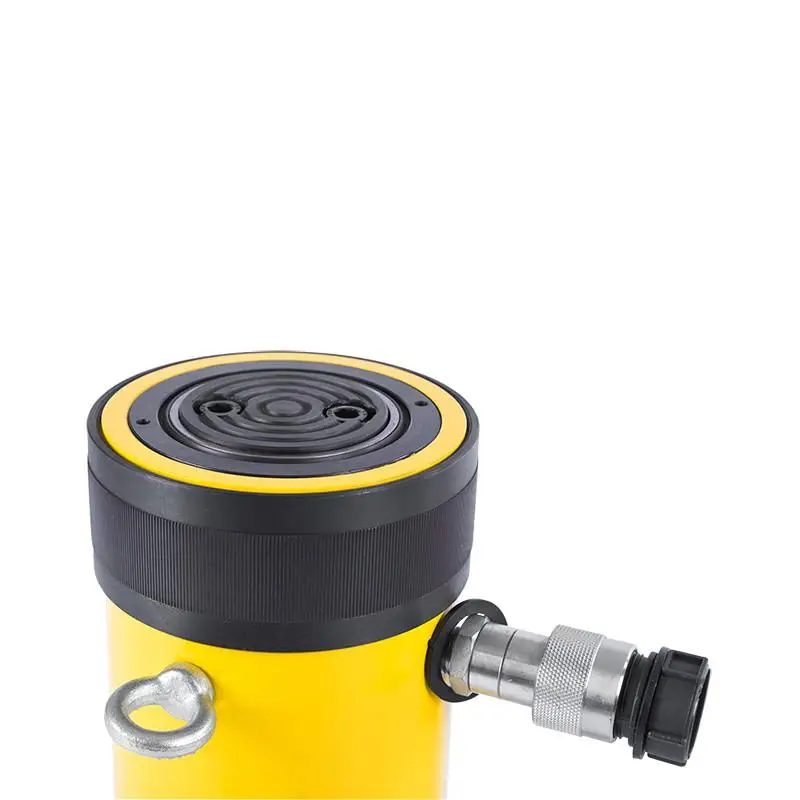

3. Removable hardened saddles protect plunger during lifting and pressing.
4. Built-in safety valve prevents accidental over-pressurization.
5. KSRR-400 coupler and dust cap included on all models.
2. Baked enamel finish for increased corrosion resistance.
3. Removable hardened saddles protect plunger during lifting and pressing.
4. Built-in safety valve prevents accidental over-pressurization.
5. KSRR-400 coupler and dust cap included on all models.
6. Plunger wiper reduces contamination, extending cylinder life.

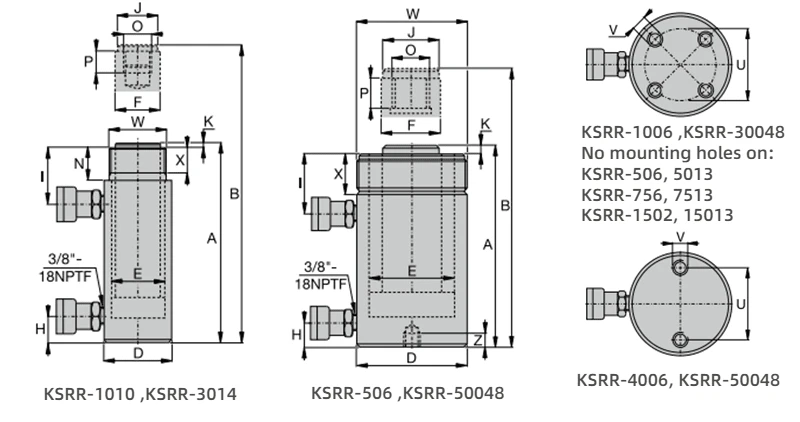

Quick Selection Chart :
For complete techniacl information please contact the sales.
Cylinder Capacity ton (kN) | Stroke (mm) | Model Number | Cylinder Effective Area (cm2) | Oil Capacity (cm2) | Collapsed Height (mm) | Bolt Circle (mm) | Weight (kg) | ||||
Push | Pull | Push | Pull | ||||||||
10 (101) | 254 | KSRR-1010* | 101 | 33 | 368 | 122 | 409 | --- | 12 | ||
305 | KSRR-1012* | 101 | 33 | 442. | 147 | 457 | --- | 14 | |||
30 (295) | 209 | KSRR-308* | 295 | 53 | 879 | 400 | 395 | --- | 18 | ||
368 | KSRR-3014* | 295 | 53 | 1549 | 703 | 549 | --- | 29 | |||
50 (498) | 156 | KSRR-506 | 498 | 103 | 1111 | 335 | 331 | --- | 30 | ||
334 | KSRR-5013 | 498 | 103 | 2378 | 718 | 509 | --- | 52 | |||
511 | KSRR-5020 | 498 | 103 | 3638 | 1099 | 733 | 76 | 68 | |||
75 (718) | 156 | KSRR-756 | 718 | 156 | 1601 | 490 | 347 | --- | 41 | ||
333 | KSRR-7513 | 718 | 156 | 3417 | 1046 | 525 | --- | 68 | |||

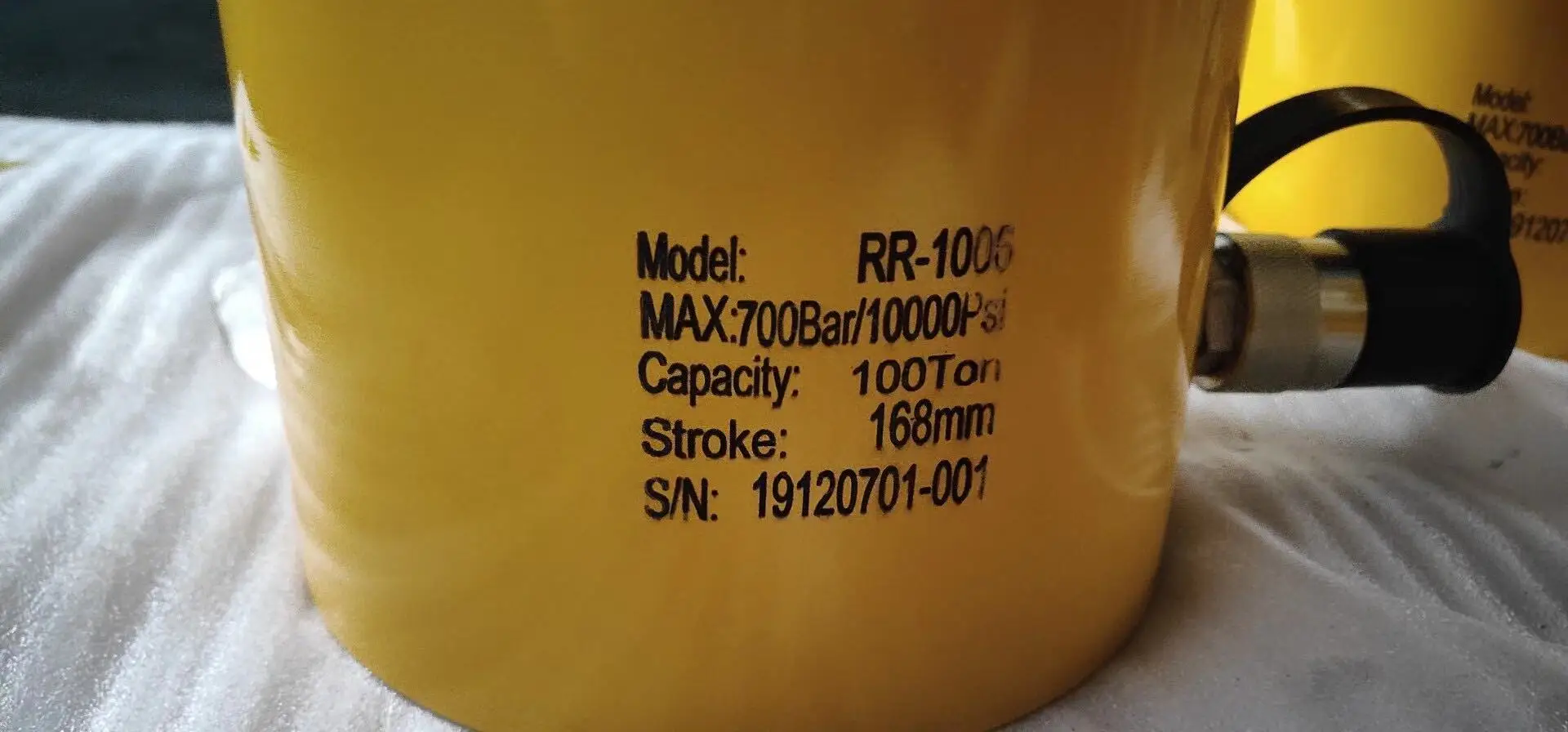

95 (933) | 168 | KSRR-1006 | 933 | 435 | 2238 | 1045 | 357 | 139 | 61 | ||
333 | KSRR-10013 | 933 | 435 | 4439 | 2071 | 524 | 139 | 93 | |||
460 | KSRR-10018 | 933 | 435 | 6132 | 2861 | 687 | 139 | 117 | |||
140 (1386) | 57 | KSRR-1502 | 1386 | 668 | 1129 | 544 | 196 | --- | 49 | ||
156 | KSRR-1506 | 1386 | 668 | 3090 | 1488 | 385 | 158 | 93 | |||
333 | KSRR-15013 | 1386 | 668 | 6597 | 3711 | 582 | 158 | 124 | |||
815 | KSRR-15032 | 1386 | 668 | 16145 | 7775 | 1116 | --- | 238 | |||
200 (1995) | 152 | KSRR-2006 | 1995 | 1017 | 4332 | 2209 | 430 | 127 | 147 | ||
330 | KSRR-20013 | 1995 | 1017 | 9405 | 4795 | 608 | 127 | 199 | |||
457 | KSRR-20018 | 1995 | 1017 | 13025 | 6640 | 165 | 127 | 204 | |||
610 | KSRR-20024 | 1995 | 1017 | 17385 | 8863 | 917 | 127 | 279 | |||
914 | KSRR-20036 | 1995 | 1017 | 26049 | 13280 | 1222 | 127 | 383 | |||
1219 | KSRR-20048 | 1995 | 1017 | 34741 | 17712 | 1527 | 127 | 483 | |||
325 (3201) | 153 | KSRR-3006 | 3201 | 1703 | 6997 | 3721 | 485 | 158 | 200 | ||
305 | KSRR-30012 | 3201 | 1703 | 13947 | 7418 | 638 | 158 | 312 | |||
457 | KSRR-30018 | 3201 | 1703 | 20889 | 11114 | 790 | 158 | 385 | |||
609 | KSRR-30024 | 3201 | 1703 | 27850 | 14811 | 943 | 158 | 469 | |||
915 | KSRR-30036 | 3201 | 1703 | 41843 | 22253 | 1247 | 158 | 628 | |||
1219 | KSRR-30048 | 3201 | 1703 | 55745 | 29646 | 1552 | 158 | 780 | |||
440 (4292) | 152 | KSRR-4006 | 4292 | 2297 | 9319 | 4987 | 538 | 203 | 303 | ||
305 | KSRR-40012 | 4292 | 2297 | 18700 | 10007 | 690 | 203 | 399 | |||
457 | KSRR-40018 | 4292 | 2297 | 28018 | 14995 | 843 | 203 | 453 | |||
610 | KSRR-40024 | 4292 | 2297 | 37400 | 20014 | 995 | 203 | 597 | |||
914 | KSRR-40036 | 4292 | 2297 | 56037 | 29988 | 1300 | 203 | 792 | |||
1219 | KSRR-40048 | 4292 | 2297 | 74737 | 39996 | 1605 | 203 | 980 | |||
520 (5108) | 153 | KSRR-5006 | 5108 | 2838 | 11164 | 6203 | 577 | 203 | 432 | ||
305 | KSRR-50012 | 5108 | 2838 | 22256 | 12365 | 730 | 203 | 589 | |||
457 | KSRR-50018 | 5108 | 2838 | 33347 | 18526 | 882 | 203 | 680 | |||
609 | KSRR-50024 | 5108 | 2838 | 44440 | 24689 | 1035 | 203 | 816 | |||
915 | KSRR-50036 | 5108 | 2838 | 66768 | 36973 | 1399 | 203 | 1002 | |||
1219 | KSRR-50048 | 5108 | 2838 | 88951 | 49418 | 1644 | 203 | 1224 | |||
Suitable Products:
SUITABLE HYDRAULIC MANUAL PUMP: | ||||||
Model | P-84 | P-392 | P-80 | |||
Pump type | Two speed and double acting | |||||
Oil capacity | 2200cm³ | 901cm³ | 2200cm³ | |||
Max.pressure | 700bar(10,000Psi) | |||||
Weight | 10.9kgs | 4.0kgs | 10.9kgs | |||
SUITABLE HYDRAULIC ELECTRIC PUMP: | ||
Model | KHE-4 | |
Power supply | 1ph /220V/50hz or customized | |
Oil capacity | 10L or larger | |
Motor power | 1.1kw | |
Max. pressure | 700bar(10,000Psi) | |
HYDRAULIC HOSE: NPT3/8" | ||
Couplers | 3/8" or 1/4'' Screw Connection ( Ball or needle Type ) | |
Working pressure | 10,000 psi ( 700 Bar ) | |
Burst pressure | 40,000 psi ( 2800 Bar ) | |
Construction | Steel Braid | |
Length | 2m, 4m, 6m,7.5m,10m,15m and any lengths available | |
Kashon Equipment has been in hydraulic tools industry since 2002. mainly export:
Hydraulic cylinder/jacks/rams (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches (100-72000Nm);
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine;
Hydraulic accessories (hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe “service” is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
Hydraulic cylinder/jacks/rams (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches (100-72000Nm);
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine;
Hydraulic accessories (hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe “service” is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
Q1: How to contact sales?
A1: Please via email amelia at kashonequipment com or call: +86 199 7516 3706 for pre-sales.
Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it will only take 2-3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express (DHL, FEDEX,UPS...) all are available.
Q6: What is the warranty？
A6: 12 months against B/L date.
