DGBELL Mobile Phone, Batteries, Electronic Dictionary, CD/MD/MP3 and Components Free Drop Test Machine
- Category: >>>
- Supplier: Guangdong Bell Experiment Equipment Co. Ltd.
Share on (1600722701877):
Product Overview
Description

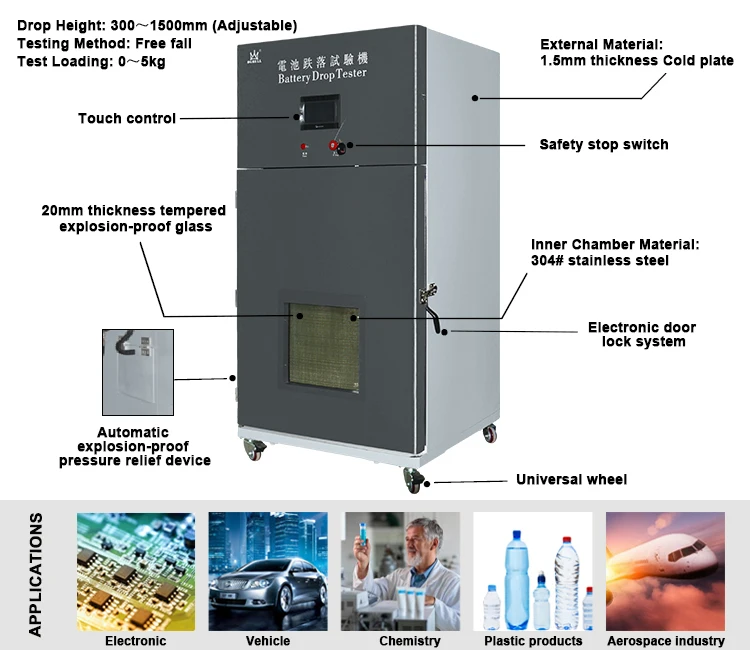

Battery Free Drop Test Machine
Product Description

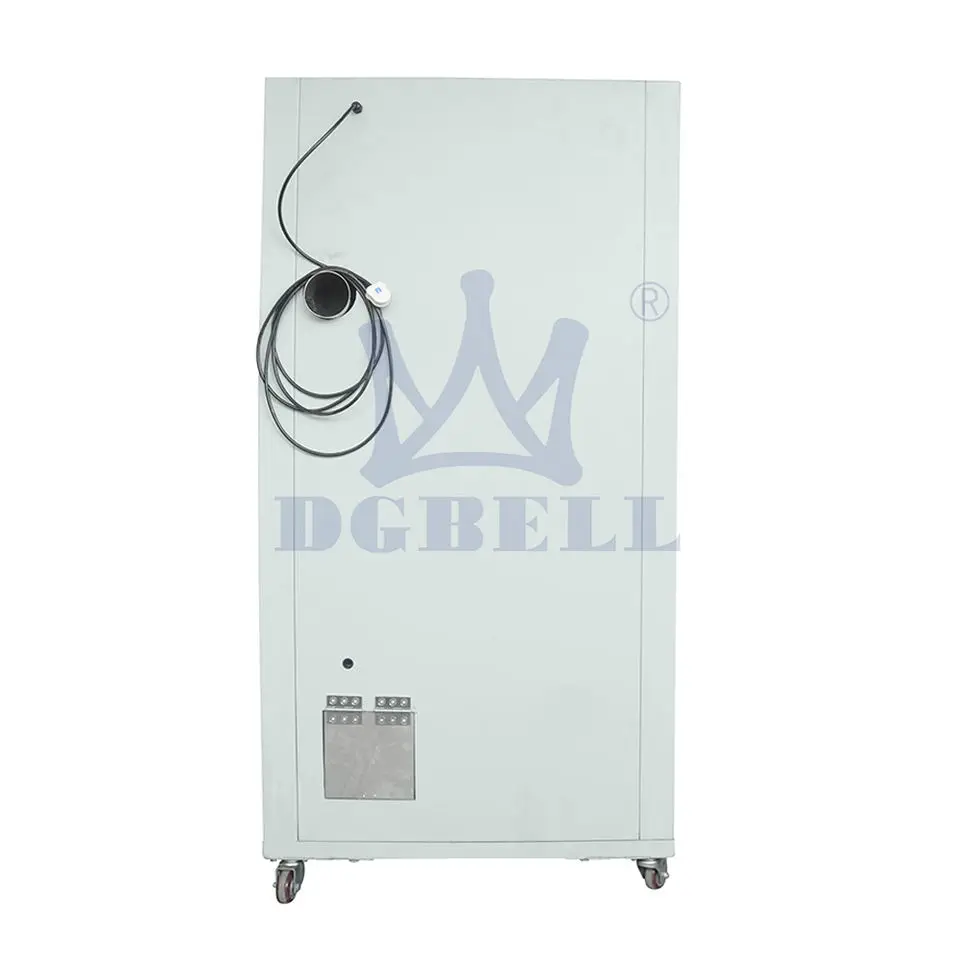

Pictures for reforence
Application
This machine applies for small consumer electronic products like mobile phone, mobile batteries, interphone, electronic dictionary ,CD/MD/MP3 etc. and components free dropping testing.
Test Principle
Specimen automatically lifting to pre-setting height, then free drop and shock on the drop plate.
Features
1. This machine available for package face, corner, edge free drop testing.
2. With height digital display instrument and tracing height with encoder, so can measure the precision drop height.
3. The drop height tolerance within2%or 10mm;
4. Adopt pneumatic structure, fix the specimen with special fixture (range adjustable), push the drop button, pneumatic cylinder open, specimen free dropping . The 5. drop height controllable, and with height steel ruler which makes drop height available. Various kinds drop floor optional. Meets different testing standards.
Notices
1. This machine control cabinet with 220V power, non professionals shall not open the cabinet and disassemble the components
2. This machine used for material testing, prevent for people standing
3. The machine should be placed on flat floor, and keep machine dry and clean .
4. After finish testing, low down the arm, and cut off the power supply
5. Do not cut off power when testing.
Technical Parameters & Dimension
Model | BE-8108 |
Drop Height | 300~1500mm (Adjustable) |
Testing Method | Free fall |
Test Loading | 0~5kg |
Specimen Max. Dimension | W200 x D200 x H200mm |
Machine Dimension | W700 X D900 X H1800mm |
Motor Power | 90W |
Control Mode | PLC touch screen (7-inch touch screen) + Remote control |
Internal Material | SUS 304# Stainless steel |
External Material | 1.5mm thickness Cold plate |
Falling Method | Pneumatic drop |
Lifting Method | Electric |
Power Supply | 220V 50Hz |
Safety device | Fully enclosed explosion-proof device |
Pressure | >0.3Mpa |
Drop Panel Size | W600 x D700 x H10mm (solid steel), hardwood, cement board (optional) |
Observation Window | 390 X 360mm (20mm thickness tempered explosion-proof glass) |
Data Output | Test data can be output by USB flash disk directly . |
Safety Protection | Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch |
Options | Temperature acquisition system, voltage acquisition system, video monitoring system |
Company Information
GuangDong Bell Experiment Equipment Co., Ltd is located in Dong Cheng District, Dong Guan City Guangdong Province, with register capital of RMB16.8 million. The factory covers an areas of 20,000 square meters with a building area of over 12,000 square meters. We are a high-tech enterprise specialized in manufacturing Battery Safety Test Equipment, Environmental Test Equipment and Mechanical Test Equipment, with more than 10 years’ experience of R&D.
Bell boost a team that consists of more than 120 employees and 60 of them with college educated background and 15 of them with senior engineer qualification. Enable us to provide excellent equipment and service to satisfy various customers, especially the customized non-standard equipment. Our experienced and well trained engineer team provides installation and after-sales service, making Bell to be the leading manufacturer of test equipment in China.
Packaging & Shipping
Packing:
1. Fully packed with PE film;
2. Wooden box;
3. Machine is fastened to the corners of the containers;
4. If export to European countries, the wooden box will be fumigated;
5. Customized package is available.
Certifications
FAQ
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of Battery Free Fall Drop Test Machine. Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
-Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. what about the products' quality?
-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.
5.what about the packing of equipment?
-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
