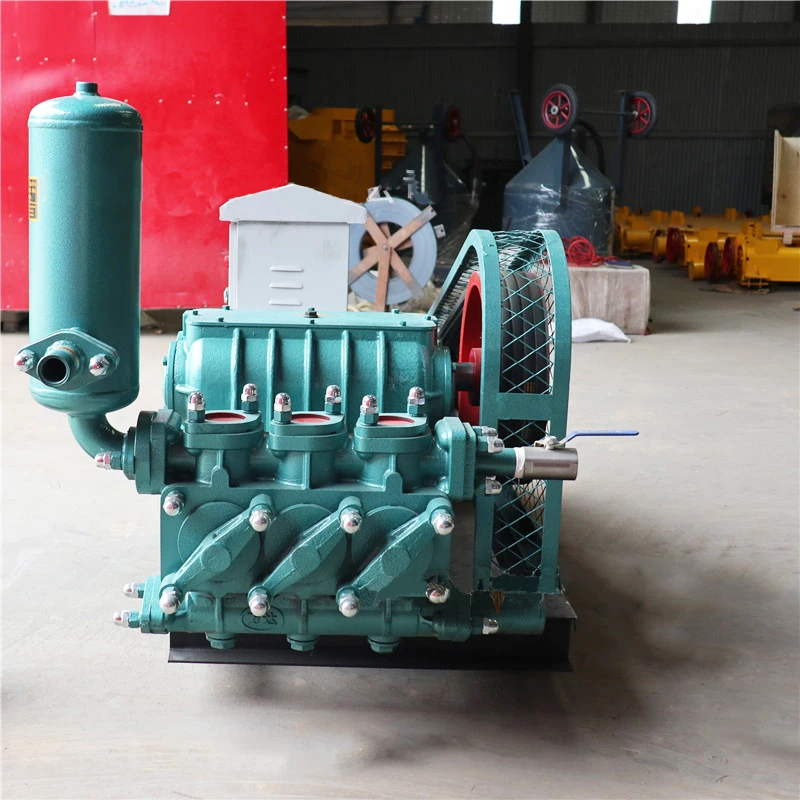

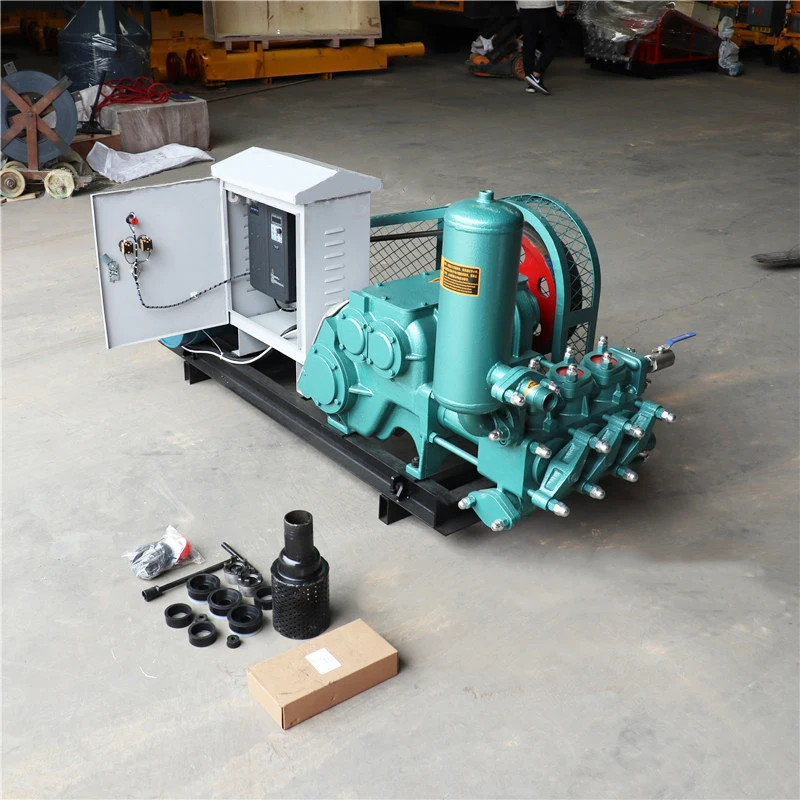

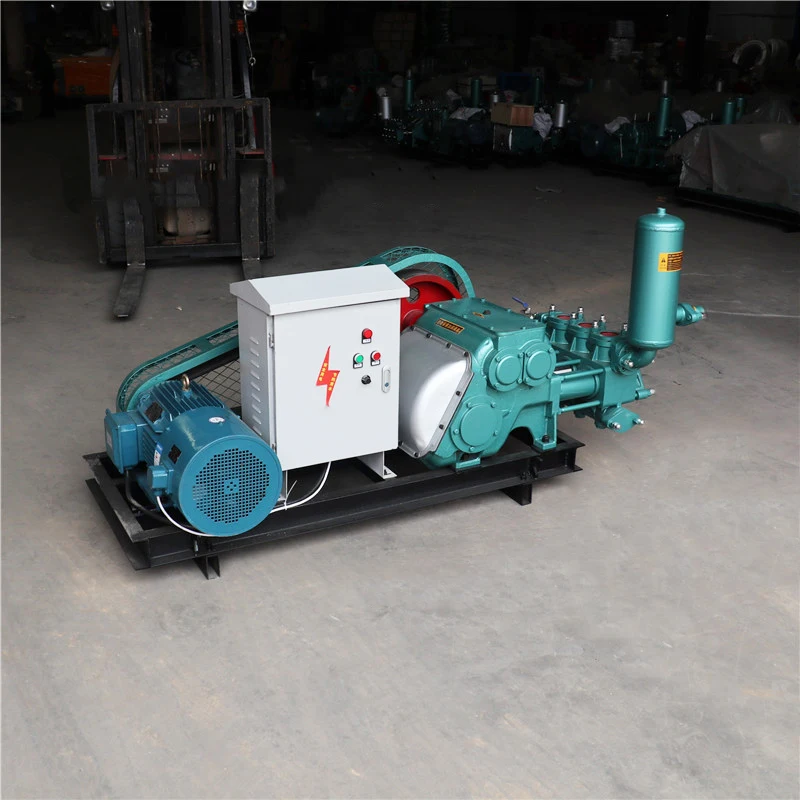

BW 250 triplex mud pump grouting horizontal slurry drilling mud pump
Products Description

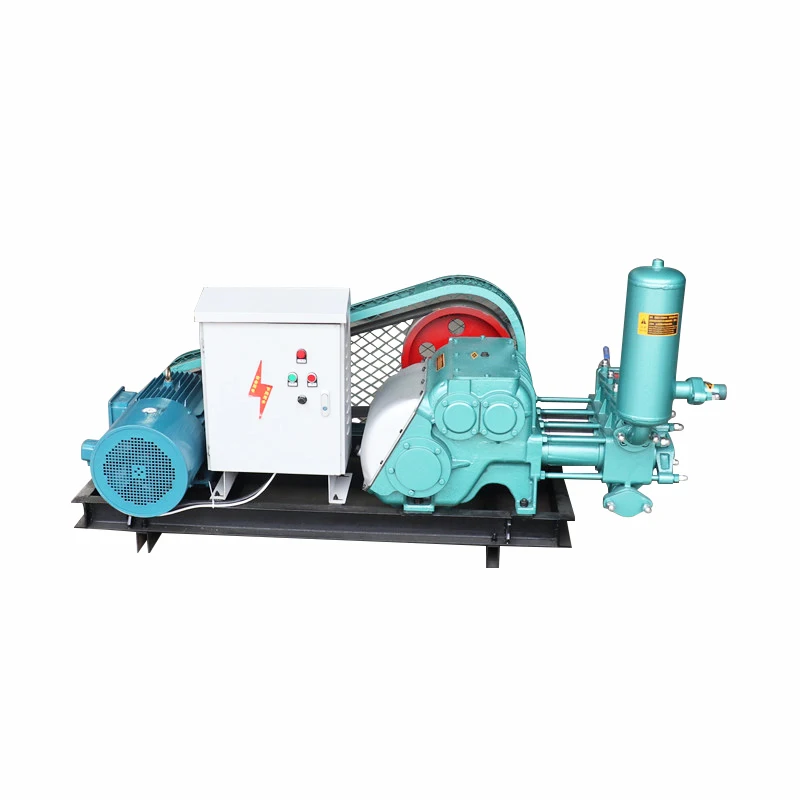

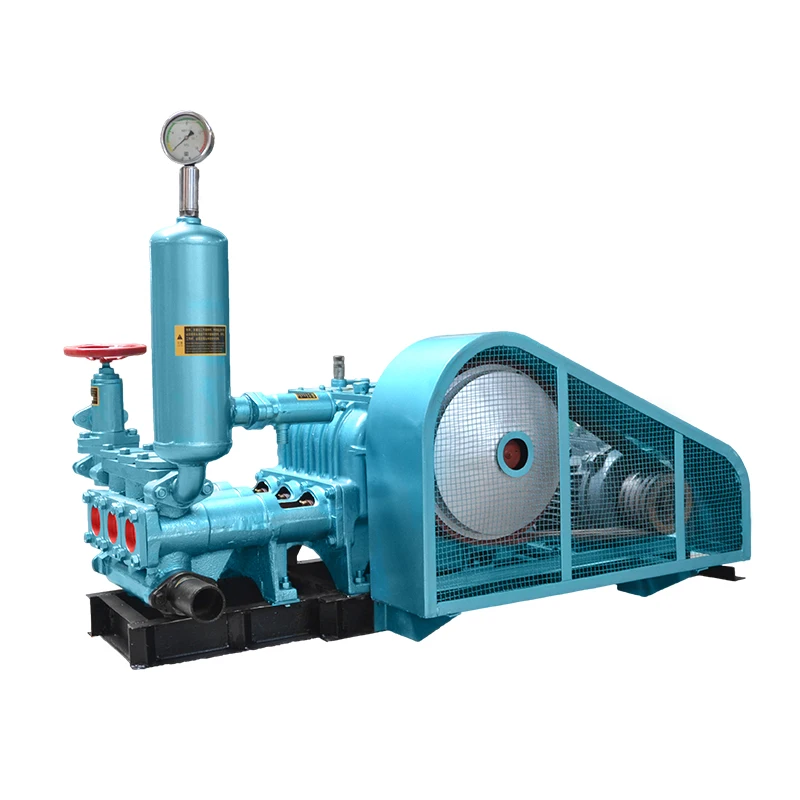

BW250 grouting pump
BW250 grouting pump is a horizontal three cylinder reciprocating single acting piston pump. The pump has two cylinder diameters and four gear variables. The large cylinder liner is used for supporting the 1000m large diameter drilling rig and the small cylinder is used for matching 1500m small diameter drilling rig. BW250 grouting pump is mainly used for conveying mud with core drilling machine, and can also be used for grouting, mine drainage and long-distance water conveying.
Technical Parameters
Model | BW250 | ||||||||||||||
Type | horizontal three cylinder reciprocating single acting piston pump | ||||||||||||||
Stroke length (mm) | 100 | ||||||||||||||
Cylinder dia. (mm) | 80 | 65 | |||||||||||||
Pump speed(min-1) | 200 | 116 | 72 | 42 | 200 | 116 | 72 | 42 | |||||||
Flow(L/min) | 250 | 145 | 90 | 52 | 166 | 96 | 60 | 35 | |||||||
Pressure(Mpa) | 2.5 | 4.5 | 6.0 | 6.0 | 4.0 | 6.0 | 7.0 | 7.0 | |||||||
Volume fraction(%) | 85 | ||||||||||||||
Total efficiency(%) | 72 | ||||||||||||||
Power(kw) | 15 | ||||||||||||||
Pitch dia. of V-belt pulley(mm) | Type B X 5 groove 410 | ||||||||||||||
Input speed(r/min) | 500 | ||||||||||||||
Water absorption height(m) | ＜2.5 | ||||||||||||||
Dia. of water inlet pipe(mm) | 3”/76mm cloth insert pressure hose | ||||||||||||||
Dia. of water outlet pipe(mm) | 2”/51mm two layers steel high pressure hose | ||||||||||||||
Dimension(mm) | 1100*995*650 | ||||||||||||||
Weight(kg) | 500 | ||||||||||||||
Advantages:
1. It has four grade flow rate which can meet the needs of large and small diameter drilling rigs. It has a wide range of flow regulation and reasonable parameter selection. It can be used with XY-4 core drillingrig and XY-5 drilling rig. It can meet the needs of different diameter, hole depth and geological core drilling.
2. The piston is a bowl shape self sealing S-type polyurethane rubber piston with nylon back which greatly improves the service life.
3. There are five dust-proof sealing rings on the pull rod to prevent the mud at the hydraulic end from being carried into the power end and the lubricating oil filter at the power end. It has been proved by many production tests that the sealing is reliable and the performance is good. The service life of the gear is prolonged.
4. Steel ball is used for inlet and outlet valve. The valve cover is provided with a sound reducing rubber pad to reduce the impact noise.
5. The BY-1 anti-seismic pressure gauge is adopted for the pressure gauge with long service life.
6. Compact structure and beautiful appearance.
7. It’s convenient for maintenance and relocation with the good dismountability.
2. The piston is a bowl shape self sealing S-type polyurethane rubber piston with nylon back which greatly improves the service life.
3. There are five dust-proof sealing rings on the pull rod to prevent the mud at the hydraulic end from being carried into the power end and the lubricating oil filter at the power end. It has been proved by many production tests that the sealing is reliable and the performance is good. The service life of the gear is prolonged.
4. Steel ball is used for inlet and outlet valve. The valve cover is provided with a sound reducing rubber pad to reduce the impact noise.
5. The BY-1 anti-seismic pressure gauge is adopted for the pressure gauge with long service life.
6. Compact structure and beautiful appearance.
7. It’s convenient for maintenance and relocation with the good dismountability.
Application

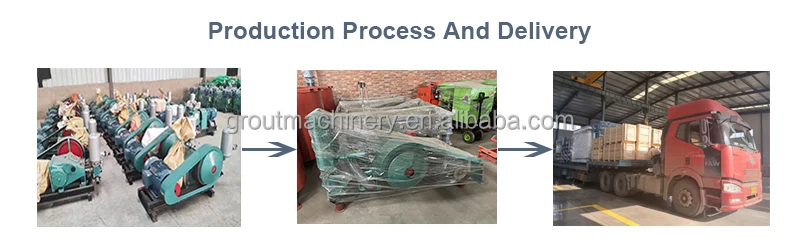

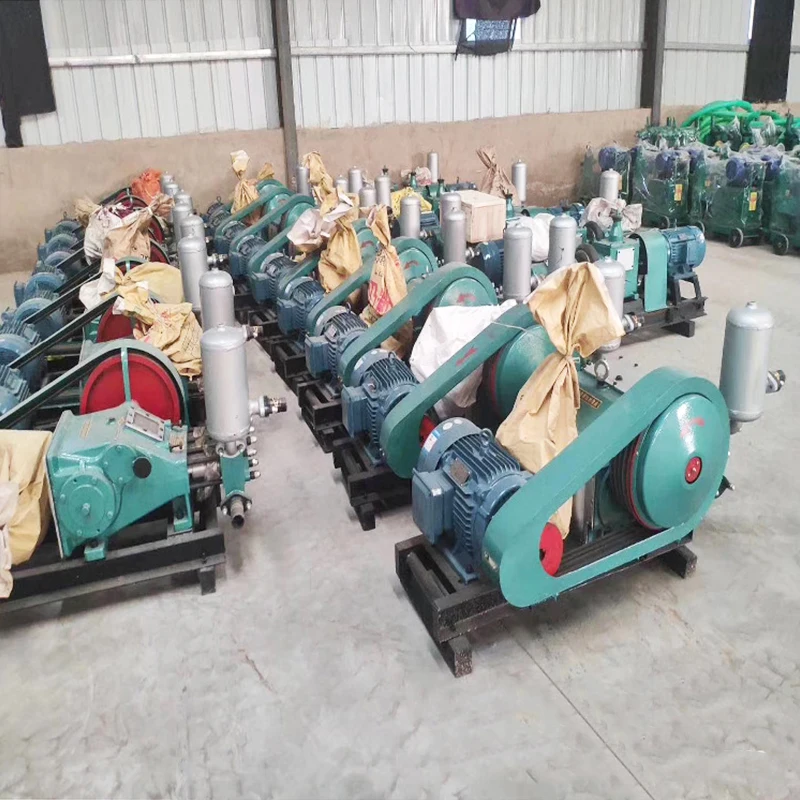

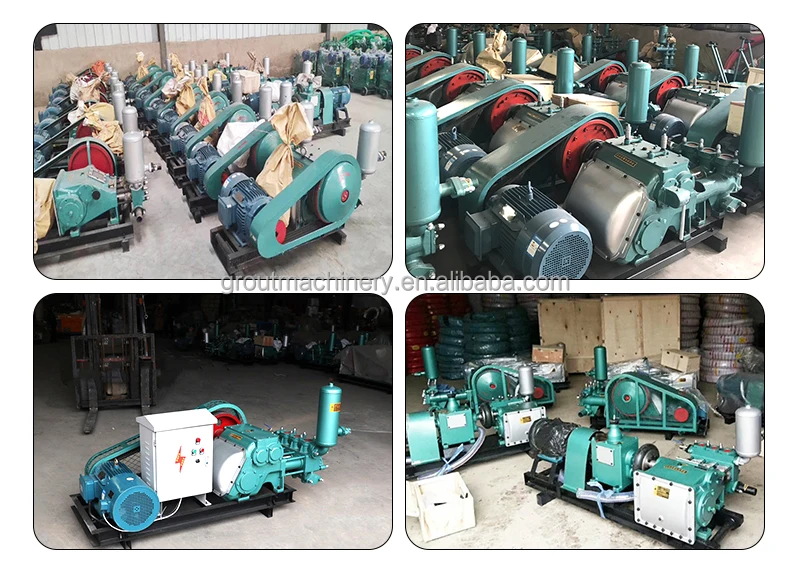

Factory Show
Company Profile
Zhengzhou Sinogrout Machinery Co., Ltd. is a leading supplier of hydroseeder, shotcrete machine,grout pump, concrete pupmp,slurry pump,mortar pump,etc.construction machinery in China.Our factory is located in Xingyang, Zhengzhou City, Henan Province, it is in the middle of China. With more than 10 years of experience, Sinogrout has grown into a leading grouting equipment supplier in China, as well as an excellent supplier with ISO 9001:2008,SGS and CE certificate in above products in China. Our products have been exported to the Colombia, Greece, Singapore, Malaysia, Philippine,Vietnam, Jordan, India,Pakistan, Qatar, Bahrain...We are committed to develop new products to meet our customers' need, with the ability to provide the necessary technical support and engineering experience required.
Certifications
FAQ
1.Q: What is the guarantee period of grouting equipment?
A: It is one year count from one month after shipping date except wearing parts. We will send some wearing parts of machine when delivery.
2.Q: What is your project with grouting equipment?
A: Waterproofing,Floor restoration,Metal door and window frames, Sealing joints, Connecting prefabricated concrete sections, Filling voids and eliminating holes in concrete blocks, Tiling, Levelling sidewalk slabs or Manhole and sewer linings.
3.Q: What is the output of grouting injection pump do you need?
A: Our hot model grouting pump output is from 5-10m3/h, but there are also other series with different output for your choice or custom it as per your request.
4.Q: What is pressure of grouting pump do you need?
A: Our cement grouting pump pressure is 0-10Mpa, but there are also other series with different pressure for your choice or custom it as per your request.
5.Q: What is your local voltage?
A: In China, it is 3phase, 380V,50Hz. We also can change it to your local voltage.
6.Q: What is the after-sales service?
A: We could supply wear parts together with machine when delivery. The operation video and instruction file will send to you once you buy our machine.When using the machine, if you have some questions, our engineer also can guide you through the video to help you to solve the problem.
