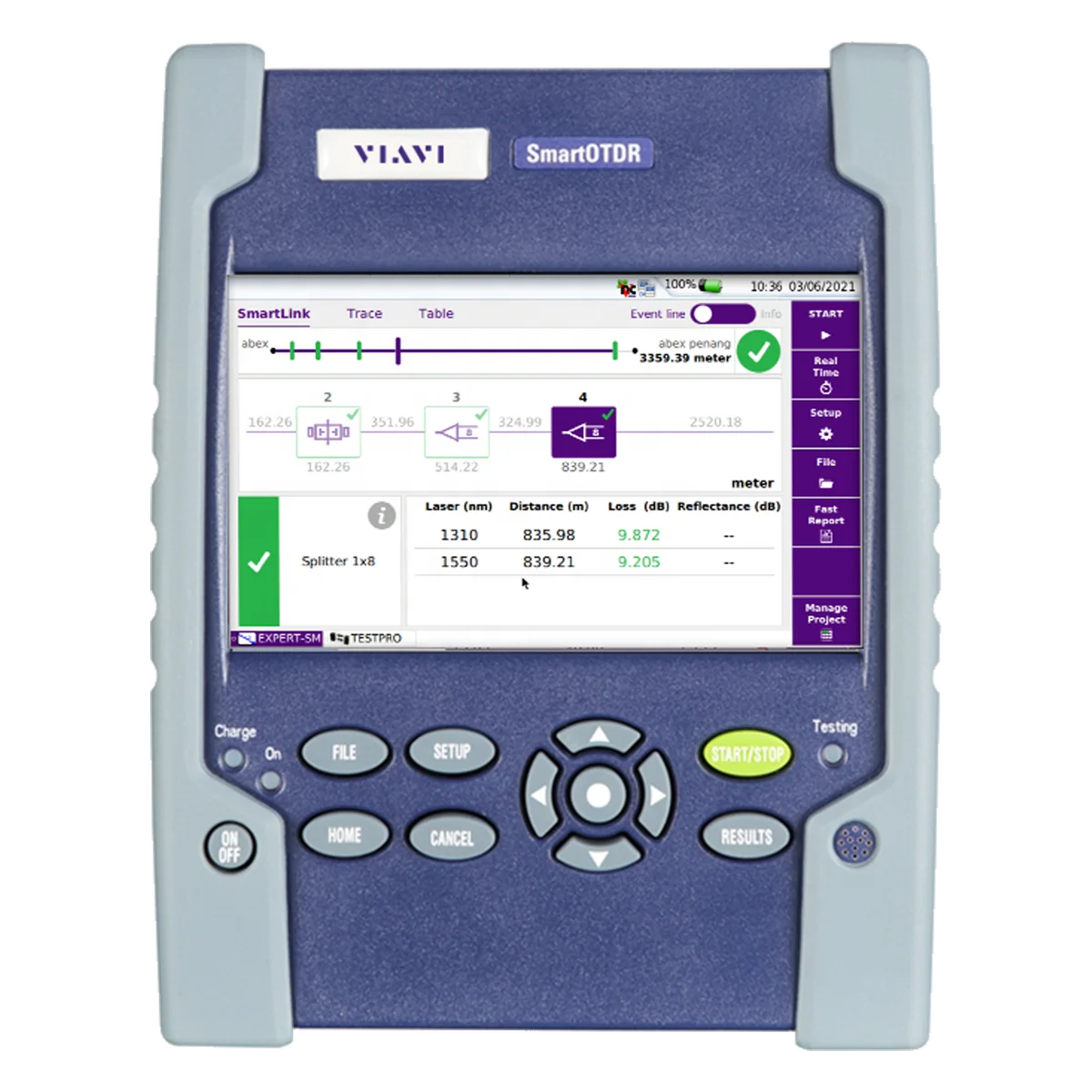

Original Handheld SmartOTDR 100A 1310/1550 nm OTDR Machine Otdr price
- Category: >>>
- Supplier: Shenzhen Starfire Technology Ltd.
Share on (1600722722693):
Product Overview
Description
OTDR EXFO FTB-1V2-750C-SM3 1310/1550/1625 nm high dynamic range OTDR iOLM Software exfo Otdr price
Contact Information:
Lily Liu
WhatsApp/Skype: +86 17665495297
WhatsApp/Skype: +86 17665495297
Product Description
Key Benefits
*Combines all essential fiber tests in one handheld with visual fault locator (VFL), optical power meter (OPM), and P5000imicroscope options
*Simplifies OTDR analysis with Smart Link Mapper (SLM) option
*Upgrades easily in the field
*Automates testing with objective, pass/fail results
*Enhances productivity anywhere with powerful network connectivity options
Key Features
*Single-/dual-/tri-wavelength versions with 1310/1550 nm and in-service 1625 or 1650 nm wavelengths

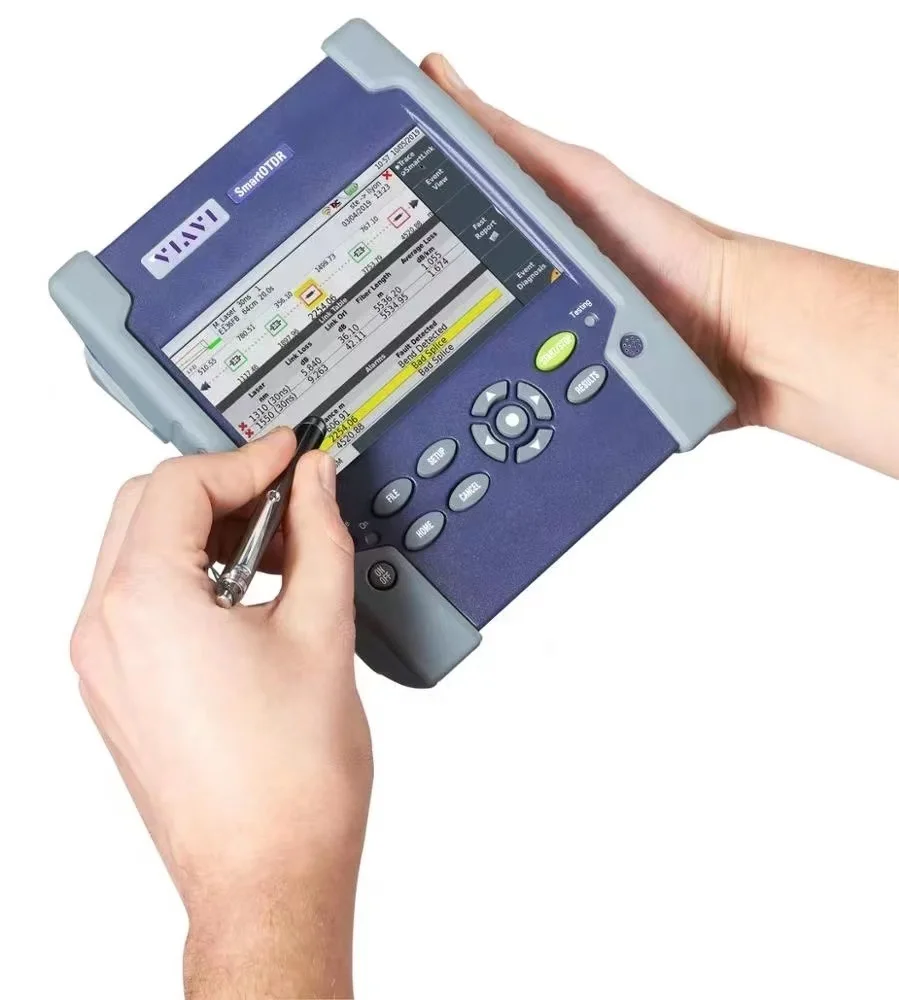

*Light, compact, hands-free design includes 5” high-visibility outdoor touch screen
*Integrated CW light source
*PON optimized to test through a 1x128 splitter
*PON optimized to test through a 1x128 splitter
*Built-in PON/XG-PON power meter (1490/1550/1578 nm)
*Automated fiber inspection and macrobend detection with pass/fail analysis software
*3G/4G connectivity via USB, Bluetooth®/ WiFi options
Specification
General | ||||
Display | 5-inch capacitive color touch screen (12.5 cm) | |||
Display resolution | 800 x 480 W VGA | |||
Interfaces | 2x USB 2.0 ports, 1x mini-USB 2.0 port, built-in Bluetooth and WiFi (optional, dongles also available) | |||
Storage | 10,000 OTDR traces typical | |||
Battery | Rechargeable Lithium-polymer battery, up to 20 hours of operation | |||
Power supply | AC/DC adapter, input 100-250 V AC, 50-60 Hz; 2.5 A max, output 12 V DC, 25 W | |||
Electrical safety | EN60950 compliant | |||
Size (HxWxD) | 175 x 138 x 57 mm (6.9 x 5.4 x 2.24 in) | |||
Weight (battery included) | Approx. 0.9 kg (1.98 lb) | |||
OTDR | ||||
Laser safety class (21 CFR) | Class 1 | |||
Number of data points | Up to 256,000 data points | |||
Display range | 0.1 km to 260 km | |||
Sampling resolution | 4 cm | |||
Distance accuracy | (±1 m) ± (sampling resolution) ±(1.10–5 x distance), excluding group index uncertainties | |||
Attenuation resolution | 0.001 dB | |||
Attenuation linearity | ±0.04 dB/dB | |||
SmartOTDR 100A | SmartOTDR 100B | |||
Central wavelength | 1310/1550 nm ±20 nm | 1310/1550/1625 nm ±20 nm | ||
RMS dynamic range | 35/33 dB | 40/40/41 dB | ||
40/40/41 dB | 5 ns to 20 µs | 3 ns to 20 µs | ||
Event dead zone | 1.3 m | 0.9 m | ||
Attenuation dead zone | 4 m | 2.5 m | ||
Splitter attenuation dead zone | N/A | 45 m after 15 dB splitter loss | ||
CW Light Source | ||||
Output power level | –3.5 dBm | |||
Stability long term (8 hr) | Stability long term (8 hr) | |||
Built-in Power Meter (optional) | ||||
Operating mode | 270, 330, 1 kHz, 2 kHz, and TWINTest | |||
Power level range | 0 to –55 dBm | |||
Calibrated wavelengths | 1310, 1490, 1550, 1625, and 1650 nm | |||
Measurement accuracy | ±0.5 dB | |||
Built-in Visual Fault Locator (optional) | ||||
Wavelength | 650 nm | |||
Emission mode | CW, 1 Hz | |||
Laser class | Class 2 per EN60825-1 and FDA21 CFR Part 1040.10 standards | |||
