Chemical Lab Alcohol/Ethanol/Water Distiller 50L Electric Explosion proof Rotary Evaporator Rotavapor Rotovap Price

Product Overview

Description

Chemical Lab Alcohol/Ethanol/Water Distiller 50L Electric Explosion-proof Rotary Evaporator Rotavapor Rotovap Price

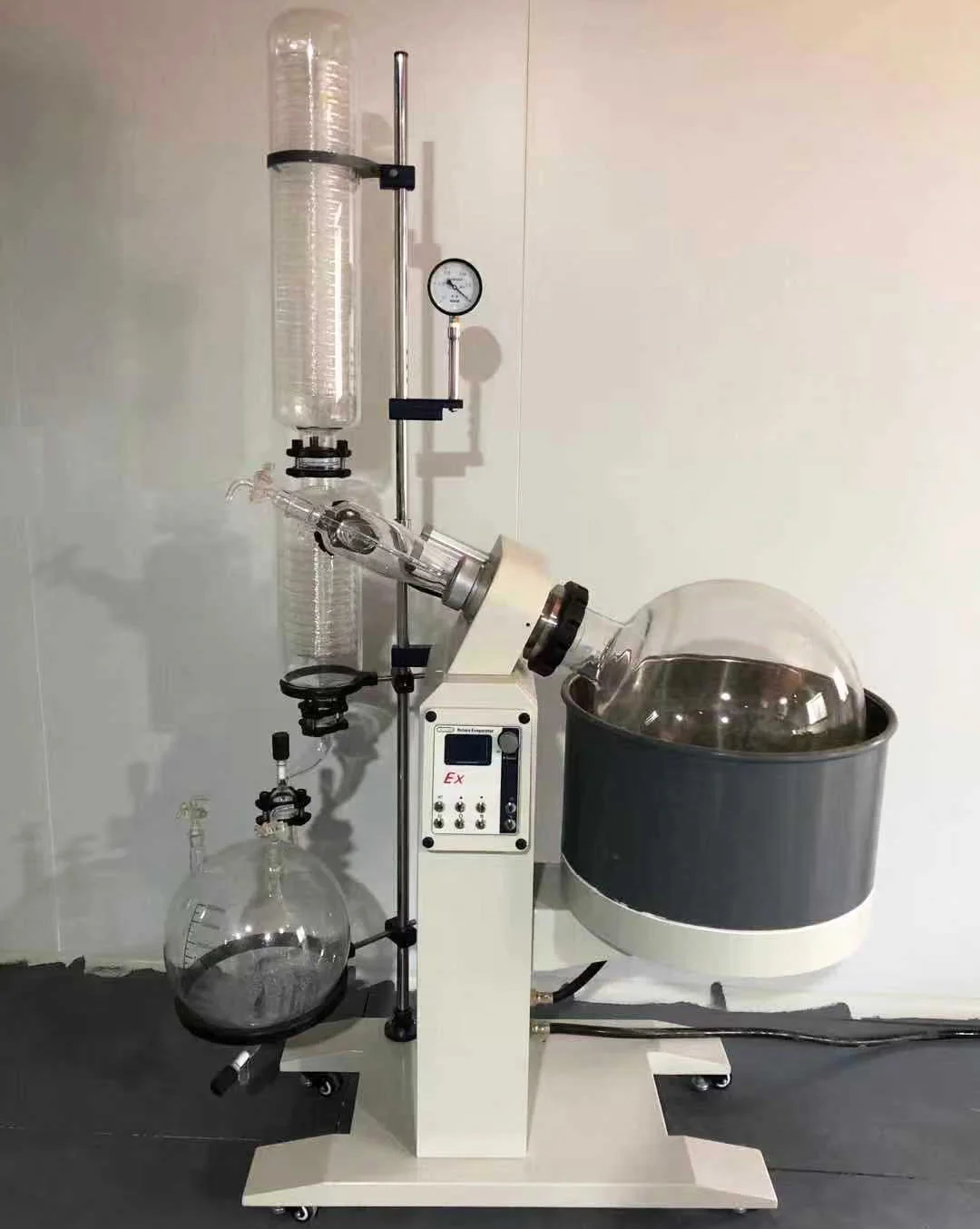

An ( Explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) is used for purification and distillation test. They rotate and shape a thin film in negative pressure condition by heating, evaporate efficiently, and then condense and recollect solvent to purify and separate.





1. An ( explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It is widely applied in such experiments such as concentration, evaporation, distillation, separation of chemical, using the rotating bottle to dry the powder and crystallization and so on.

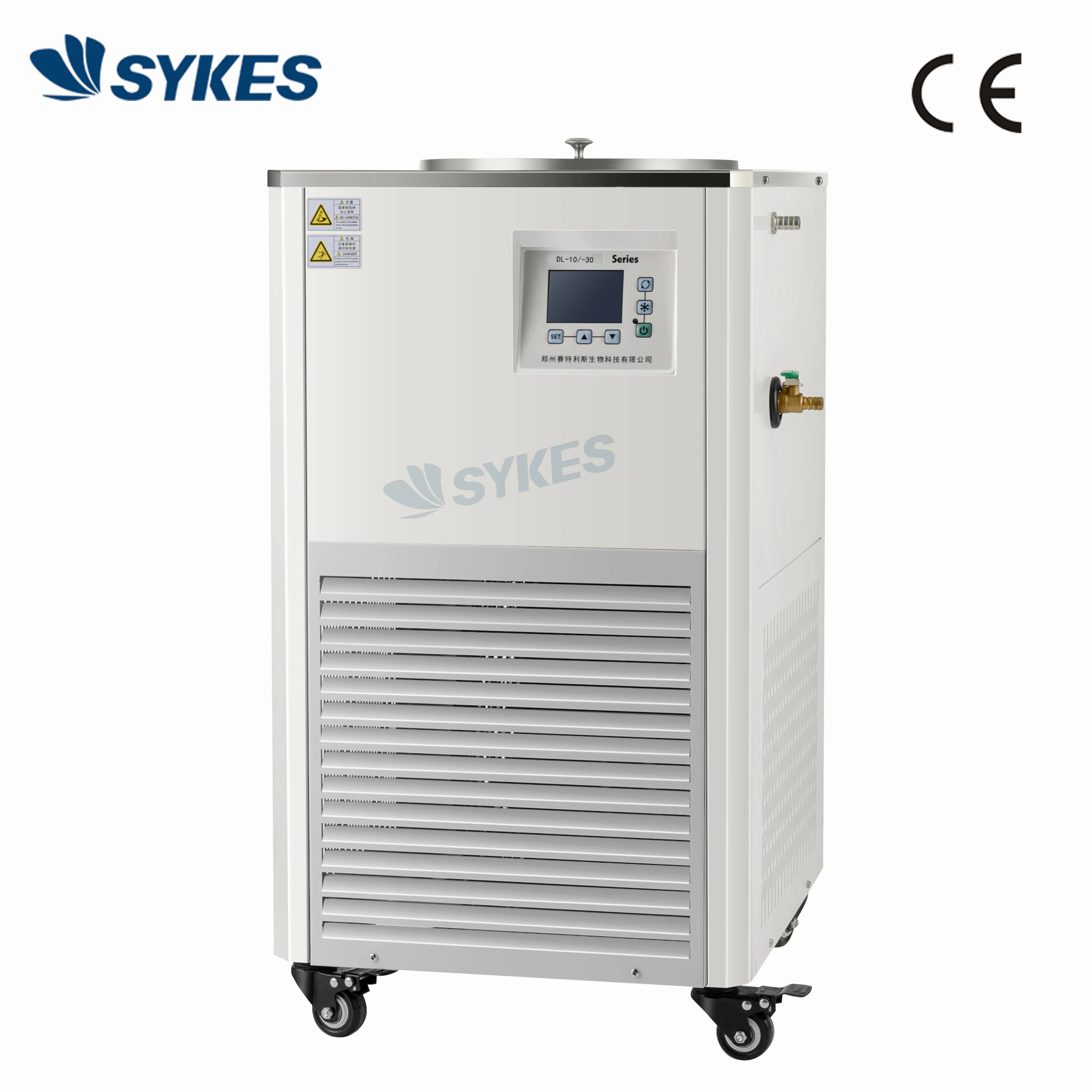

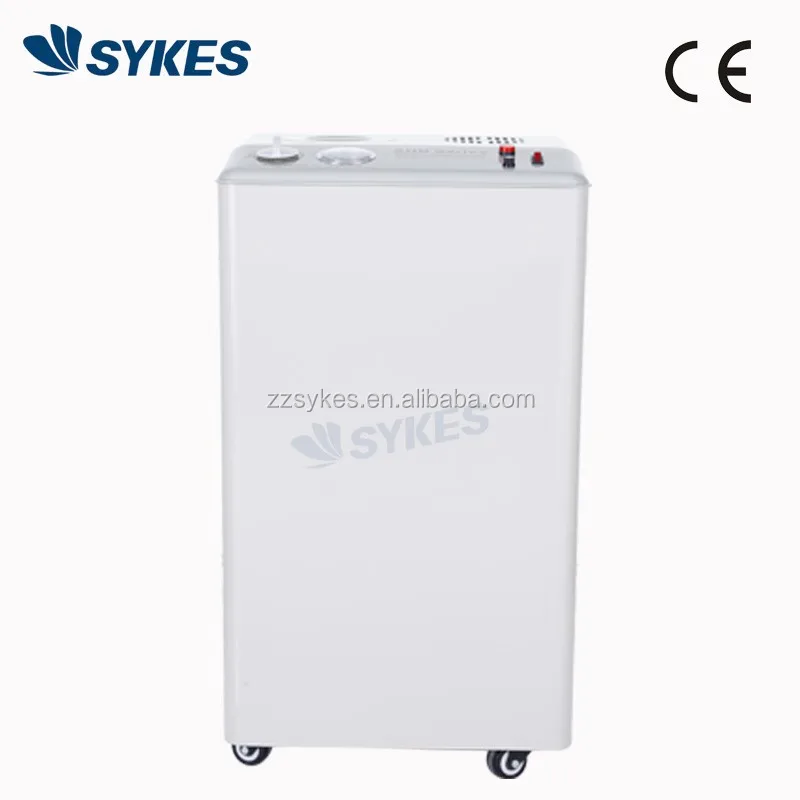

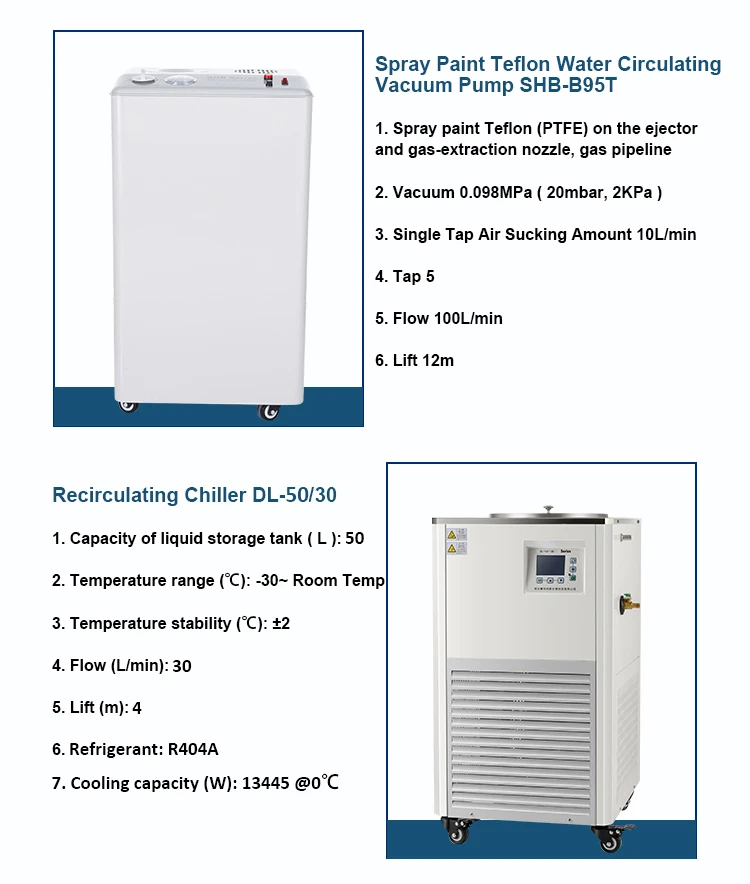

2. An ( explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) can be used with recirculating water vacuum pump and low temperature cooling liquid circulating pump/ recirculating chiller to form the total system.





Model	R1005EX	R1010EX	R1020EX	R1050EX
Ambient temperature(℃)	5~35
Power Supply(V/Hz)	Single-phase 220/50		Three-phase 380/50

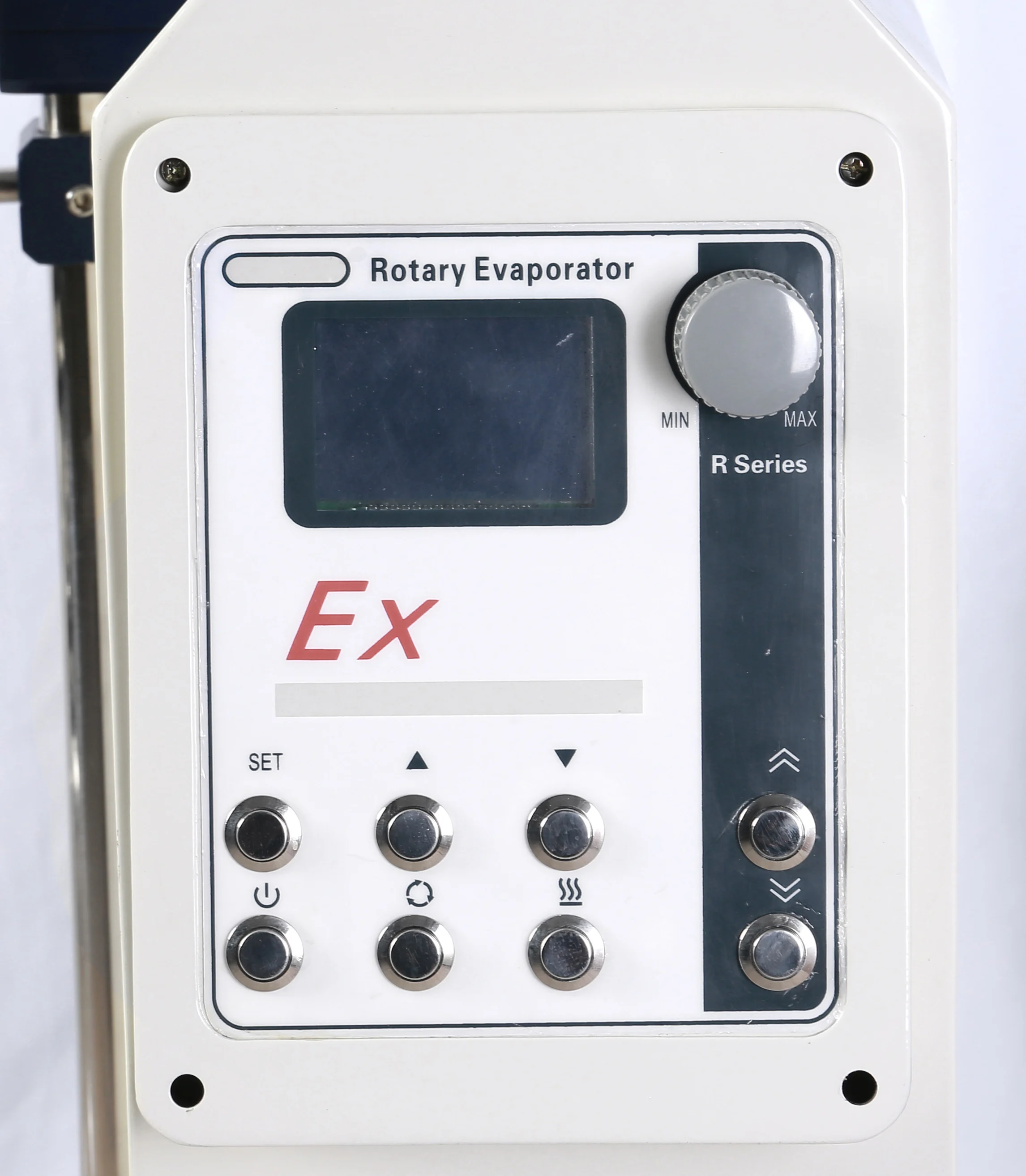

Speed-regulation of main machine	Digital display, variable frequency stepless speed-regulation
Rotation speed(rpm)	10~140	20~130		20~110
Power of rotation motor(W)	40	250
Temperature range(℃)	Digital display, Room Temperature -99
Max. vacuum degree(Pa)	399.9(Below 3mmHg)
Evaporating flask(L)	5 Flange opening Ø50	10 Flange opening Ø125	20 Flange opening Ø125	50 Flange opening Ø125
Receiving flask(L)	3	5	10	20
Condenser	Vertical type double coil pipe	Vertical type, Main + auxiliary triple-circulating cold traps
Condensation area(m2)	0.27	Main condenser 0.42, Auxiliary condenser 0.22	Main condenser 0.8, Auxiliary condenser 0.39	Main condenser 0.91, Auxiliary condenser 0.52
Evaporating Speed(L/h)	Water≥2 Alcohol≥4	Water≥3.2 Alcohol≥6.5	Water≥5 Alcohol≥11	Water≥9 Alcohol≥19
Bath material	Stainless Steel
Bath Size(mm)	Φ300×170	Φ350×220	Φ450×260	Φ550×320
Lifting function	Motorized lift
Elevating stroke(mm)	0~150	0~160	0~190	0~180
Overall Power(kW)	3.1	4.8	6.3	8.3
Dimension(mm)	860×500×1000	920×550×1700	1250×600×2100	1320×770×2340

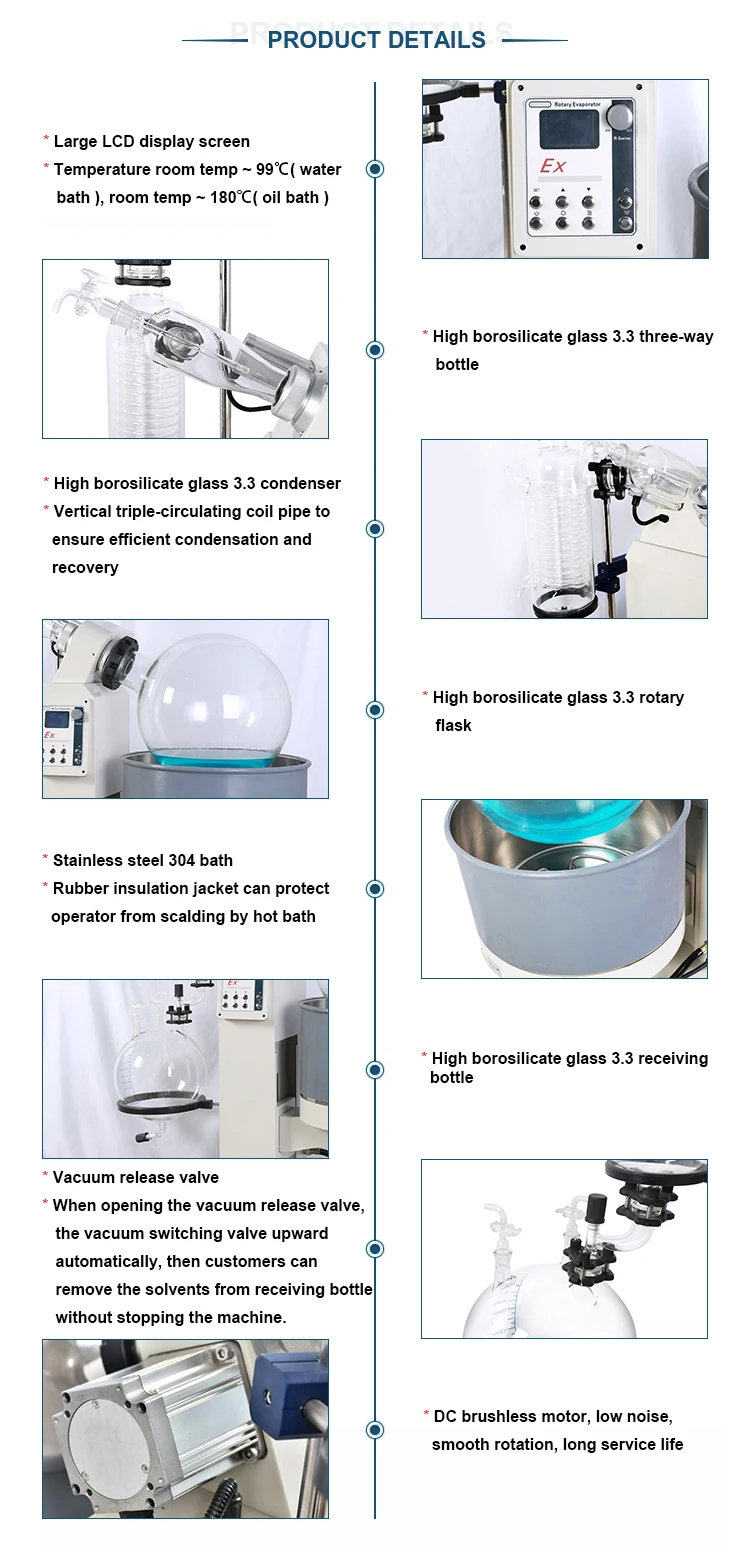

1). Teflon (PTFE) and fluorine rubber dual rotating seal to ensure high vacuum.

2). The introduction of foreign advanced frequency control system, temperature control system, accurate and reliable.

3). A vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected.

4). Water bath electric lift and manual lift support, easy to use.

5). PTFE draining valve, corrosion resistance, pollution-free.
