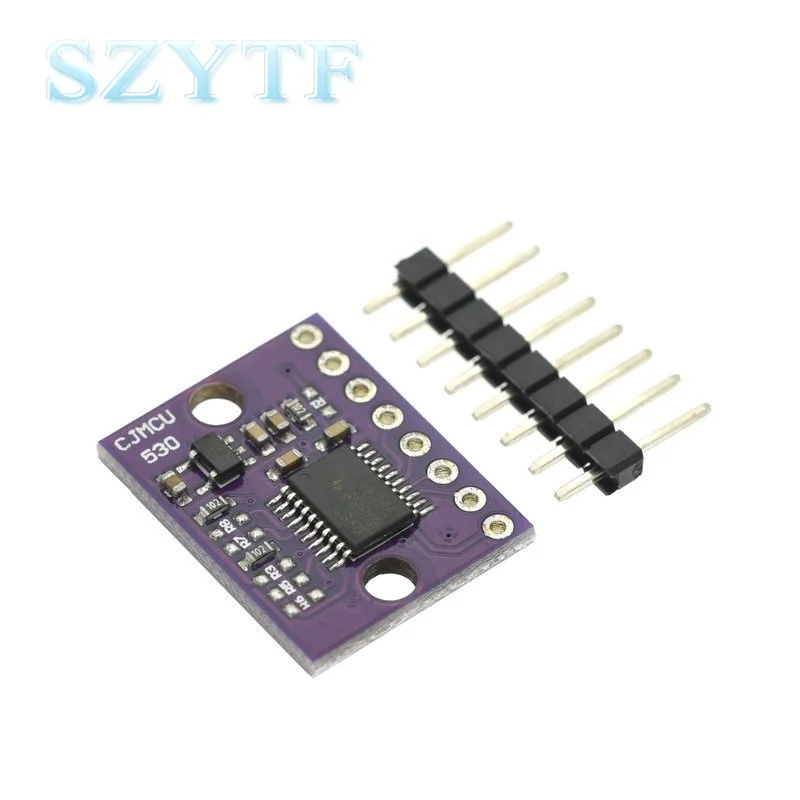

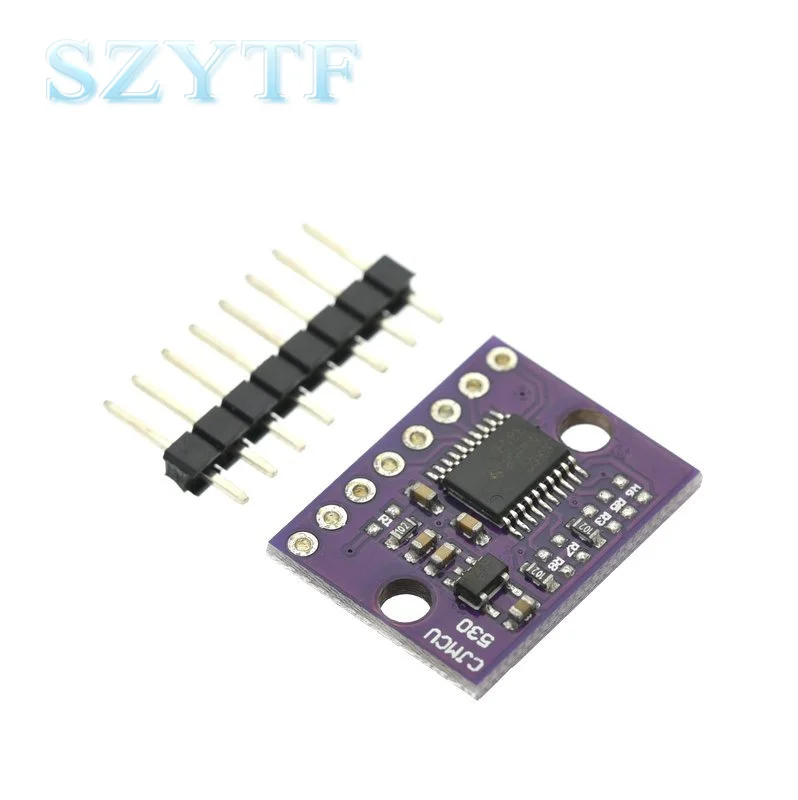

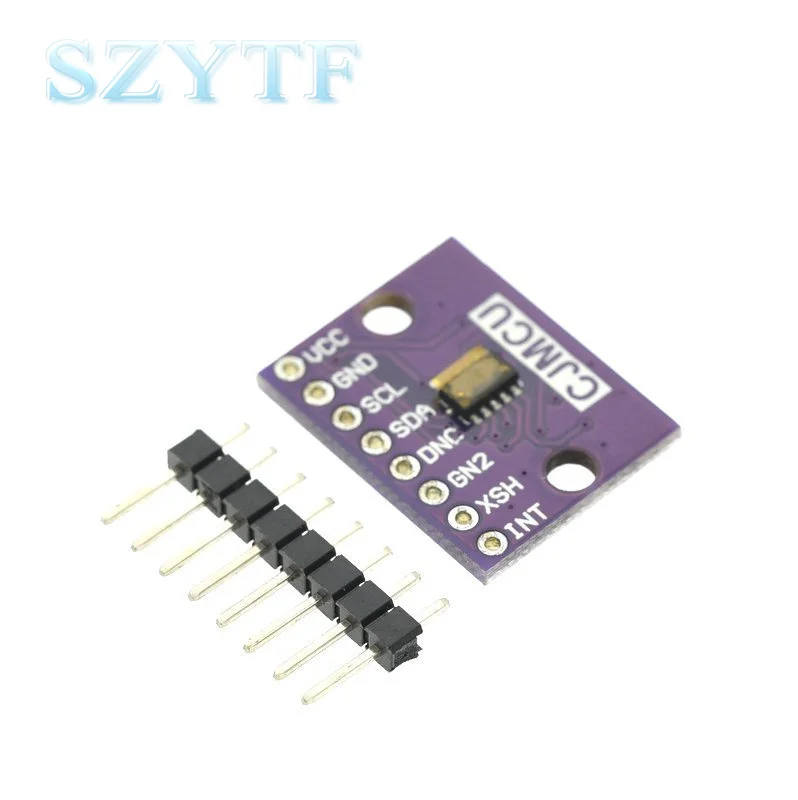

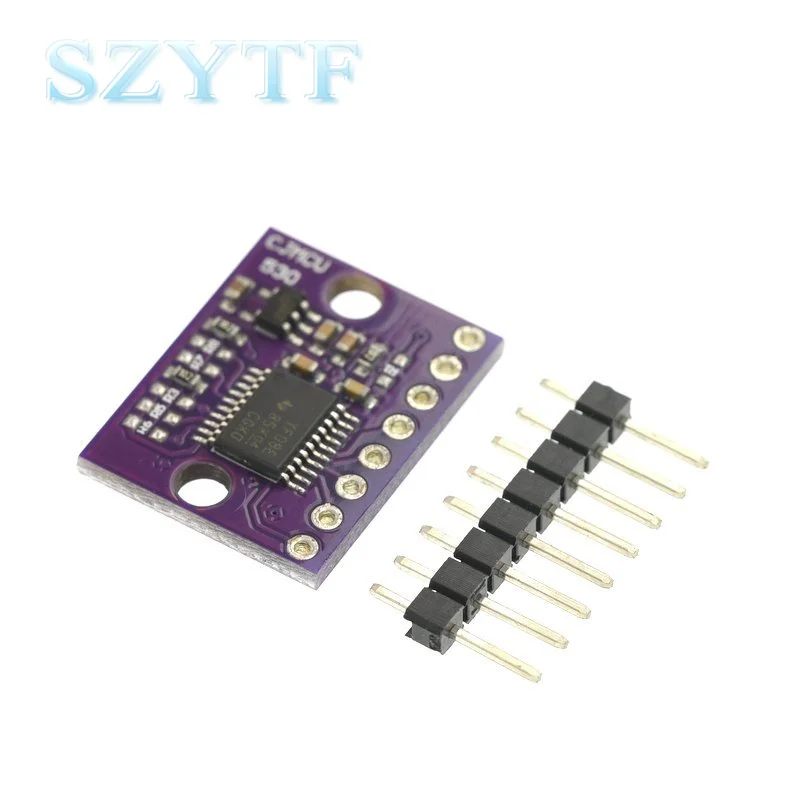

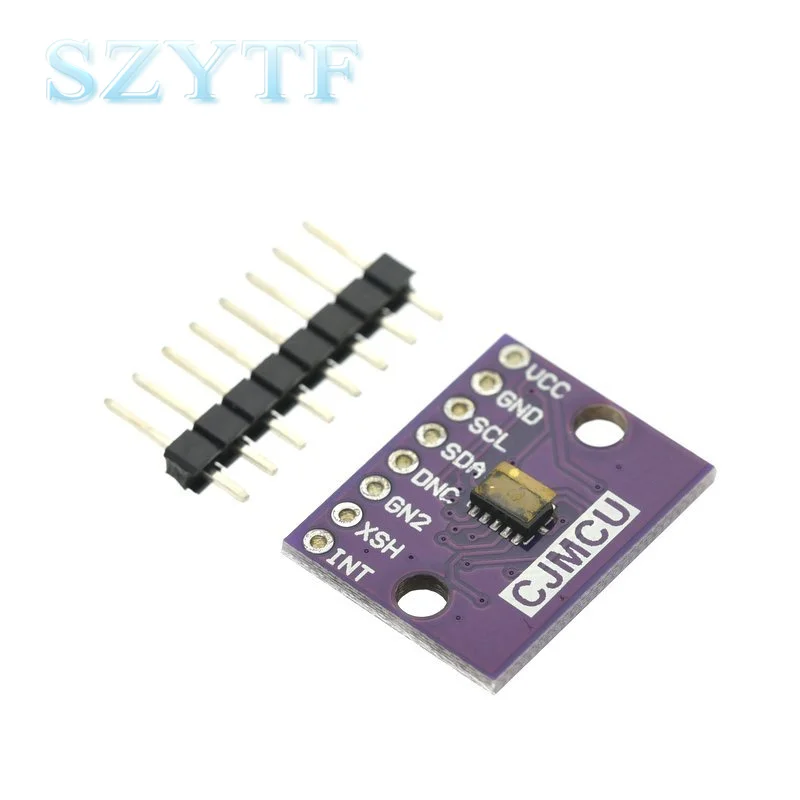

CJMCU 530 VL53L0X Laser Rangefinder ToF Ranging Flight Time Rangefinder Sensor Module Module Winder
- Category: >>>
- Supplier: Shenzhen YTF Technology Co. Limited
Share on (1600722727059):
Product Overview
Description
Features:
1.Fully integrated miniature module
1)940nm Laser VCSEL
2)VCSEL driver
3)Ranging sensor with advanced embedded micro controller
4)4.4*2.4*1.0mm
2.Fast accurate distance ranging
1)Measures absolute range up to 2m
2)Reported range is independent of the target reflectance
3)Operates in high infrared ambient light levels
4)Advanced embedded optical cross-talk compensation to simplify cover glass selection
3.Eye safe
1)Class 1 laser device compliant with latest standard IEC 60825-1:2014 - 3rd edition
4.Easy integration
1)Single reflowable component
2)No additional optics
3)Single power supply
4)I2C interface for device control and data transfer
5)Xshutdown (Reset) and interrupt GPIO
6)Programmable I2C address
1.Fully integrated miniature module
1)940nm Laser VCSEL
2)VCSEL driver
3)Ranging sensor with advanced embedded micro controller
4)4.4*2.4*1.0mm
2.Fast accurate distance ranging
1)Measures absolute range up to 2m
2)Reported range is independent of the target reflectance
3)Operates in high infrared ambient light levels
4)Advanced embedded optical cross-talk compensation to simplify cover glass selection
3.Eye safe
1)Class 1 laser device compliant with latest standard IEC 60825-1:2014 - 3rd edition
4.Easy integration
1)Single reflowable component
2)No additional optics
3)Single power supply
4)I2C interface for device control and data transfer
5)Xshutdown (Reset) and interrupt GPIO
6)Programmable I2C address
