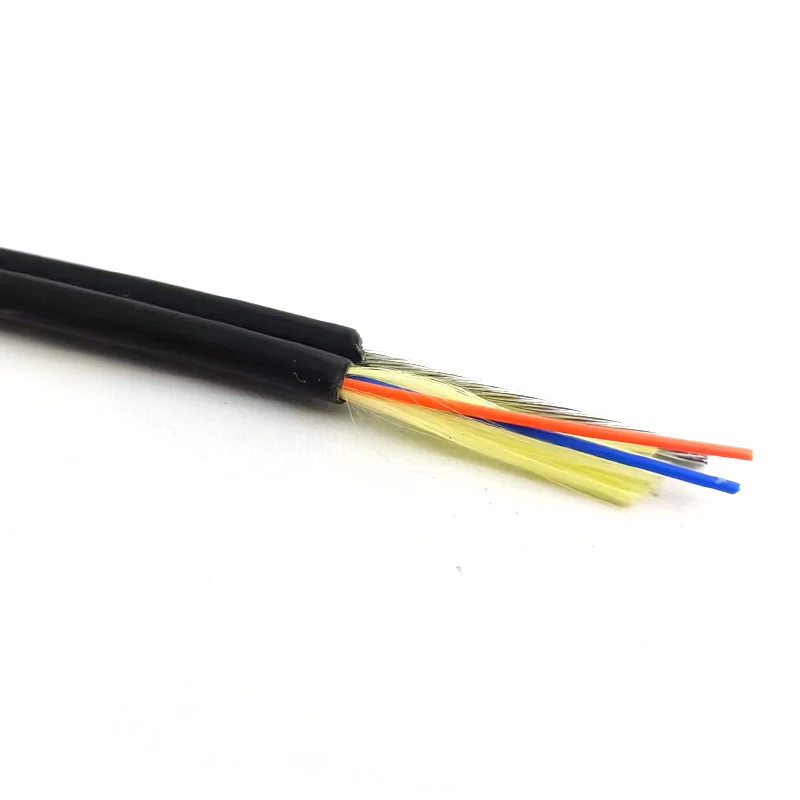

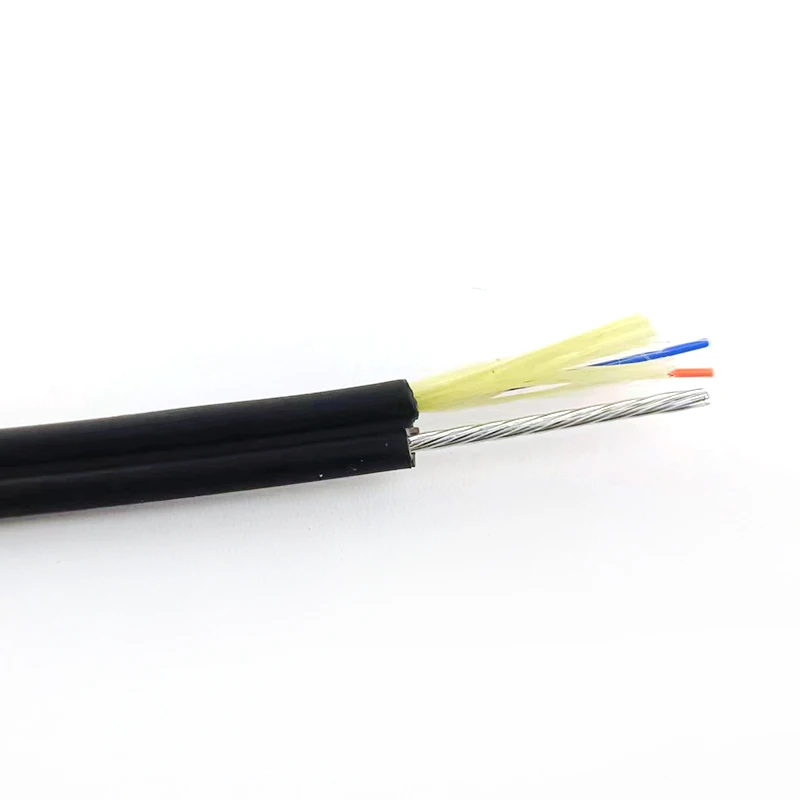

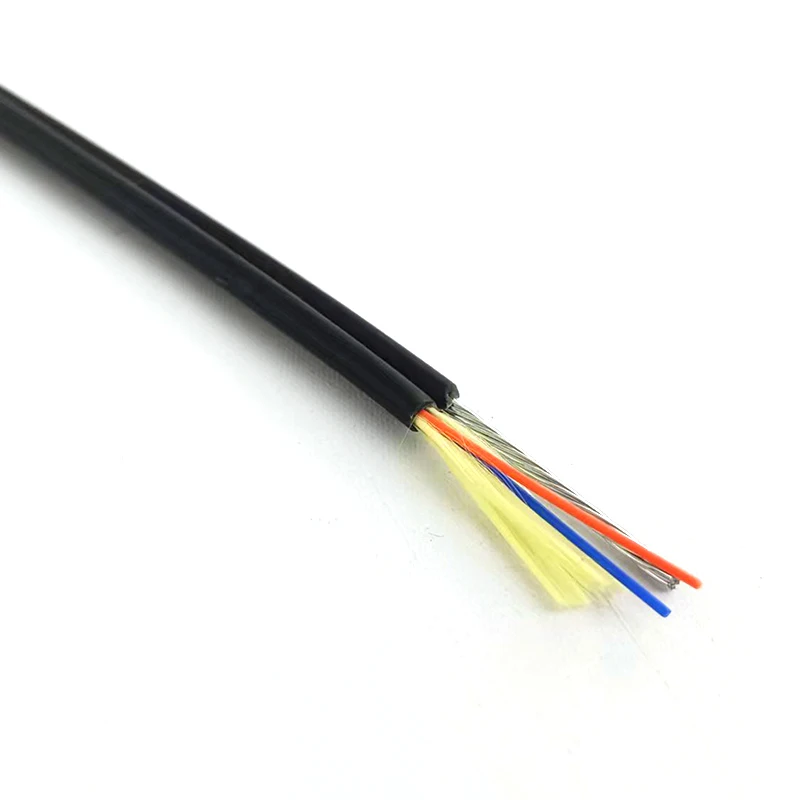

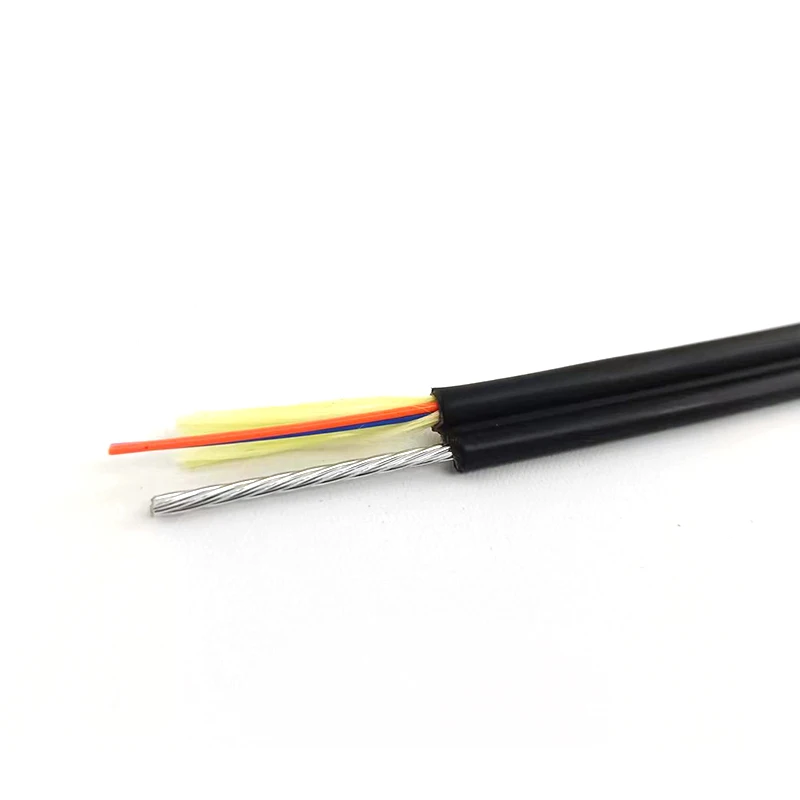

Aerial Self Supporting GJYC8H Indoor fiber optic figure eight cable 2 hilos Figure 8 Cables with Aramid Yarn

Product Overview

Description

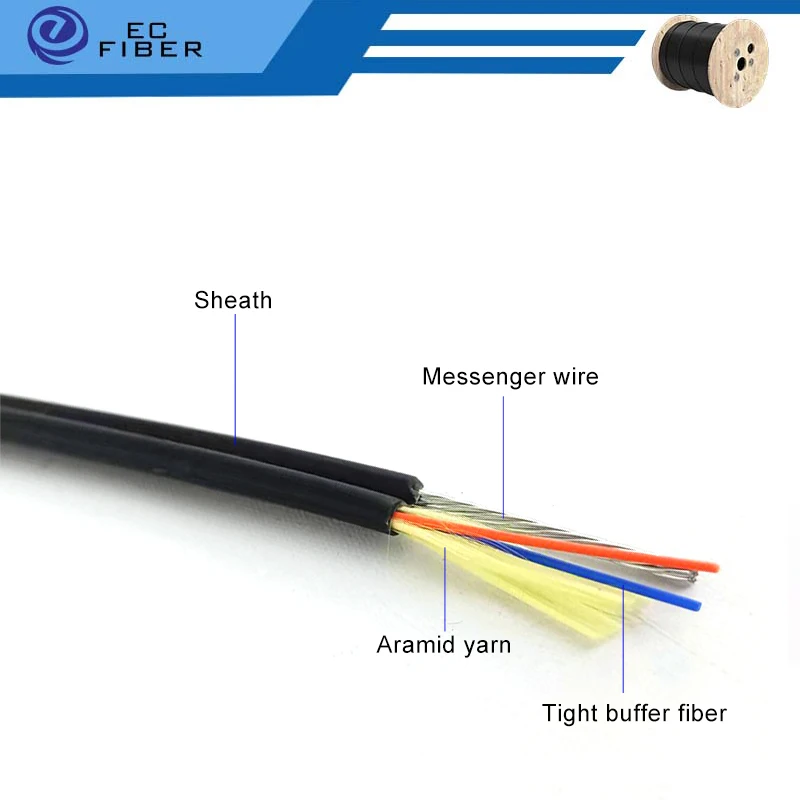

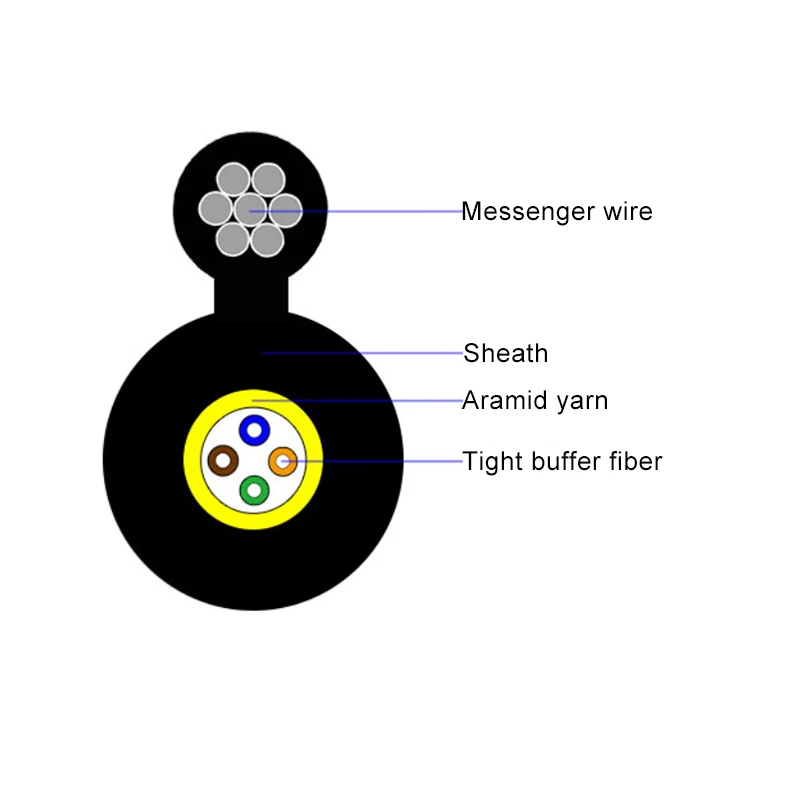

Product Con struction
Fiber:
1-12 fibers 900μm tight buffer
Strength Member:
Aramid yarn
Messenger Member:
Steel wire or non-metallic member.
Outer Sheath:
UV and flame r esistant LSZH
Fiber Type:

G.652D, G.657A1 or G.657A2 single mode fiber



Features
Good UV and flame resistant.
Compact, soft, flexible, easy to install.
Fig8 self-supporting design.



Applications
Used in access network or as access cable from outdoor to indoor in customer premises network.
Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.



Optical Characteristics

Fiber Type	Attenuation		Overfilled Launch Bandwidth	Effective Modal Bandwidth	10Gb/s Ethernet link length	Min Bending Radius
Conditions	1310/1550nm	850/1300nm	850/1300nm	850nm	850nm
Unit	dBlkm	dBlkm	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22					16
G657A1	0.36/0.22					10
G657A2	0.36/0.22					7.5

Structure and Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/10omm)
			Long Term	Short Term	long Term	Short Term
1~4	6.0×3.0	27	300	800	500	1000
>4	Available upon customer's request
