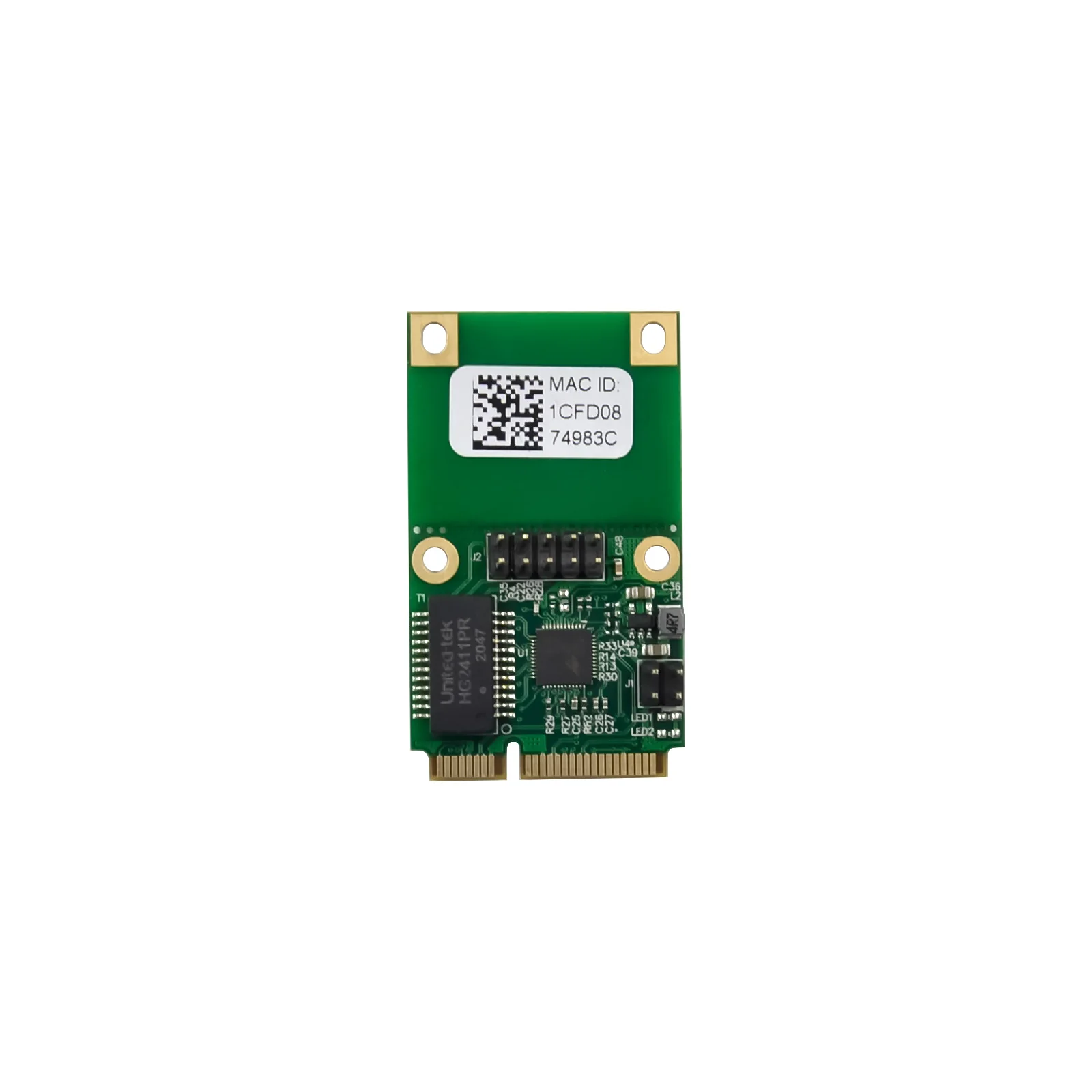

SUNWEIT ST7201 Mini pci e 8125B Single RJ45 2.5G copper network interface card
- Category: >>>
- Supplier: Shenzhen Dongjunriyi Technology Co. Ltd.
Share on (1600722768841):
Product Overview
Description
ST7201 Mini pci-e 8125B Single-RJ45 2.5G copper network interface card
Product Description
Description.
MiniPCIE RTL8125B 2.5G network adapter is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .it is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.
Product Feature.
* Support existing CAT-5 UTP cabling with automatic crossover detection
* Fully compliant with PCI-Express Base Specification Revision1.1
* Single-Lane(x1)PCI-Express with throughput up to 2.5Gbps
* Compatible with PCI-E MINI Card Electromechanical specification revision1.2
* Compatible with Full/Half size MINI card type form factor
* Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
* Supports 2.5G and 1G Lite mode
* Auto-Negotiation with Extended Next Page capability(XNP)
* Support PCI Express Specification Revision 2.1
* Supports pair swap/polarity/skew correction
* Crossover Detection& Auto-Correction
* Supports 1-Lane 2.5/5Gbps PCI Express Bus
* Supports hardware ECC(Error correction code)function
* Supports hardware CRC(Cyclic Redundancy Check)function
* Supports PCI MSI (Message Signaled Interrupt)and MSI-X
* Transmit/Receive on-chip buffer support
* Supports ECMA-393 ProxZzzy Standard for sleeping hosts
* Wake-On-LAN and ‘RealWow!’Technology (remote wake-up)supports
* Compatible with IEEE802.3,IEEE802.3u,IEEE802.3ab
* Supports IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization
* Supports IEEE802.1Qav credit-based shaper algorithm
* Supports IEEE802.1P Layer 2 Priority encoding
* Supports IEEE802.1Q VLAN tagging
* Supports IEEE802.1ad Double VLAN
* Supports IEEE802.3az (Energy Efficient Ethernet)
* Supports IEEE802.3bz(2.5GBase-T)
* Supports full duplex flow control(IEEE802.3x)
* Supports jumbo frame to 16K bytes
* Supports Virtual Machine Queue(VMQ)
* Supports quad core Receive –Side Scaling(RSS)
* Supports Protocol Offload (ARP&NS)
* Drivers for Vista/Win7 / Sever2008/Win8/ Sever 2012 / Win10 /Win11 / Linux, DOS
* Fully compliant with PCI-Express Base Specification Revision1.1
* Single-Lane(x1)PCI-Express with throughput up to 2.5Gbps
* Compatible with PCI-E MINI Card Electromechanical specification revision1.2
* Compatible with Full/Half size MINI card type form factor
* Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
* Supports 2.5G and 1G Lite mode
* Auto-Negotiation with Extended Next Page capability(XNP)
* Support PCI Express Specification Revision 2.1
* Supports pair swap/polarity/skew correction
* Crossover Detection& Auto-Correction
* Supports 1-Lane 2.5/5Gbps PCI Express Bus
* Supports hardware ECC(Error correction code)function
* Supports hardware CRC(Cyclic Redundancy Check)function
* Supports PCI MSI (Message Signaled Interrupt)and MSI-X
* Transmit/Receive on-chip buffer support
* Supports ECMA-393 ProxZzzy Standard for sleeping hosts
* Wake-On-LAN and ‘RealWow!’Technology (remote wake-up)supports
* Compatible with IEEE802.3,IEEE802.3u,IEEE802.3ab
* Supports IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization
* Supports IEEE802.1Qav credit-based shaper algorithm
* Supports IEEE802.1P Layer 2 Priority encoding
* Supports IEEE802.1Q VLAN tagging
* Supports IEEE802.1ad Double VLAN
* Supports IEEE802.3az (Energy Efficient Ethernet)
* Supports IEEE802.3bz(2.5GBase-T)
* Supports full duplex flow control(IEEE802.3x)
* Supports jumbo frame to 16K bytes
* Supports Virtual Machine Queue(VMQ)
* Supports quad core Receive –Side Scaling(RSS)
* Supports Protocol Offload (ARP&NS)
* Drivers for Vista/Win7 / Sever2008/Win8/ Sever 2012 / Win10 /Win11 / Linux, DOS

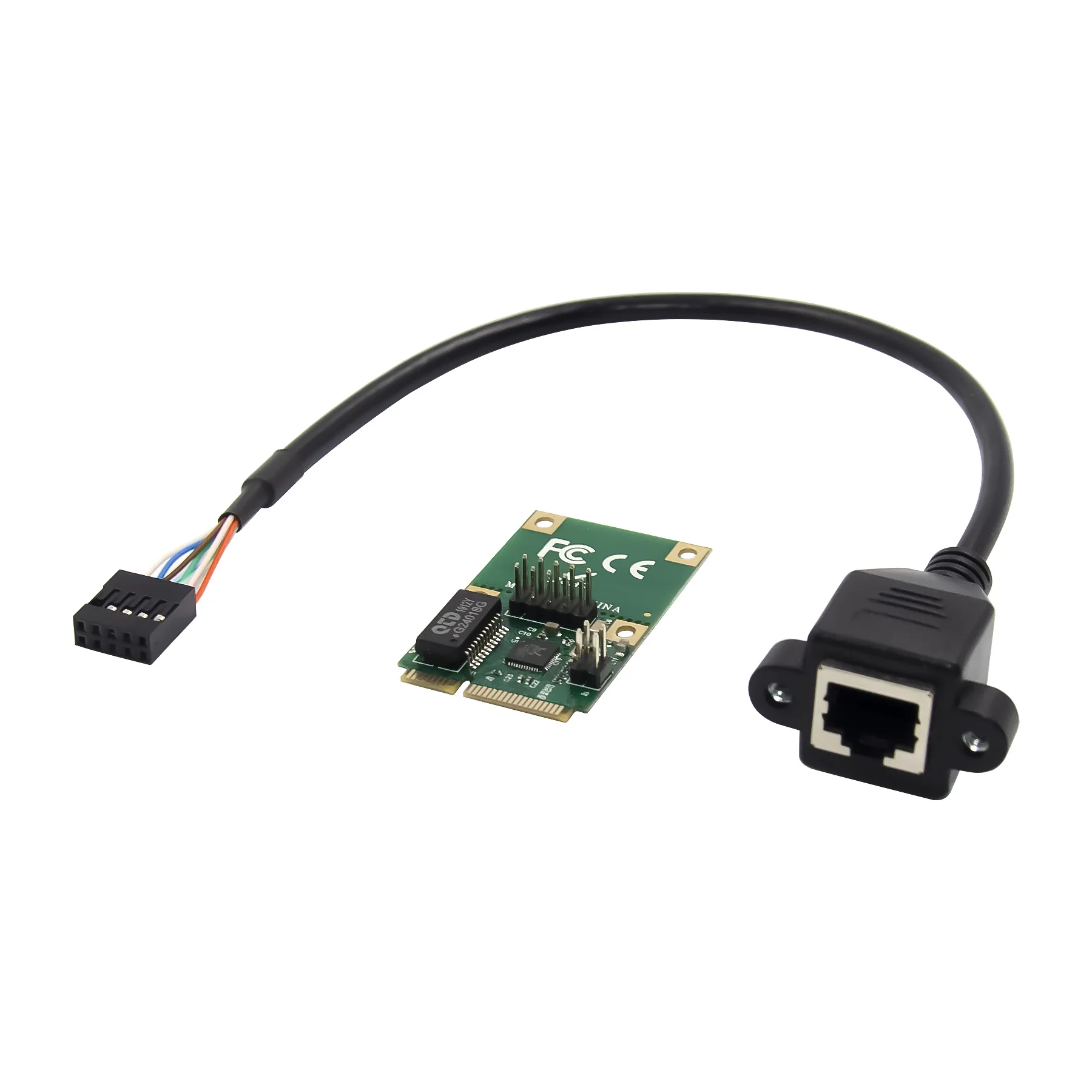

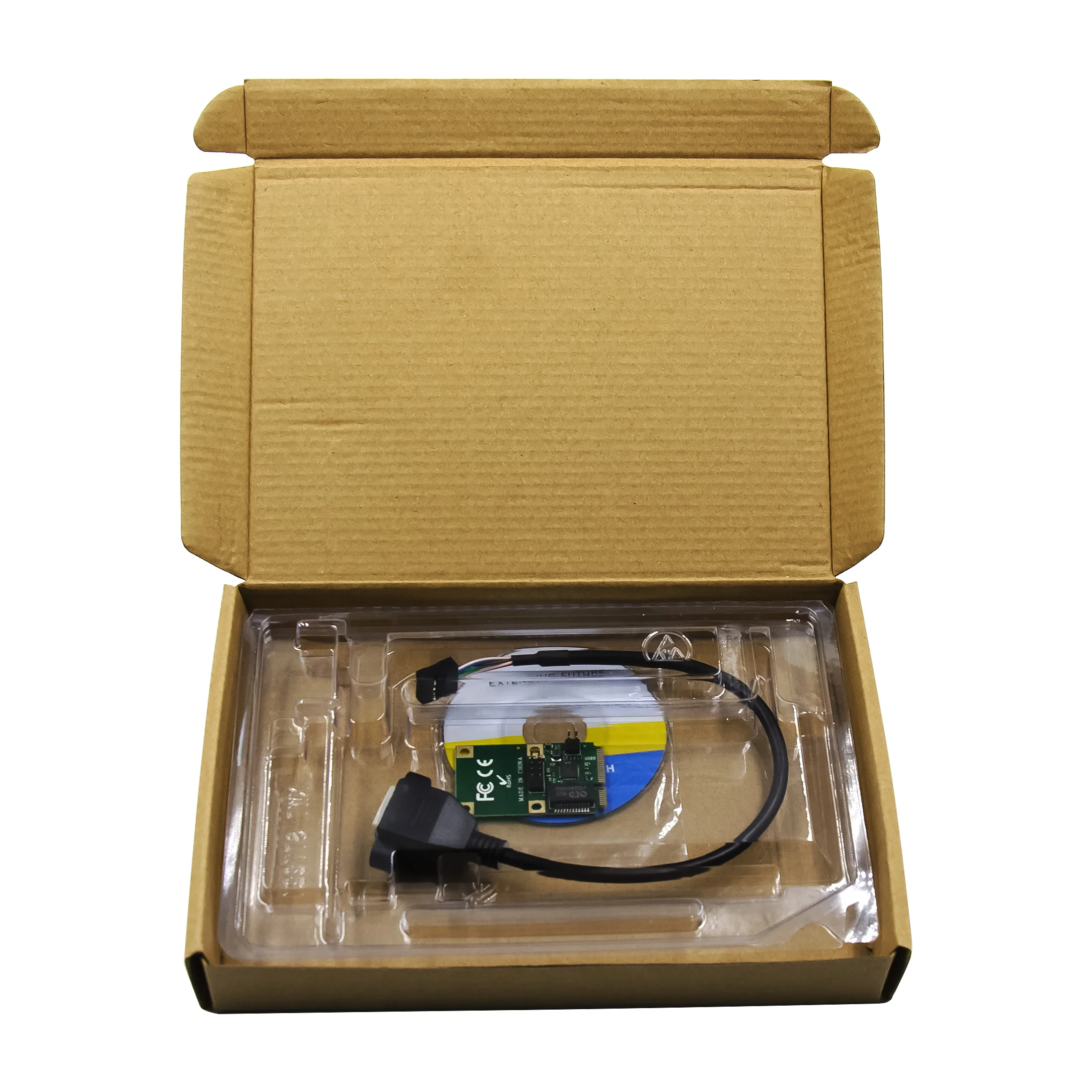

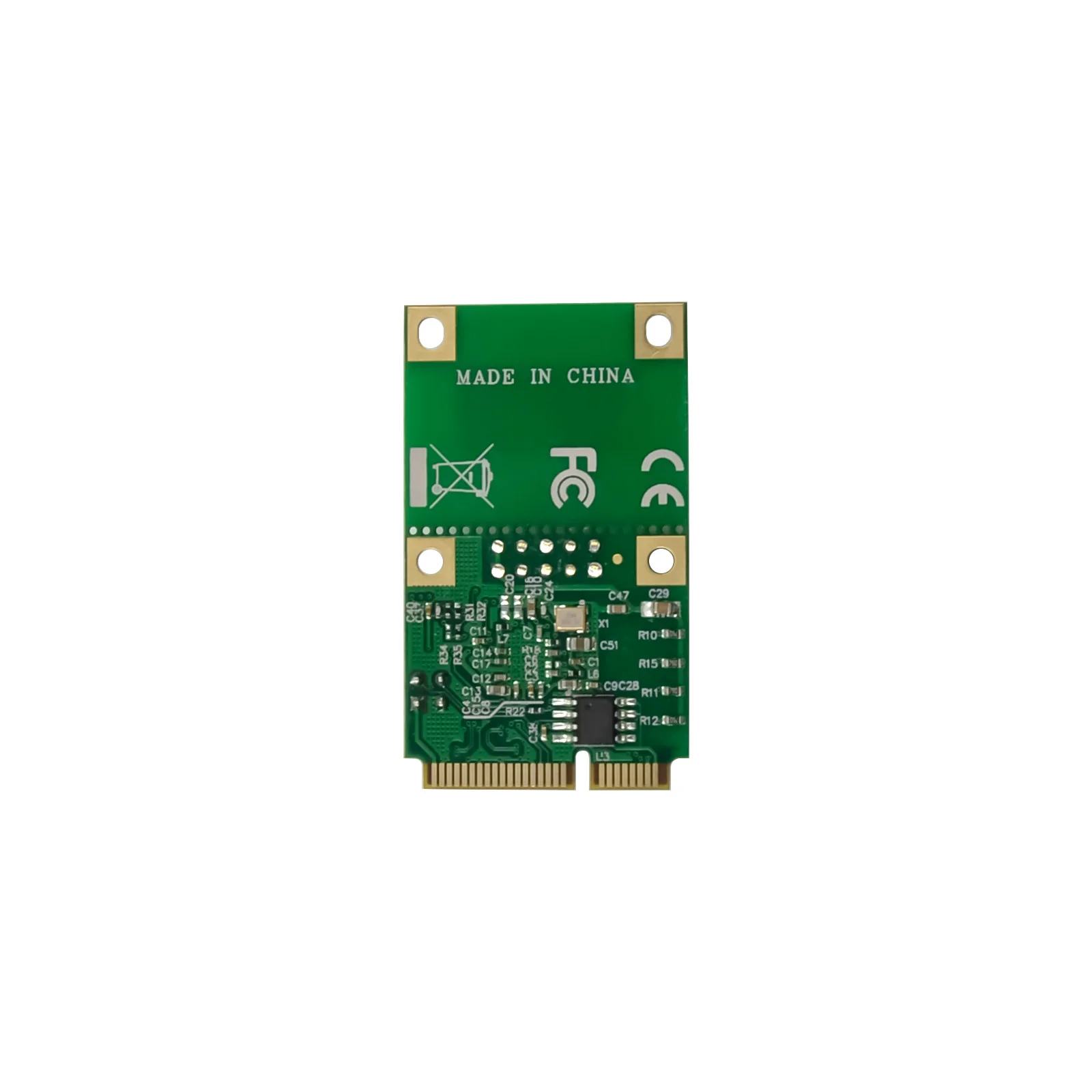

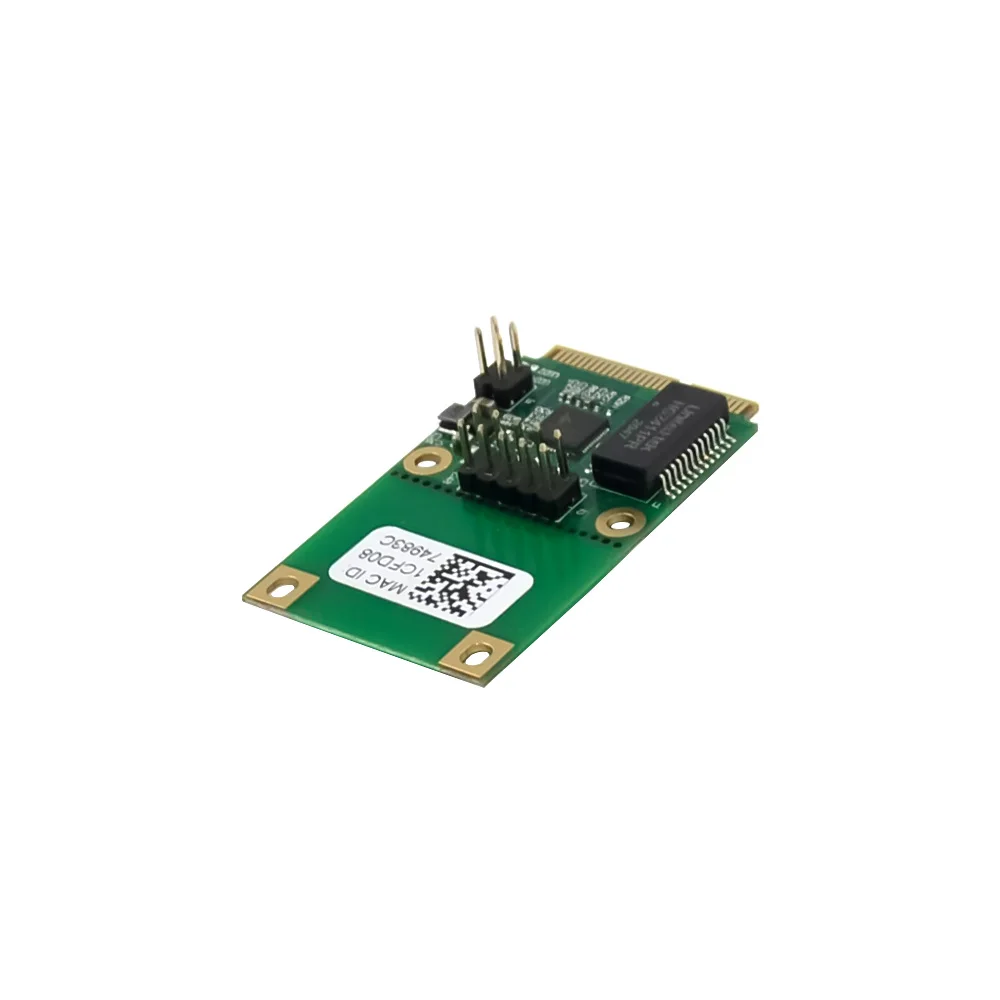

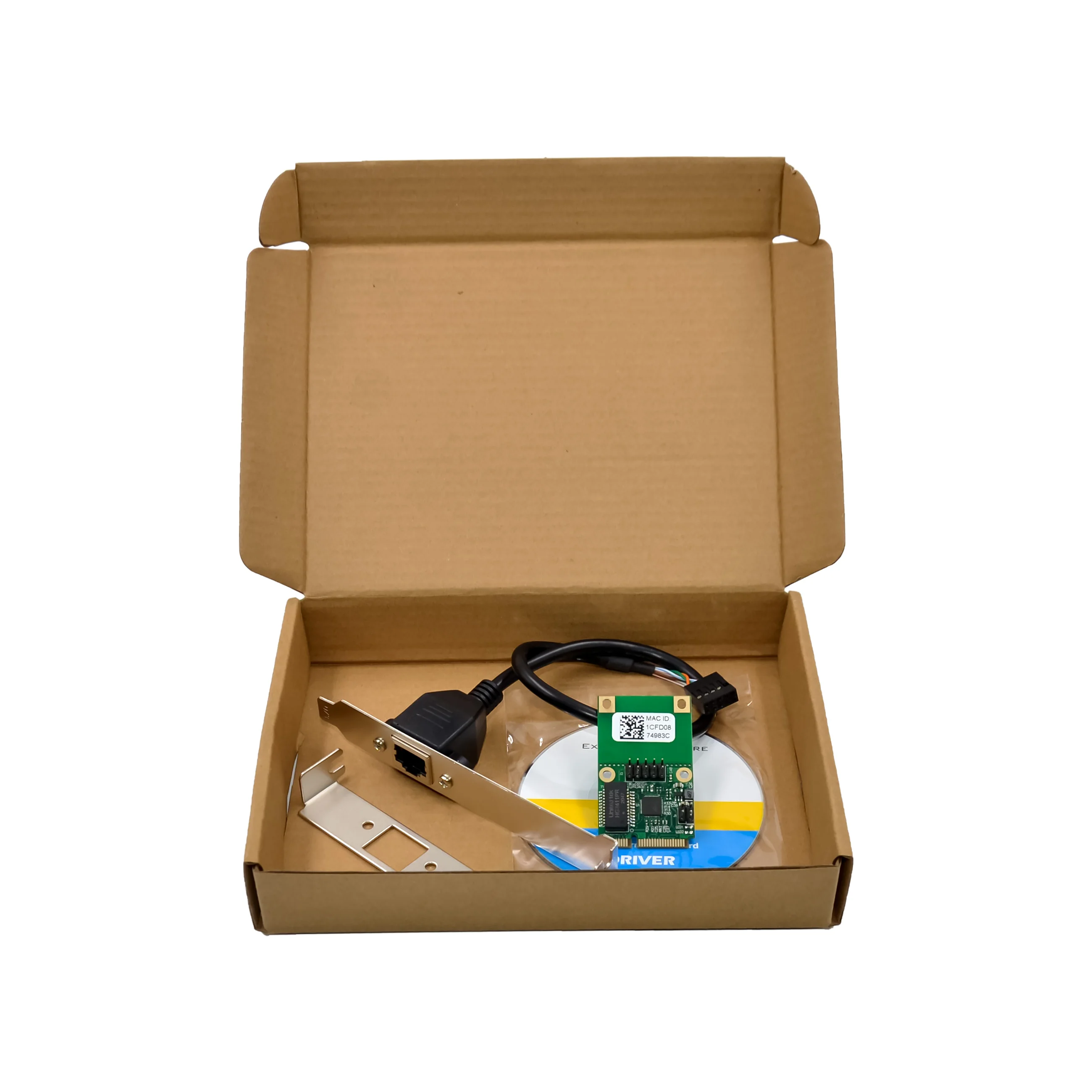

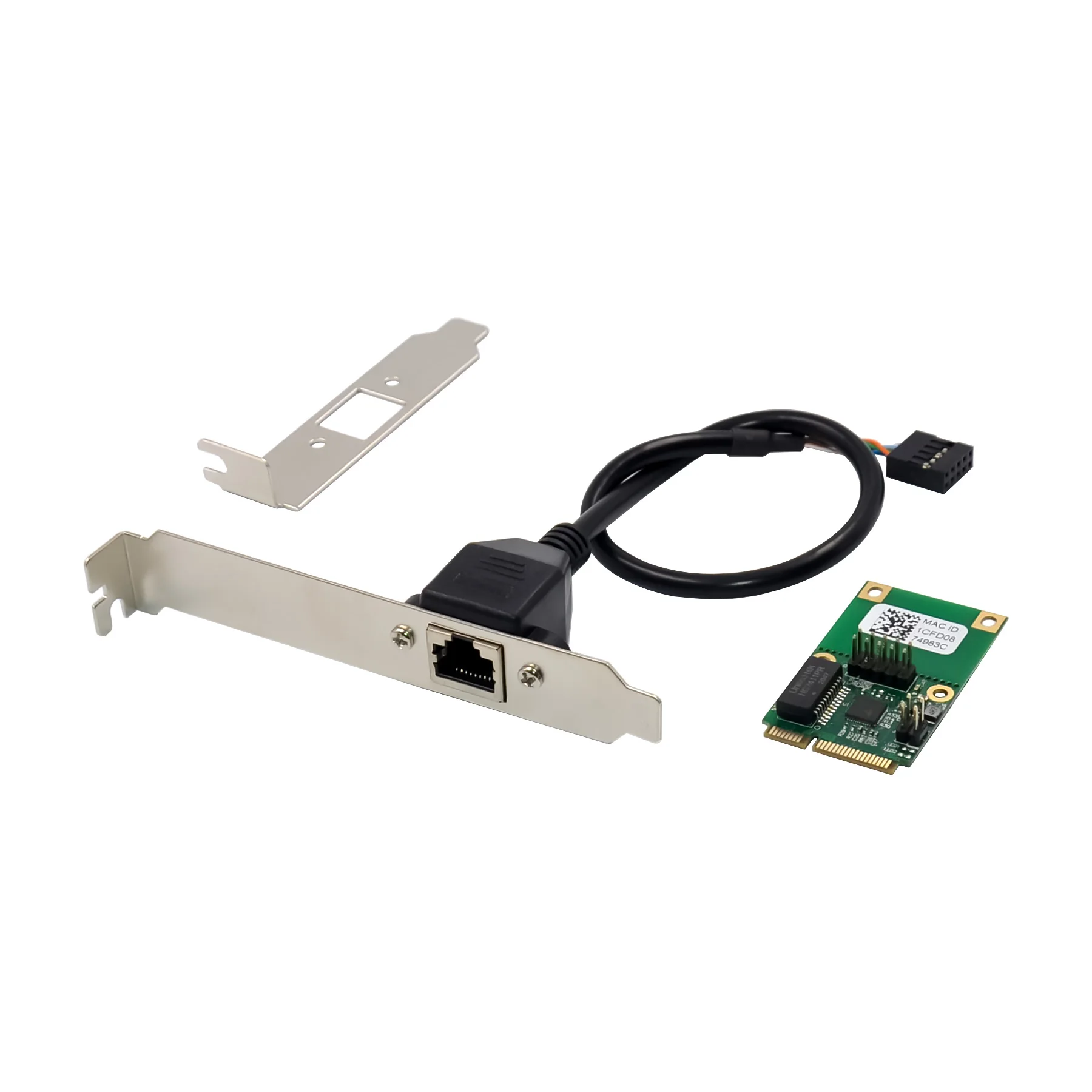

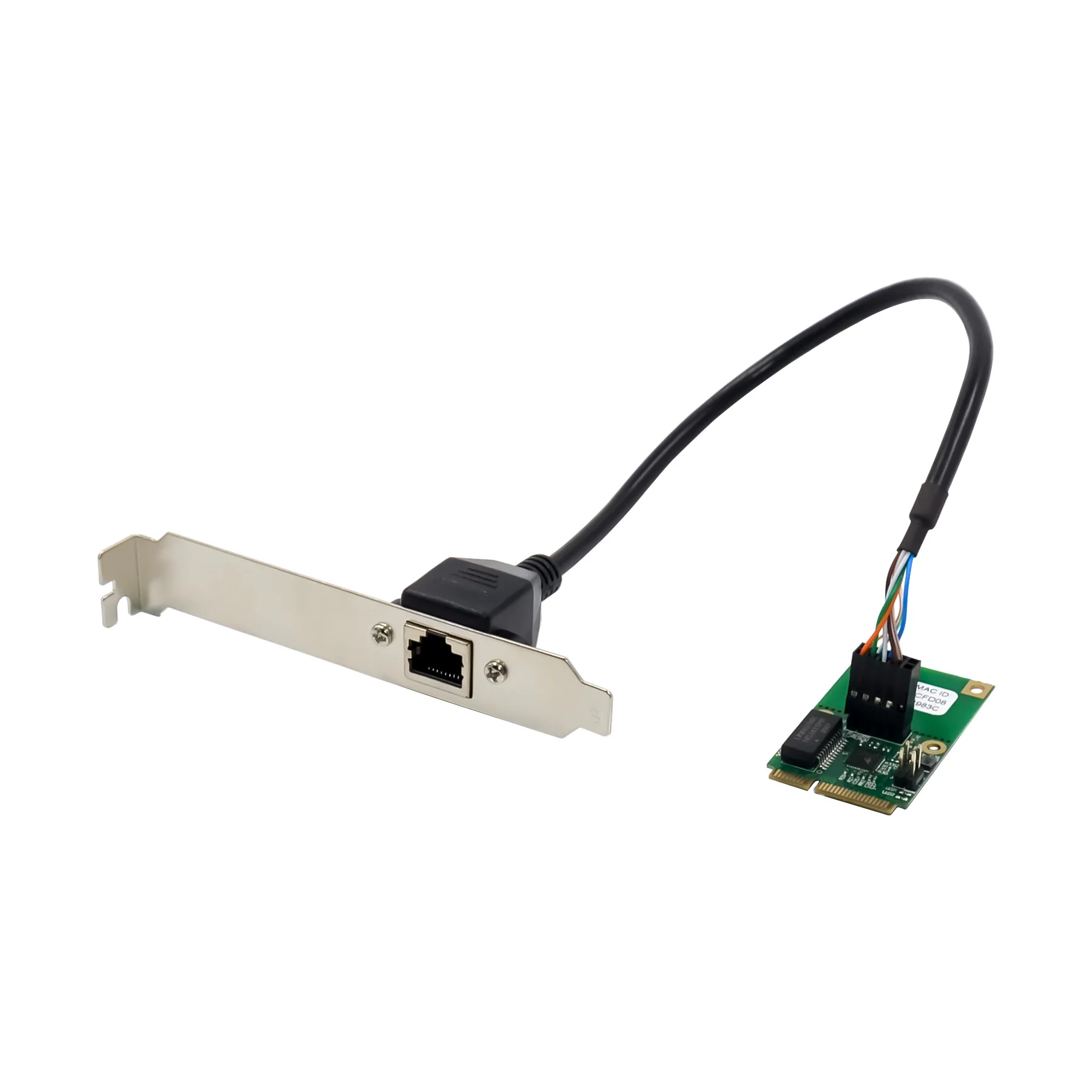

Detailed Image
Related Products
PCIe 10/100/1000M GLAN Chipset:RTL8111F
PCIe Dual Gigabit Network Card Chipset:RTL8111F
PCIe 4PORTS Gigabit Network Card Chipset:RTL8111F
PCIe 10/100/1000M GLAN realtek(RTL8168E)
PCI 10/100/1000M GLAN card Chipset:RTL8169SC
PCI 10/100M Lan card Chipset:RTL8139D
Our Company
-------- Do Best, Get Win-win ! --------
SUNWEIT company was founded in 2003, main computer peripheral products, such as Network Card, SATA RAID card, USB card, Serial&Parallel Card, Sound card mainly for domestic and overseas brands to provide OEM service.
Business Philosophy
* Careful management
* Meticulous work
Value Proposition
* Advocating multi win economy
* Sustainable management
Core Technology
After years of precipitation and accumulation, we have mastered the continuous stability of the product, the iteration of the old and new products, and the production of the best price ratio. It can complete the order quickly and provide the high quality service for the customers.

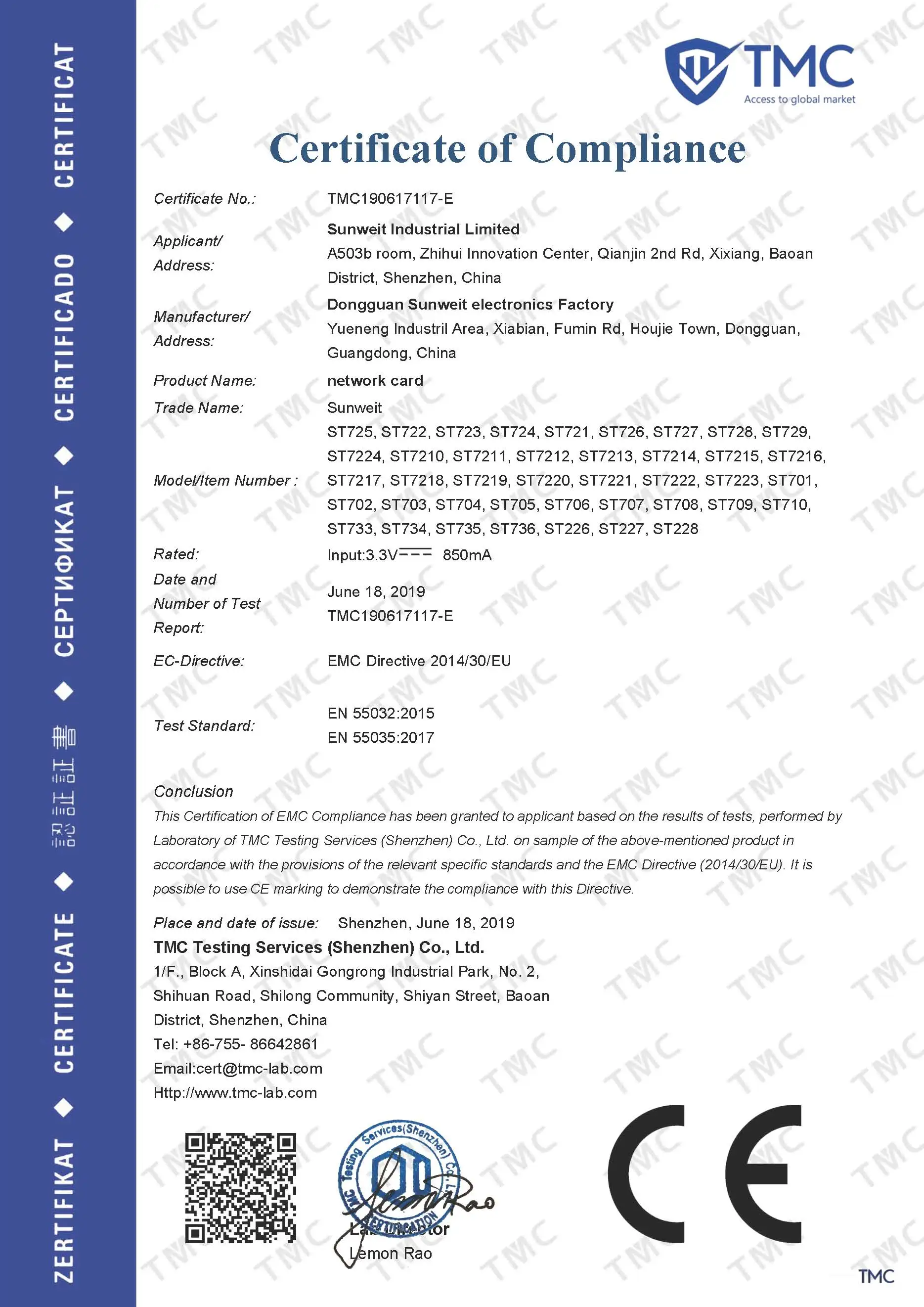

Certifications
