Customized Small Water Bottle Style 24v 36v 48v 20ah Hailong Europe Or Us Li ion E bike Battery Electric Bike Battery Pack
- Category: >>>
- Supplier: Changzhou Vtuvia Motor Technology Co. Ltd.
Share on (1600722775359):
Product Overview
Description
Product Description
24v 36v 48v bike lithium ion electric bicycle battery:
1)Cycle life :more than 1000times cycle life
2)Application :electric vhicle,like electric bike,scooter,etc
3) Powerful energy :as the high voltage and light weight ,Motors acceleration speed performance are very good.
4) Energy density per volume are higher
5) Stable BMS system with short-circuit protection ,over-charge protection ,over-discharge protection and over-current protection
fuctions.
6 ) With at least More than 1000times cycle life
7) It can run well under different temperature environment condition
8) No memory effects.
9) We can design and produce difference dimension or model of the battery according to clients'demands. 10Ah, 11Ah, 12Ah, 15Ah,
24V, 36V, 48V are available

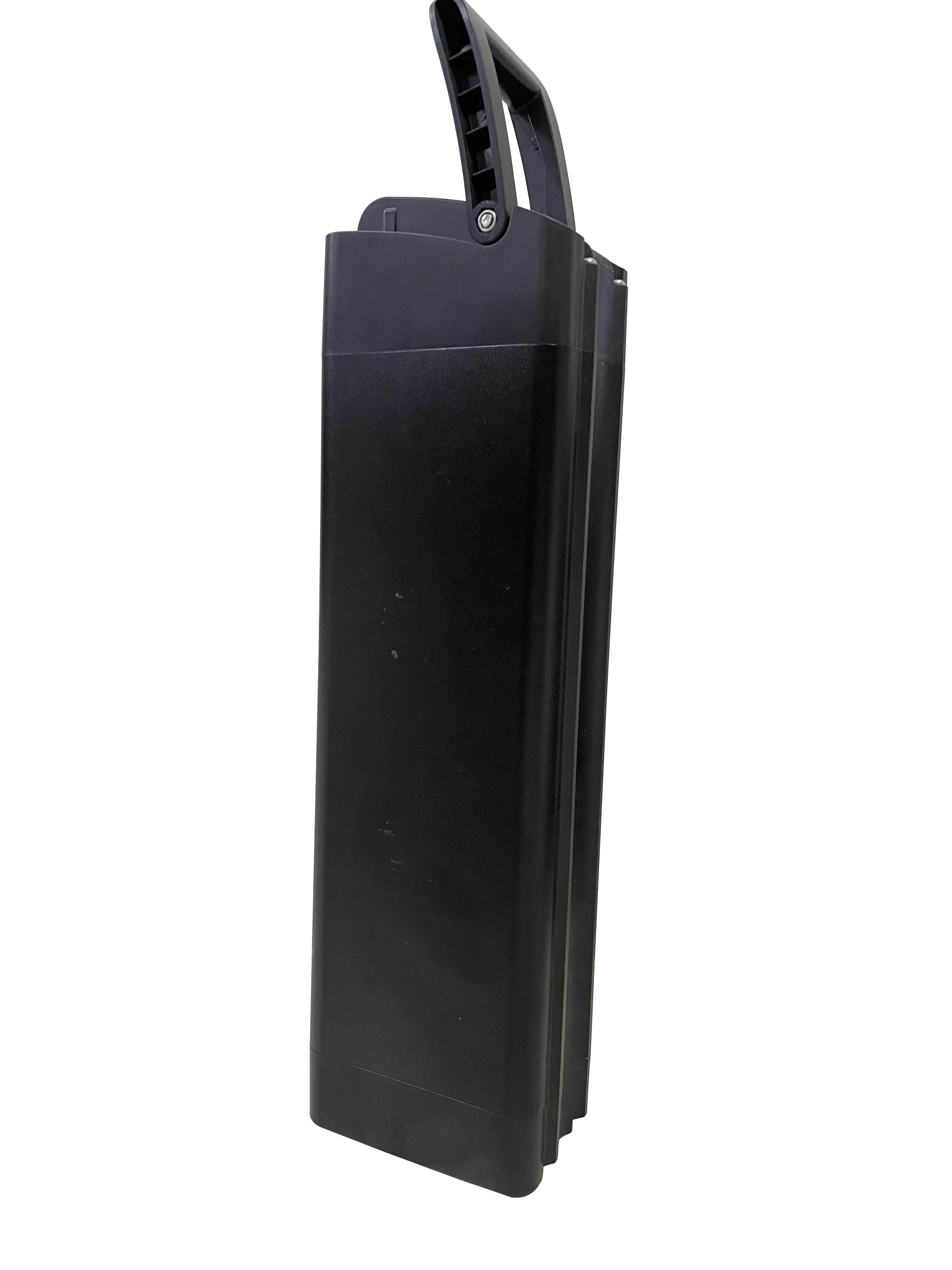

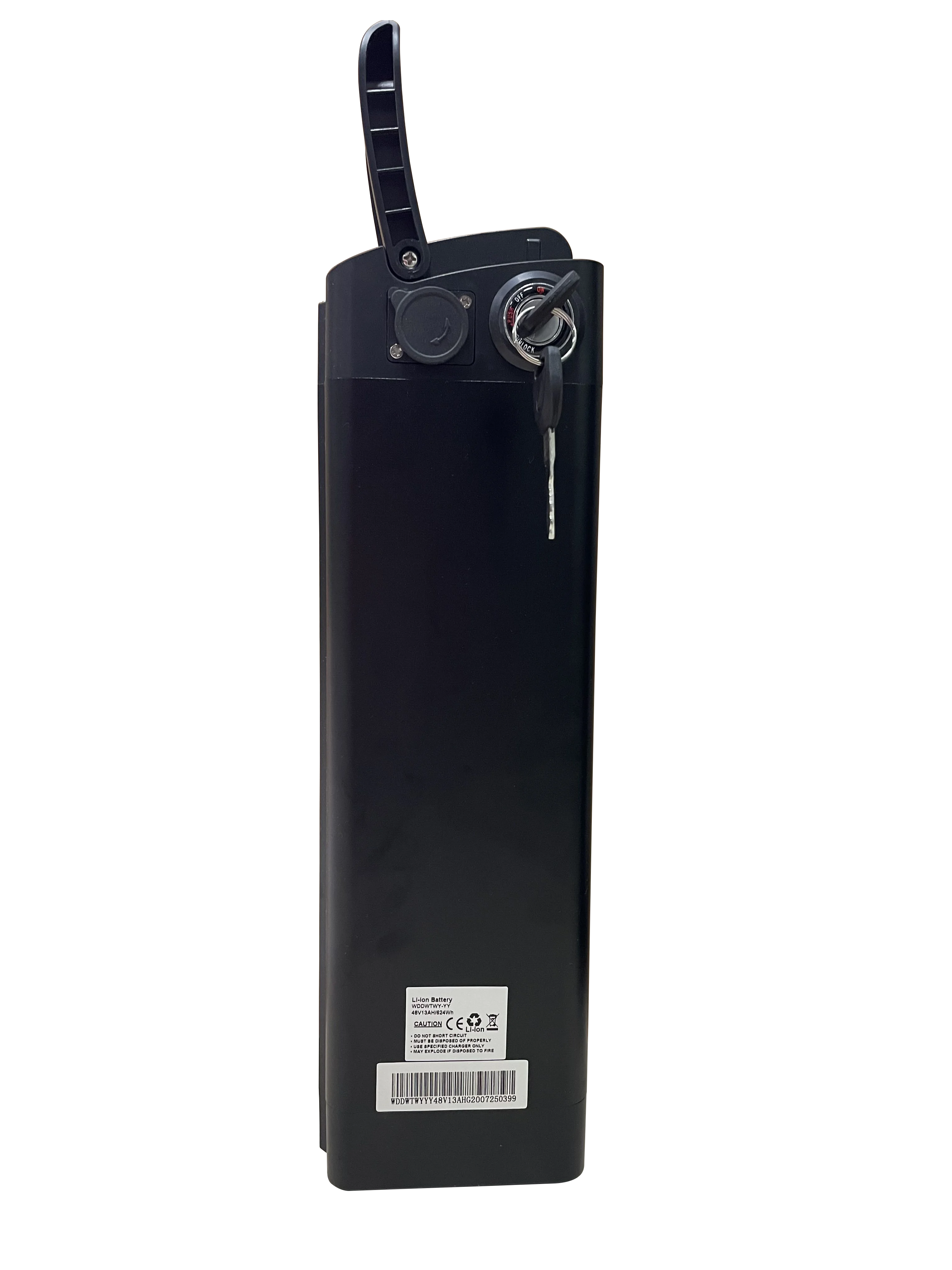

Photos details for 24v 36v 48v silver fish bike lithium ion electric bicycle battery:
Battery Packing List
1. Electric bike battery with high quality inbuilt BMS.
2. Ebike battery with AC and DC plug,AC plug will be matched as delivery country if without request.
3. Electric bicycle battery discharge cable and connectors, if without request will left 250mm naked cable.
1)Cycle life :more than 1000times cycle life
2)Application :electric vhicle,like electric bike,scooter,etc
3) Powerful energy :as the high voltage and light weight ,Motors acceleration speed performance are very good.
4) Energy density per volume are higher
5) Stable BMS system with short-circuit protection ,over-charge protection ,over-discharge protection and over-current protection
fuctions.
6 ) With at least More than 1000times cycle life
7) It can run well under different temperature environment condition
8) No memory effects.
9) We can design and produce difference dimension or model of the battery according to clients'demands. 10Ah, 11Ah, 12Ah, 15Ah,
24V, 36V, 48V are available
Photos details for 24v 36v 48v silver fish bike lithium ion electric bicycle battery:
Battery Packing List
1. Electric bike battery with high quality inbuilt BMS.
2. Ebike battery with AC and DC plug,AC plug will be matched as delivery country if without request.
3. Electric bicycle battery discharge cable and connectors, if without request will left 250mm naked cable.
Battery Material | 24V 36V 48V bike lithium ion electric bicycle battery | ||||
Battery Pack Model | 24V | 36V | 48V | ||
Outer Packing Material | PVC, Plastic shell, Steel Sheel | ||||
Nominal Voltage | 24V | 36V | 48V | ||
Rated Capacity | 8Ah/10Ah/15Ah/20Ah | 8Ah/10Ah/15Ah/20Ah | 10Ah/12Ah/15Ah/20Ah | ||
Max. Charge Voltage | 29.4V | 42V | 54.6V | ||
Cut-Off Discharge Voltage | 21V | 30V | 39V | ||
Charging Model | CC/CV | CC/CV | CC/CV | ||
Cycle Life(80%DOD) | 800 Cycles | 800 Cycles | 800 Cycles | ||
Charge Temperature | 0-45°C | 0-45°C | 0-45°C | ||
Discharge Temperature | -20-55°C | -20-55°C | -20-55°C | ||
Motor Range | 24V250-500W | 36V350-1500W | 48V350-2000W | ||
Product Details
Customer show
Please feel free to contact with us , if you have any question. our service alwasy on line. Click
