High Quality 1T Mini Excavator 1ton With Japan KUBOTA engine, Boom Swing and Retractable tracks
- Category: >>>
- Supplier: Shandong Bangtu Machinery Co. Ltd.
Share on (1600722801598):
Product Overview
Description
Products Description

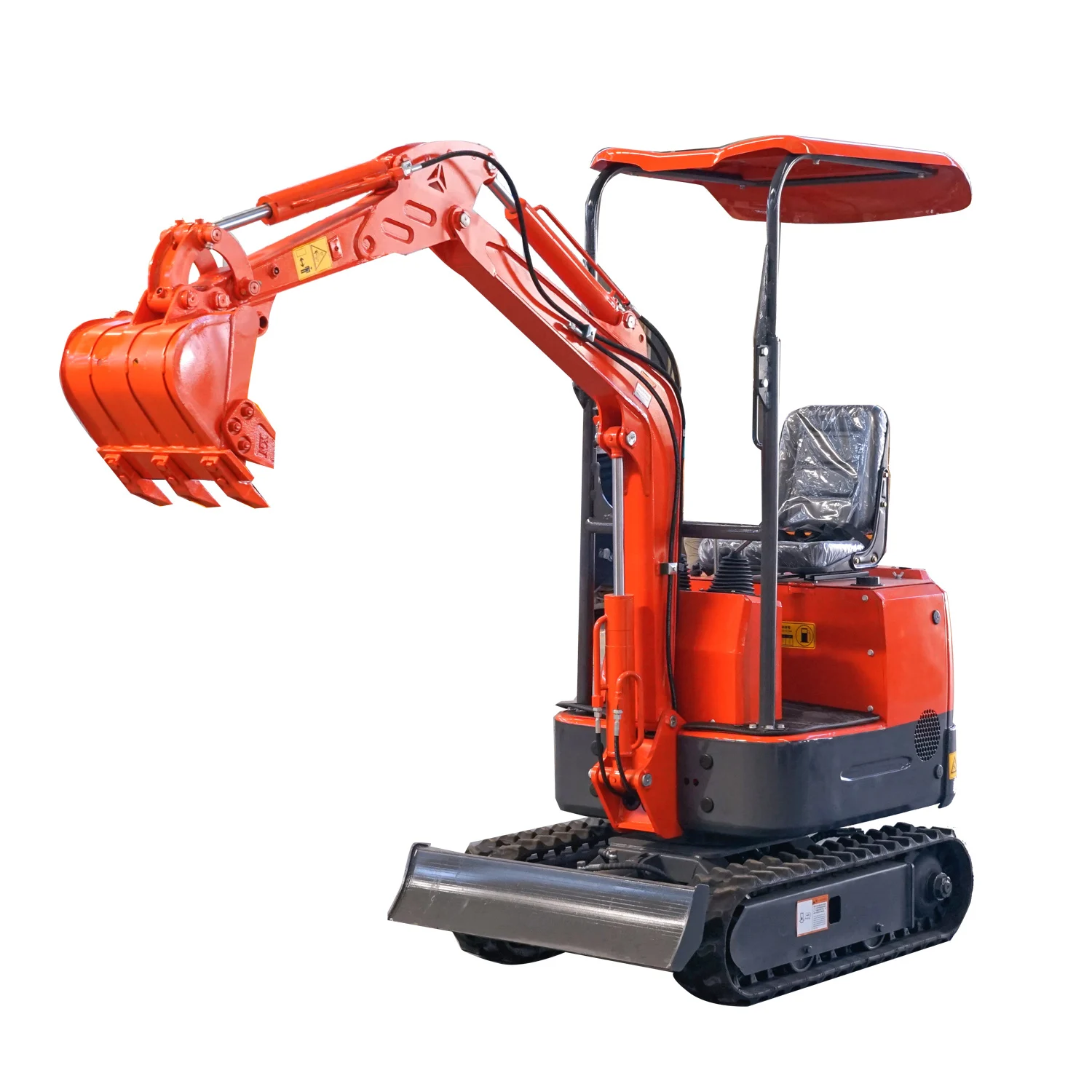

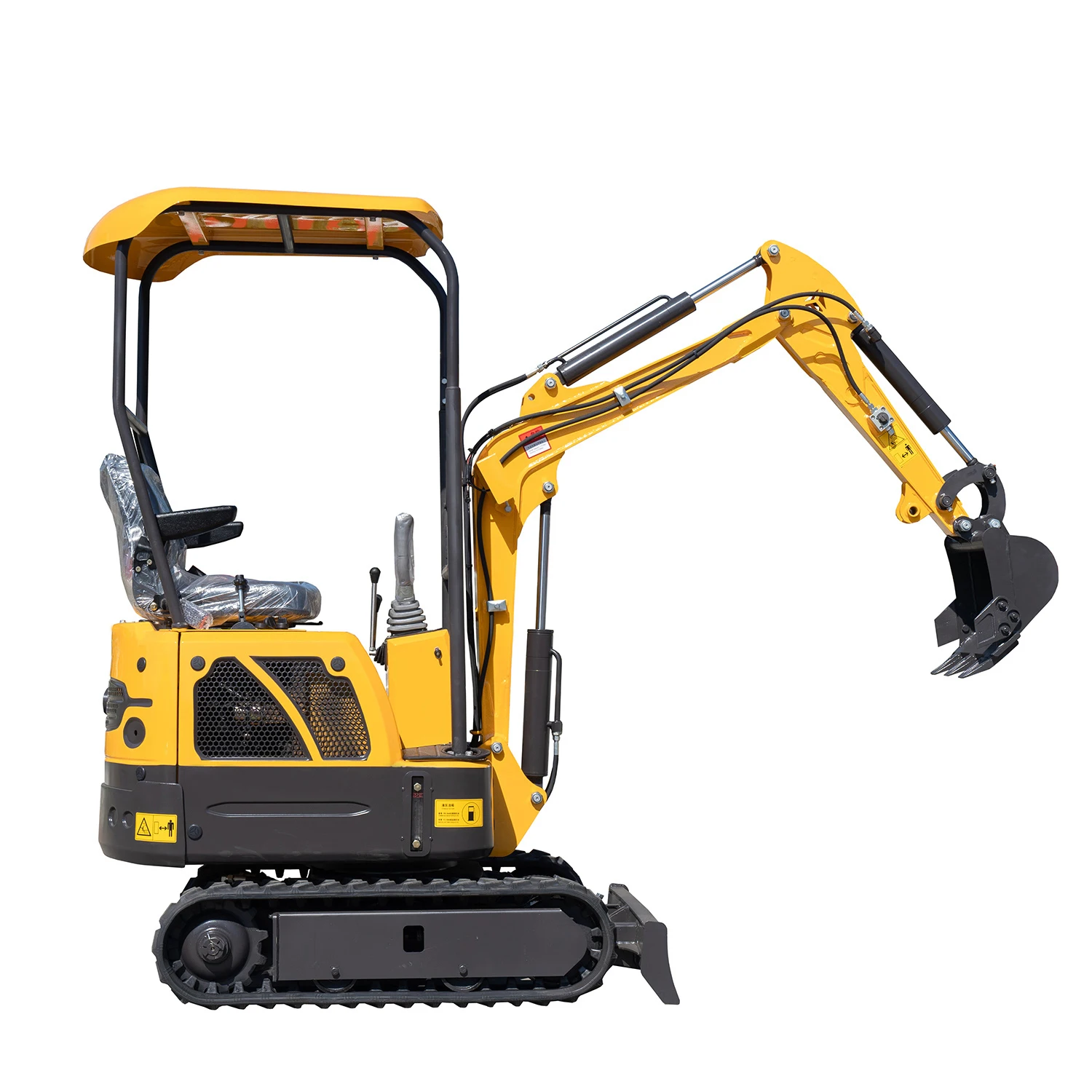

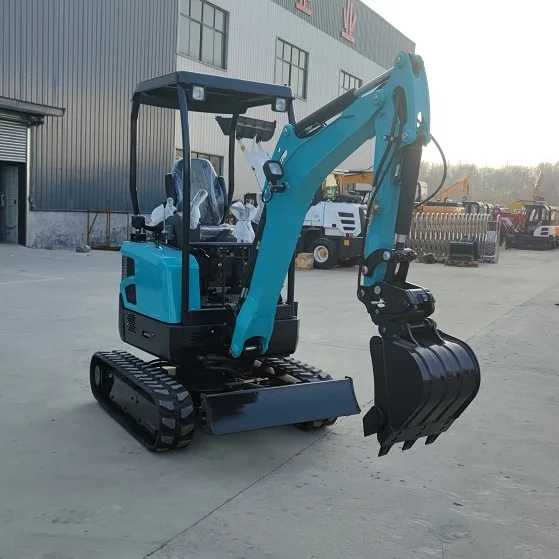

1 TON CRAWLER EXCAVATOR BT10
This excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench. It is with small engine, simple design, easy to maintain.
Main Specification:
Model | BT-X10 | MAIN DEMENSIONS | ||
Manufacturer | SHANDONG BANGTU MACHINERY CO.,LTD | Overall dimension( LxWxH) | 2770x896x1490 mm | |
Brand | BANGTU | Total length of track | 1235mm | |
Operating Weight | 880kg | Platform ground clearance | 410 mm | |
Digging bucket capacity | 0.02cbm | Platform back turning radius | 795 mm | |
Bucket width | 380mm | Chassis width | 930 mm | |
Engine | CHANGCHAI (EU III) /KOOP (EU V) | Track width | 180 mm | |
Rated power | 8.6kw or7kw | Chassis ground clearance | 132 mm | |
Displacement | 0.211 L | Track height | 320 mm | |
Bore stroke | 70x55 | Diesel tank capacity | 10 L | |
Main pump | ZANEDA | Hydraulic oil tank capacity | 16L | |
Hydraulic system pressure | 16 Mpa | OPERATING RANGE | ||
Swing motor | SJ-TECH (MP-1-160) | Max. Digging depth | 1400 mm | |
Traveling motor | KERSEN (OMS-2450) | Max. Digging height | 2490 mm | |
Travel speed | 1.5km/h | Max. Dumping height | 1750 mm | |

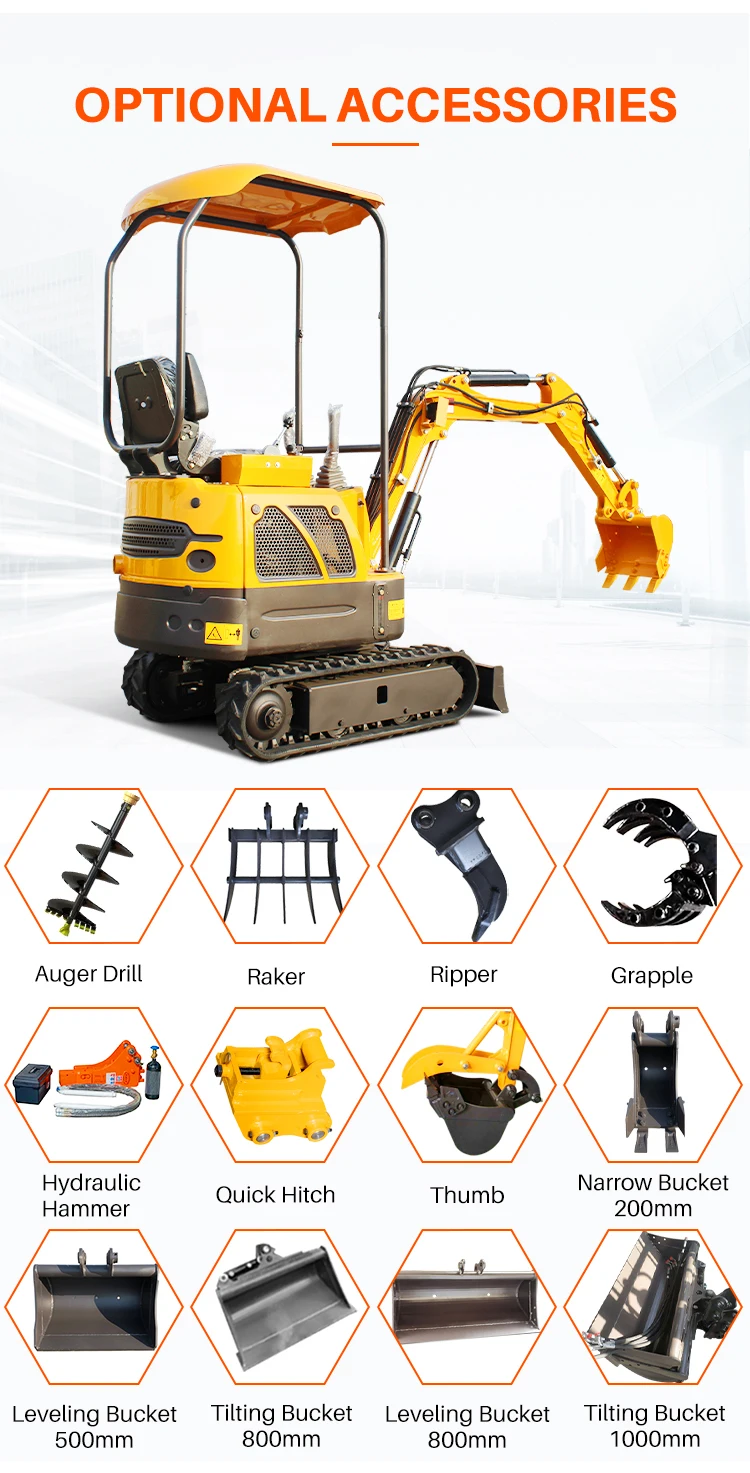

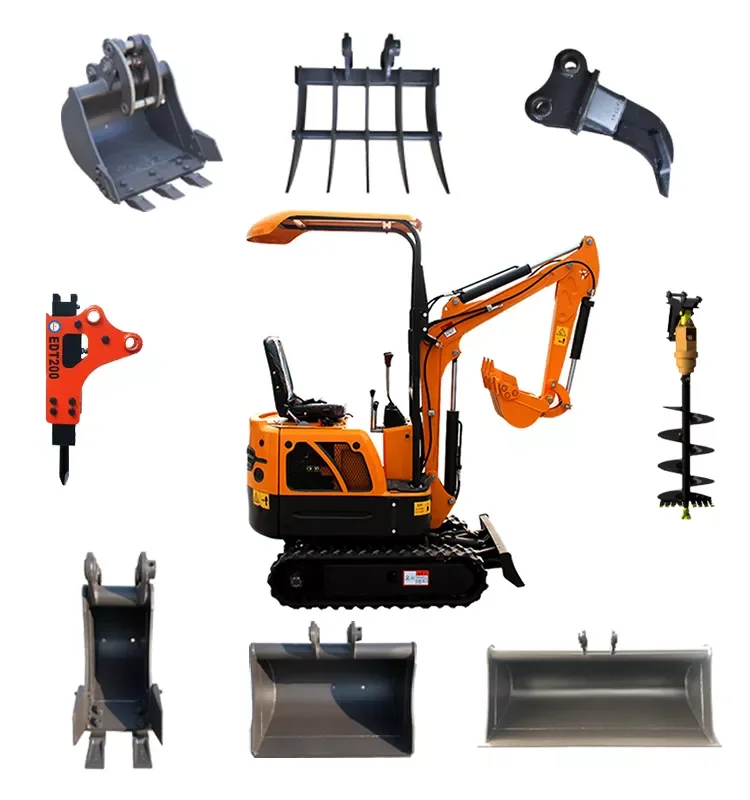

Optional componets:

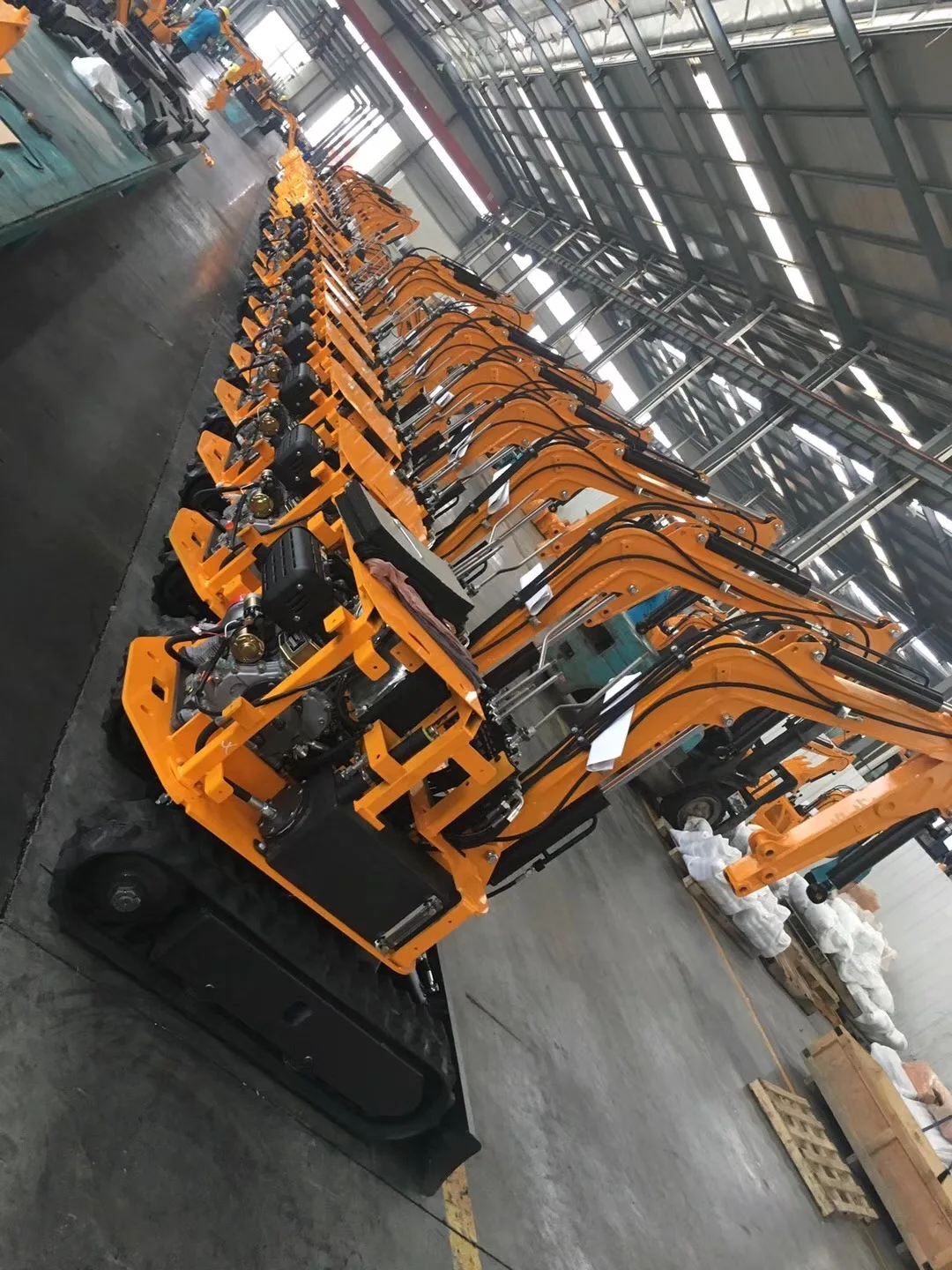

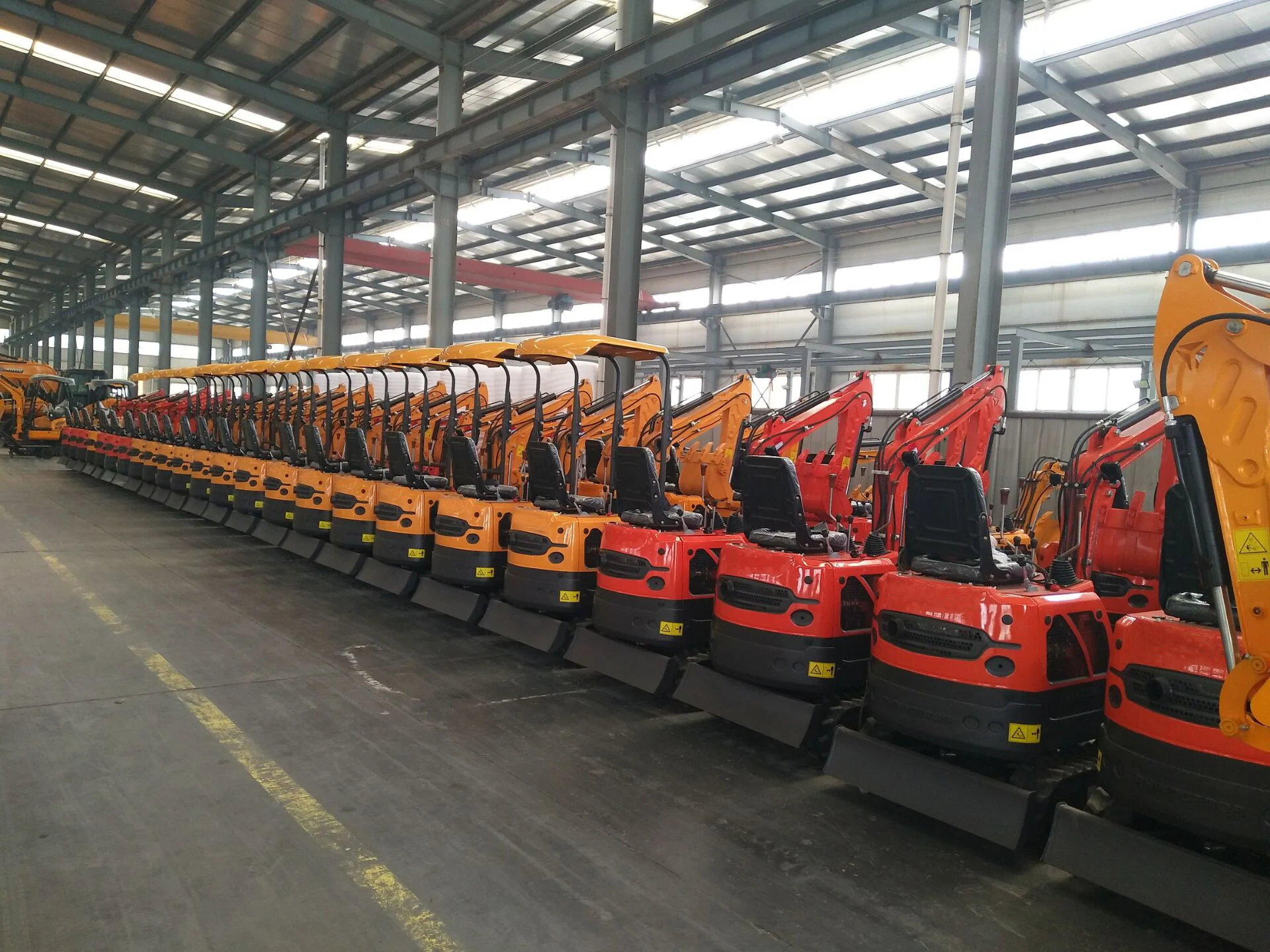

Company Profile
Shandong Bangtu International Trade Co., Ltd. in Liaocheng City, Shandong province, China. The business scope are in crawler excavator, wheel excavator, backhoe loader, concrete pump, telescopic handler, diesel generator, dumper and spare parts for machinery ( track link, track plate,bushing , pins, and rolls). We are selling and manufacturing of agricultural use excavator in china in the last 6 years. Annual production amount is around 50000 units. Foreign market grows more and more prosperous in recent years,
We welcome new and old customers from the world to contact us for future business relationships.
Certifications
Packaging&Delivery
If you need 1-3 units would be Wooden box, More than 4 units will loading by container.
After 5-7 days we will shipping your goods when we received the balance payment.
After 5-7 days we will shipping your goods when we received the balance payment.
TOP SELLINGS
(Click on the product image for more information.)
FAQ
1.What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers,Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
2.Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL,wooden box;if 4 unit or more than 4 units suggest used 20ft container.
3.The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
4.Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
