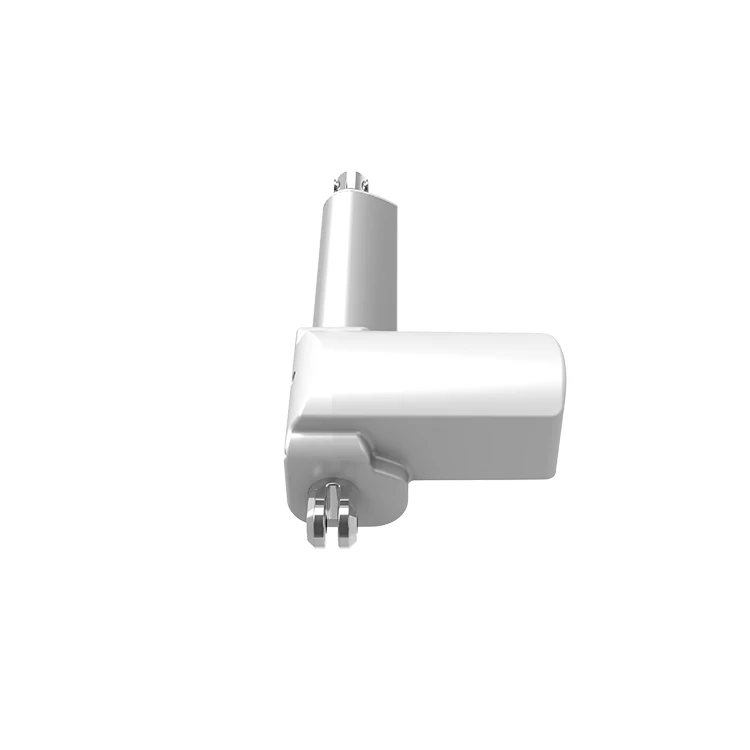

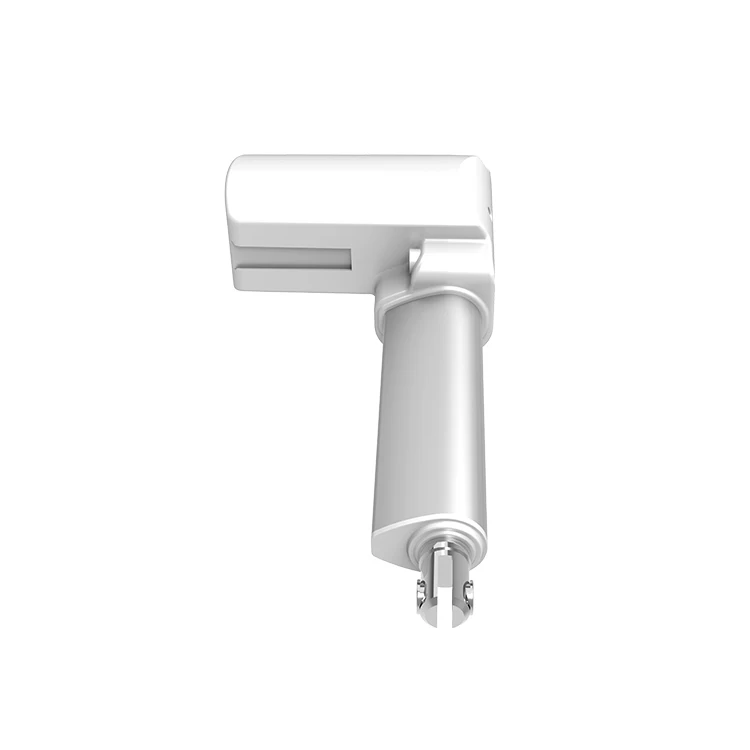

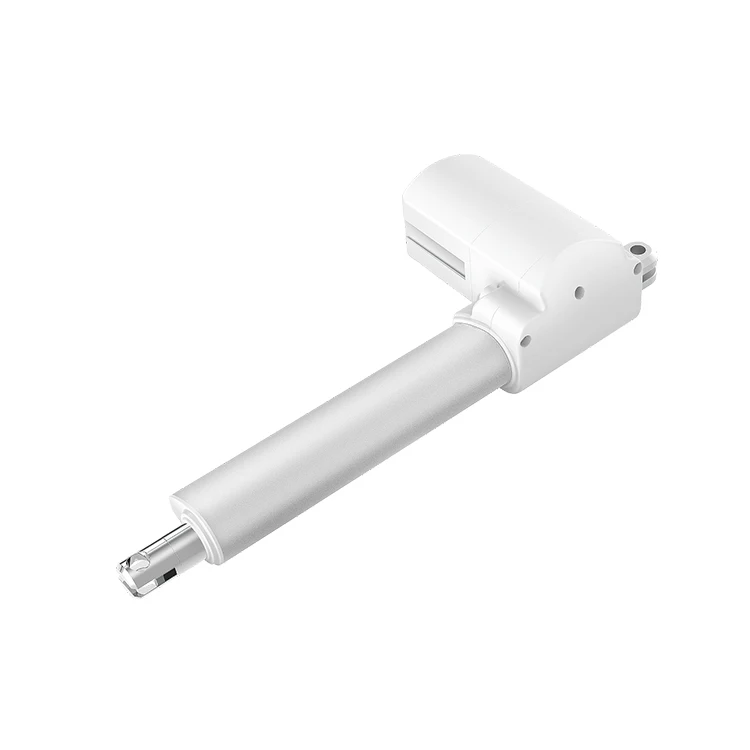

JIECANG IPX6 Electric Medical Bed Operation Bed Nursing Bed Lifting Linear Actuator
- Category: >>>
- Supplier: Zhejiang Jiecang Linear Motion Technology Co. Ltd.
Share on (1600722806136):
Product Overview
Description
JIECANG IPX6 Electric Medical Bed Operation Bed Nursing Bed Lifting Linear Actuator
Products Description

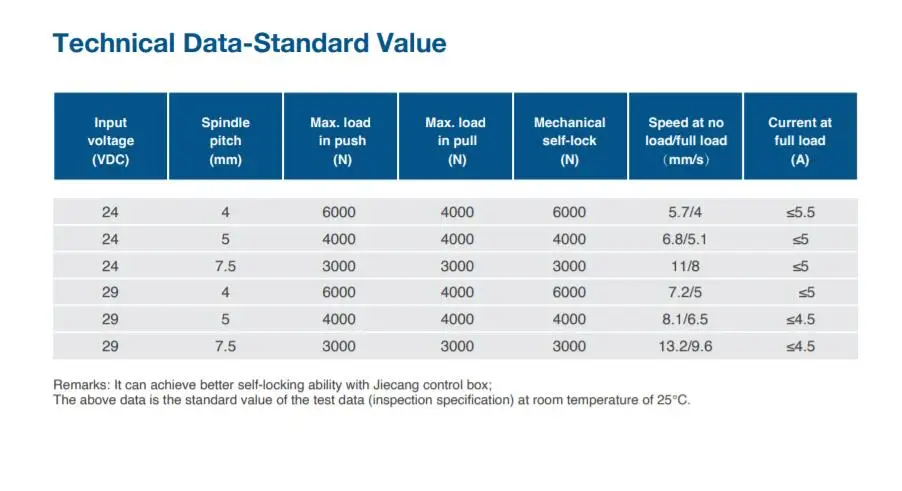

Specification
Dynamic load push(N) | 6000,4000, 3000 |
Dynamic load pull (N) | 6000,4000 |
Colour | Gray / Black |
IP Grade | Max. IPX6 |
Stroke Length | 6000N: 50-300mm (4mm tolerance) 4000N: 50-400mm (4mm tolerance) 3000N: 50-400mm (4mm tolerance) |

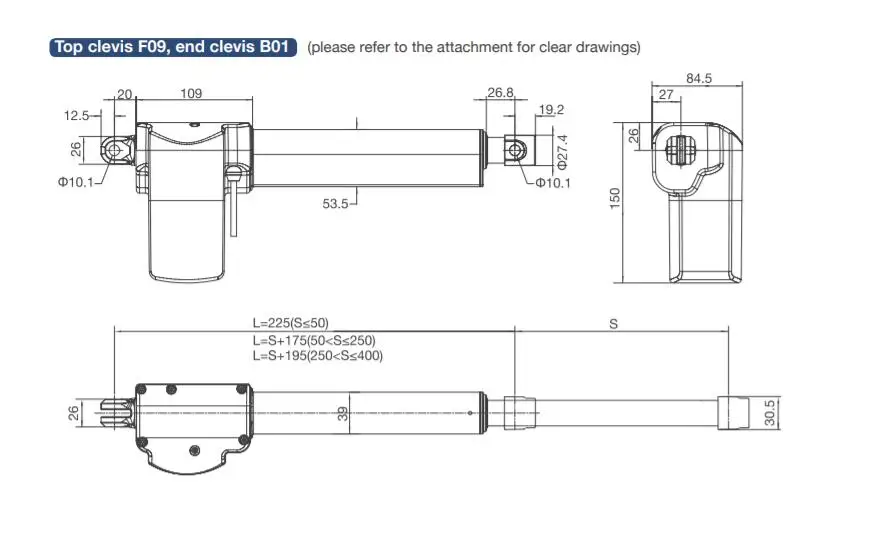

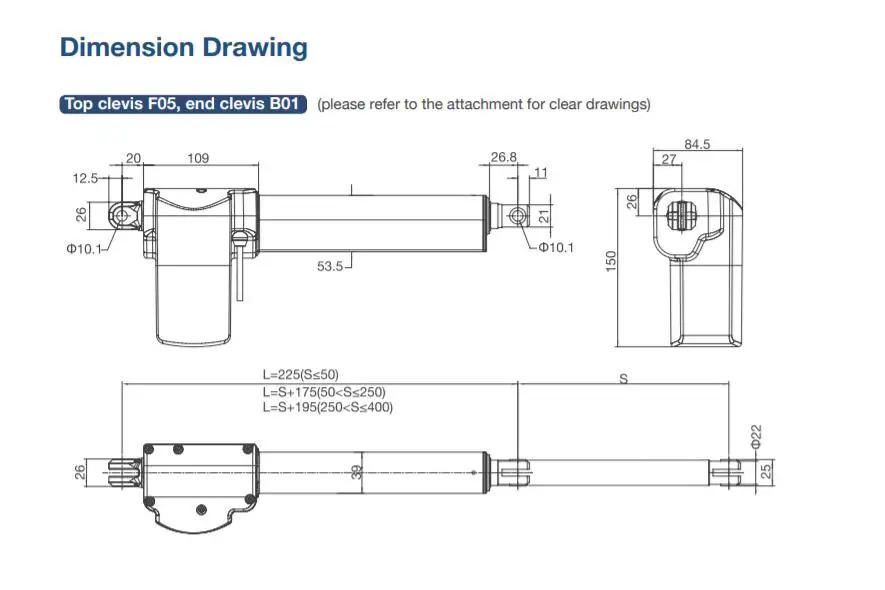

Installation Dimensions | L=225(S≤50) L=235 (50＜S≤200)L=S+185(200＜S≤400) |
Noise Level | ≤48dB (environmental noise≤40dB) |
Optional | Safe nut, Double hall sensor, Only Push No Pull |
Limit Switch | Built-in (electrical) |
Weight | About 2kg |
If you need 2D/3D drawings
Please feel free to contact us！
Our Advantages
Related Products

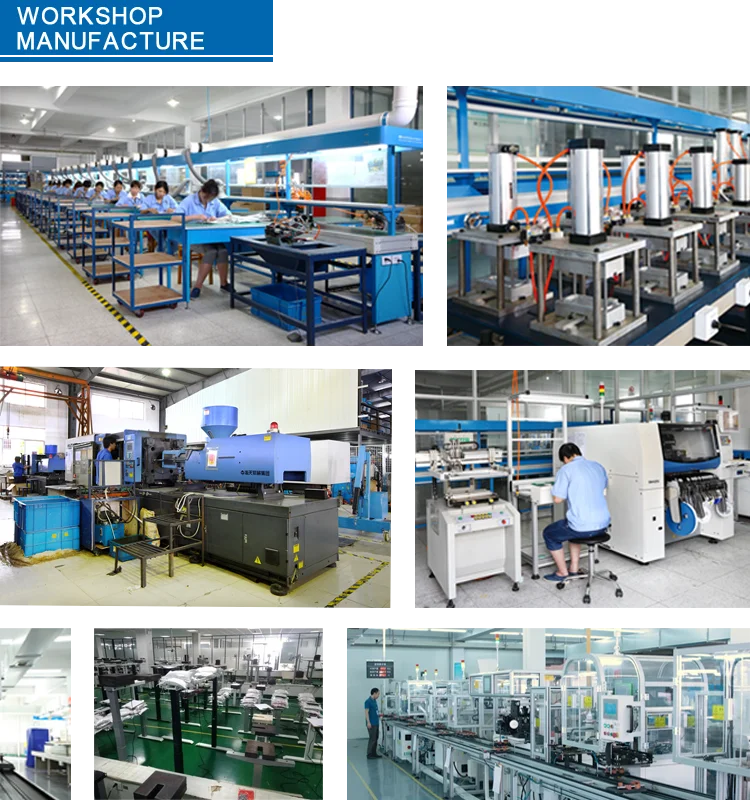

Company Introduction
FAQ
Q:What is the shipping port?
A:Shanghai or Ningbo Port.
Q:How can I get the quotation?
A:You need to send up information, we will let our regional sales to contact with you, and the details you should to give: email
address, telephone number, material, size, input, Load capacity, quantity, color, speed or frequency, etc.
Q:May I have a sample order before bulk one?
A:Of course, we can provide a sample for you.
Q:Do you get the relevant certifications?
A:Yes, so far, we have got certification of CE,TUV, UL, PSE, KC, SAA, ROSH,ISO9001:2015,ISO14001:2015,OHSAS18001:2007 and so on.
A:Shanghai or Ningbo Port.
Q:How can I get the quotation?
A:You need to send up information, we will let our regional sales to contact with you, and the details you should to give: email
address, telephone number, material, size, input, Load capacity, quantity, color, speed or frequency, etc.
Q:May I have a sample order before bulk one?
A:Of course, we can provide a sample for you.
Q:Do you get the relevant certifications?
A:Yes, so far, we have got certification of CE,TUV, UL, PSE, KC, SAA, ROSH,ISO9001:2015,ISO14001:2015,OHSAS18001:2007 and so on.
When you have any questions, please feel free to contact us. And any comments or precious advice are welcomed.
