Product Overview
Description
KF25 Integrated Refrigeration unit for 12FT Trailer
Joel from Florida wants us to provide him with a small box of refrigerated trailer and the corresponding refrigeration unit. Because he is mainly engaged in the transportation of frozen meat, he hopes that our refrigeration unit can keep the temperature at about - 18 ℃.
Since there is an old trailer chassis in his factory, we only need to provide the box and unit, and then he can directly connect them to the chassis for use.

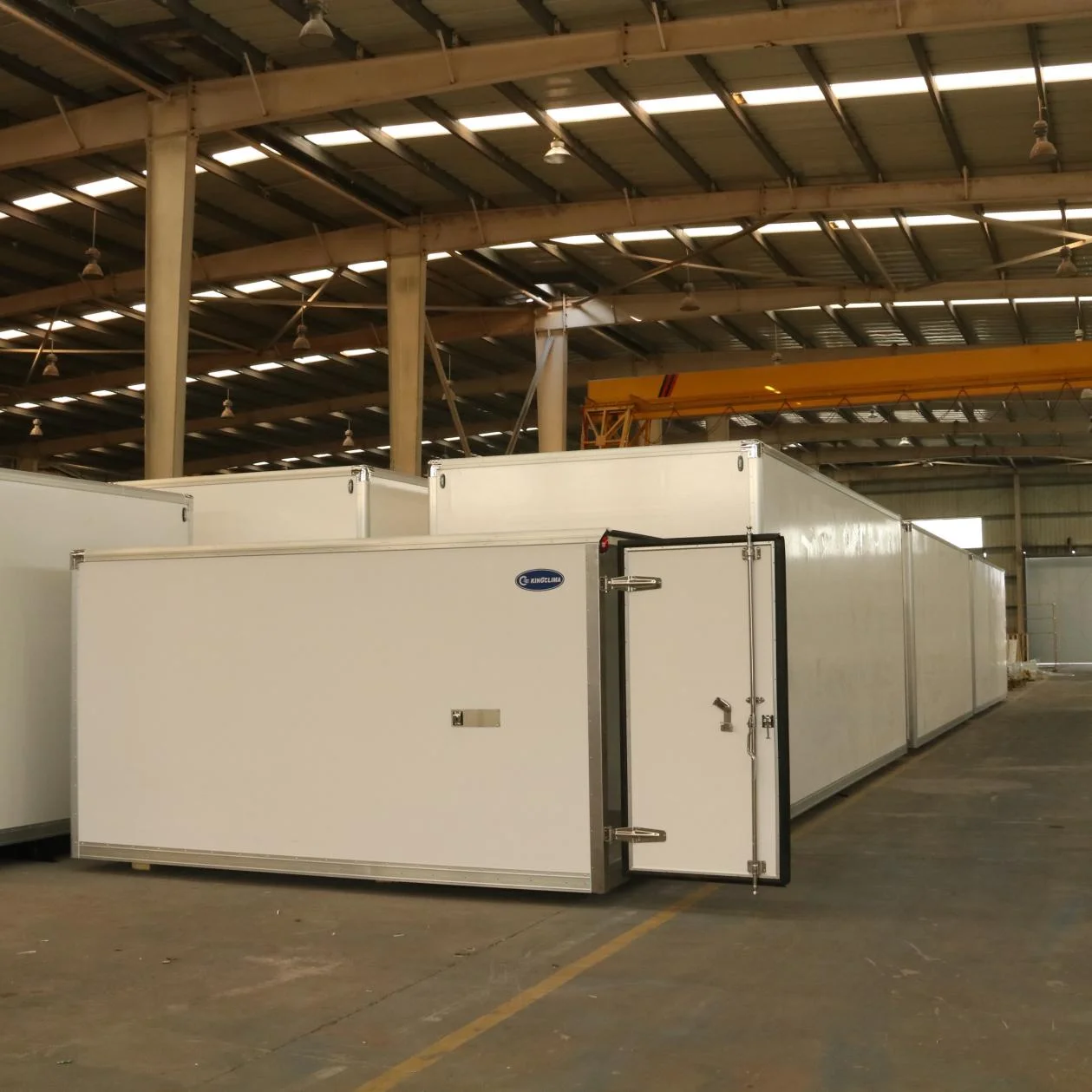

The density of the box is 38kg/m³ XPS material and FRP material are used for skin, which not only ensure good thermal insulation performance, but also reduce the weight of the box. The thickness of the box is 80mm, and the bottom plate has been specially strengthened. Not only has the thickness changed to 100mm, but also to protect the bottom plate, we have laid a layer of aluminum alloy bottom plate with anti-skid pattern.
The density of the box is 38kg/m³ XPS material and FRP material are used for skin, which not only ensure good thermal insulation performance, but also reduce the weight of the box. The thickness of the box is 80mm, and the bottom plate has been specially strengthened. Not only has the thickness changed to 100mm, but also to protect the bottom plate, we have laid a layer of aluminum alloy bottom plate with anti-skid pattern.
For the unit, we chose KF25, because Florida belongs to North America, the local voltage is 120V 60HZ, and the volume inside the box is about 11.5m³,so the space is not too big. In view of this, KF25 is our best choice. It uses EMBRACO NJ 2212GK compressor, which has excellent performance and stable performance at AC120V. At the same time, in order to make the operation easier, we have added the Bluetooth function to the control system of this unit, that is, users can download the corresponding APP through their mobile phones, and use the Bluetooth function to directly connect with the controller of the refrigeration unit, thus realizing the function of mobile phones to control the unit.

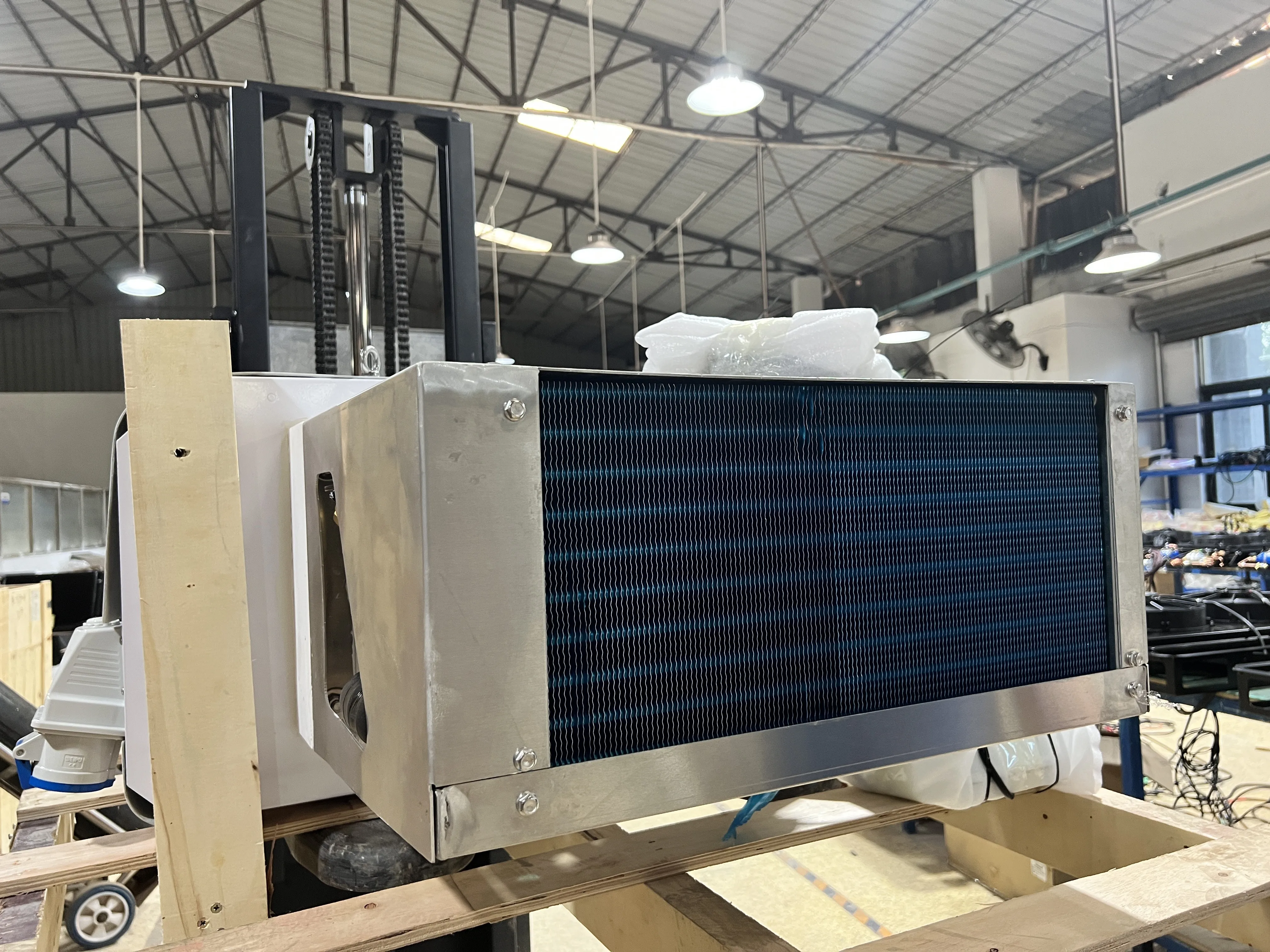

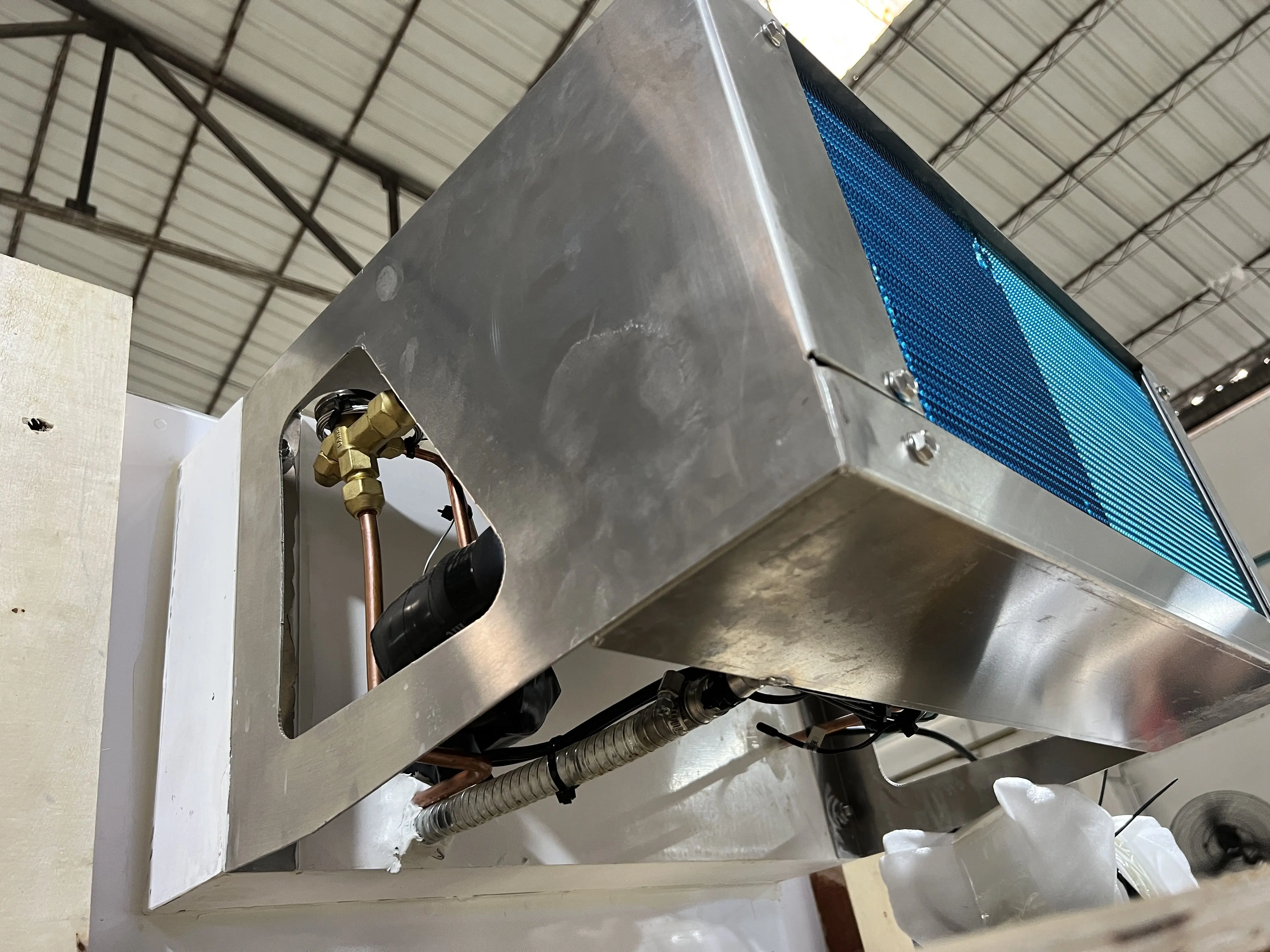

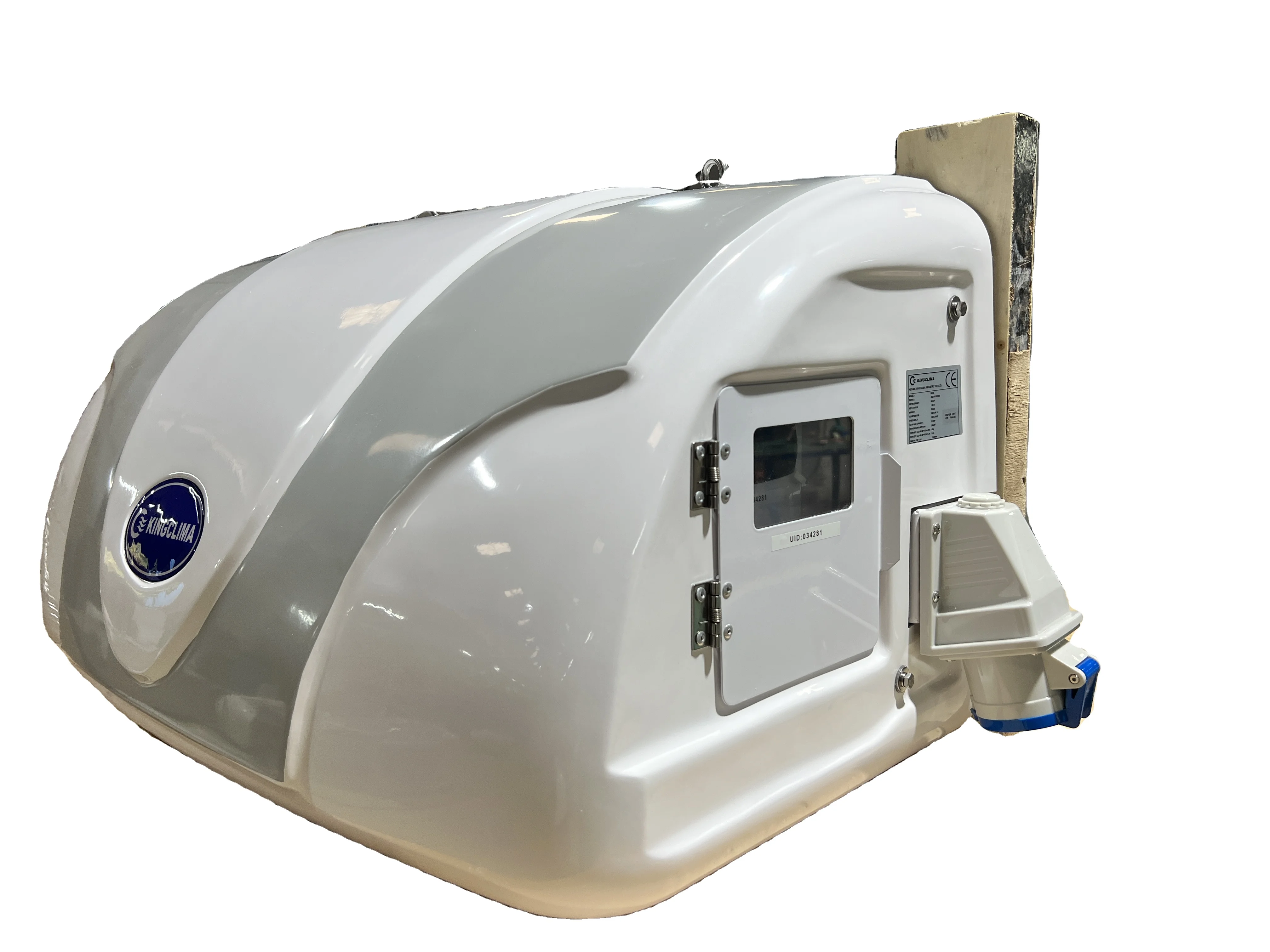

KF25 Refrigeration Unit for trailer

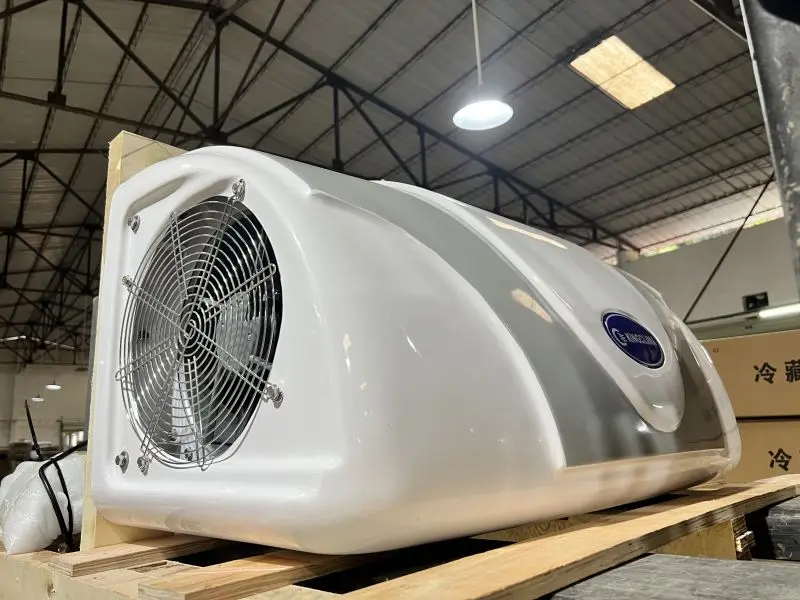

The fan is made of metal, which is different from ordinary plastic materials. Our fan is of industrial grade, with longer service

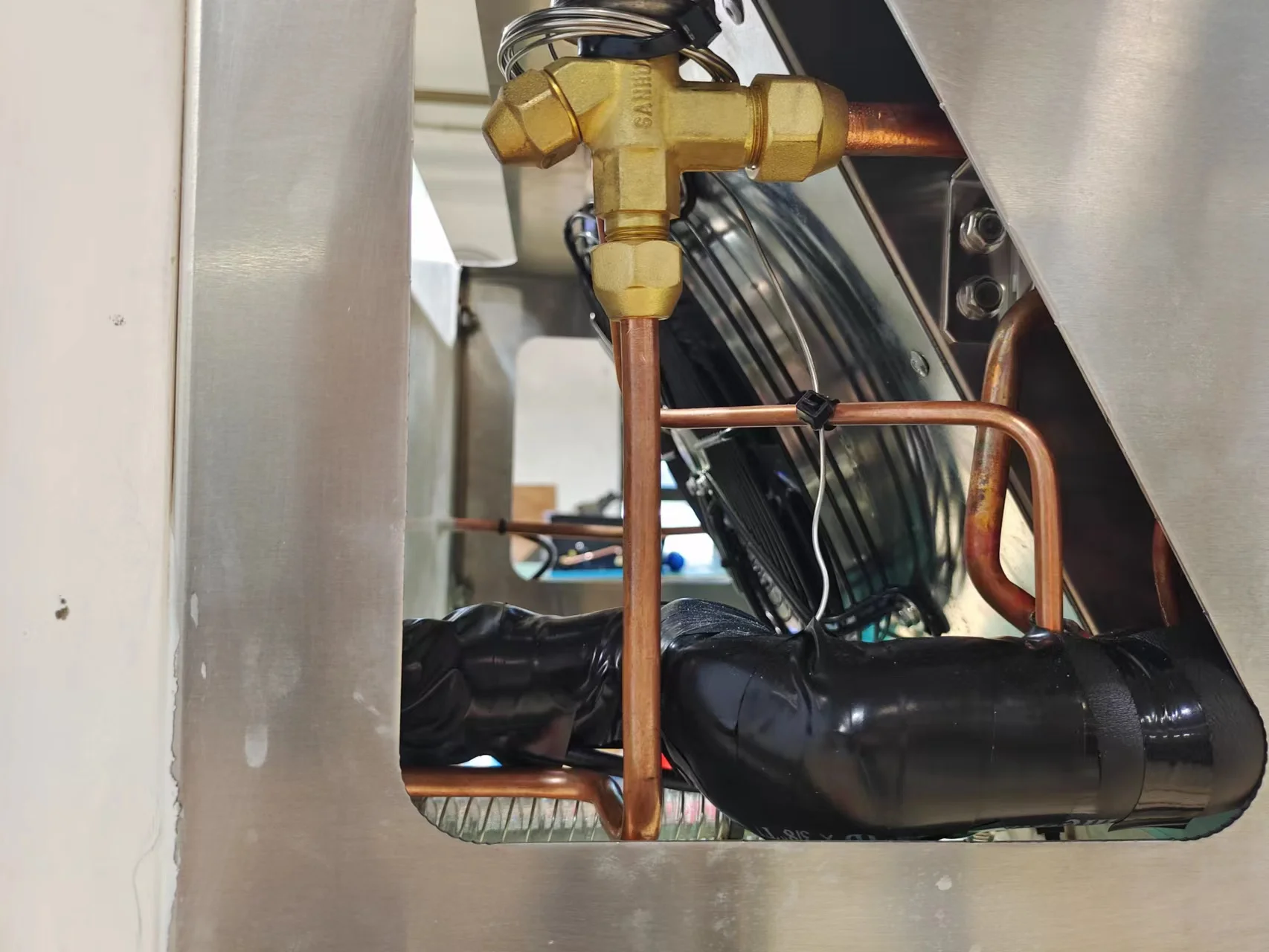

life and more reliable quality. In addition, noise reduction treatment is done to reduce the noise pollution caused by the operation of the unit; All screws and nuts are made of 304 stainless steel; The evaporation core adopts corrugated pipe, which has
larger contact surface and superior heat dissipation performance.
Transport refrigeration system Features:
Our refrigeration unit uses the Italian CAREL controller. In addition to the traditional manual operation mode, it is specially
equipped with the Bluetooth control function. Users only need to connect the unit through the mobile phone Bluetooth, that is,you can control the box temperature and detect the change of the box temperature.
Model | KF25 | ||
Temperature Range in Container | -20℃~+10℃(-4℉~+50℉) | ||
Cooling Capacity | -20℃/-4℉ | 5120 Btu/h 1500W | |
Compressor | Model | NT 2192GK | |
Displacement | 34.8ml/rev | ||
Condenser | Coil | Aluminum micro-channel parallel flow coils | |
Condenser | Fan | / | |
Dimensions &Weight | 900mm*954mm*451mm / 80KG | ||
Voltage | Fan | AC120V 60HZ | |
Refrigerant | Weight | R404a/1.2kg | |
Defrosting | Hot gas defrosting(Auto./Manual) | ||
Application | 8FT~12FT 12m³(Max) | ||
Kingclima,which with a robust portfolio of products and services designed to help monitor and manage the cold chain of the world’s most temperature-sensitive, perishable products, including sea food, ice cream, meat ,fruit ,vegetables ,milk,pharmaceuticals, biologics, and industrial chemicals and so on.
Kingclima offers full-service with chiller and freezing solutions for various of goods (-30℃ to +30℃ including extremely cold and extremely hot regions),to ensure the cargo to be fresh from origin to destination.
Kingclima offers full-service with chiller and freezing solutions for various of goods (-30℃ to +30℃ including extremely cold and extremely hot regions),to ensure the cargo to be fresh from origin to destination.
Our company which located in the Cold Chain Industrial Park, Henan Province, China.Kingthermo covers an area of 31000square meters, with more than 250 skilled workers, and 6 automatic generally assembly line.
We have an annually products output capability of more than 16, 000 units refrigeration systems. We also have the advance test machines and devices to keep each unit is well performed before out of the factory.
EXHIBITION
1.How can I select correct unit?
It is important to select the proper transport refrigeration unit depend on the size of the truck and your purpose of usage. Please refer the selection guide from the technical information or please contact us by e-mail. We will help you to choose correct unit for your use.
2.Can I have a price of King Thermo units?
Every King Thermo dealer is empowered to establish his or her own pricing policies. This includes parts as well as transport refrigeration units. Please find your nearest local dealers and they will kindly provide you the best service. If you can’t find any dealers in your country, please send us inquiry by e-mail, phone or fax. Also our inquiry form on the quick menu is provided for your convenience.
3.What payments way that you accepted?
T/T, WEST UNION, L/C, Credit Card and so on...
4.How about spare parts supply and warranty term?
We will offer free wearing parts per to order quantity and provide 12 Months Warranty for your transport refrigeration unit spare parts change.
5.How to be a King Thermo distributor?
If we have a transport refrigeration unit dealer or distributor in your area, sorry it is impossible to deal with us directly. If we don't have a representative in your country, it is possible to deal with us as long as your company meet our requirement. Please contact us by inquiry on the quick menu or e-mail to us.
