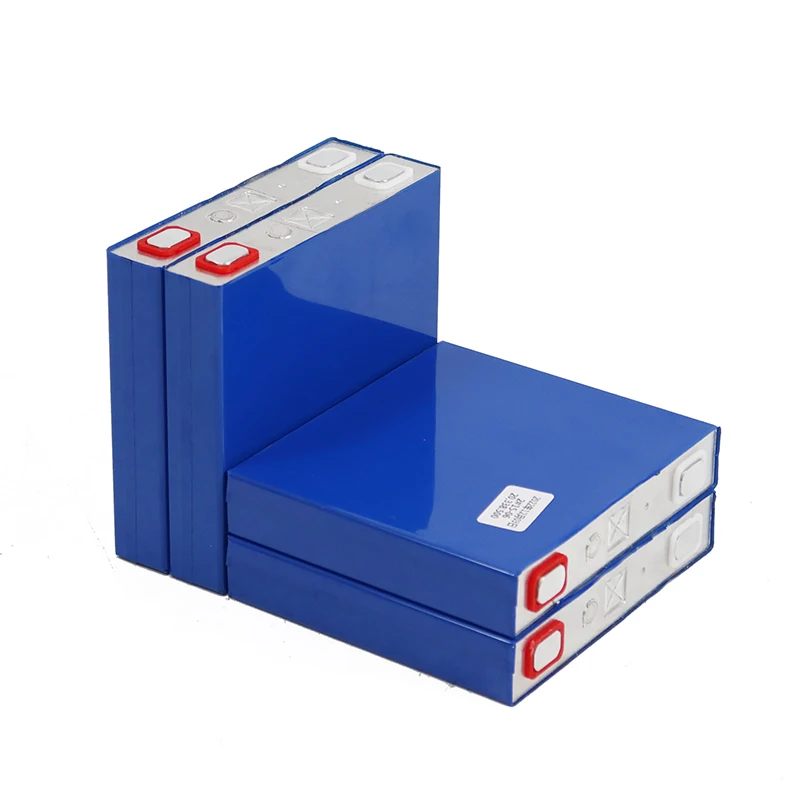

20000 Cycle Life Rechargeable LTO Prismatic Grade a SCIB Lithium Battery 2.4V 20Ah 23Ah LTO Toshiba Battery Cell
- Category: >>>
- Supplier: Shenzhen Cowon Technology LimitedShenzhen Limited
Share on (1600722887796):
Product Overview
Description
Item | Specification | Remark | ||
Rated capacity | 20Ah | 1C Rate Discharge | ||
Minimum capacity | 19.5Ah | 1C Rate Discharge | ||
Internal impedance | ≤0.6mΩ | |||
Nominal voltage | 2.3V | |||
Cell weight | 0.52KG | |||

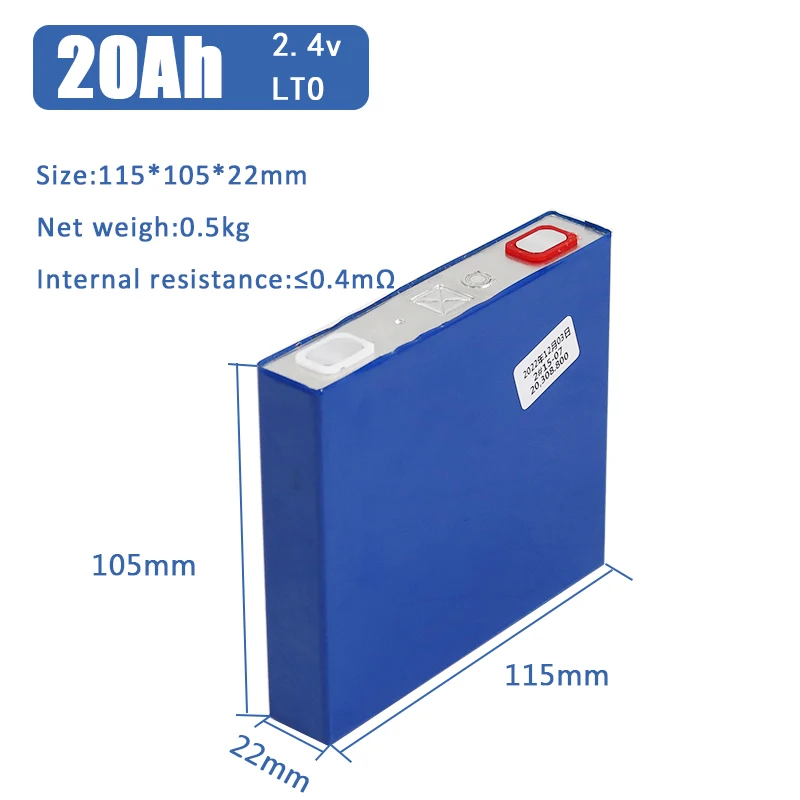

Cell Size | 22*106*130mm (T*W*H,with screw) | |||
Standard Discharge Conditions | Recommend Constant Current | 200A(10C) | ||
End-of-Discharge Voltage | 1.5V | |||
Standard Charge Method | Recommend Constant Current | 60A(3C) | ||
Charge Voltage | 2.7V | |||
Fast Charge Method | Constant Current | 160A(8C) | ||
Charge Voltage | 2.7V | |||
Max Continuous Discharge Current | 500A | SOC 50%, 10s, 25℃ | ||
Cycle Life | 20000 cycles | 3C,100% DOD, 25℃ | ||
Operating Temperature | Charging Ambient Temperature | -30℃~60℃ | ||
Discharging Ambient Temperature | -30℃~60℃ | |||
Storage Temperature | -20℃~45℃ | |||
Title goes here.
Features of lithium titanate battery:
▲Good charging and discharging ability: high power discharge and fast charging ability
▲Long cycle life: The cycle life is 10,000 cycles (80% DOD), which is more than 5 times that of traditional lithium-ion batteries.
▲Ultra-low temperature performance: -30℃ is good at low temperature, working temperature range is -50℃～+65℃.
▲Good safety performance: There is almost no SEI film on the lithium titanate anode to prevent the battery from overheating and causing a fire.
▲Lithium titanate battery has the characteristics of long life, good low temperature performance, safe and fast charging and discharging, and can be used for peak and valley energy storage, wind energy, solar energy and other energy storage.
▲Good charging and discharging ability: high power discharge and fast charging ability
▲Long cycle life: The cycle life is 10,000 cycles (80% DOD), which is more than 5 times that of traditional lithium-ion batteries.
▲Ultra-low temperature performance: -30℃ is good at low temperature, working temperature range is -50℃～+65℃.
▲Good safety performance: There is almost no SEI film on the lithium titanate anode to prevent the battery from overheating and causing a fire.
▲Lithium titanate battery has the characteristics of long life, good low temperature performance, safe and fast charging and discharging, and can be used for peak and valley energy storage, wind energy, solar energy and other energy storage.
