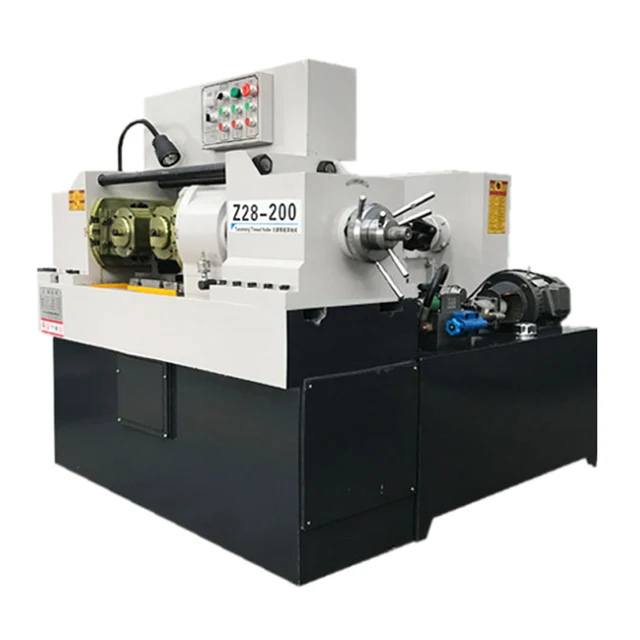

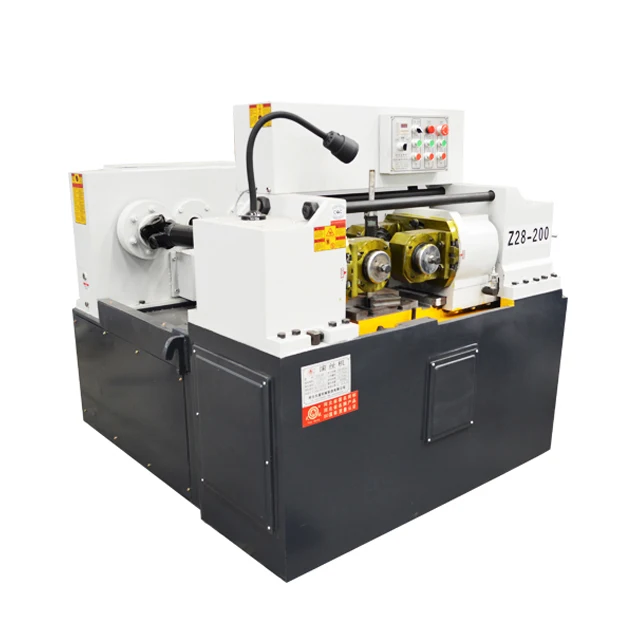

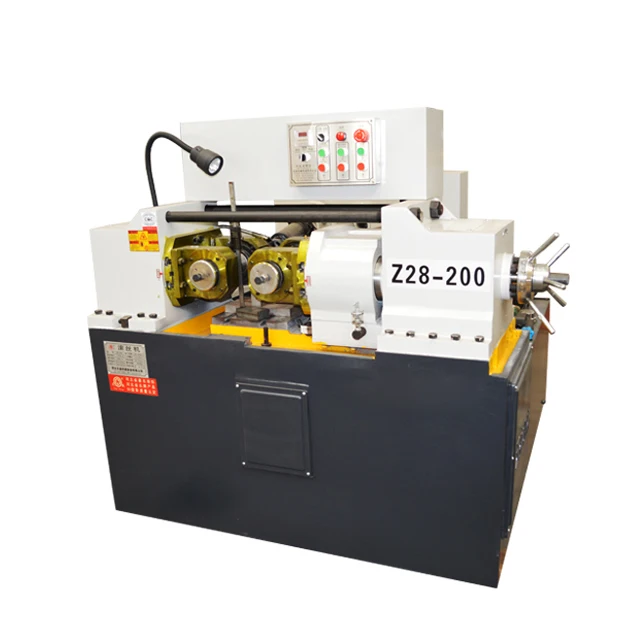

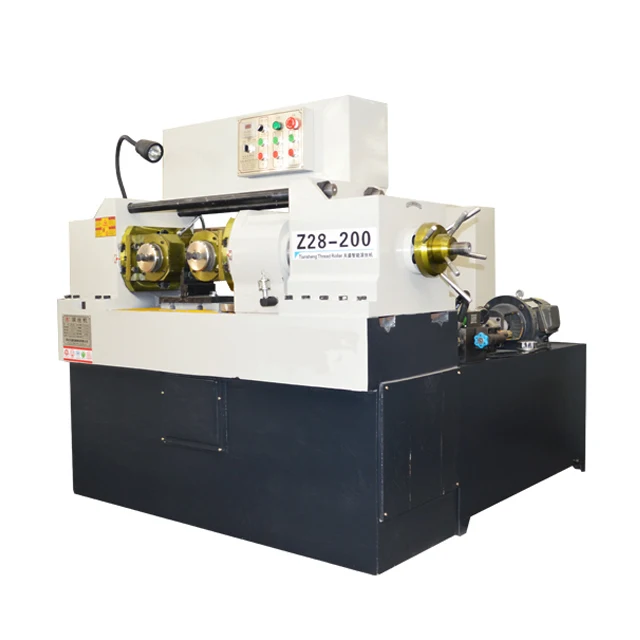

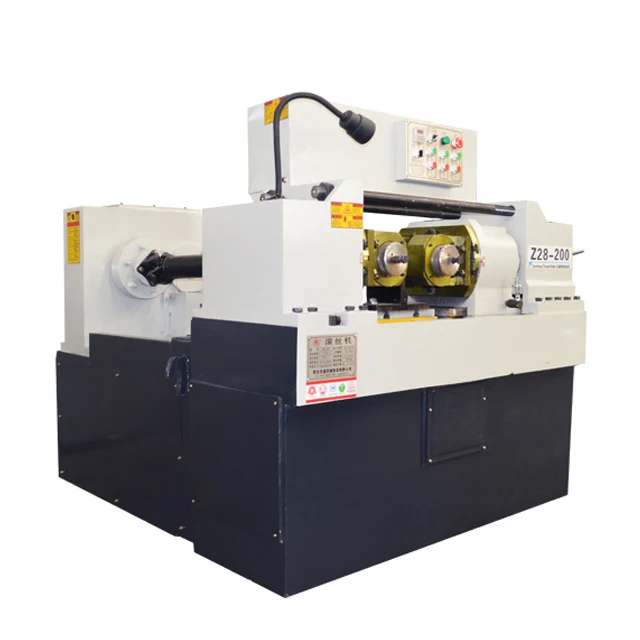

Z28 200 model hydraulic two rollers 5 65mm steel bar thread rolling machine thread making machine producer
- Category: >>>
- Supplier: Xingtai Judu Technology Co. Ltd.
Share on (1600722891870):
Product Overview
Description
Product Description
Z28-200 type steel bar thread rolling machine, the machine can variate in the fifth grear on a large scale in more areas and at a high level with strong reliable processing ability.
Features of high speed Z28-200 type thread rolling machine:
Good equipment for no hydraulic pressure, low power cost
Reliable quality and high efficiency
Compact , reansonable structure
Good equipment for no hydraulic pressure, low power cost
Reliable quality and high efficiency
Compact , reansonable structure
Avoid adjusting disoder thread and convenient adjustment
Z28-200 type features
1.It can make the thead form of good quality.And it It has the high precision.
2.It can be used to process scerw and rebar.The rebar processed by the machine has the good overall mechanical.It can make the tensile strength increased by 20%-30%,the fatigue strength increased by 40%-60%,corrosion resistance increased by 50%-200%.Mechanical properties of rebar connector reached and more than international standards.
3.It works safe and reliable.It can works all day long,and can save steel and energy.
4.It adopt innovative design and advanced technology,alos it has the high precision and easy to operate.
5. the transimission adopts gear mudule and makes large output so that we solve the problems of processing trapezium thread, modulus thread and different types thread by using the same type
Technical data sheet for Z28-200 model steel bar thread rolling machine :
| 1 | Rolled thread range | 5-65mm |
| 2 | Diameter of both roller wheels/Hole Dia. | 120-170mm/75mm |
| Hobbing wheel range | Max.width:100mm | |
| 3 | Max. rolling pressure | 200kn |
| 4 | Hydraulic auto feeding time regulation range | 0.1-99.9s |
| 5 | Cease time regulation range | 0.1-99.9s |
| 6 | Rolling axis inclination angle | 5 ° |
| 7 | main axis transmission motor | 11kw-4 |
| 8 | Hydraulic transmission motor | 2.2kw |
| 9 | Dimension(L*W*H) | 2500*1450*1650mm |
| 10 |
Net.Weight/Gross weight | 2200kgs/2300kgs |

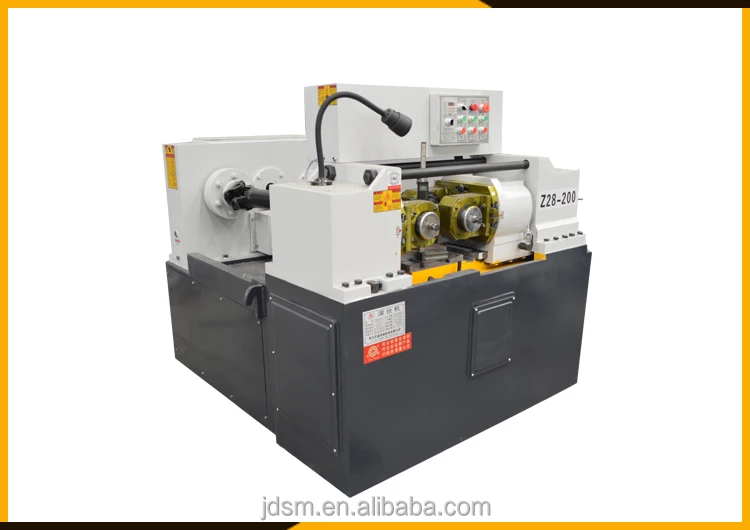

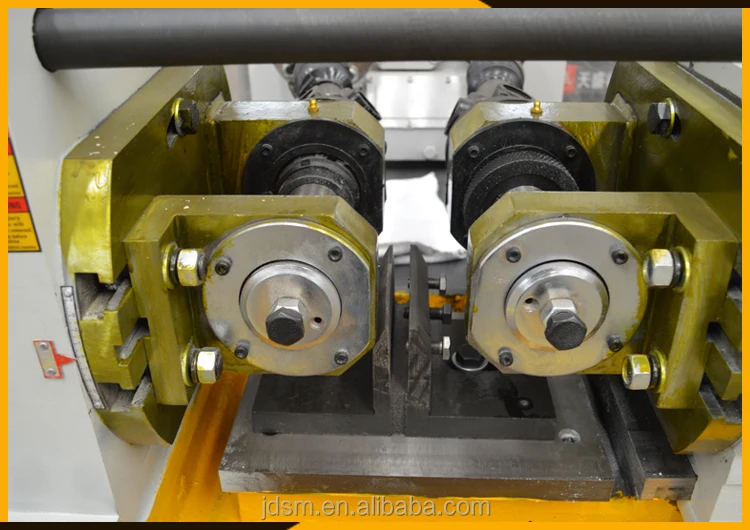

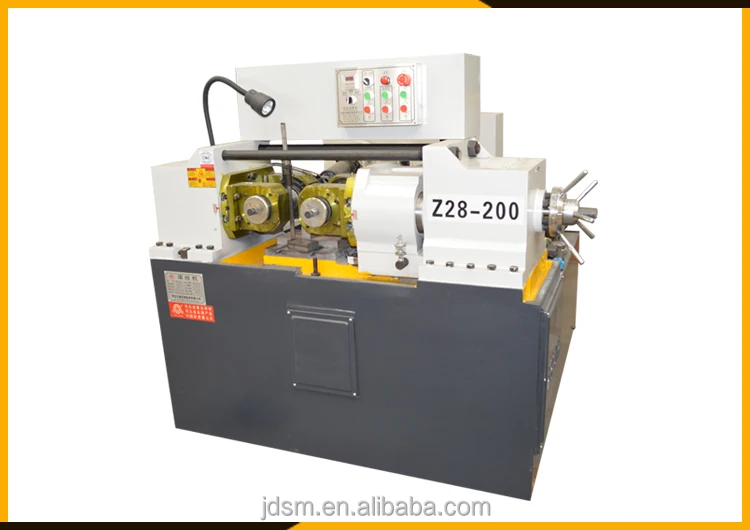

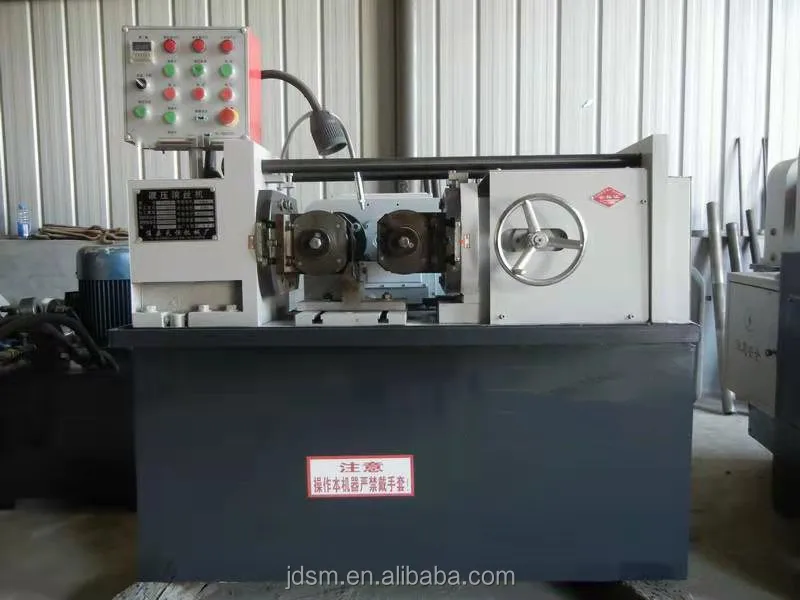

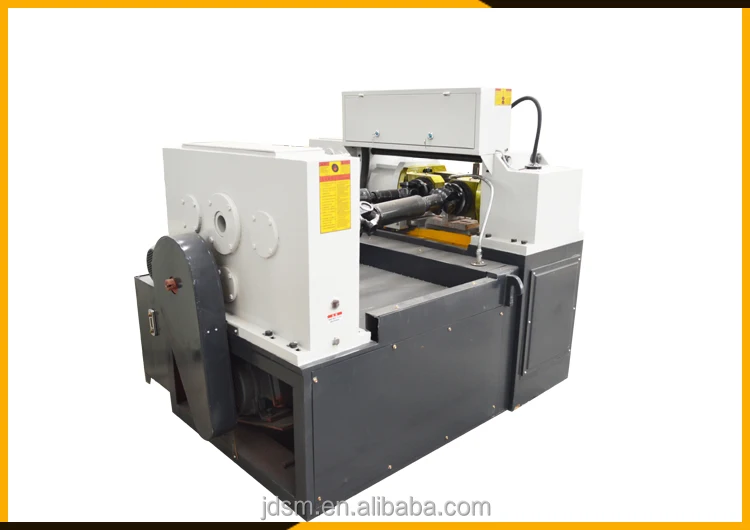

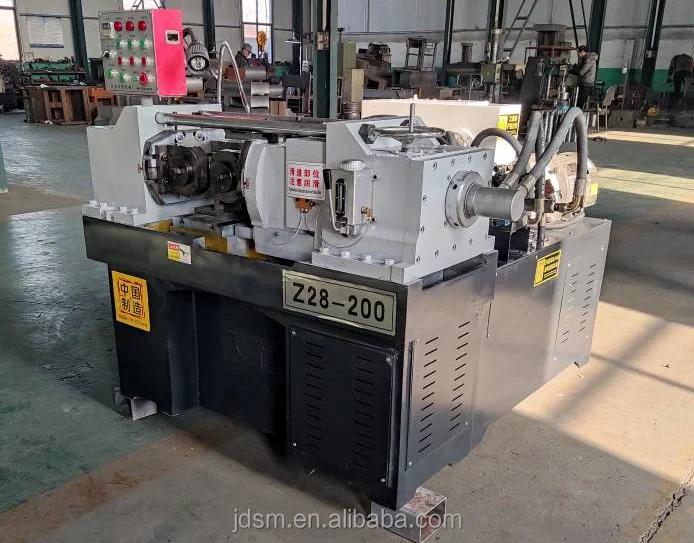

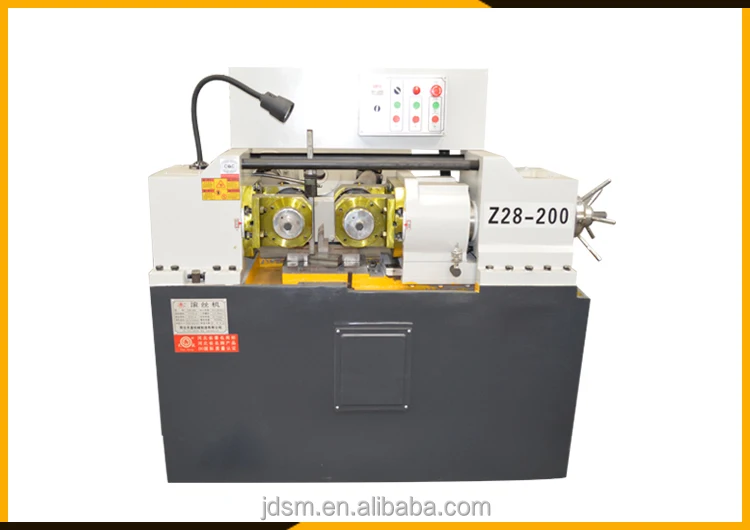

Z28-200 model steel bar thread rolling machine details show:
Packaging & Shipping
Packing and shipment for steel bar thread rolling machine
Company Information
Xingtai Judu Technology Co.,LTD was founded in 1990,Specialized in machinery production & export of hydraulic steel bar thread rolling machine .It has been in this field for more than 20 years.The Hydro construction machines,such as thread rolling machne, rebar bending machine are our advantages machine. These machines now export to all over the world such as Asia,Africa,South America,Australia and so on.
Our Services
1. Help you choose the most suitable steel bar thread rolling machine
2. Making the machine according to your request.
3. Give you machine’s details for help you use the machine more better.
4. five years quality warranty and lifetime guidance.
5. Free repair whole using life without extra charge.
FAQ
1. What’s the price of threading rollers?
Re: Kindly please let me know your rod material and the detailed size, such as diameter and thread pitch, etc., so that we can check for you accordingly.
2. We have different rod diameter from 20-80mm, how to choose threading rollers?
Re: The threading roller will be suitable for various length and diameter, but for different thread pitch, it should be changed accordingly.
3. How to operate thread roller, assuming it has auto cycle and foot pedal?
Re: The thread rolling machine is equipped with button control panel and foot pedal, so the working cycle can be exchanged as automatic work or inching.
4. What’s the capacity of the thread rolling machine and what’s the serve life?
Re: The speed of thread rolling machine is about 1m/min.
Generally speaking, the roller can be used for more than 1000 meters long.
Also it is relevant to the material hardness and your operation.
5. Do you have customers in our country?
We are the leader thread rolling machine manufacturer and supplier in China, also we have customers worldwide, such as UAE, India, Russia, Egypt ,Malaysis and Tunisia, etc.
contact information
If other questions or requiremenes for steel bar thread rolling machine ,please directly contact me with the following:
Contact : Mr.Jack Song
Email : peterson(@)greatcitygroup.com
Wechat:+86-18832961315
