Product Overview

Description

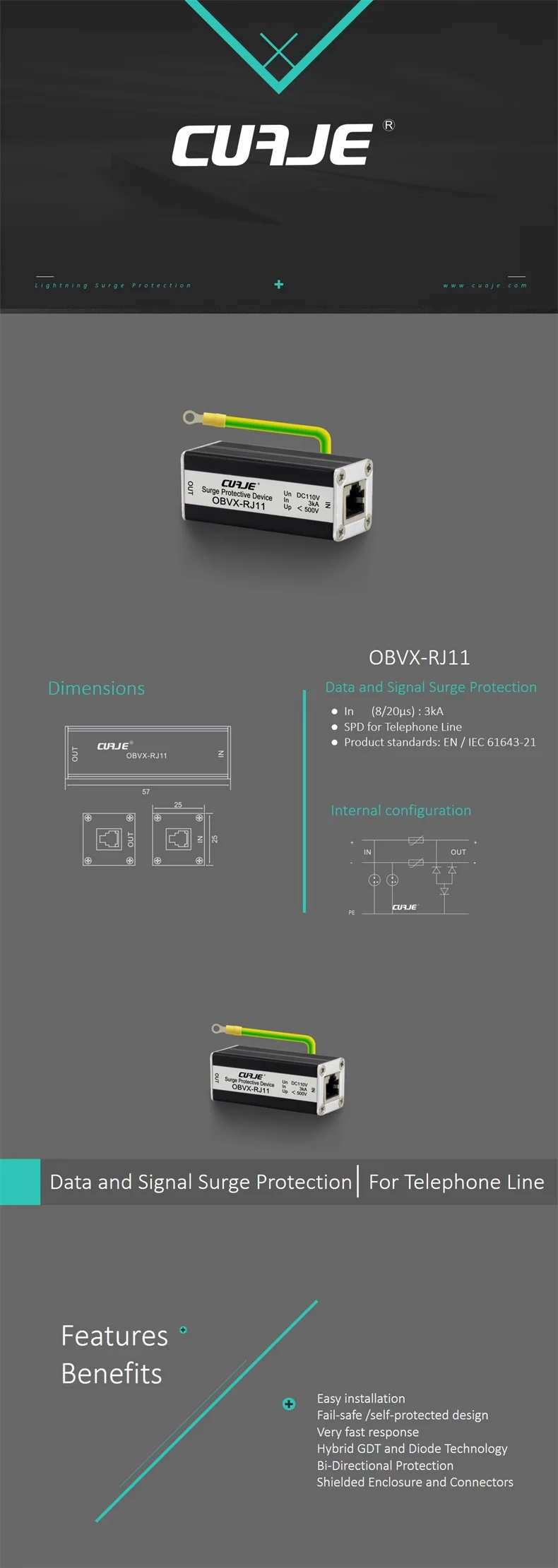

RJ11 telephone line lightning protector

Telephone lines surge protector lightning protection rj11 OBVX-RJ11 is a protector with RJ11 input and output connectors, able to hold up nominal discharge currents of 3kA for each line.

Both common and differential protection recommended for this type of lines.

Protection for telephone lines and also for the digital and analogical equipment connected to these lines (fax, modem, etc).

In normal conditions stays inactive, without affecting the line working and without producing any leakage.

Discharge takes place in an internal encapsulated element, with no external flash.

Very fast response

Reference	OBVX-RJ11-150	OBVX-RJ11-110	OBVX-RJ11-48	OBVX-RJ11-24
Nominal voltage : Un	150Vdc	110Vdc	48Vdc	24Vdc
Maximum continuous operating voltage: Uc	170Vdc	150Vdc	60Vdc	30Vdc
Nominal discharge current for line C2 10kV(1,2/50μs) / 5kA(8/20μs): In (C2)	3kA
Protection level at In (8/20μs):	330V	300V	200V	120V
Maximum  working current:	300mA
Series resistance:	15Ω
Response time:	< 10ns
Working temperature:	-40℃+80℃
SPD location:	Indoor
Type of connection:	Series (two ports)
Pin Outs	3,4
Input / Output connector:	RJ11 / RJ11
Certificated tests according to: IEC 61643-21, EN 61643-21
