Wholesale Top Quality 1206 Blue Color SmdLed 2000pcs/Roll 0.06W Led Beads 1206 Smd Led
- Category: >>>
- Supplier: Shenzhen Hongying Technology Co. Ltd.
Share on (1600722912043):
Product Overview
Description
Wholesale Smd Led 1206 Blue Color Smd Led
Feature
1. Outline(L*W*H): 3.2*1.6*0.7 mm
2. Good thermal dissipation & optical uniformity
3. Forward current：≦25mA
4. Typical view angle 50% Iv：15°
5. RoHS2.0 and REACH-compliant
6. Resin color：Water transparent
7. MSL 3 qualified according to J-STD 020
8. ESD level 1kV((HBM)
2. Good thermal dissipation & optical uniformity
3. Forward current：≦25mA
4. Typical view angle 50% Iv：15°
5. RoHS2.0 and REACH-compliant
6. Resin color：Water transparent
7. MSL 3 qualified according to J-STD 020
8. ESD level 1kV((HBM)
Applications
1. Indoor lighting applications
2. Indicator and backlight for all consumer electronics
3. Telecommunication: indicator and back lighting in telephone and fax
2. Indicator and backlight for all consumer electronics
3. Telecommunication: indicator and back lighting in telephone and fax
Absolute Maximum Ratings (TSoldering=25℃)
Parameter | Symbol | Rating | Unit | |||
Forward Current | IF | 20 | mA | |||
Peak Forward Current | IFP | 60 | mA | |||
Power Dissipation | Pd | 75 | mW | |||
Reverse voltage | VR | 5 | V | |||
Operating Temperature | Topr | -40 ~ +85 | ℃ | |||
Storage Temperature | Tstg | -40 ~ +100 | ℃ | |||
Soldering Temperature | Tsol | 260 | ℃ | |||
Note: 1: Duty 1/10,pulse width 0.1ms 2: The maximum of soldering time is 5 seconds in TSD | ||||||
Electro-Optical Characteristics (TSoldering=25℃)
Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition | ||||||
Luminous Intensity | IV | 180 | - | 1120 | mcd | IF=5mA | ||||||
Forward Voltage | VF | 2.5 | - | 3.0 | V | IF=5mA | ||||||
Dominant Wavelength | λd | 464 | - | 475 | nm | IF=5mA | ||||||
Viewing Angle | 2θ1/2 | - | 15 | - | deg | IF=5mA | ||||||
Reverse Current | IR | - | - | 10 | uA | VR =5V | ||||||
1. Measurement Errors: Forward Voltage: ±0.1V, Luminous Intensity: ±10%Iv, Dominant Wavelength: ±1.0nm, Viewing Angle (2θ1/2): ±5% 2. Electrical-Optical Characteristics (Ta=25℃) | ||||||||||||

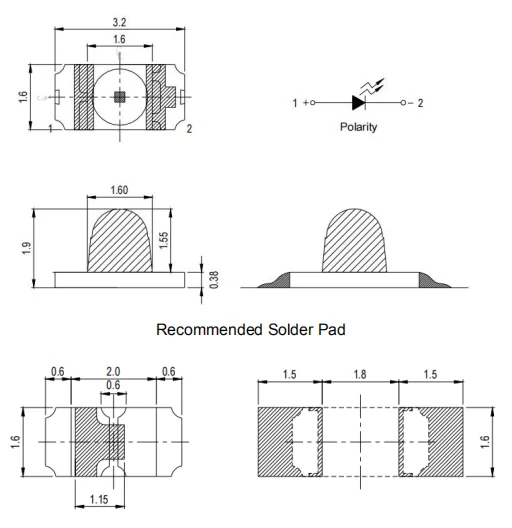

Package Dimensions
Note:
1. All dimensions are in millimeters(inches)
2. Tolerance is ±0.1(±0.004”)mm unless otherwise noted
3.Specifications are subject to change without notice.
3.Specifications are subject to change without notice.
Our Advantages
FAQ
Q:How about the quality of the leds?
A:Please do not worry about the quality. Our company is the main manufacturer of LEDs in China. Our products have exported worldwide since the year 2010.
Q:Do you offer Custom-made ?
A:Yes , we offer this , but we will charge cost for the custom-made samples .
Q:Can I get free sample?
A:Yes, we can offer free sample for you to check before orderas long as you afford the express freight.
Q:What’s the lead time?
A:Samples delivery out in 3-7 working days.Lead time of mass production needs to negotiate, it depends on quantity.
Q:How about the payment terms?
A:Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment). Please note we do EXW/FOB/CNF/CIF/DDU/DDP.
