Lirun GPY I Factory Supply 40 ton Press Ac Motor Sample Preparation Machine For Refractory
- Category: >>>
- Supplier: Shanghai Lirun Electromechanical Equipment Co. Ltd.
Share on (1600722927211):
Product Overview
Description
Product Description
Overview
Technical parameter
Model | GPY-I | ||
Sample pressure value: | 10～400KN | 10～600KN | |
Distance between columns: | 260mm | 260mm | |
Maximum Travel(mm): | 50mm | 50mm | |
Pressure holding time: | 1～10000 S | 1～10000 S | |
Tablet diameter: | Steel ring 45mm, Boric acid 40mm | Steel ring 45mm, Boric acid 40mm | |
Max. Tablet Thickness(mm): | 5mm | 5mm | |
Tablet pressing mold： | Boric acid, steel ring, aluminum shell, plastic cup | Boric acid, steel ring, aluminum shell, plastic cup | |
Power Supply: | 380V±10％ 50Hz (need ground wire) | 380V±10％ 50Hz (need ground wire) | |
Power: | 1KW | 1KW | |
Weight (KG): | 350kg(40T) | 490kg(60T) | |
Dimension(L*W*H): | 560*550*1210mm | 560*550*1210mm | |
Product Details

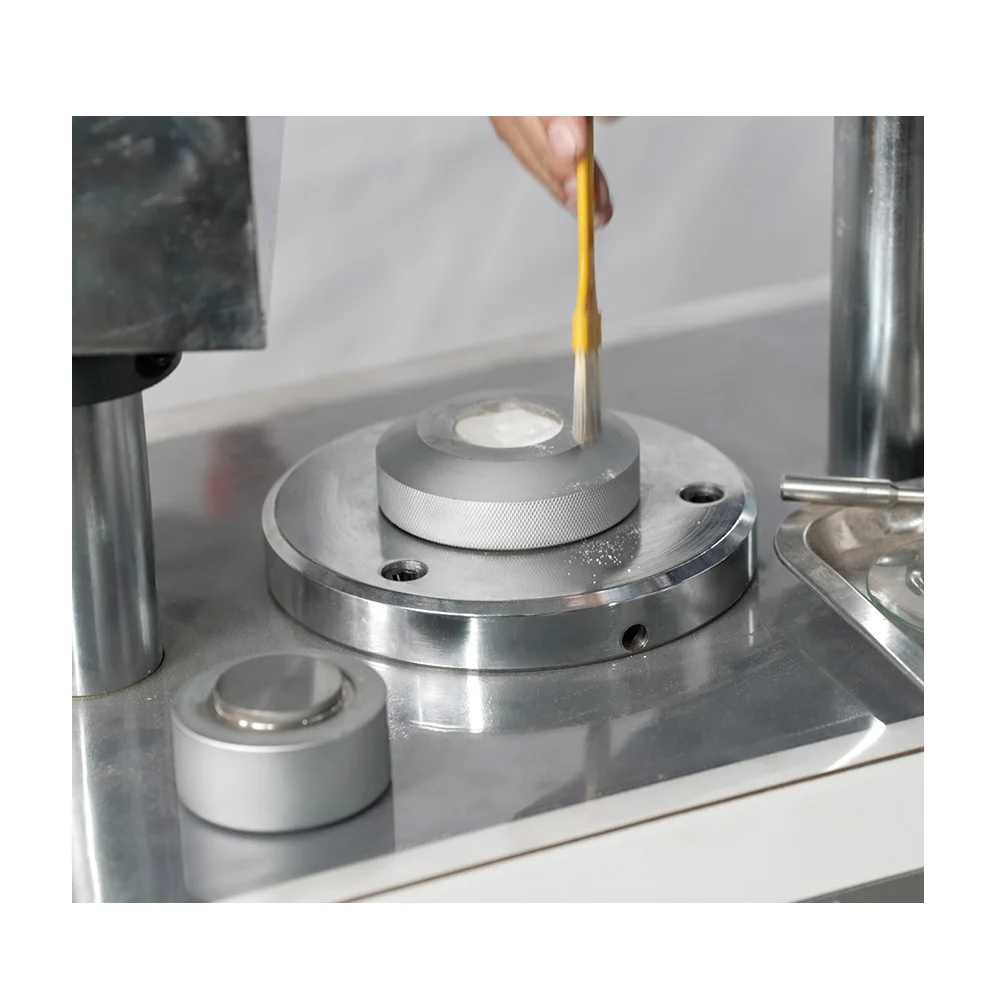

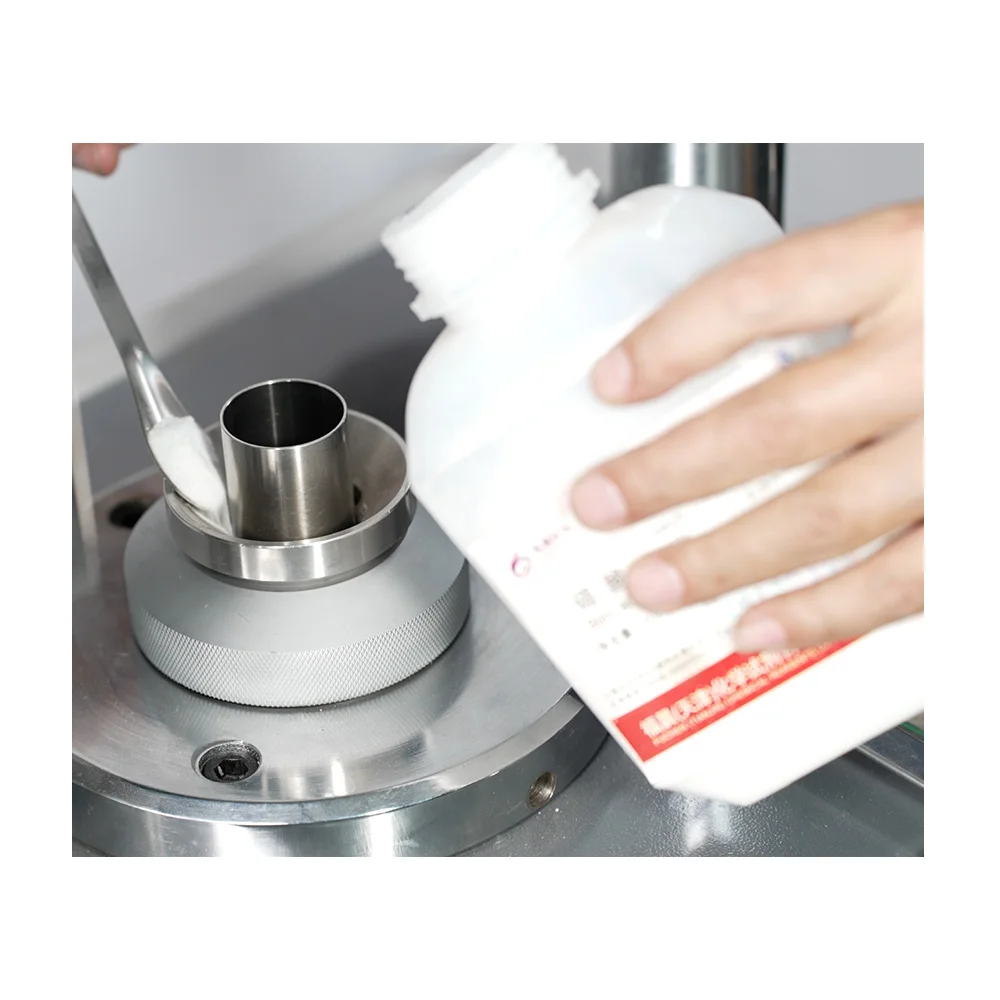

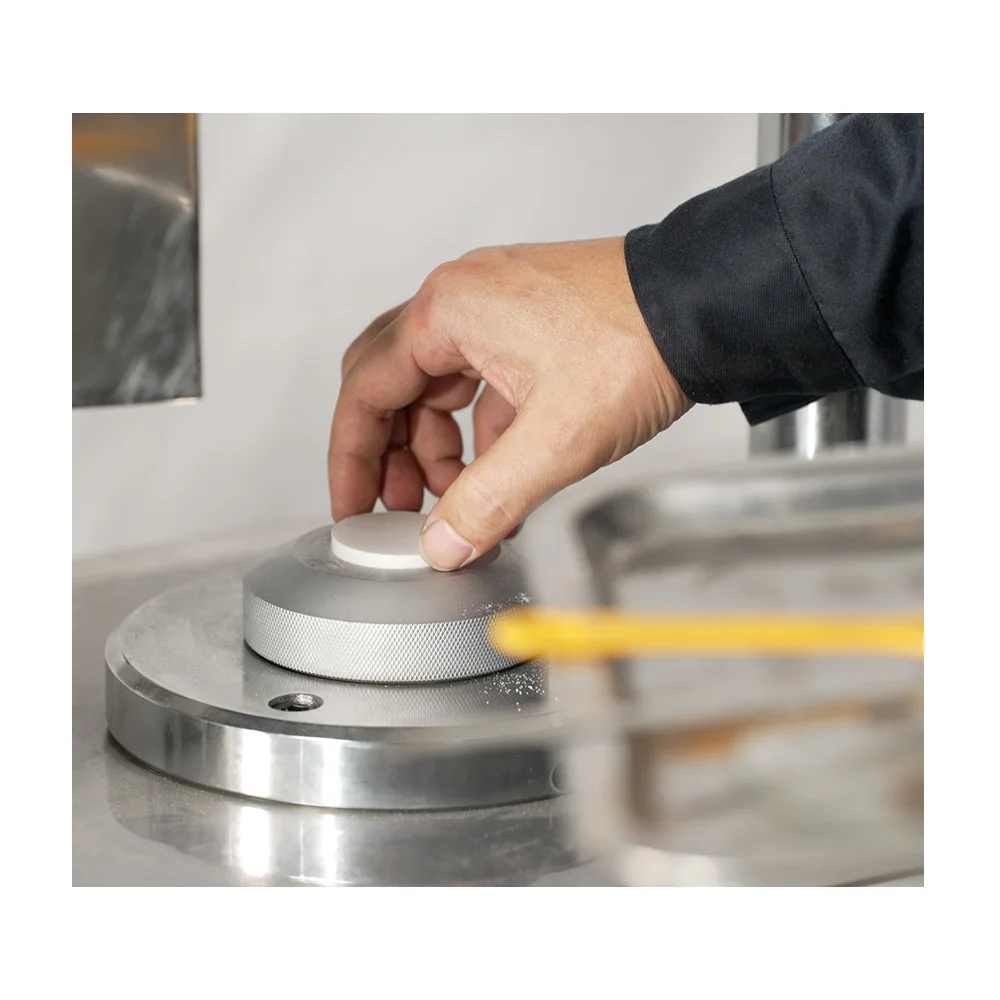

Select the tablet pressing tool according to the size requirements of sample preparation
Company Profile
VR
Our Advantages
1.The pressed sample has high density, simple operation and stable performance.
2.According to the PLC program and the signal from the pressure sensor, accurately control the operation of the Pressure Machine, and display the pressure status in real time.
2.According to the PLC program and the signal from the pressure sensor, accurately control the operation of the Pressure Machine, and display the pressure status in real time.
The Price Remarks:
1.The price of 40T tablet press is US $5858; The price of 60T tablet press is US $6428.
The above equipment prices do not include the travel, board and lodging expenses of Chinese engineers for on-site installation and commissioning, which are calculated on an actual basis.
2.The whole machine warranty is guaranteed from 12 months after installation and acceptance or 18 months after delivery, whichever comes first.
3.Free providing with training and guidance on remote video installation, commissioning and operation .
4.Payment method:T/T .
2.The whole machine warranty is guaranteed from 12 months after installation and acceptance or 18 months after delivery, whichever comes first.
3.Free providing with training and guidance on remote video installation, commissioning and operation .
4.Payment method:T/T .
Our Factory
Certifications
Packing & Delivery
FAQ
Q1:Are you manufacture?
A1:Yes,we are the original manufacturer of melting furnaces,which are used to prepare the laboratory sample . With our melting furnaces, people can prepare high-precision uniform samples for X-ray fluorescence spectrometry and Spark atomic emission spectrometry to ensure the analysis accuracy.
Q2:How long does your machine warranty last?
A2:One year warranty.
Q3:How is your machine quality?
A3:The main components of our machines are using domestic and world first-class brands. The quality is reliable and stable.
Q4:Where are your factory located?
A4:We are located in Shanghai China.
A5: Usually customers can use for more than 6 years without any problems if it's under normal condition using and maintenance. If you have any troubles, you may provide us a video to describe what the problem is so that our engineer can judge and give you a solusion.Within the warranty period, we'll send you the parts free of charge for replacement. After the warranty ,we'll provide you the parts at a reasonable costs. Everlasting technical support is offered freely.
