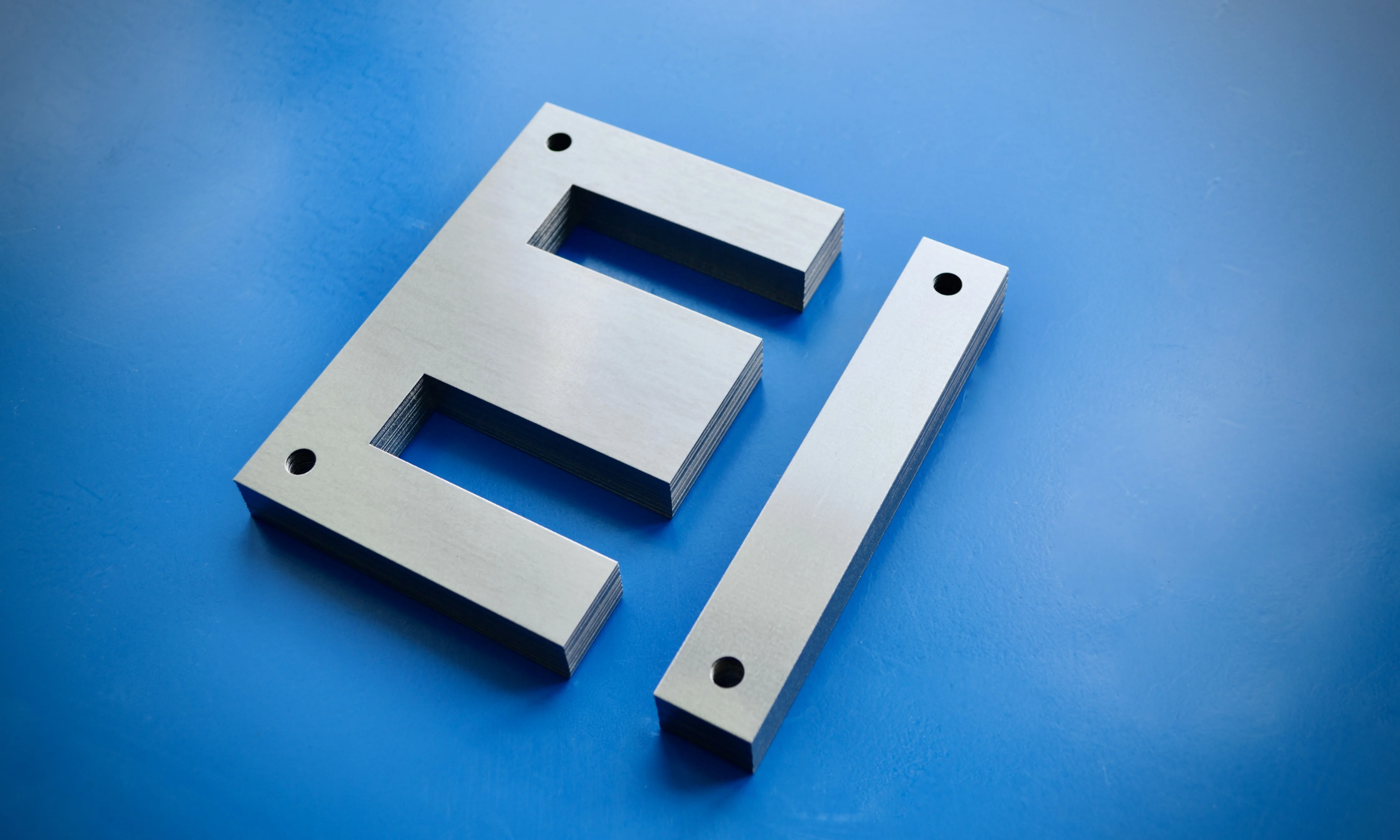

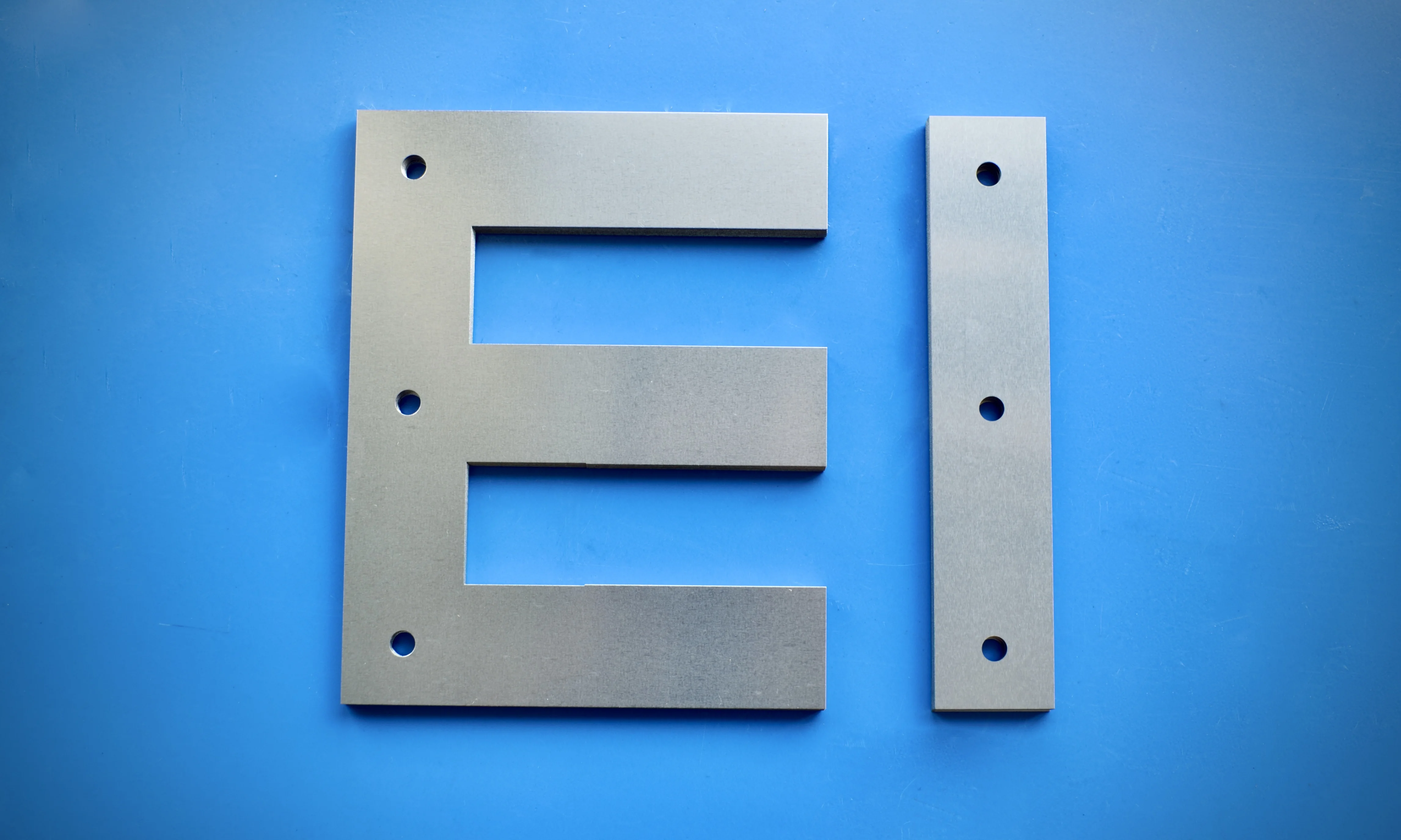

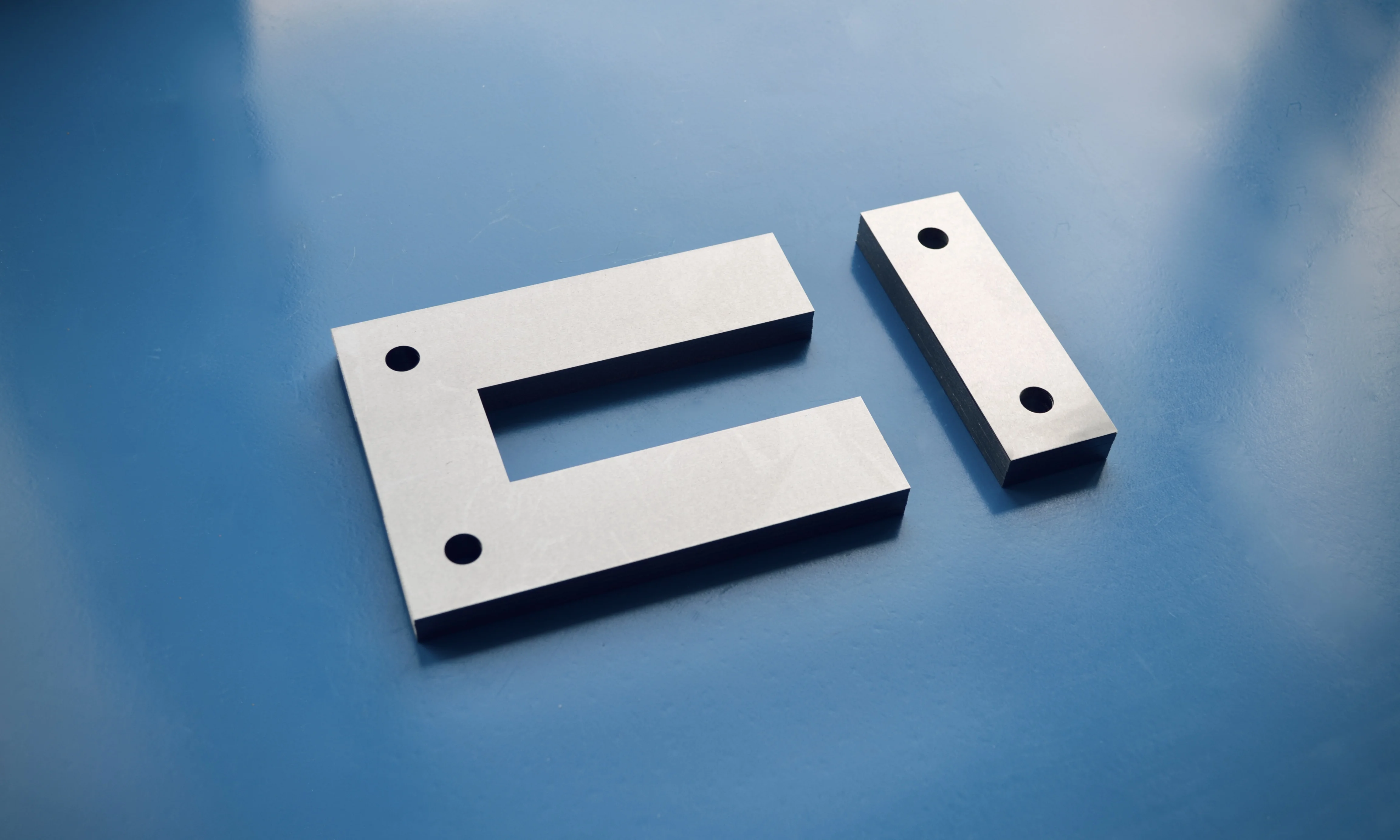

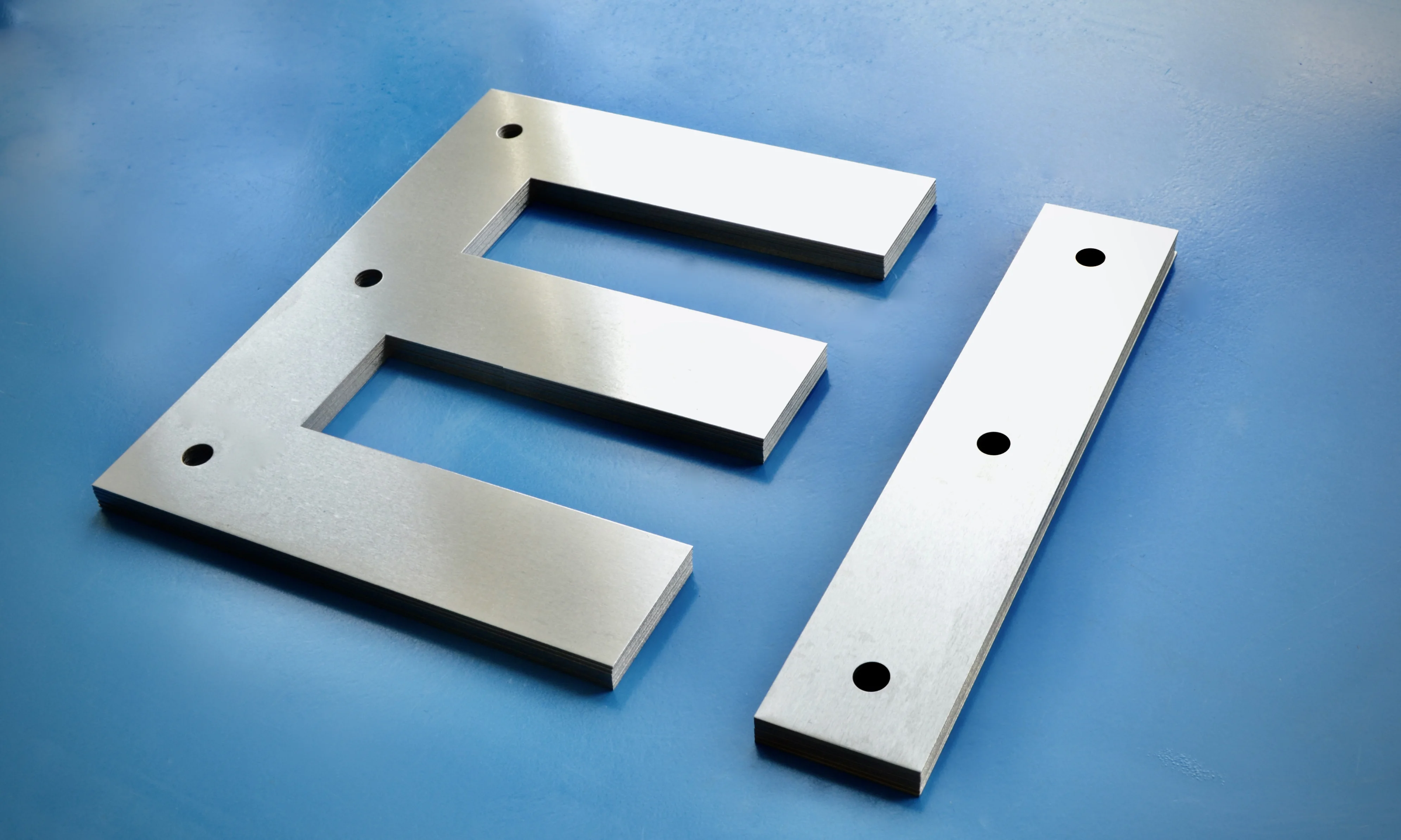

Lamination for transformers single phase EI and three phase EI with standard and air gap

Product Overview

Description











Brief Induction of Jiangyin silicon steel transformer laminations :



EI Lamination is made by the silicon steel strip.The model of EI lamination in standard sizes is from EI 28 to EI -240, and the model of EI lamination in non-standard sizes is from EI-36 to EI-360. the gap sizes of transformer lamination core can be customized.



Three -phase EI lamination is made by the silicon steel strip. the model of three-phase EI lamination is from three-phase (20) to three phase (100),and the hole size is from Φ4.5 to  Φ14, The gap sizes of transformer lamination core can be customized.



UI lamination is made by the silicon steel strip.the model of UI lamination is from UI-30 to UI-100,and the hole size is from Φ 8 to  Φ 14. the gap sizes of transformer lamination core can be customized.







Production Flow Chart of Jiangyin silicon steel transformer laminations :







Specification of Jiangyin silicon steel transformer laminations :



Type	a	b	c	d	e	holes	aperture(Φ)
EI- 28	28	4	6	8	17
EI-35	35	5	7.5	10	19.5
EI-41	41	6	8	13	21
EI-42	42	7	7	7	14
EI-48	48	8	8	16	24
EI-54	54	9	9	18	27	4	3.5
EI-57	57	9.5	9.5	19	28.5	4	4
EI-60	60	10	10	20	30	4	5
EI-66	66	11	11	22	33	4	4
EI-76.2	76.2	12.7	12.7	25.4	38.1	4	5
EI-78	78	13	13	26	39	4	5
EI-84	84	14	14	28	41	4	6
EI-85.8	85.8	14.3	14.3	28.6	42.9	4	5
EI-96	96	16	16	32	48	4	6
EI-105	105	17.5	17.5	35	52.5	4	6
EI-108	108	18	18	36	54	4	5.5
EI-114	114	19	19	38	57	4	6
EI-120	120	20	20	40	60	4	7
EI-133.2	133.2	22.2	22.2	44.4	66.6	4	7
EI-150	150	25	25	50	75	4	8
EI-152.4	152.4	25.4	25.4	50.8	76.2	4	8
EI-162	162	27	27	54	81	4	10
EI-168	168	28	28	50	84	4	10
EI-171	171	28.5	28.5	57	85.5	4	10
EI-180	180	30	30	60	90	4	10
EI-192	192	32	32	64	96	4	10
EI-270	270	45	45	90	135	4	12
EI-228	228	38	38	76	114	4	10
EI-300	300	50	50	100	150	4	12
EI-360	360	60	60	120	180	4	12
