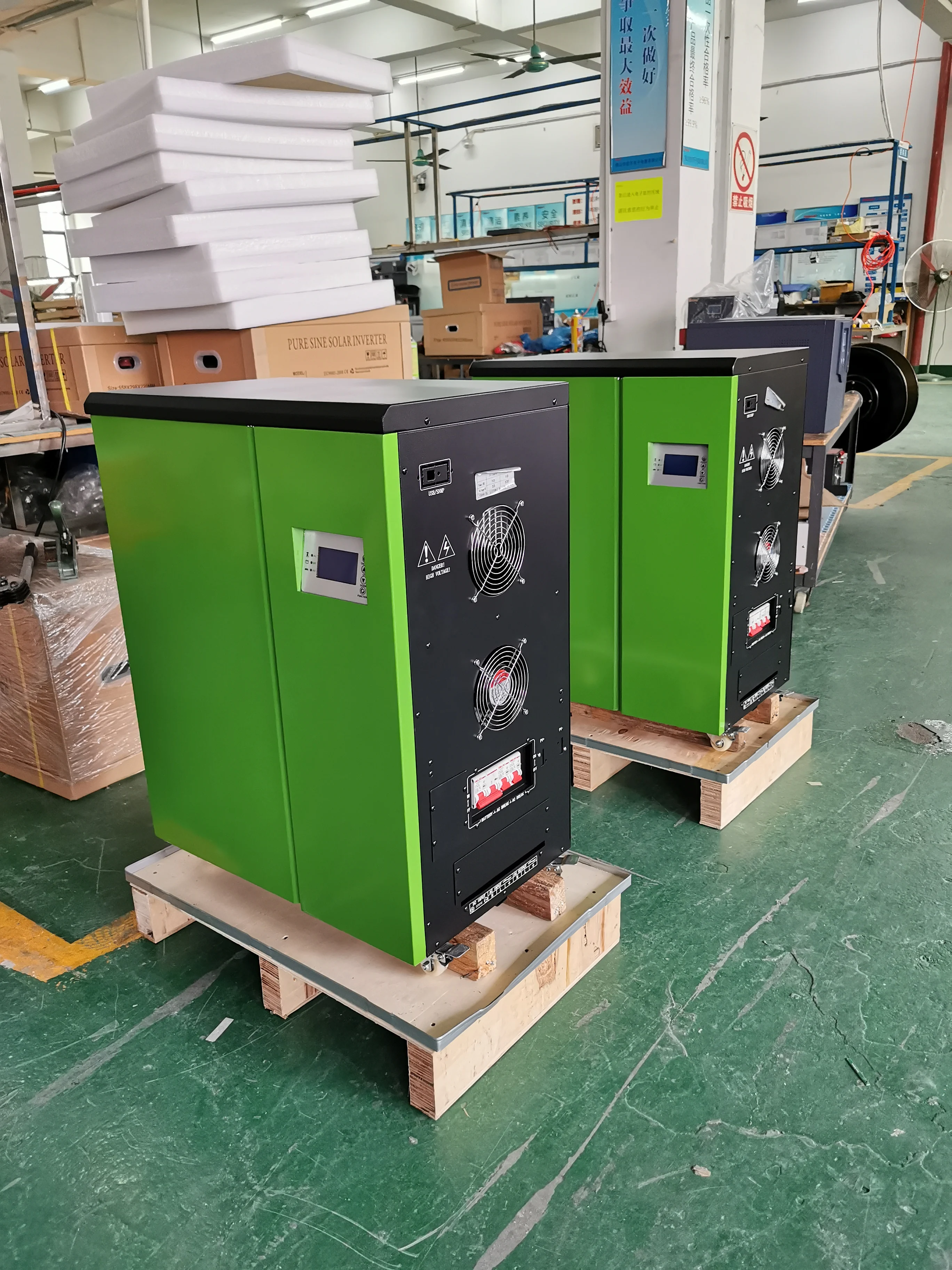

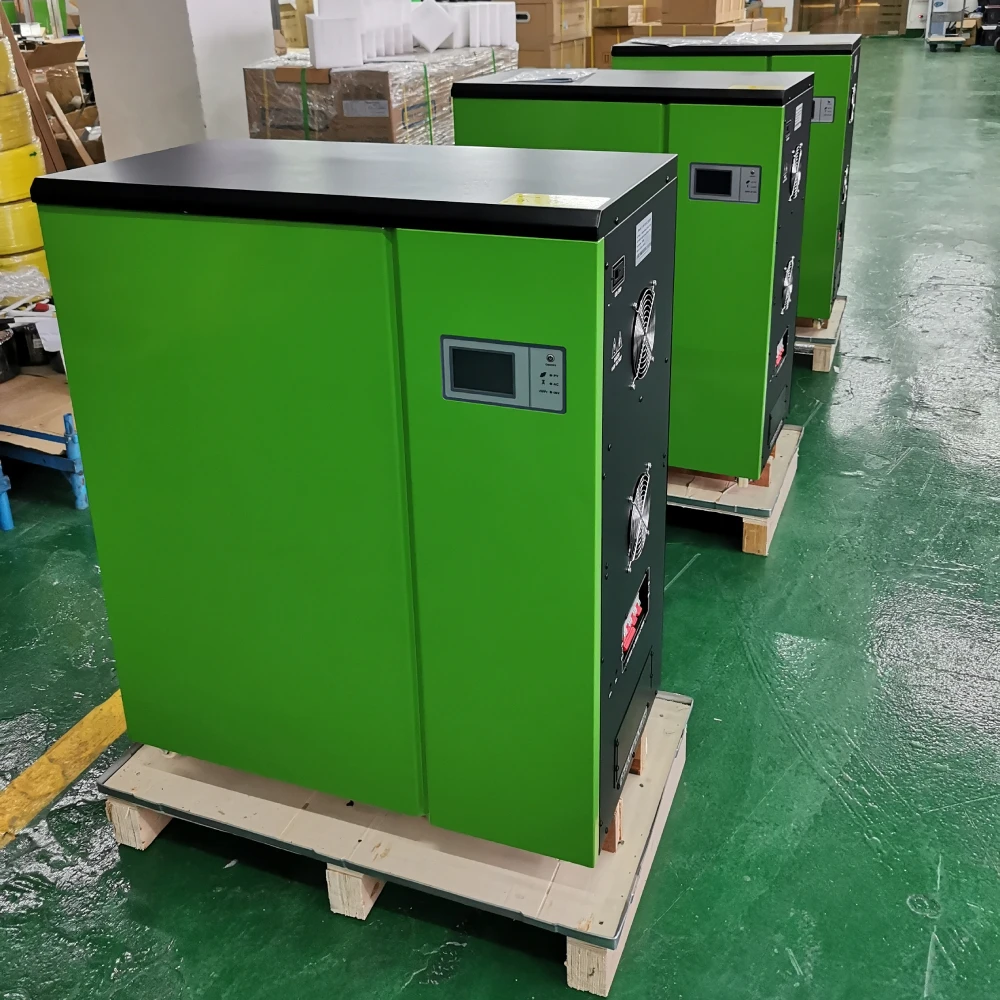

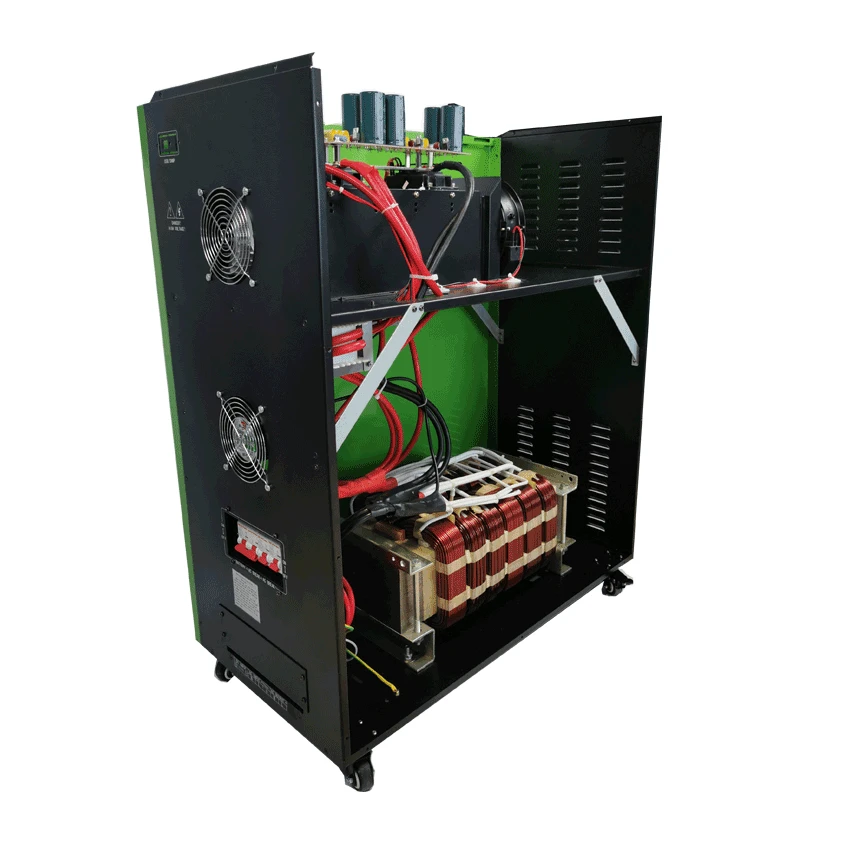

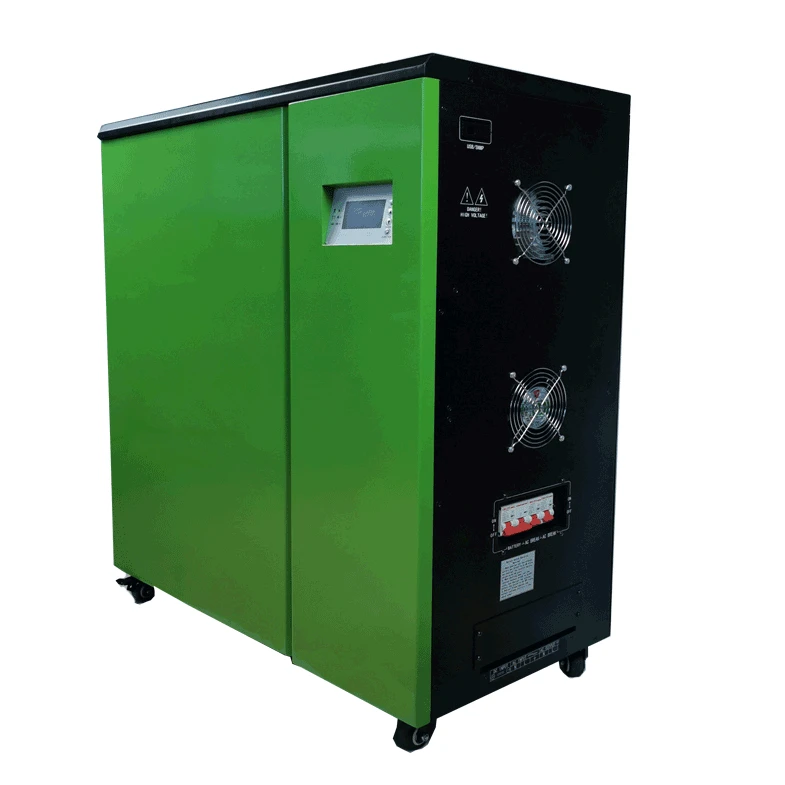

Diwani 40Kw Pure Sine Wave Home Inverter System 96V Dc To Ac 220V 10 30A Battery Charger Inverter
- Category: >>>
- Supplier: Guangdong Diwani New Energy Technology Co. Ltd.
Share on (1600722928874):
Product Overview
Description
specification | Model GT | GT080 | GT100 | GT200 | GT300 | GT400 | ||||
Rated power | 8KVA | 10KVA | 20KVA | 30KVA | 40KVA | |||||
Standard cell voltage | 96/192VDC | 96/192VDC | 192/240/360VDC | 240/360VDC | 240/360VDC | |||||
Size | Unit Dimensions | 580*370*730mm | 740*400*930mm | |||||||
Size | Package Dimension | 650*420*840mm | 820*480*1050mm | |||||||
Weight | NET WEIGHT | 69kg | 71kg | 111kg | 133kg | 186kg | ||||
Gross Weight | 86kg | 88kg | 131kg | 153kg | 202kg | |||||
Input | DC input voltgae range | 10.5-15VDC (Single battery voltage） | ||||||||
Utility input voltgae range | 170-275VAC（220V) 85-138VAC(110V) | |||||||||
Utility input frequency range | 45-65HZ | |||||||||
Output | Inverter output efficiency | ≥85% | ||||||||
Inverter output voltage | 220VAC±2% 110VAC±2% | |||||||||
Inverter output frequency | 50/60HZ±1% | |||||||||
inverter output waveform | sine wave | |||||||||
Utility output voltage range | constant voltage output 220VAC±10% 110VAC±10% | |||||||||
Utility output frequency range | 50Hz 60Hz automatic tracking | |||||||||
Output waveform distortion | ≤3% | |||||||||
charging current | optional | C0=0A,C1=5A,C2=10A,C3=15,C4=20A,C5=25A,C6=30A | ||||||||
protection | Battery Lack-voltage alarm | 10.5VDC (Single battery voltage） | ||||||||
Battery low-voltage protection | 10VDC (Single battery voltage） | |||||||||
Battery over-voltage protection | 16.7VDC (Single battery voltage） | |||||||||
Battery over-voltage alarm | 15VDC (Single battery voltage） | |||||||||
Overload protection | rated power≥110％，60Spower off；≥130％，10Spower off；≥150％，0.6Spower off。 | |||||||||
Temperature protection | ≥85℃ alarm，≥90℃shutdown the machine | |||||||||
Working mode | 1 | Normal Mode： Utility is preferred, Utility is charging | ||||||||
02 | Eco Mode:load power≤10% shutdown the machine，≥11%-100%turn on | |||||||||
03 | Solar inverter is preferred,Utility is not charging,charging:battery voltage≥13V switch to inverter mode;Inverter:battery voltage≤10.5V, switch to utility mode | |||||||||
other | conversion time | ≤4ms | ||||||||
Panel Display | LCD | |||||||||
heat-dissipating method | Smart Fan Control | |||||||||
≤42℃ Fan slow turning heat dissipation，≥45℃ Fan high turning heat dissipation | ||||||||||
Work environment | noise | ≤55dB | ||||||||
temperature | -10-- +40℃ | |||||||||
elative humidity | ＜95% | |||||||||
