  • Lichuan cnc servos 40mm 100W 220V 0.6A 0.32N.m 3000RPM 17bit Absolute Value servo motor with driver kit 40M00330B LC10P 100
Lichuan cnc servos 40mm 100W 220V 0.6A 0.32N.m 3000RPM 17bit Absolute Value servo motor with driver kit 40M00330B LC10P 100
Lichuan cnc servos 40mm 100W 220V 0.6A 0.32N.m 3000RPM 17bit Absolute Value servo motor with driver kit 40M00330B +LC10P-100
Lichuan cnc servos 40mm 100W 220V 0.6A 0.32N.m 3000RPM 17bit Absolute Value servo motor with driver kit 40M00330B +LC10P-100
Lichuan cnc servos 40mm 100W 220V 0.6A 0.32N.m 3000RPM 17bit Absolute Value servo motor with driver kit 40M00330B +LC10P-100
Lichuan cnc servos 40mm 100W 220V 0.6A 0.32N.m 3000RPM 17bit Absolute Value servo motor with driver kit 40M00330B +LC10P-100

Lichuan cnc servos 40mm 100W 220V 0.6A 0.32N.m 3000RPM 17bit Absolute Value servo motor with driver kit 40M00330B LC10P 100

Share on (1600722949296):


Price:$133.00 - $146.90

Quantity:


Product Overview

Description





Packing List

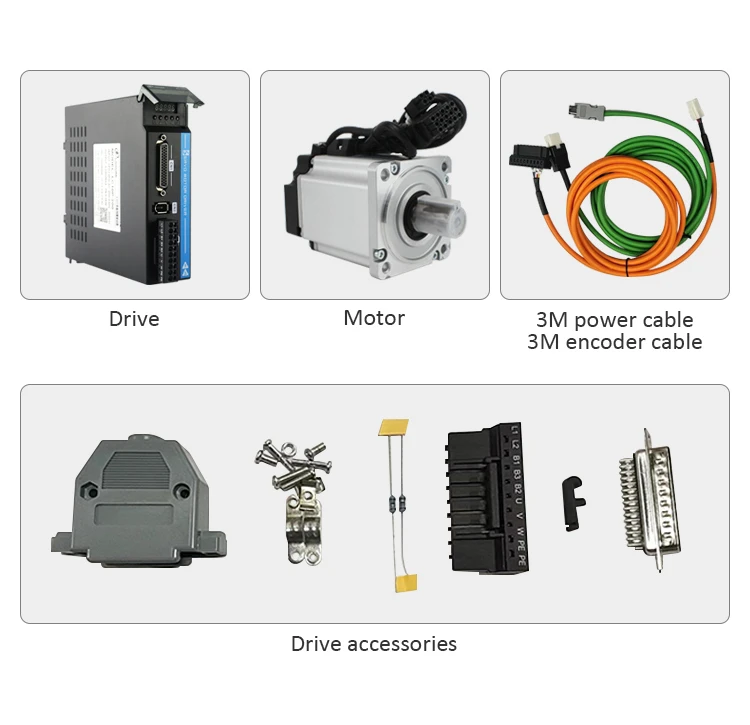

NO.
Product Name
Model / Description
Quantity
1
Lichuan 100W 40M00330B Servo Motor
40M00330B
1
2

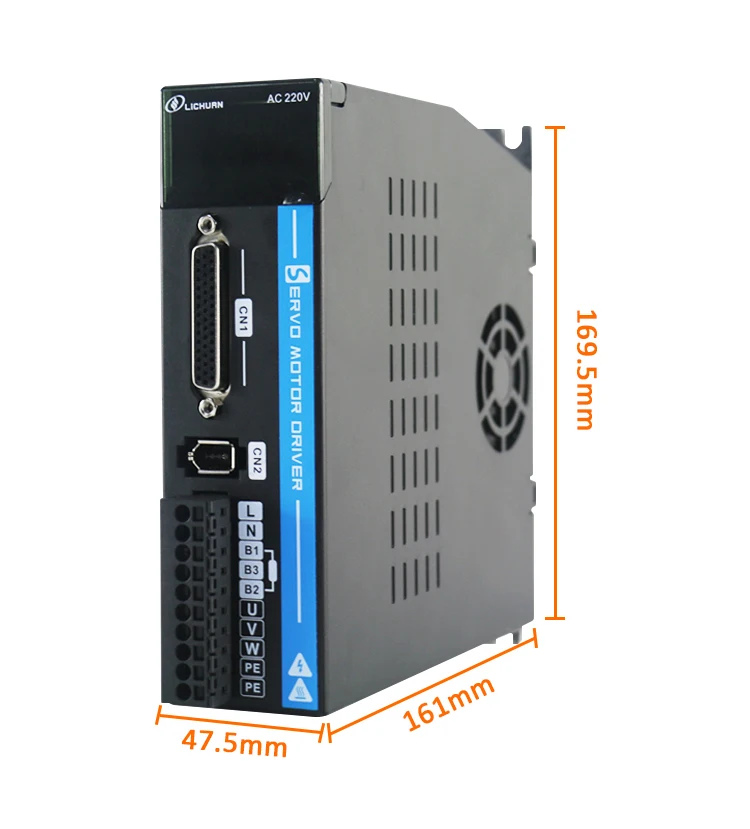

Lichuan 100W AC Servo Driver
LC10P-100
1
3
Motor Cable
Standard (3m)
1
4
Encoder Cable
Standard (3m)
1
5
Servo Driver Instruction Book
Standard
1




Products Description




Input power
Single phase 220VAC



Working environment
Temperature
0 ~ 45°C
Humidity
≤90% RH or less, no condensation
Altitude
Altitude ≤1000m
Installation Environment
No corrosive gas, flflammable gas, oil mist or dust, etc.
Installation method
Vertical installation
Encoders
Support 17-bit absolute encoder, 23-bit absolute encoder
Output Power
24V Voltage output
100mA, can supply power to DI port and pulse port

Control signal
Digital input
8 ordinary digital inputs, with confifigurable functions
Digital output
6 digital outputs, with confifigurable functions


Pulse signal
Enter
2-way high-speed input: the highest support 1MHz pulse, duty cycle 50% . Support for pulse input: Puls + DIR, a + b, CW + CCW
Output
3 high-speed pulse outputs, output signal form: 5V differential signal. 1 channel Z signal single-ended output signal


Analog signal
Enter
2 analog inputs, 12-bit resolution, input range -9.5～+9.5V. AI2 is fixed as the torque limit input
Output
None
Communication function
RS485 communication, MODBUSRTU protocol
Display panel and key operation
5 buttons (Mode, Set, Left, Up, Down) and 6 digital tubes
Regenerative discharge braking resistor
Built-in 50W, 40Ω braking resistor. In frequent braking situations, an external braking resistor is required.

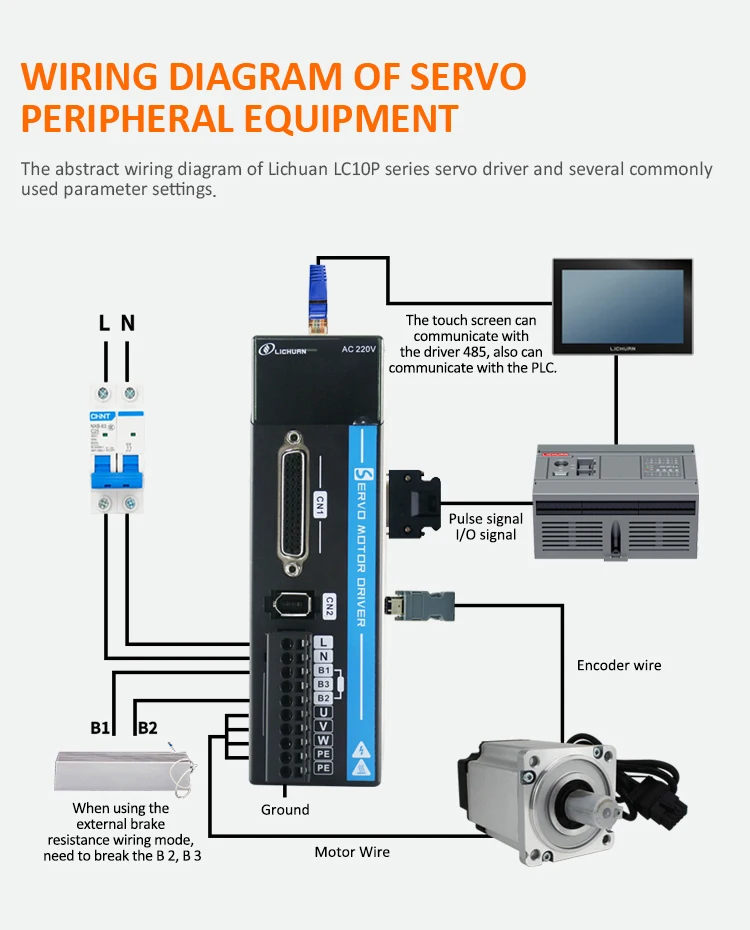

Product Parameters and Wiring
