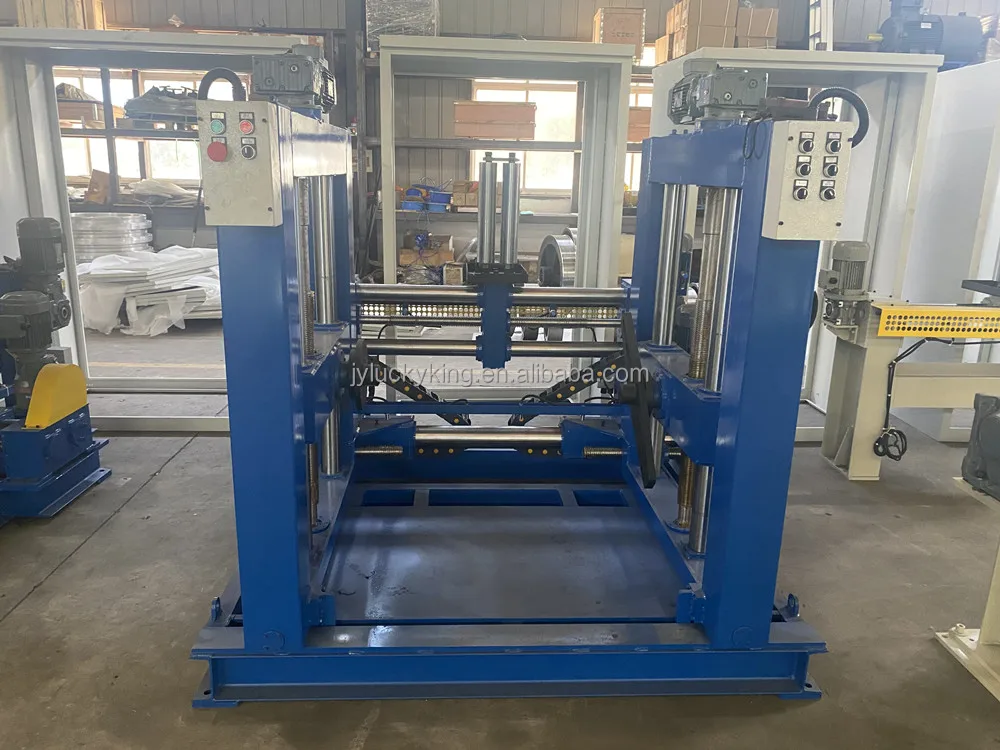

500x6B Tubular Stranding Machine Equipment For Producing Galvanized Steel Strand
- Category: Cable Manufacturing Equipment >>>
- Supplier: Jiangyin Lucky King Commercial Trading Co. Ltd.
Share on (1600723014422):
Product Overview
Description
Company Information

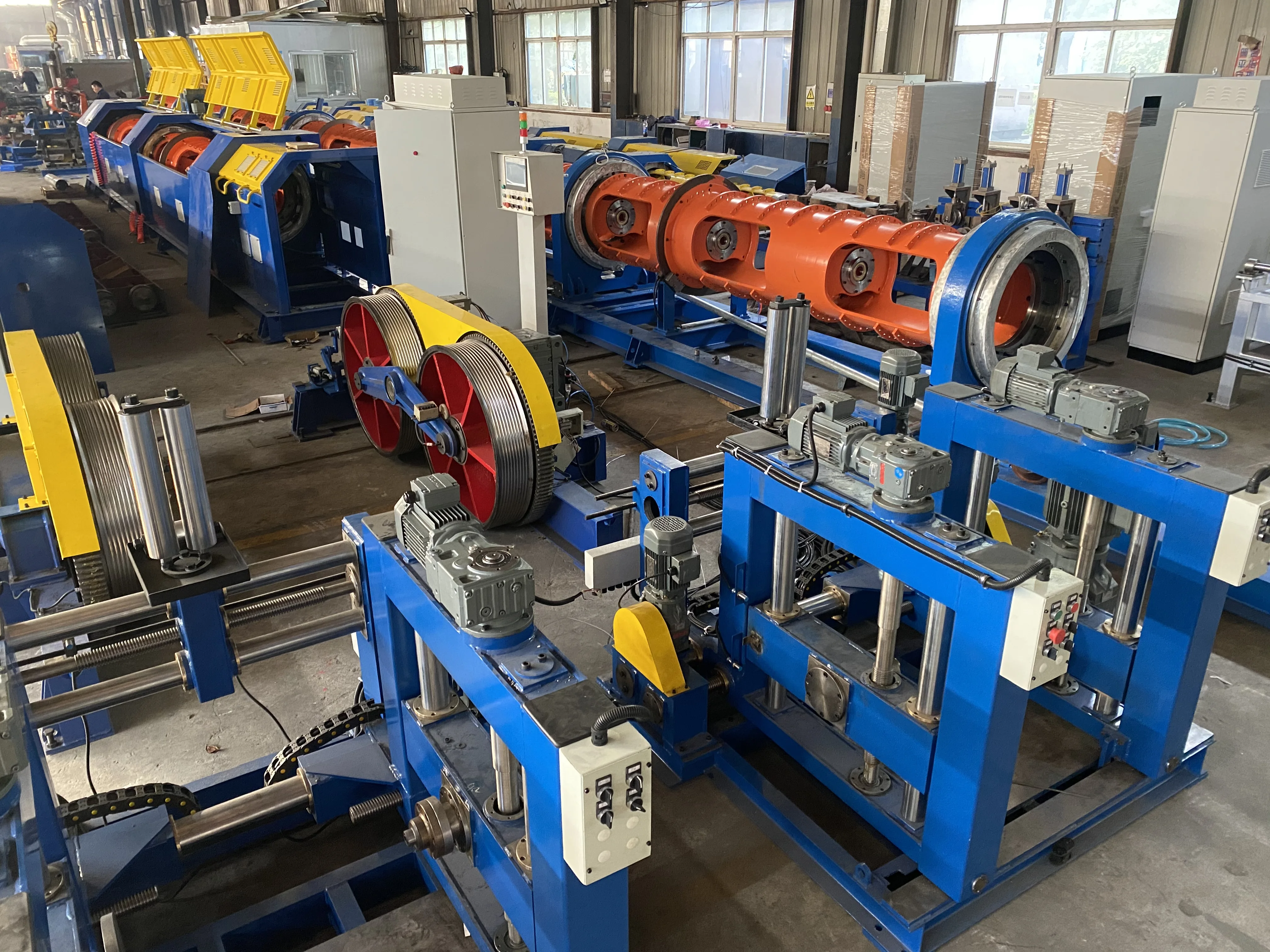

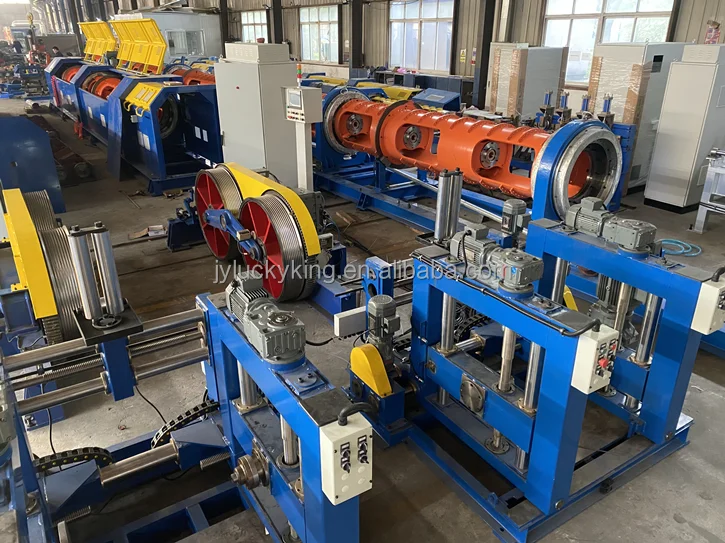

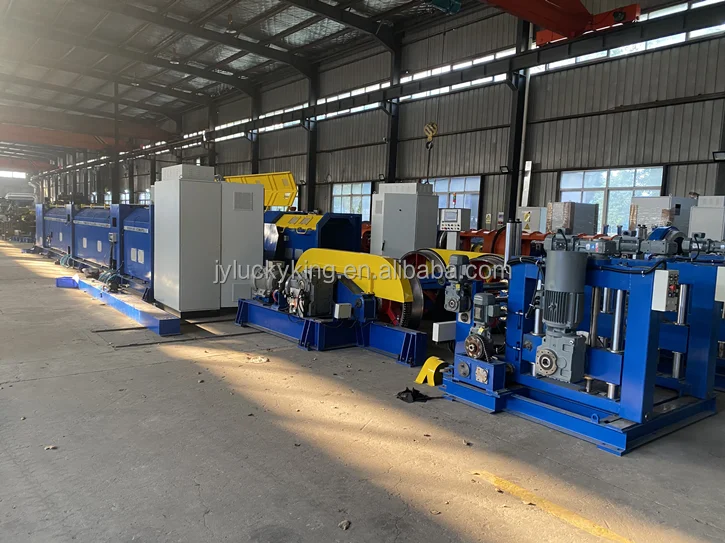

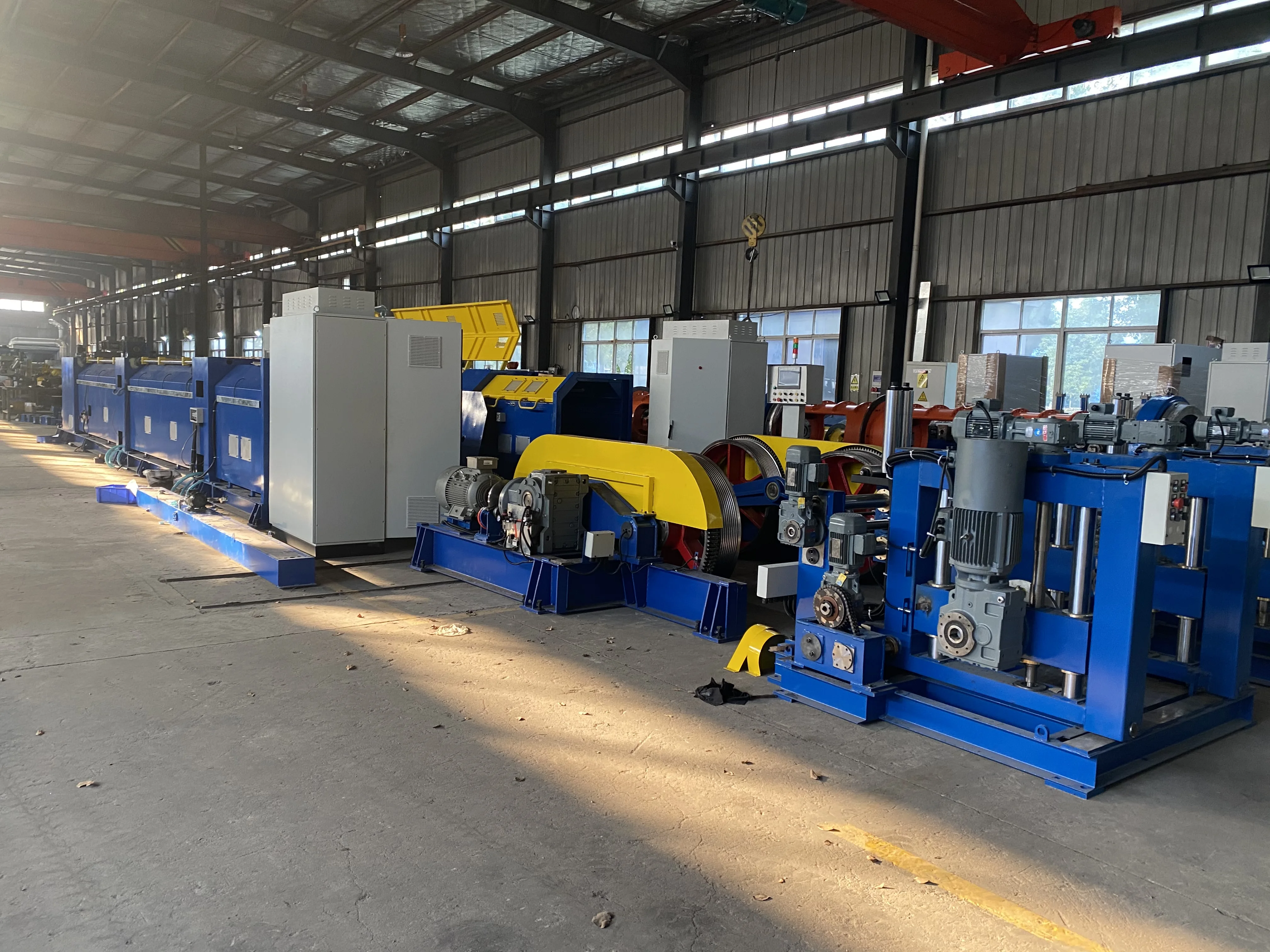

Take pictures of the workshop for your reference,we produce all kind of size ridding wheels type and bearing type (grease lubricating method or recycle oil lubricating method )steel wire rope tubular stranding machine!

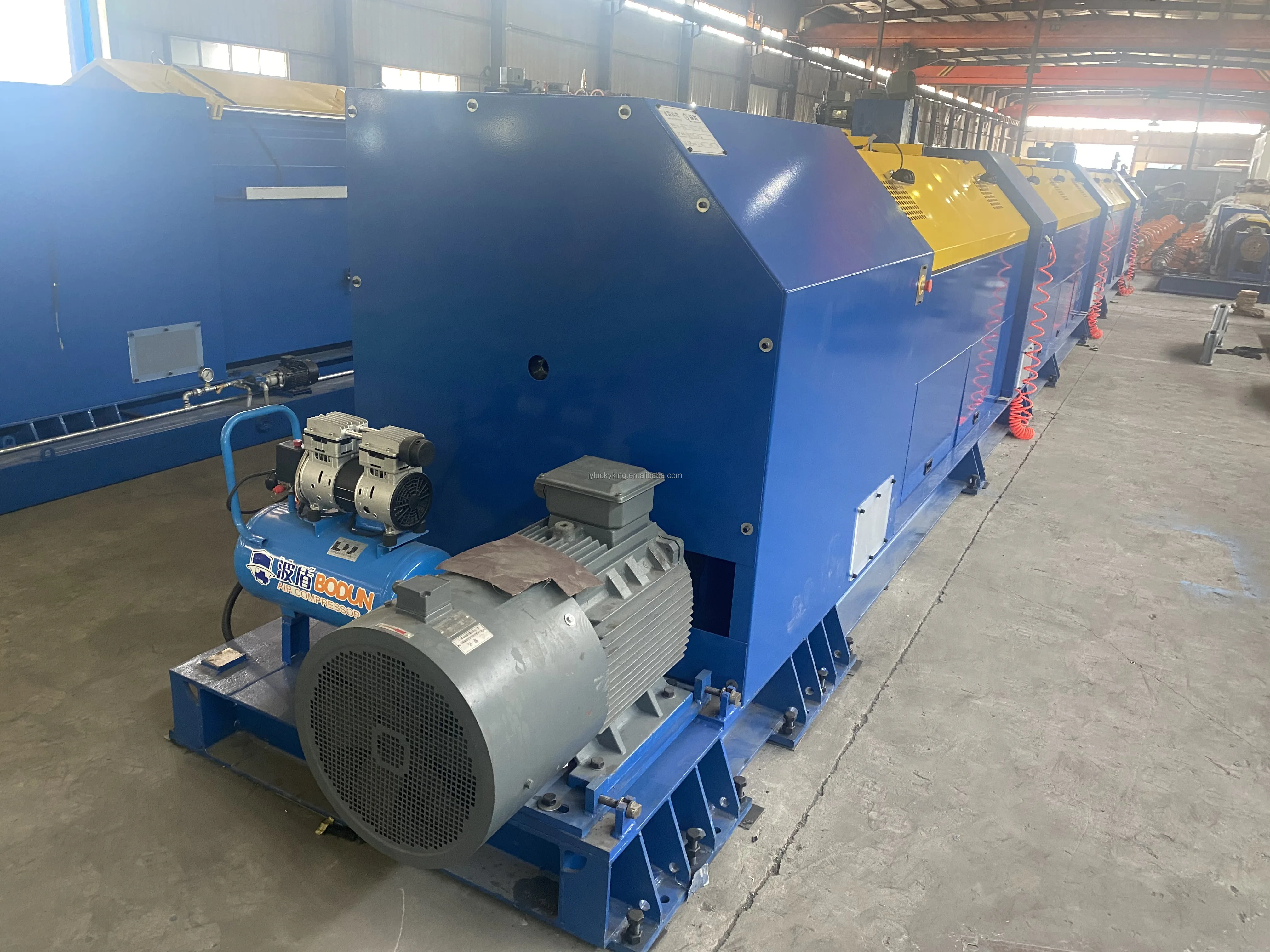

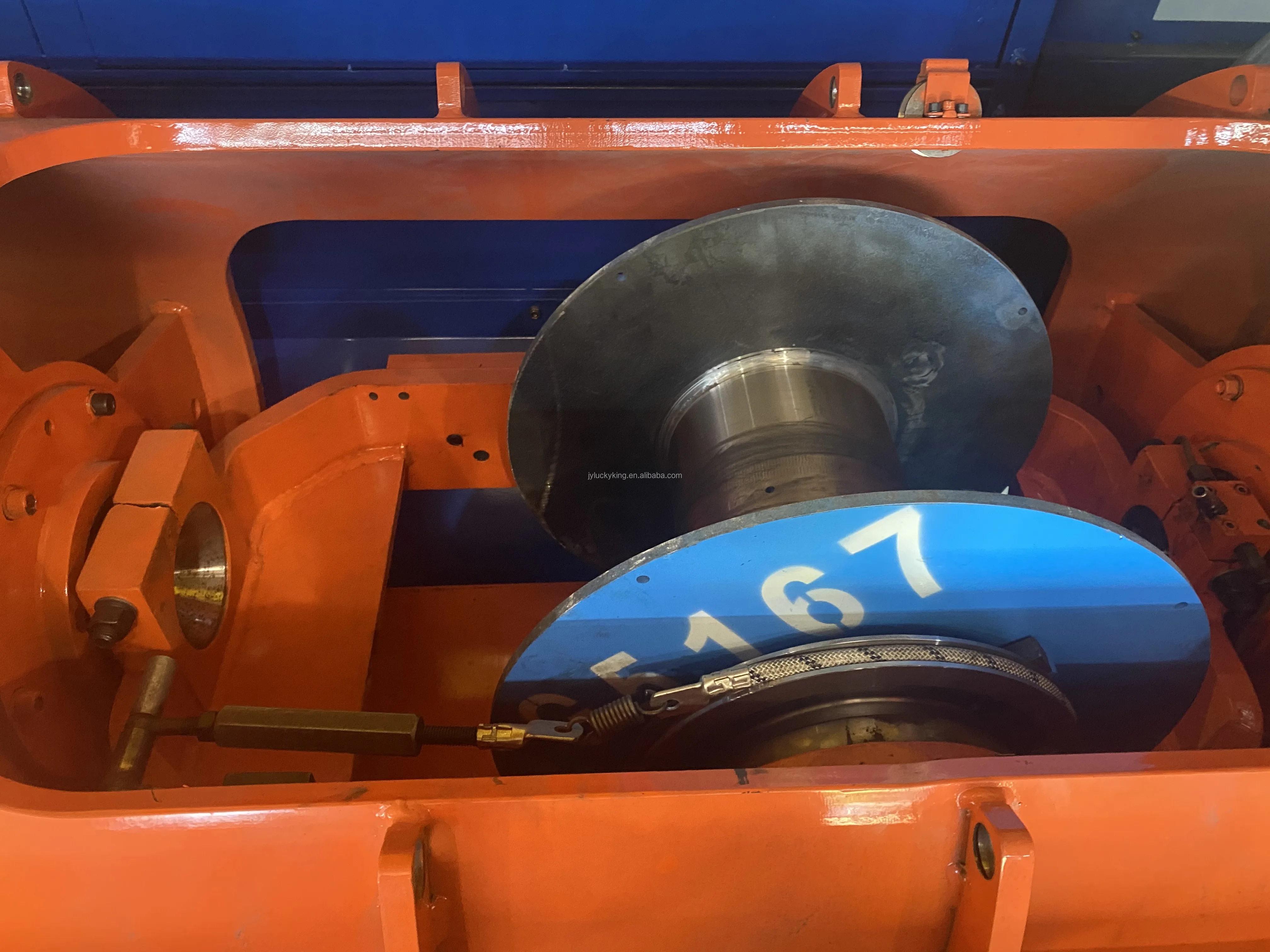

large bearings type 500/1+6 tubular stranding machine
| Technical Parameter | 500/6 |
| Rotating speed | 800R/Min |
| Inlet wire/strand range | 1.5-4.0mm |
| Max Stranded outer diameter | 15mm |
| Traction wheels dia | 1100mm*2 |
| Main machine motor power/Traction motor power | 37KW/18.5KW |
| Stranding construction | 1+6 |
| Brake method | pneumatic brake system |
| Torsion direction | S or Z |
| Pitch length range | 65-270mm |
| Pitch control method | PLC |
| Take up | Can be customized as customer demands |

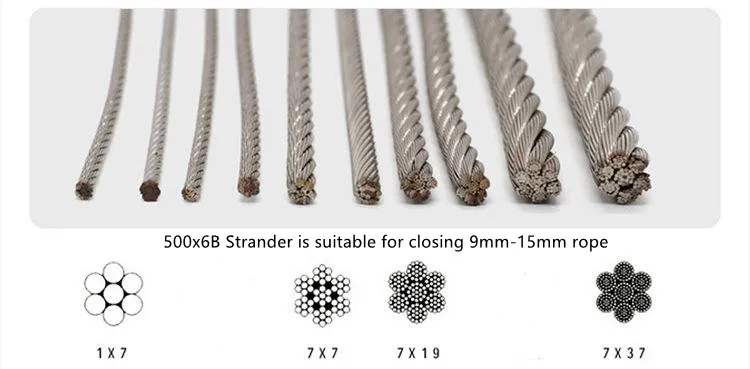

Application:

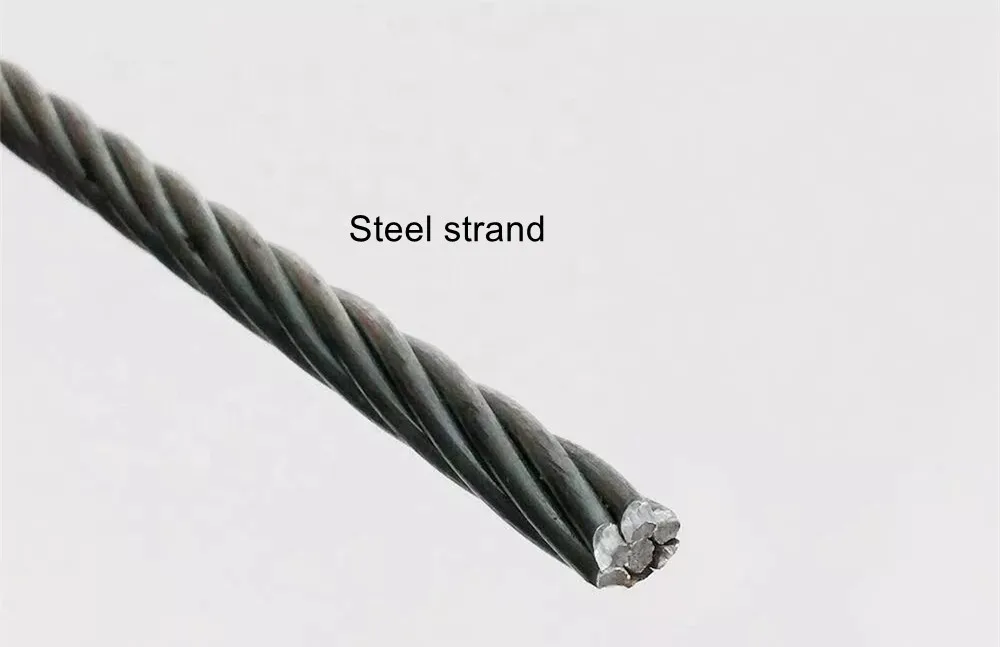

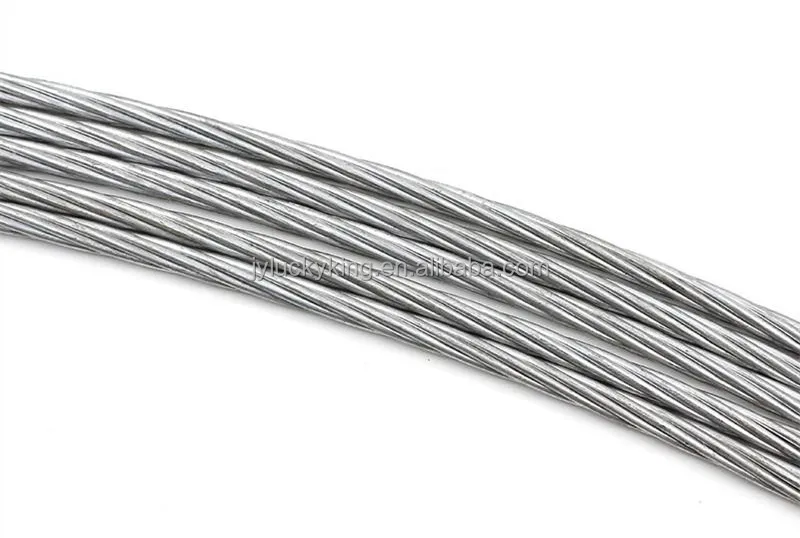

Especially for steel wire ropes ,steel strands, galvanized steel guy strands, high carbon steel strands,
copper strands, aluminum strands, steel strands, steel core aluminum strands
Our Services
Our Services
• Your inquiry related to our product & price will be replied within 24hours.
• Well-trained & experienced staff are to answer all your inquiries
• OEM & ODM projects are both available.
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back to us if you got any questions.
Our four promises
We can do the designs according to the customers' requirements.
We can offer you the high quality & reasonable price.
We can offer you a good after-sell service.
Prompt delivery.
If you request quotation by CIF ,please let ue know the port of destination so as to check the freight with our forwarder.
Q: Where is you factory location? How could I visit there?
A: -We are in Jiangyin City, Wuxi , Jiangsu province , China.
If you want to visit us,We could pick you up from Wuxi Airport. or you can take high speed trian ,we will pick up
you from Wuxi East Railway Station.
