SiAECOSYS QSMOTOR QS165 V2 5000W 72V 35H Encoder PMSM Mid Drive Motor Kits with ND72490B 270A 490A Encoder Controller

Product Overview

Description

SiAECOSYS QSMOTOR QS165 V2 5000W 72V 35H Encoder PMSM Mid Drive Motor Kits with ND72490B 270A 490A Encoder Controller

For 165 5000W motor powertrain kits, it could be used for electric motorcycle, which could be 72V 90KPH.

e.g. Similar Light bee

E-motorcycle weight, approx 80kg+1*70kg

Speed: peak 90km/h

Gear ratio: 1:4.77

Climbing slope: 20°@10kph@150kg@60s

Tire: 100/70-19

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

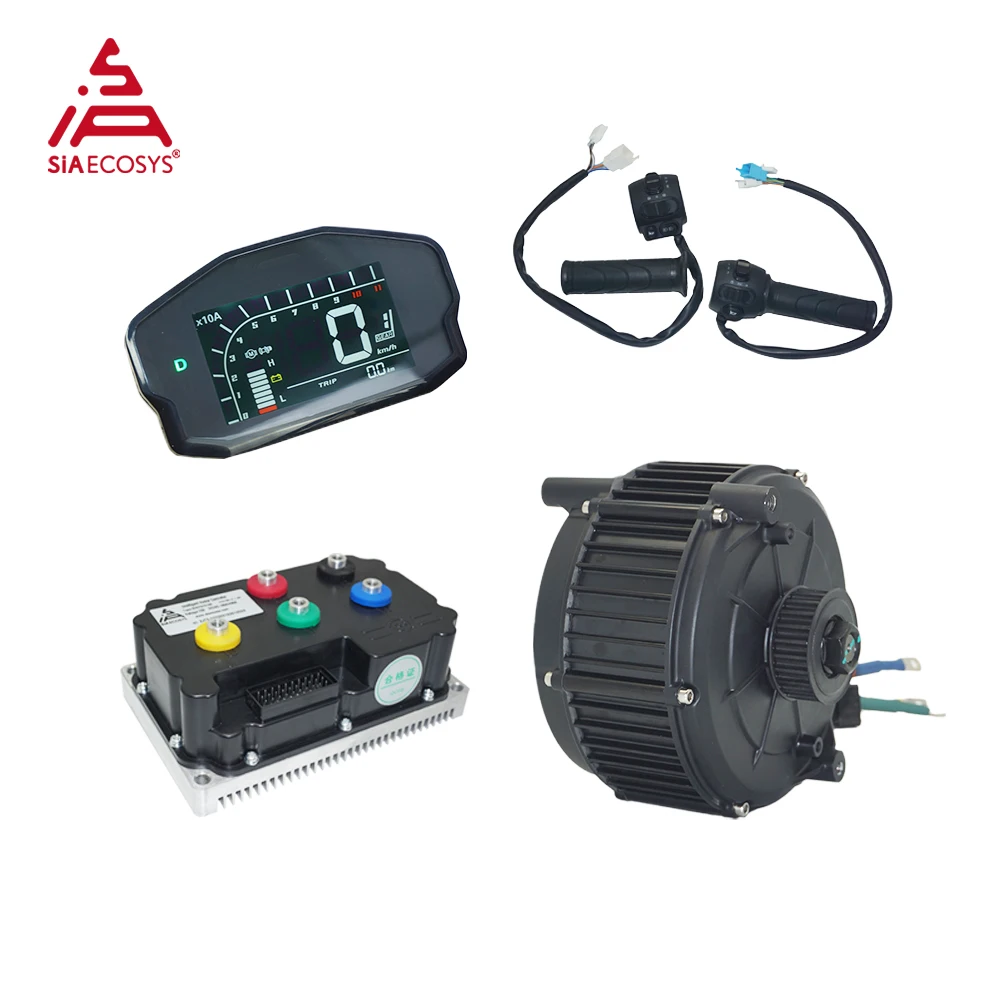

Combo

1. 1pcs X QS 165 V2 5000W Encoder Mid Drive Motor

2. 1pcs X ND72490B Encoder Controller with USB cable

3. 1pcs X DKD speedometer

4. 1pcs X YY V3 throttle

Key Features

1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Product Description

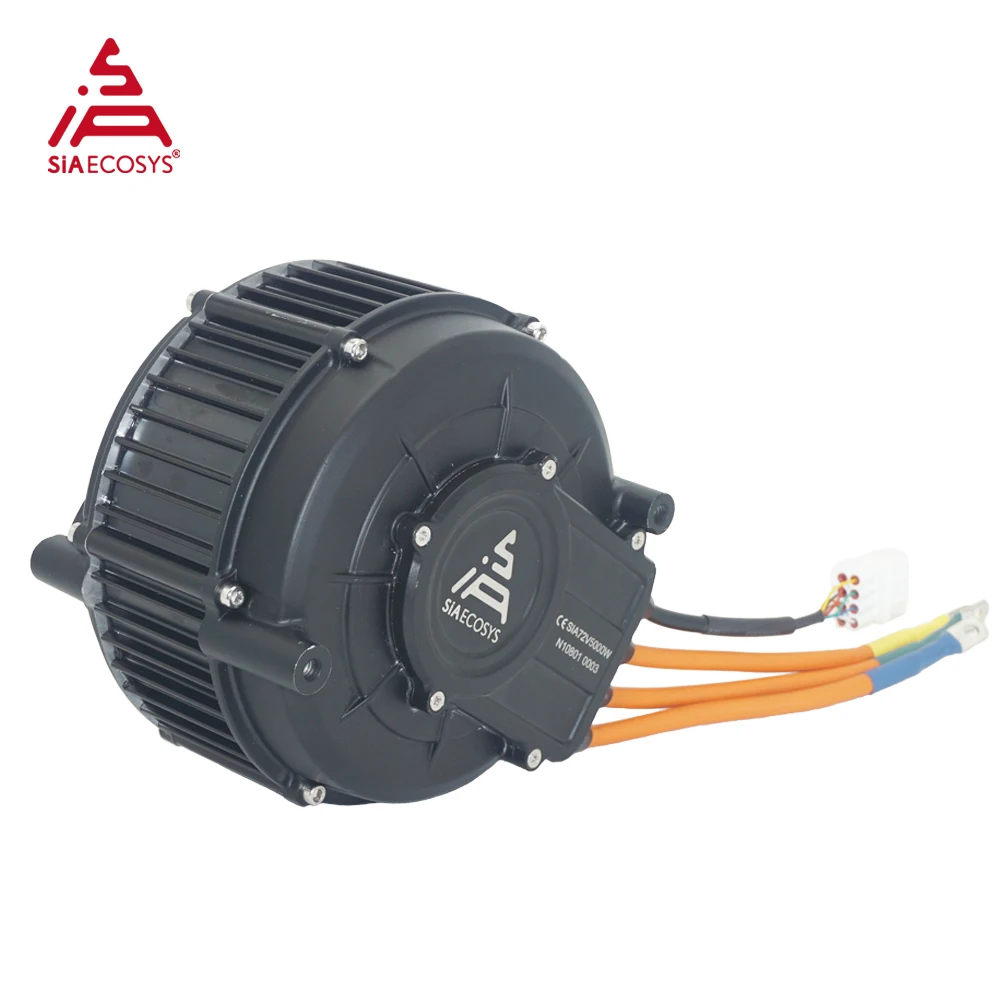

QSMOTOR 165 V2 5000W Encoder Mid Drive Motor

Comparison of 165 V2 encoder and 165 V1 encoder

Drawing

ND72490B Encoder Controller

Drawing

DKD LCD speedometer

Key Features

Both CAN and LIN communication are supported

Product Description

DKD LCD speedometer, Adjustable

It display D N R, P, 1 2 3 S gear, and battery current X10.

For the speed, we recommend to set it as following as default (to match with QS138 3kw 12inch assembly).

·Wheel tire size: 130/70-12

·Pole Pairs: 5

·Gear Ratio: 1: 4.77

·Voltage: 72V (20s Lithium battery)

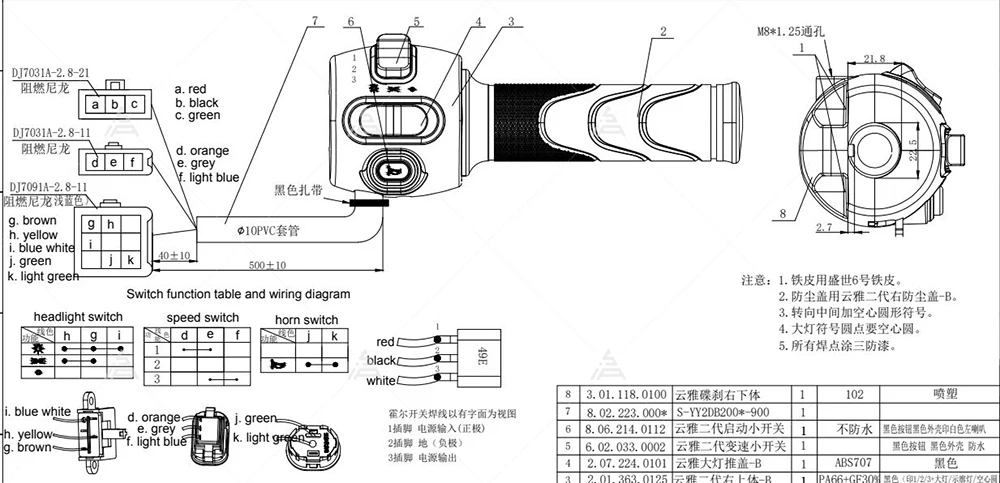

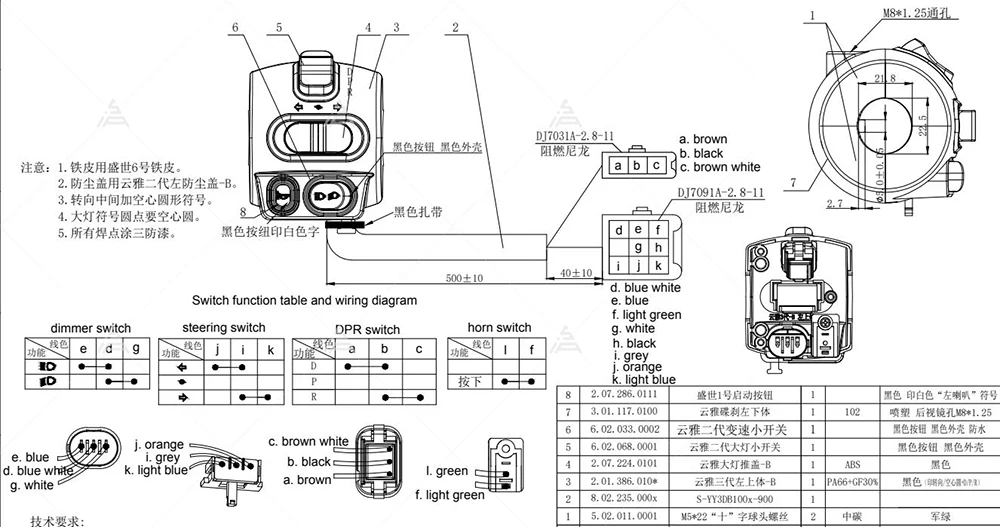

Harness definition

Left

Right

Application
