Best Price Box Shaped Fluidized Drying Machine Calcium Chloride Horizontal Fluid Bed Dryer
- Category: >>>
- Supplier: Jiangsu Changshi Drying Technology Co. Ltd.
Share on (1600723389263):
Product Overview
Description

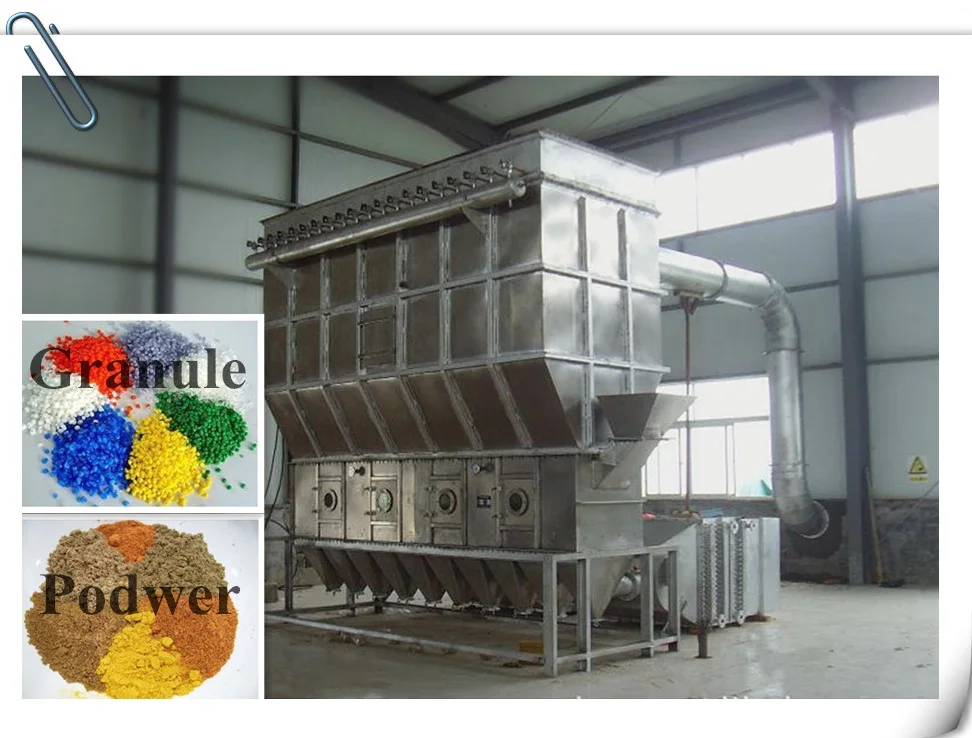

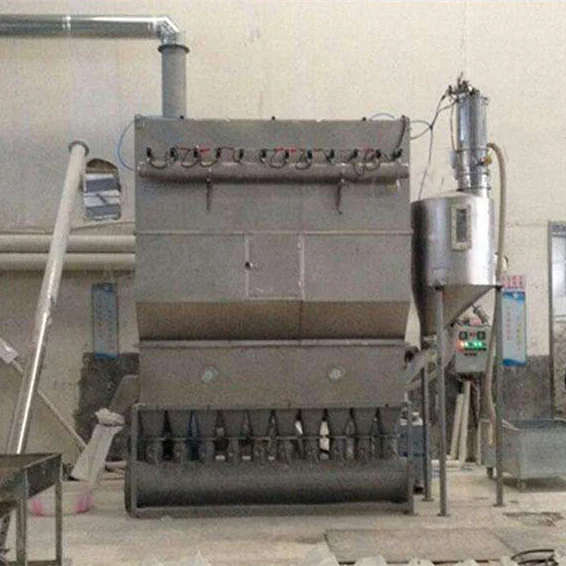

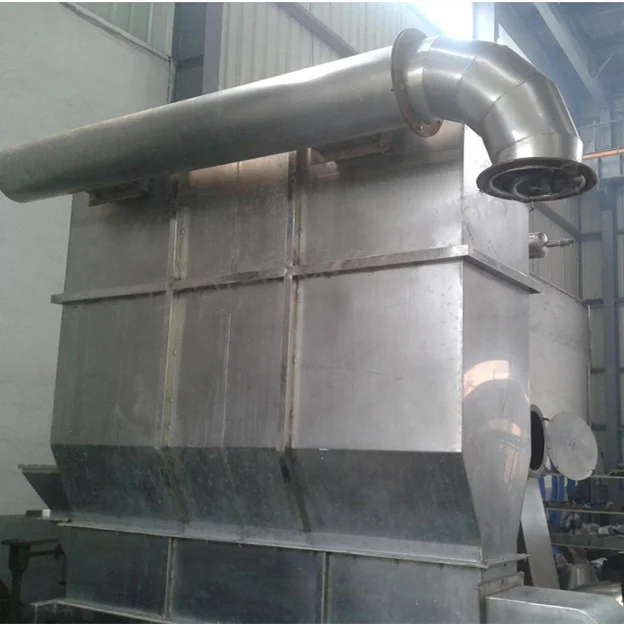

XF Horizontal Fluid Bed Dryer consists of air filter, heater, fluidized - bed main machine,feeder, cyclone separator,cloth bagduster,high-pressure centrifuge fan and operation table. Because the properties of raw materials exist difference, when equip the dustremoving equipment, it should consider the practical need. It can select cyclone separator and cloth bag duster at the same time or one ofthem.In general speaking, it needs to select cyclone separator only for raw material that is large in specific gravity and cloth bag duster for powder and small granule raw materialsthat is light in specific gravity. Meanwhile there is air feeding device and belt conveyor for selection.
Separated granule solid raw material is fed into fluidized-bed drier through feeder. Fresh air through filtering and heating is sent to the bottomof fluidizedbed by fan and contacts with solid raw material on distributing plate. In this way the fluidized state is formed and the heat exchangebetween air and solid is carried out. The dried raw material is discharged from outlet and wasted gas is exhausted from the top of fluidized-bed where catches solid powder through cyclone separator, cloth bag duster.
Steam,electricity or hot air furnace can be used (it can be supplied as request)
Separated granule solid raw material is fed into fluidized-bed drier through feeder. Fresh air through filtering and heating is sent to the bottomof fluidizedbed by fan and contacts with solid raw material on distributing plate. In this way the fluidized state is formed and the heat exchangebetween air and solid is carried out. The dried raw material is discharged from outlet and wasted gas is exhausted from the top of fluidized-bed where catches solid powder through cyclone separator, cloth bag duster.
Steam,electricity or hot air furnace can be used (it can be supplied as request)
Clean and hot air enters into fluid bed through distributor of valve plate. The wet raw material fed from feeder forms the boiling state by hot air. Because of the wide contact between hot air and raw materials, drying time is short. The air enters from front of bed, boiling in bed for several minutes, and discharged from other side of bed. The machine works in negative pressure.
XF Horizontal Fluid Bed Dryer | ||||||||||||||||||
Model | XF0.25-1 | XF0.25-2 | XF0.25-3 | XF0.25-6 | XF0.3-2 | XF0.3-4 | XF0.3-6 | XF0.3-8 | XF0.3-10 | |||||||||
Area of Bed Layer(㎡) | 0.25 | 0.5 | 1 | 1.5 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | |||||||||
Evaporation Capacity (kg/h) | 10~15 | 20~25 | 30~45 | 52~75 | 25~30 | 42~60 | 63~90 | 84~120 | 105~150 | |||||||||
Power of Fan(kW) | 5.5 | 7.5 | 15 | 22 | 7.5 | 18.5 | 30 | 37 | 48 | |||||||||
Inlet Air Temperature (℃) | 60~180 | |||||||||||||||||
Temperature of Material(℃) | 40~120 | |||||||||||||||||
Overall Dimension(L*W*H)(m) | 1*0.6*3.35 | 2*0.6*3.35 | 4*0.6*3.35 | 6*0.6*3.35 | 2*0.7*3.4 | 4*0.7*3.4 | 6*0.7*3.4 | 8*0.7*3.4 | 10*0.7*3.4 | |||||||||
Occupied Area(㎡) | 18 | 25 | 35 | 40 | 25 | 38 | 45 | 56 | 70 | |||||||||
XF Horizontal Fluid Bed Dryer | ||||||||||||||||||
Model | XF0.4-4 | XF0.4-6 | XF0.4-8 | XF0.4-10 | XF0.4-12 | XF0.5-4 | XF0.5-6 | XF0.5-8 | XF0.5-10 | |||||||||
Area of Bed Layer(㎡) | 1.6 | 2.4 | 3.2 | 4 | 4.8 | 2 | 3 | 4 | 5 | |||||||||
Evaporation Capacity (kg/h) | 56~80 | 84~120 | 112~160 | 140~200 | 168~240 | 70~100 | 105~150 | 140~200 | 175~250 | |||||||||
Power of Fan(kW) | 30 | 37 | 48 | 70 | 70 | 30 | 48 | 70 | 105 | |||||||||
Inlet Air Temperature (℃) | 60~180 | |||||||||||||||||
Temperature of Material(℃) | 40~120 | |||||||||||||||||
Overall Dimension(L*W*H)(m) | 4*1*3.58 | 6*1*3.58 | 8*1*3.58 | 10*1*3.58 | 12*1*3.58 | 4*1.2*4.1 | 6*1.2*4.1 | 8*1.2*4.1 | 10*1.2*4.1 | |||||||||
Occupied Area(㎡) | 18 | 56 | 74 | 82 | 96 | 50 | 70 | 82 | 100 | |||||||||
Note: | ||||||||||||||||||

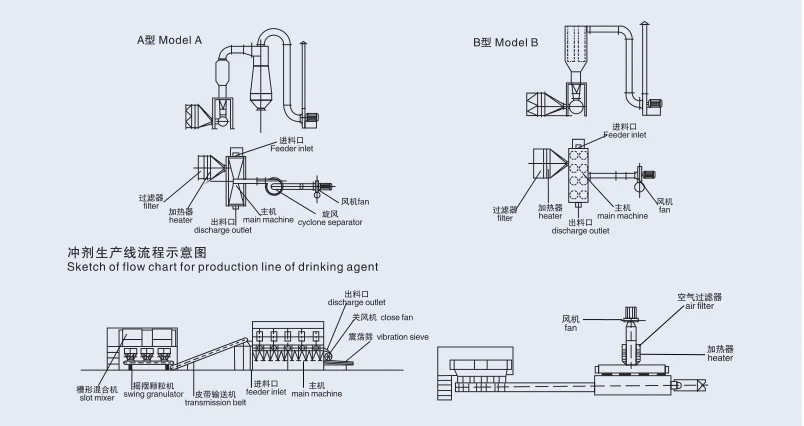

1.The feeding way has: (A)Star feeding; (B)Combining star feeding and air conveyor; (C)Belt conveying; (D)Decided by customer; | ||||||||||||||||||
2.Automatic production can be realized. | ||||||||||||||||||
3.Besides the model abovementioned， the special model can also be designed and manufactured as request. | ||||||||||||||||||
4.According different raw material, the power of fan wil be different. | ||||||||||||||||||
It is suitable for drying separated granule such as, raw materialof pharmaceutical industry,tablet,tablet of drink of Chinese traditional medicines; plastic resin, citric acid, other powder and granule ofchemical industry, powder of drink, corn embryo feed of foodstuff industry and so on. The Max diameter of raw material to be dried will 6 mmand the best diameter will be 0.5~3 mm.
Jiangsu Changshi Drying Technology Co., Ltd specializes in design, production and development of mixer, dryer, crusher, granulator, vibrating screen, dust collector and conveyor. The company has modern standard workshop buildings, engineering and technical personnel with medium and senior titles, more than 10 sets of processing equipment.The specialty provides complete set of powder equipment and solutions. In accordance with the GMP certification standard, the whole process of service is provided.
Multiple sets of advanced and sophisticated equipment
Complete and strict production control to be ensure the quality
Clean and tidy warehouse management
Service before sell:
----Provide relative technical data for help equipment selection
----Running pilot test
----Offering advice for equipment selection, material analysis
----Provide flow chart, basic drawing
----Provide technical design
----Running pilot test
----Offering advice for equipment selection, material analysis
----Provide flow chart, basic drawing
----Provide technical design
Service in sell:
----Provide factory layout according to contract
----Manufacturing ordered equipment according to the related standard
----A presentation report of manufacturing situation will be offered every 15days
----Tracking and supervising in whole manufacturing and transporting period according to the contract requirement
----Photo of wooden case will be offered, wooden case with standard shipping marks.
----Photo of freight loading will be offered.
----A record of detailed delivery list will be offered
----A record of detailed freight loading list will be offered
----All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing
----Manufacturing ordered equipment according to the related standard
----A presentation report of manufacturing situation will be offered every 15days
----Tracking and supervising in whole manufacturing and transporting period according to the contract requirement
----Photo of wooden case will be offered, wooden case with standard shipping marks.
----Photo of freight loading will be offered.
----A record of detailed delivery list will be offered
----A record of detailed freight loading list will be offered
----All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing
Service after sell:
----Send service engineer for help instruct installation.
----Send service engineer for running test at site and training the operator
----Help client for maintenance and repair
----Provide one year spare part
----Quality warranty for two years after sell
----Send service engineer for running test at site and training the operator
----Help client for maintenance and repair
----Provide one year spare part
----Quality warranty for two years after sell
1.Can I use this machine to extract some raw materials?
Yes, in order to help you better, we suggest you provide the name of the raw material you want to process.
2.Can I use my own raw materials for extraction test?
Yes, of course. We can do extraction tests and send videos and test reports for your reference.
3.Do you have OEM service? Do you provide parts?
Yes, we will, as long as you provide us with your drawings and detailed requirements.
4.How can we visit your factory?
You can fly to Changzhou airport, or if you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up.
5.How to transport equipment?
We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements.
6.What is the voltage of the equipment?
The equipment voltage is 110V~380V, the specification can be customized according to the voltage standard of the country where your equipment is used.
2.Can I use my own raw materials for extraction test?
Yes, of course. We can do extraction tests and send videos and test reports for your reference.
3.Do you have OEM service? Do you provide parts?
Yes, we will, as long as you provide us with your drawings and detailed requirements.
4.How can we visit your factory?
You can fly to Changzhou airport, or if you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up.
5.How to transport equipment?
We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements.
6.What is the voltage of the equipment?
The equipment voltage is 110V~380V, the specification can be customized according to the voltage standard of the country where your equipment is used.
