10 Ton Double Girder Rail Electric Wire Rope Hoist With Electric Traveling Trolley

10 Ton Double Girder Rail Electric Wire Rope Hoist With Electric Traveling Trolley

Category: Hoists >>>
Supplier: Toptech,Machinery,Wuxi,Co.,Ltd.

Price:$4,980.00 - $5,319.00

Price in USD:Details

Quantity:

Product Overview

Description

Products Description

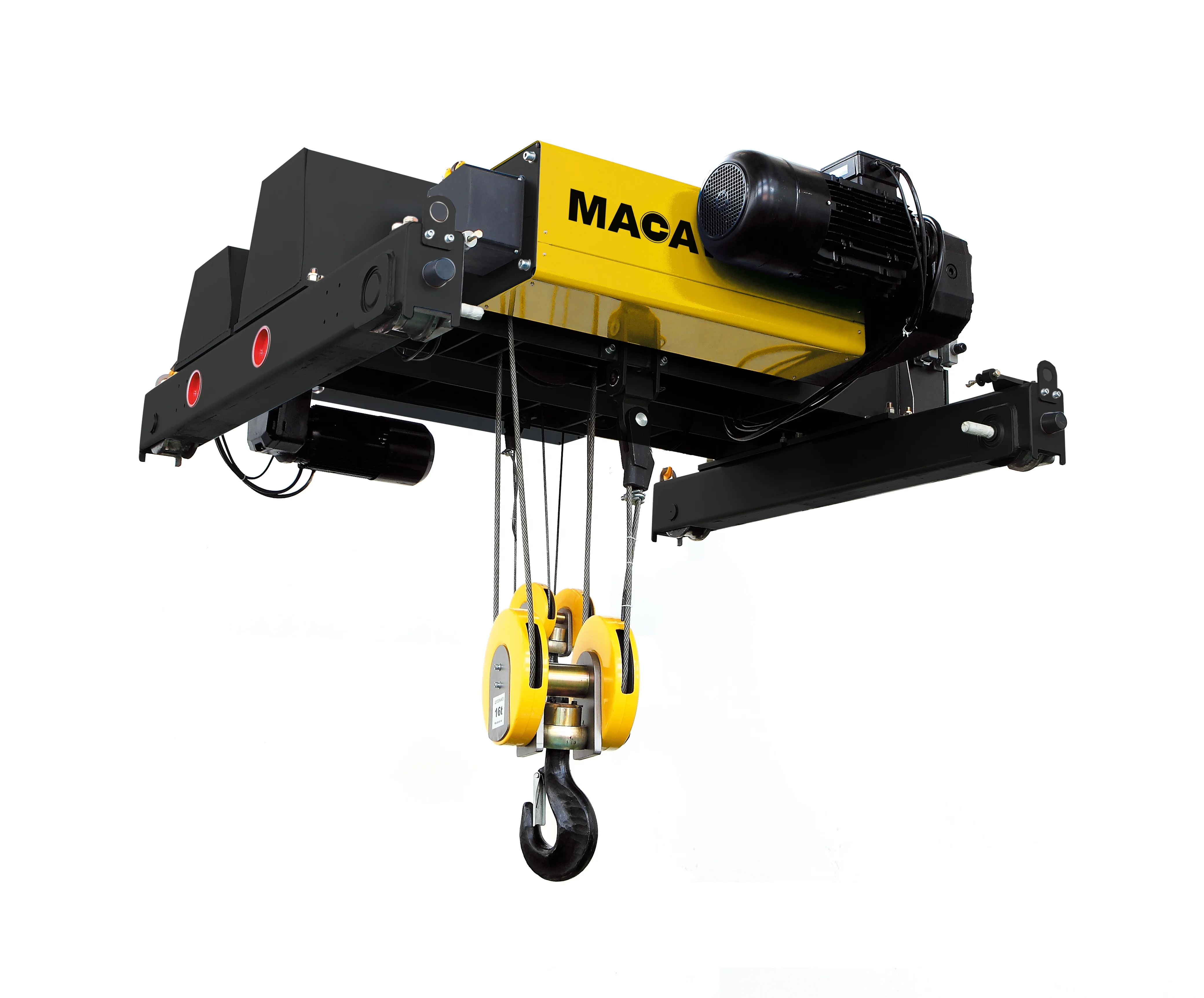

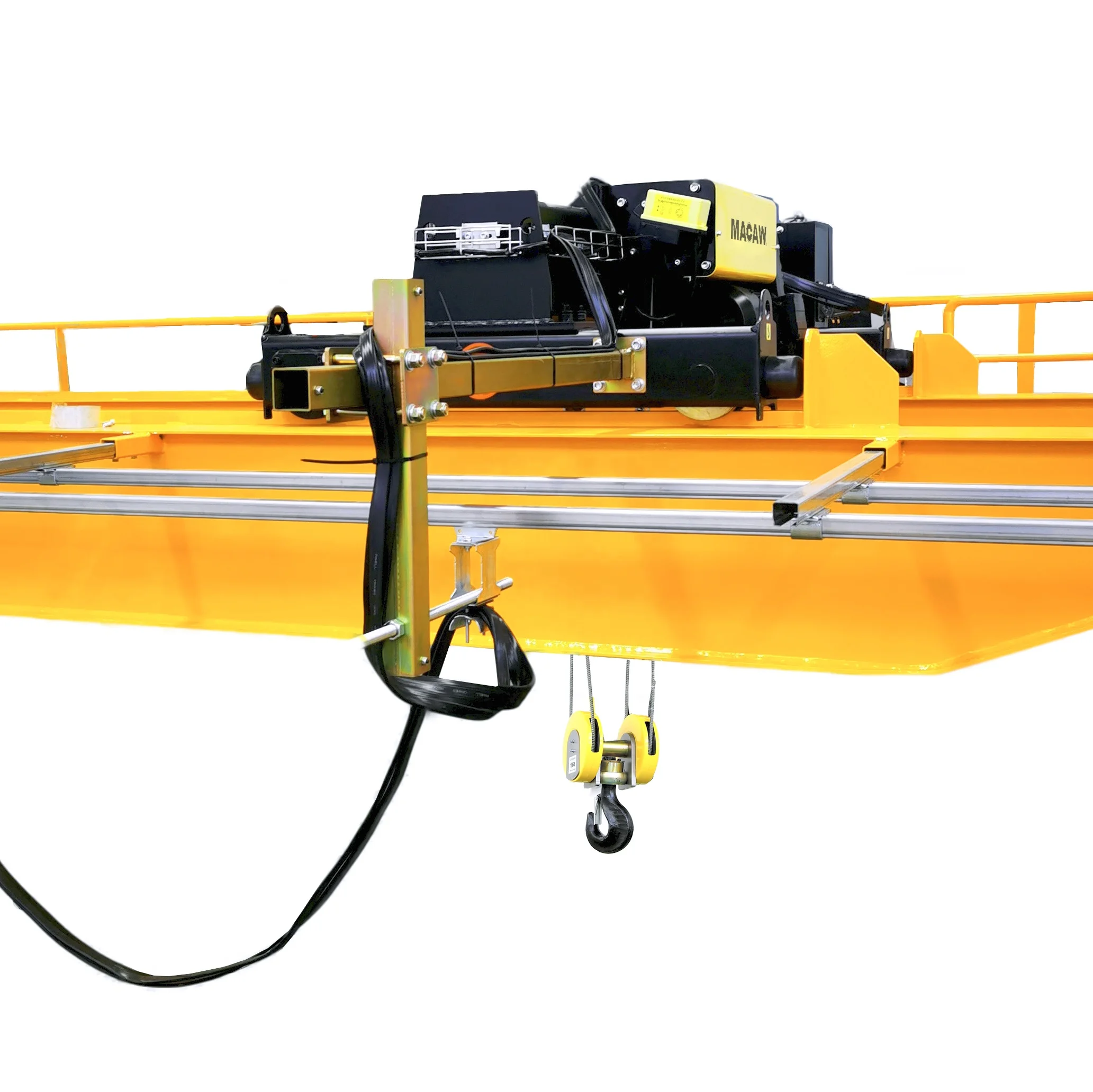

Electric Wire Rope Hoist

Wire rope hoists meet all the requirements of state-of-the-art hoist units and give you the certainty of a secure long-term investment.

Besides their particularly long service life, they also offer comprehensive standard features at an attractive price.

Economical

Easy Operation

Durable, Stable, Reliable

Product	Double Beam Electric Wire Rope Hoist
Load Capacity	10 ton
Lifting Height	9 m
Power Supply	380 V 60 HZ 3 Phase
Hoisting Speed	5:0.8 m/min
Hoisting Motor	9.5:1.5 kw
Travel Speed	20 m/min
Travel Motor	0.44 kw*2
Way to Control	Pendant Control or Wireless Remote Control

Recommend Products

Details Images

Hoisting Drive

*12/2-pole or 4-pole squirrel-cage motor with Cylindrical rotor

*Thermal contacts to protect against overheating as standard

*DC disk brake minimum brake safety factor of 1.8

Trolley Drive

*Long life adjustment free compact brake

*Minimized maintenance with grease gearbox

*Inverter duty motor with IP 55 protection

*Spline fit direct sealed travel system

Precision Geared Limit Switch

*Automatic cut-off of the lifting and lowering motions in the limit position

*Four contacts set for emergency cut-off in the upper and lower positions as standard

*Additional safety thanks to fast-to -slow cut-off

Electric Cabinet

*Reliable internal transmission

*Electrical equipment completely of modular design

*Electrical enclosure with IP 55 protection

Wire Rope Drum and Guide

*Drum made of high strength seamless steel tube*Galvanized wire rope with tensile strength up to 2160 Mpa.

Bottom Hook Block

*Design RSN hook forging strength class T as per DIN 15401*The notched latch for firm contact improves resistance against lateral force.

Packaging & Delivery

Electric hoist part

After Sales Service

1.15 months warranty after delivery or 12 months warranty after acceptance,whichever comes earlier.
2.1 years spare-parts provided for better maintenance.
3.Professional technical staffs provide installation, commissioning and training services.
4.Delivery with English user manual, parts manual, product certification and other relevant certificates.
5.Technical advisory for any time and Engineers available to service machinery overseas.

FAQ

1.What's information should I provide to get the price?

More parameters, such as lifting capacity, lifting height, span, power supply, etc. And if you can give us your design drawing, that will be very helpful.

2.Which kind crane can you provide?

With products of single girder & double girder overhead cranes, gantry cranes, general overhead cranes, Eurosystem light cranes, jib cranes, explosion-proof cranes and etc, Eurocrane is able to provide you with complete competitive solutions for material handling based on your demands.

3. What services can you provide?

We have a complete pre-sales & after-sales service system, including consultation, repair, maintenance, modernization, training, inspection and etc. Our engineers are available overseas.

4.Which brand are the accessories and electronic components in your cranes? We have a long term cooperations with ABB, Siemens, Schneider, SEW, etc. And we have world-leading processing machines which are imported from Japan and Germany.

5. Do you provide spare parts?
Yes, of course, we can provide motors, reducers, brakes, drums,wire ropes and any other spare parts in connection with the cranes and hoists.
