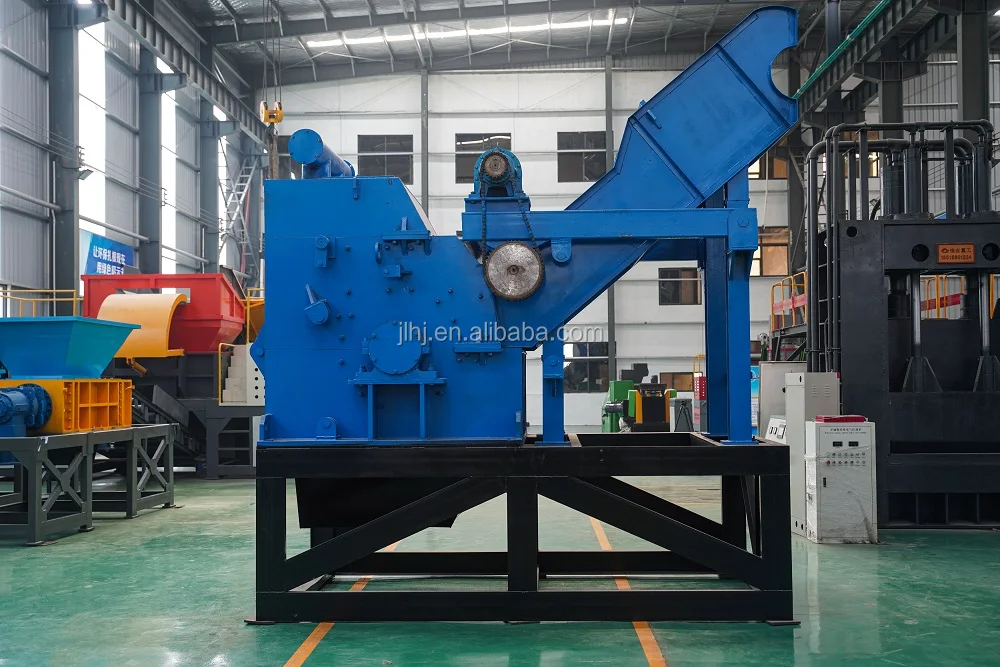

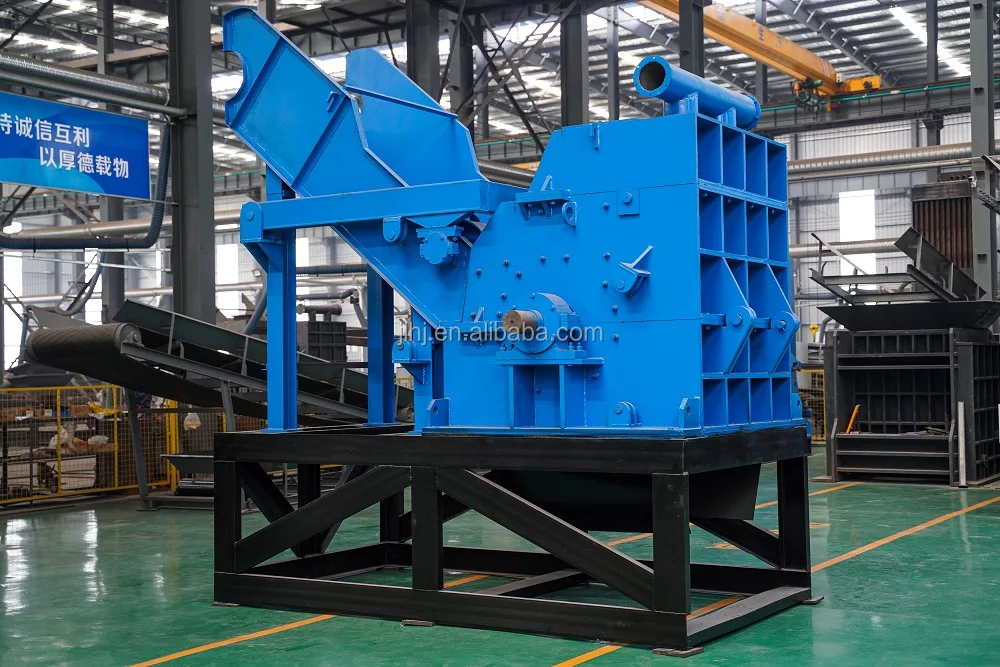

Low cost price Automatic hydraulic Scrap car bicycle Shredder waste steel iron crushing aluminum metal crusher machine
- Category: >>>
- Supplier: Gongyi Jinlonghengji Heavy Industry Machinery Co. Ltd.
Share on (1600723516073):
Product Overview
Description
Automatic hydraulic Scrap car bicycle Shredder waste steel iron crushing aluminum metal crusher price
Working Principle Of Crusher

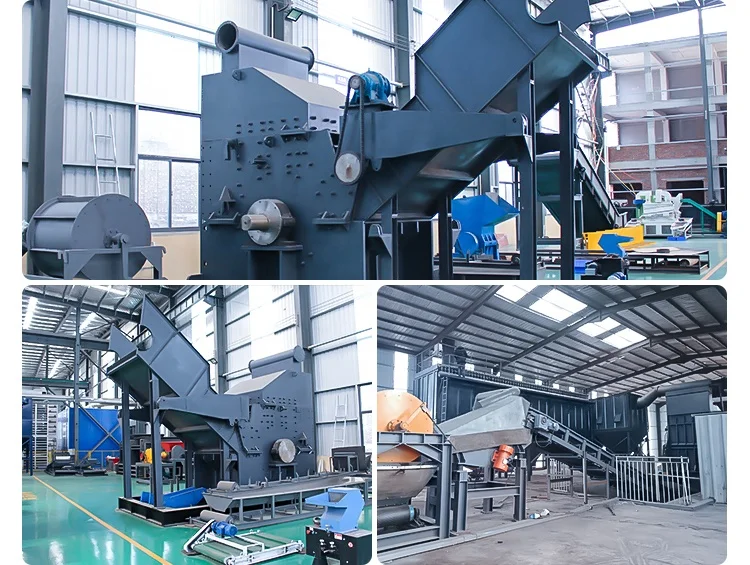

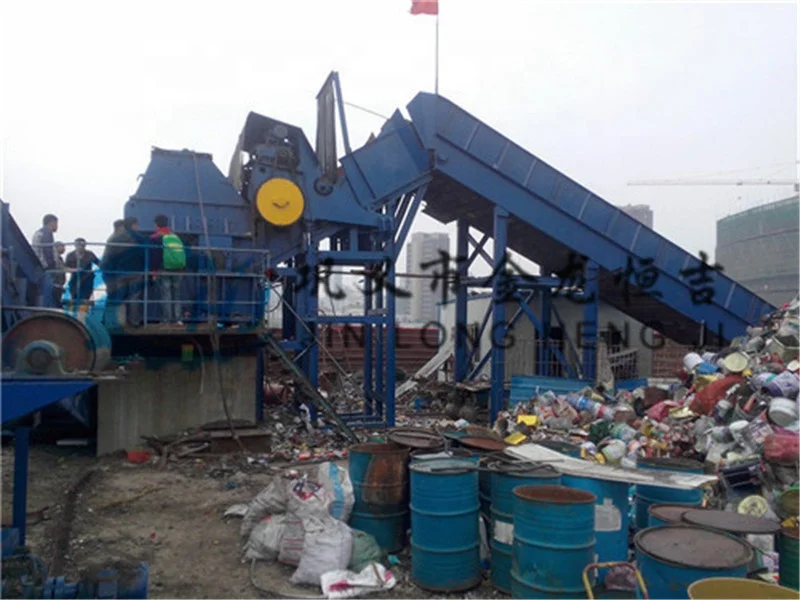

The whole production line of scrap crusher consists of feeding conveyor, main engine, vibration feeder, discharging conveyor,magnetic separator, iron conveyor, impurity conveyor, dust collector and PLC control cabinet. The crushed materials from scrap hammer shredder are separated from non-ferrous and non-ferrous metals by vibration feeder, belt conveyor and magnetic separation system, and sent out to stack by their respective conveyors. Non-ferrous metals and non-metallic materials in the conveyor will be searched by magnetic separation equipment again, and free iron metals will be sorted out, so as to improve the recovery rate of iron metals. At the same time, non-ferrous metals can be sorted by eddy current separator, which can improve the recovery efficiency. The whole broken line is controlled by PLC, which can realize computer control and manual operation.
The main equipment of scrap crushing line includes chain plate feeder, scrap crusher main machine, hydraulic feeder, vibration feeder, belt feeder, upper suction magnetic separator, discharging conveyor, iron remover, rotary conveyor, etc.
The main equipment of scrap crushing line includes chain plate feeder, scrap crusher main machine, hydraulic feeder, vibration feeder, belt feeder, upper suction magnetic separator, discharging conveyor, iron remover, rotary conveyor, etc.
Our Advantage
1. Super high crushing efficiency
Hydraulic feeding, hammer throwing and ring hammer combined crushing hammer head can improve the efficiency of other crusher equipment by 5% - 15%.
2. Perfect finished granules
The unique roller rubbing process can significantly remove the paint and other contaminants, form high-density pellets and
improvethe grade of crushing materials.
3. Stable operation capability
When the safety door is set, after the non-breakable material enters the crushing chamber, the operator can open the safety door and discharge it from the body to avoid damaging the crusher.
4. Intelligent Control System
PLC control system and hydraulic power system can save time and labor in intelligent production and realize stable, automatic and safe operation of the whole production line.
Hydraulic feeding, hammer throwing and ring hammer combined crushing hammer head can improve the efficiency of other crusher equipment by 5% - 15%.
2. Perfect finished granules
The unique roller rubbing process can significantly remove the paint and other contaminants, form high-density pellets and
improvethe grade of crushing materials.
3. Stable operation capability
When the safety door is set, after the non-breakable material enters the crushing chamber, the operator can open the safety door and discharge it from the body to avoid damaging the crusher.
4. Intelligent Control System
PLC control system and hydraulic power system can save time and labor in intelligent production and realize stable, automatic and safe operation of the whole production line.
Product Details
Screen
Liner plate
Hammer
Rotor assembly
Accessory Equipment
Feeding conveyor
Pulse dust collector
Magnetic separator
Discharging conveyor
Eddy current sorter
microcomputer control system
model | voltage | power(kw) | capacity(t/h) | accessory equipment |
PSJ-140 | 380v | 132 | 2-3 | Feeding conveyor one Discharging conveyor one Iron conveyor one Impurity conveyor one Magnetic separation system one Dust removal system one Control system one Intelligent Visual System (Optional) one Sprinkler system (optional) one |
PSJ-200 | 380v | 200 | 3-5 | |
PSJ-280 | 380v | 280 | 4-7 | |
PSJ-315 | 380v | 315 | 5-8 | |
PSJ-450 | 380v | 450 | 8-12 | |
PSJ-630 | 10kv | 630 | 10-15 | |
PSJ-750 | 10kv | 750 | 12-17 | |
PSJ-800 | 10kv | 800 | 15-20 | |
PSJ-900 | 10kv | 900 | 20-30 | |
1500HP | 10kv | 1200 | 25-40 | |
2000HP | 10kv | 1500 | 50-60 | |
3000HP | 10kv | 2250 | 60-80 | |
4000HP | 10kv | 3000 | 80-100 | |
6000HP | 10kv | 4420 | 100-160 | |
8000HP | 10kv | 6000 | 160-200 | |
10000HP | 10kv | 7500 | 200-260 |
