DIN850 High speed steel Tungsten carbide keyseat T Slot Milling Woodruff Key seat Cutter

Product Overview

Description

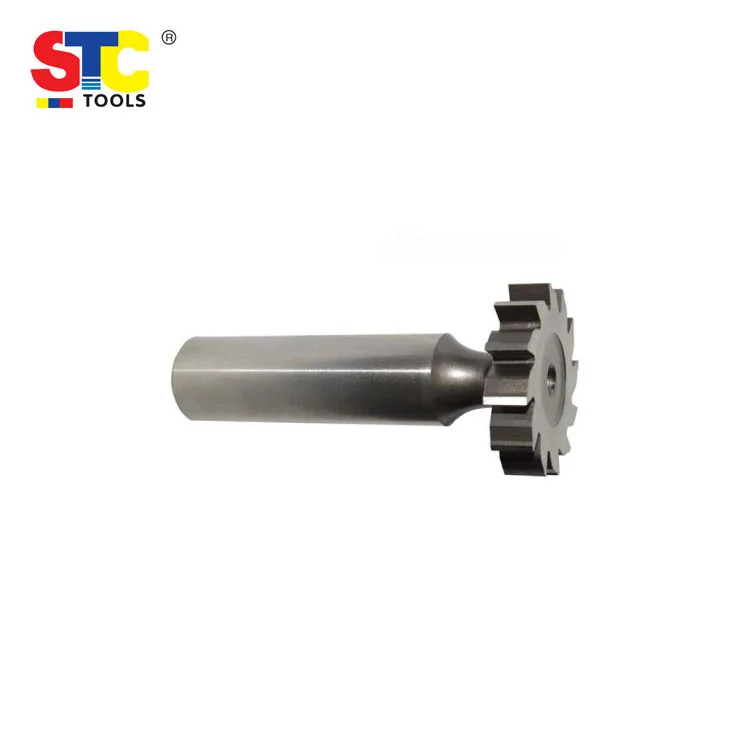

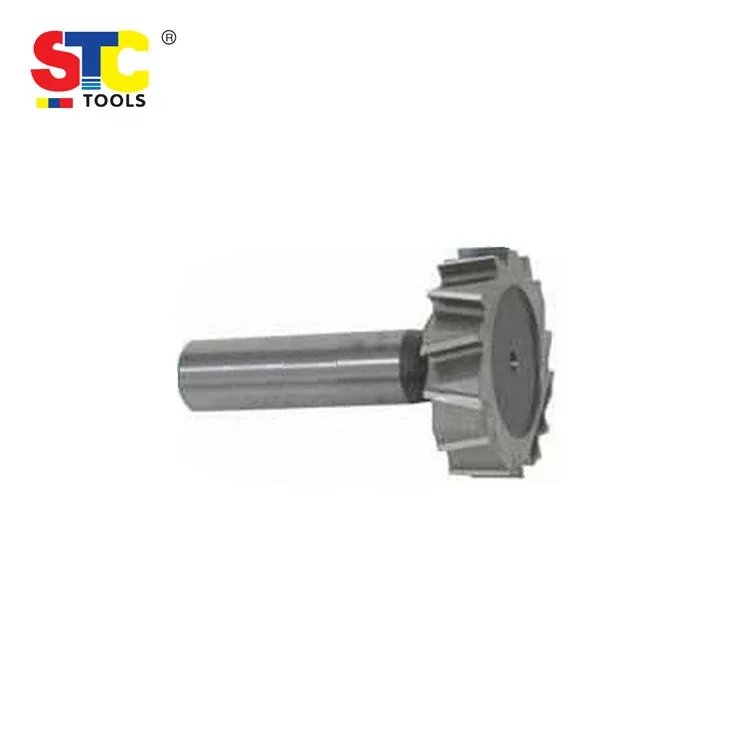

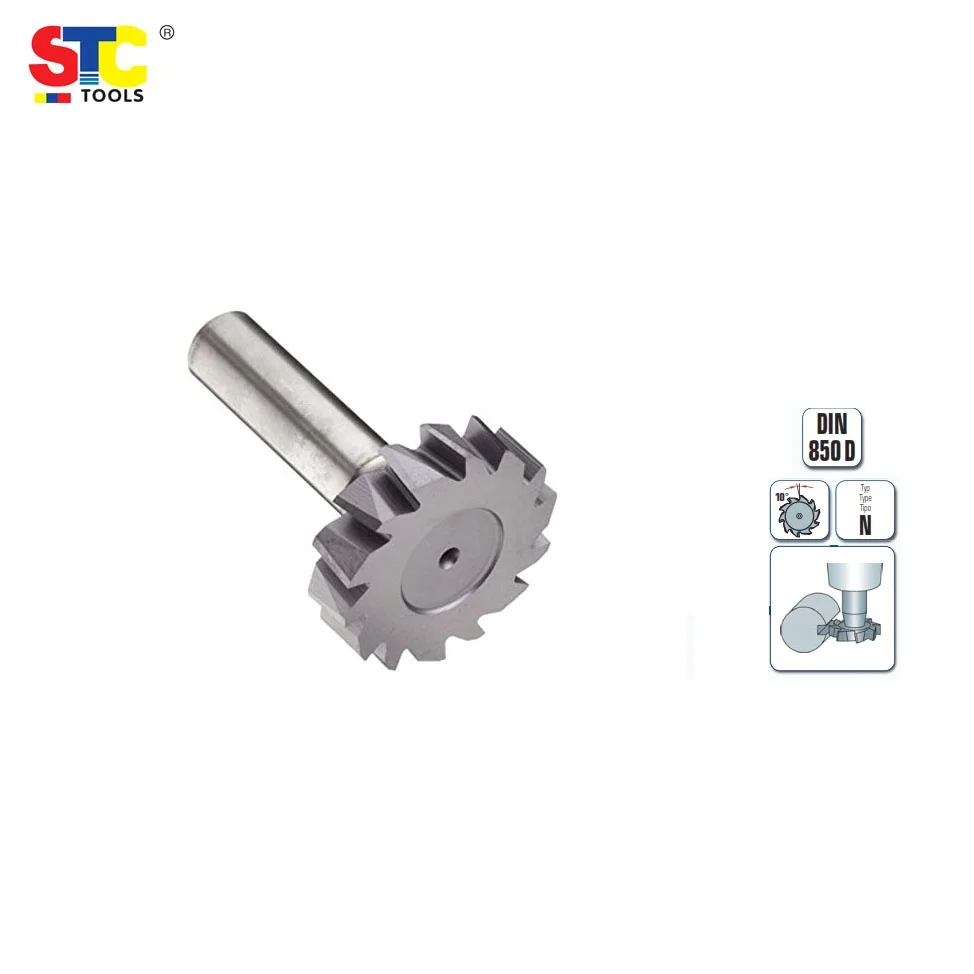

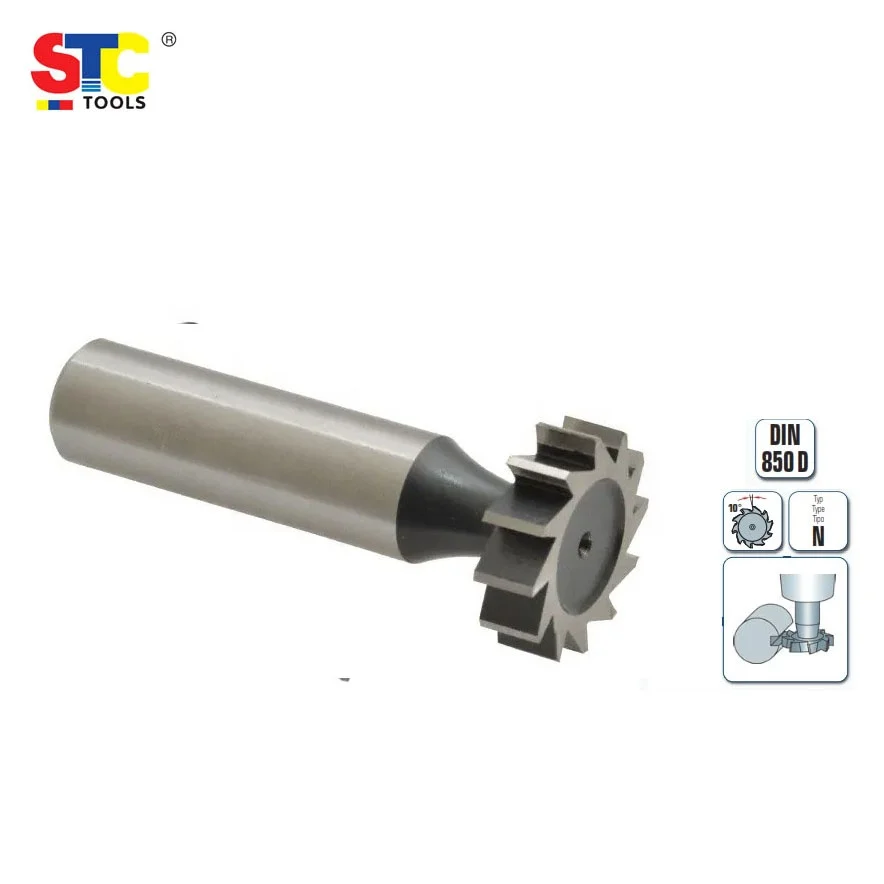

DIN850 High speed steel Woodruff Keyseat Cutter



• Designed to mill standard Woodruff keyways in steel and other metals.


• High speed steel,HSSCobalt


• Standard: Din850.


• Threaded Shank or flatted shank.


• Straight teeth of staggered teeth.

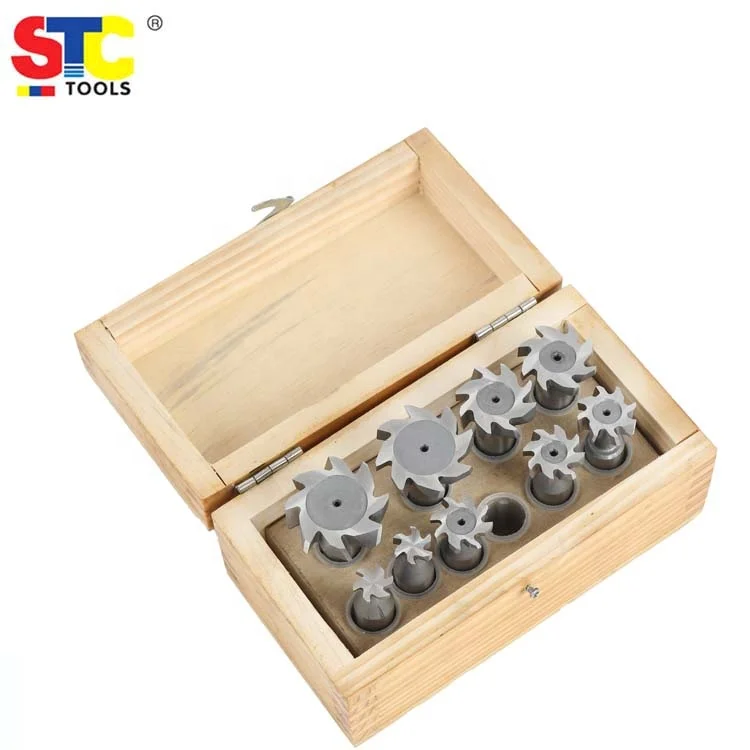

• Plastic box packing


•


  Diameter: 4.5mm-45.5mm




  Thickness: 1-10mm




  Over all length: 50-71mm










A	B	C	D	# of Teeth
Head Dia.	Face Width	OAL	Shank Dia.	Straight	Stagger
4.5	1	50	6	6	4
7.5	1.5	50	6	8	6
7.5	2	50	6	8	6
10.5	2	50	6	8	6
10.5	2.5	50	6	8	6
10.5	3	50	6	8	6
13.5	3	56	10	10	8
13.5	4	56	10	10	8
16.5	3	56	10	10	8
16.5	4	56	10	10	8
16.5	5	56	10	10	8
19.5	4	63	10	10	8
19.5	5	63	10	10	8
19.5	6	63	10	10	8
22.5	5	63	10	12	10
22.5	6	63	10	12	10
22.5	8	63	10	12	10
25.5	6	63	10	12	10
28.5	6	71	10	12	10
28.5	8	71	10	12	10
28.5	10	71	12	12	10
32.5	7	71	12	14	12
32.5	8	71	12	14	12
32.5	10	71	12	14	12
45.5	10	71	12	18	16
