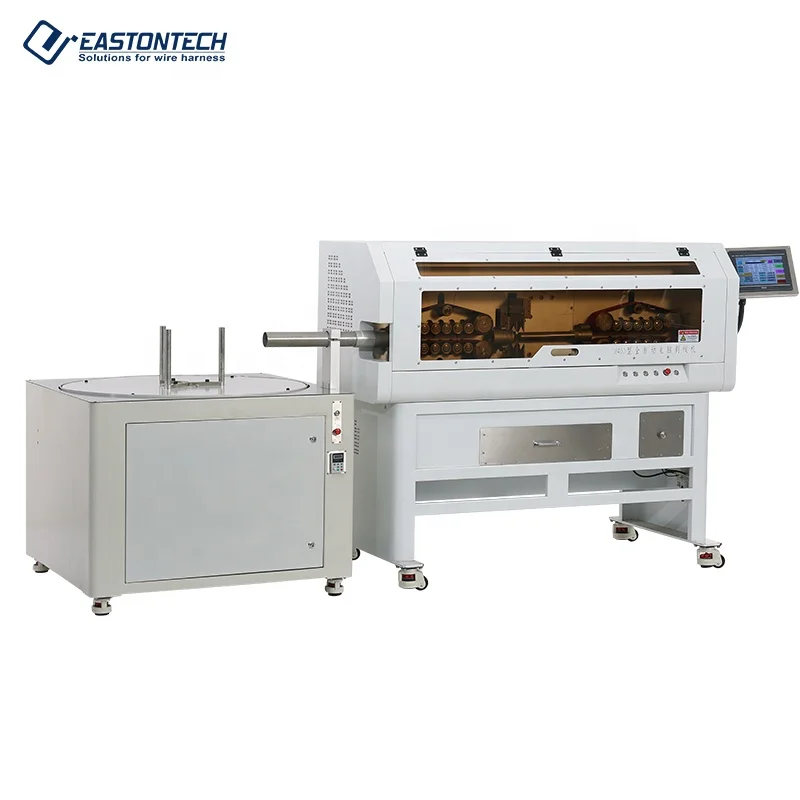

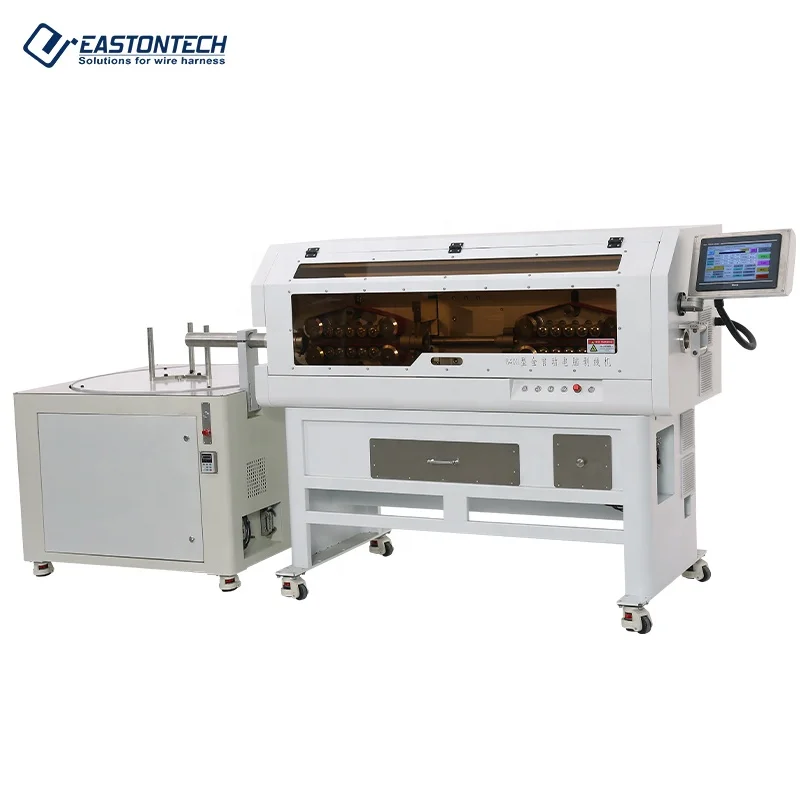

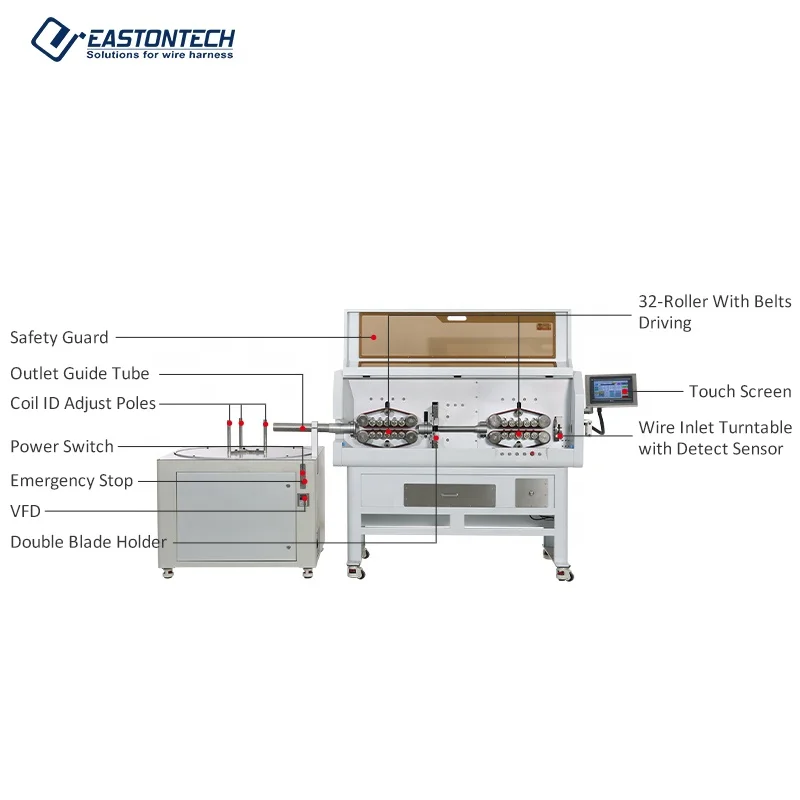

EW 05S C 300sqmm cable Automatic wire stripping cooperative equipment machine wire coil winding machine

Model

EW-05S+C

EW-05S-1+C

Conductor cross-section

10 - 300 mm²

10 - 400 mm²

Cutting length

1 - 99999.9 mm

Cutting length tolerance

< 0.002 * L (L = cutting length)

Stripping length (side I)

Full strip: 1 - 300 mm

Half strip: 1 - 1000 mm

Full strip: 1 - 300 mm

Half strip: 1 - 1000 mm

Stripping length (side II)

Full strip: 1 - 300 mm

Half strip: 1 - 600 mm

Full strip: 1 - 300 mm

Half strip: 1 - 600 mm

Maximum guide tube diameter

50 mm

Productivity

500 - 1000 pcs./h

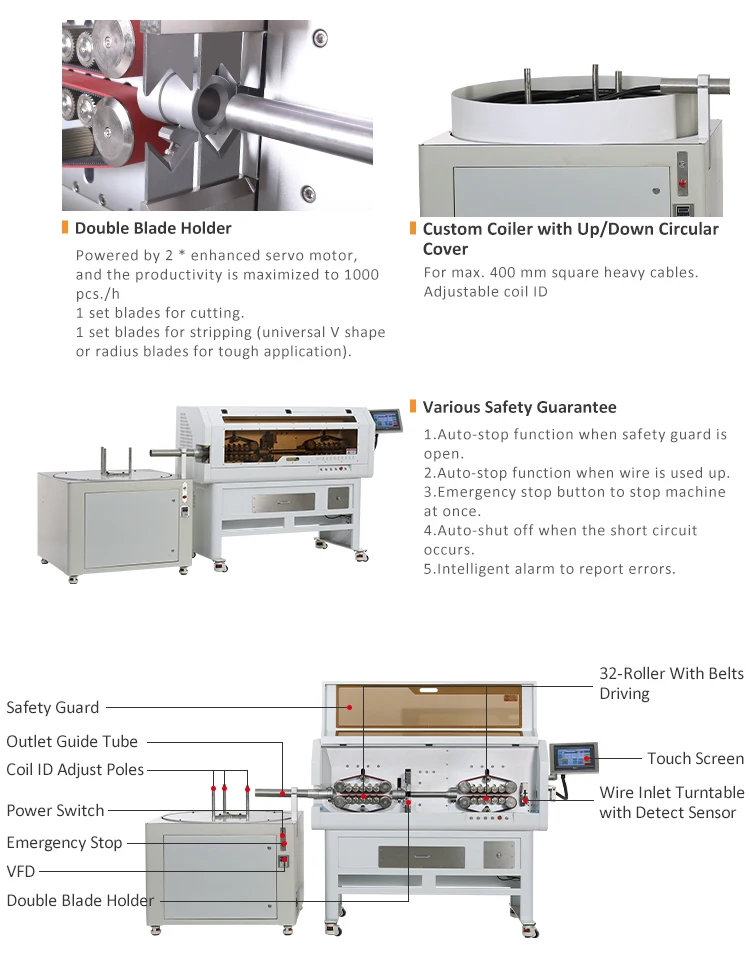

Blade

2 separate blade set for cutting and stripping with enhanced servo motor (optional radius stripping blades for tough applications)

Display mode

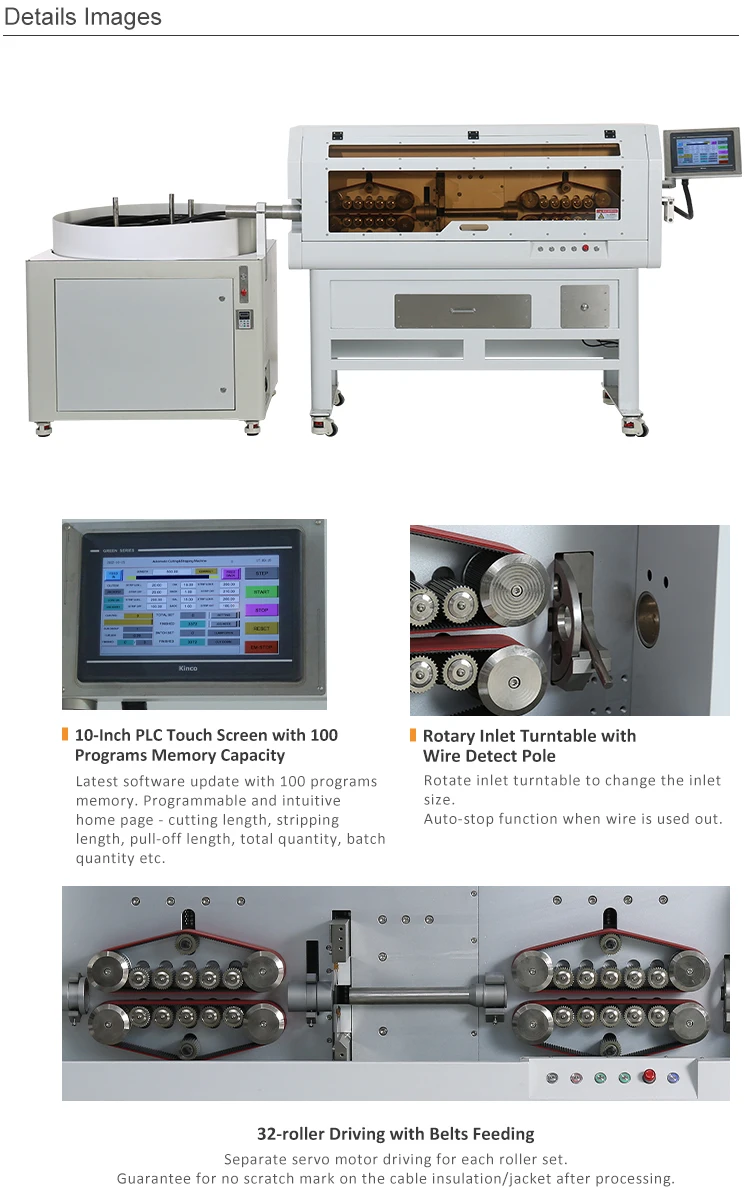

10-inch touch screen with optional custom program language

Driving mode

32-roller driving, separate servo motor for each roller set

Feeding mode

Belts feed - guarantee for no scratch mark on cable insulation/jacket

Power supply

220 V (50 - 60 Hz)

Power

11.7 kW

15 kW

Compressed air connection

0.5 - 0.7 MPa

Weight

800 kg

850 kg

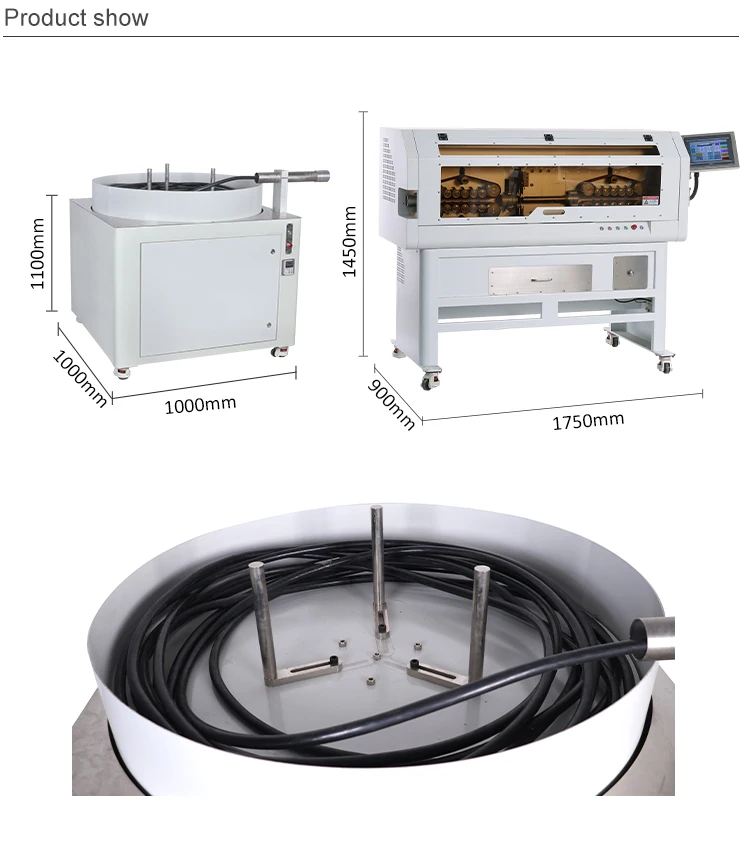

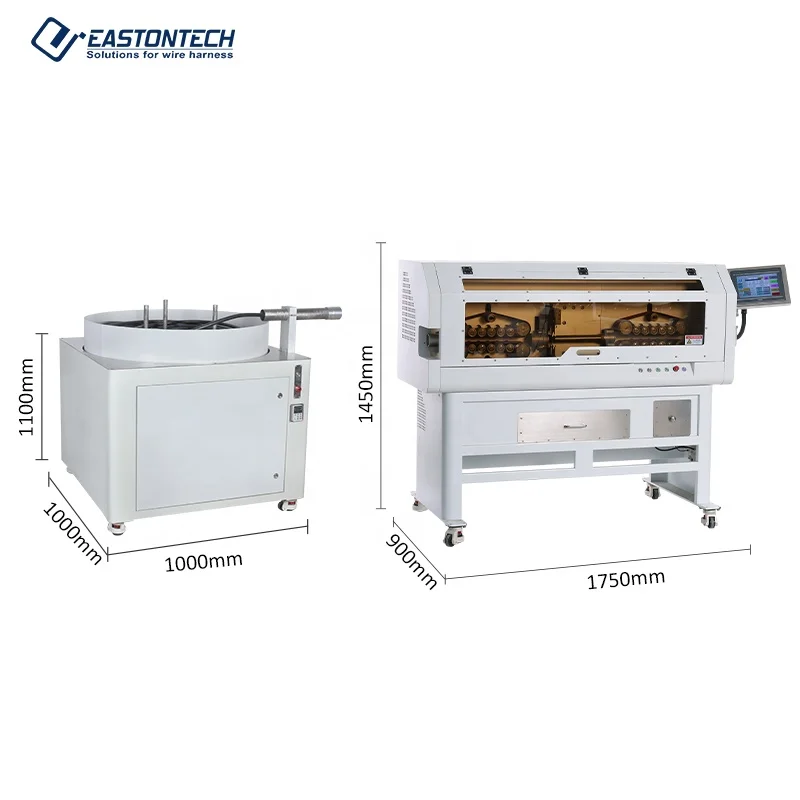

Dimension

1700 * 900 * 1400 mm

1750 * 900 * 1450 mm

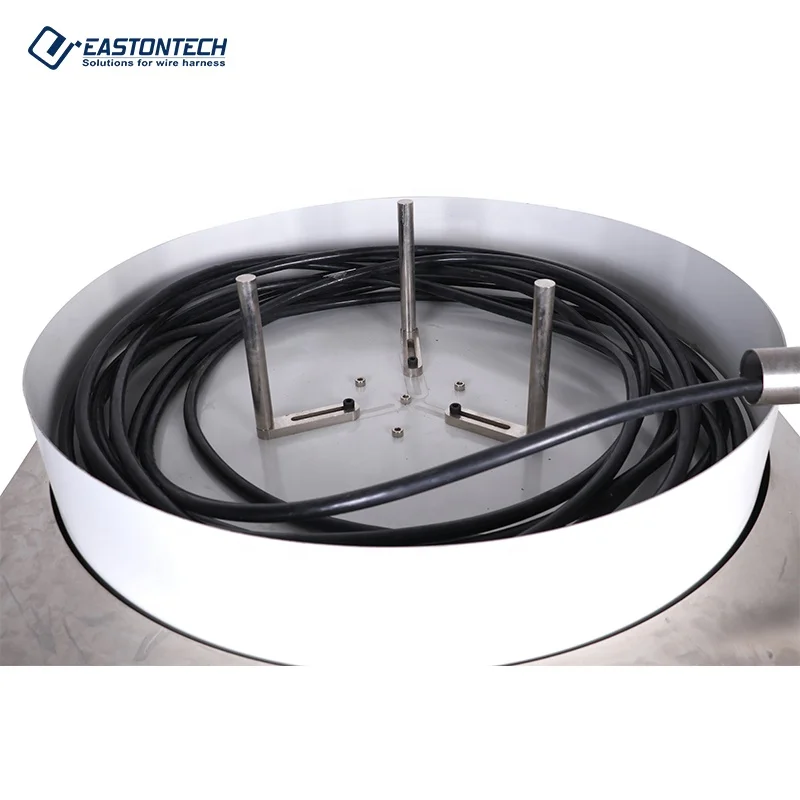

Coil plate diameter

1000 mm

Coil diameter

200 - 960 mm

Coil speed

2.5 m/s

Driving mode

Servo motor

Working mode

Single cycle

Safety guard

Yes

Coiler dimension

1061 * 1061 * 1015 mm
