Gidape Electric Water Instant Heating Element for Instant kettle Teapot Boiler
- Category: >>>
- Supplier: Xinxiang Jieda Precision Electronics Co. Ltd.
Share on (1600723612792):
Product Overview
Description

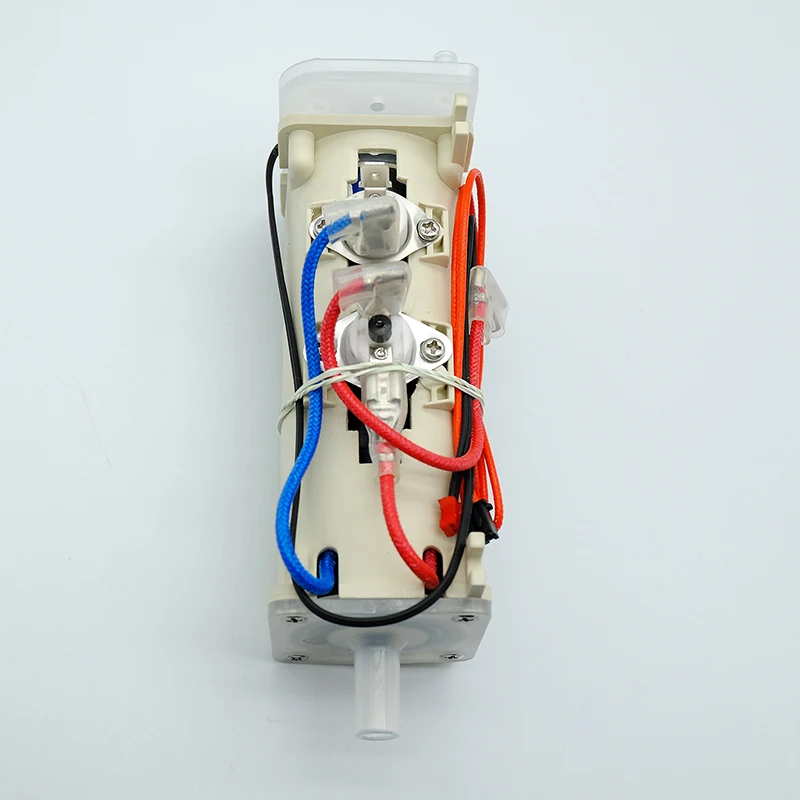

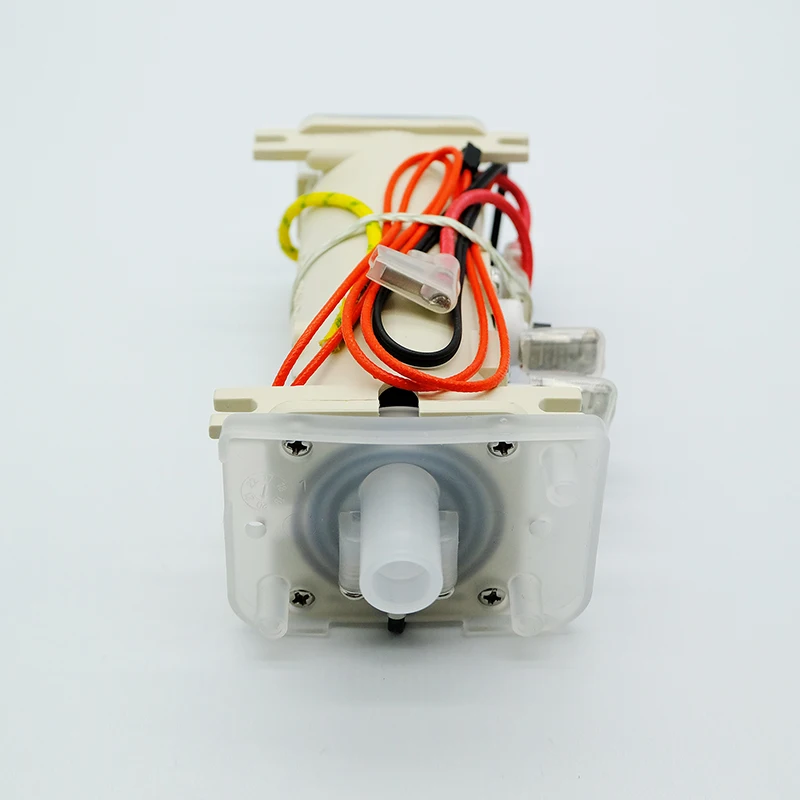

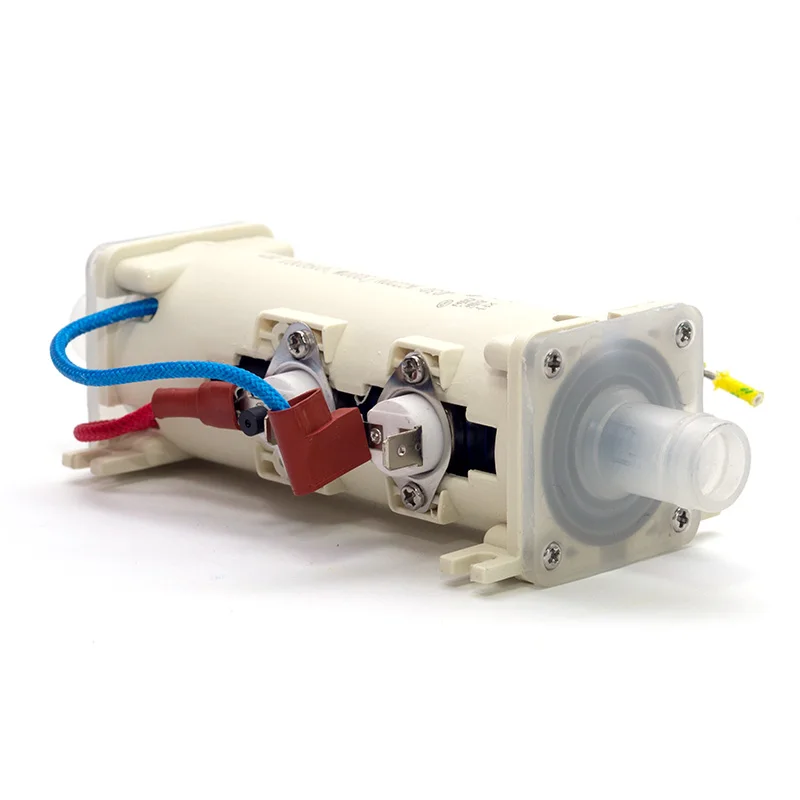

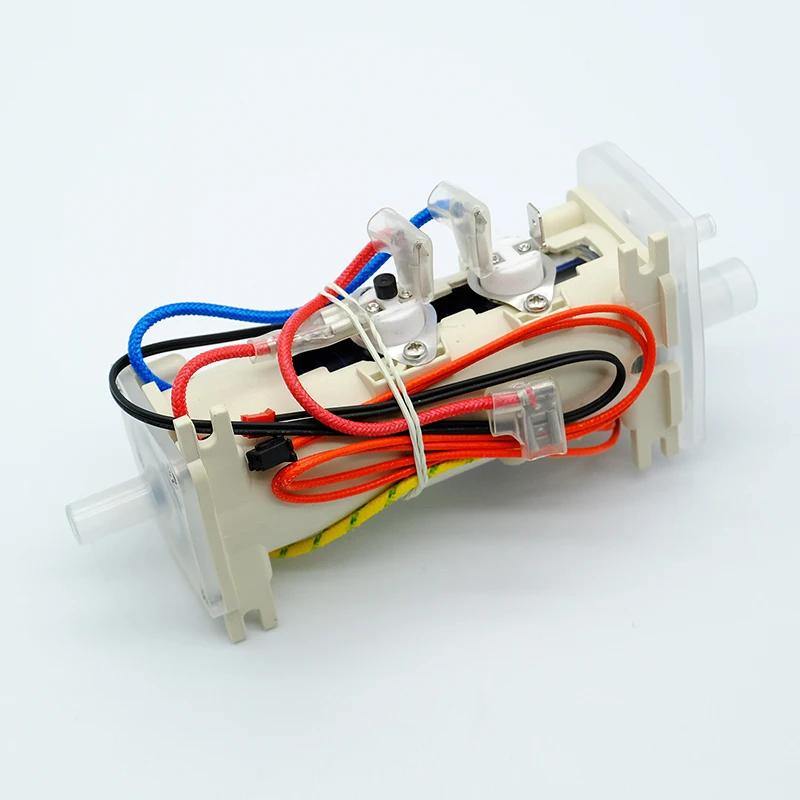

Electric Water Instant Heating Element for Instant Kettle Teapot Boiler
Electric Drinking Water Instant Heating Element
Descriptiom
With its tubular structure, it can heat drinking water inside tube, by the circuit printed and sintered between 5 isolation layers tube surface which is sintered and covered by 5 isolation layers.
Compared with immersion water instant heating element, Thick Film Heating Element is advance in larger heating area (Tube Structure), higher power density(60w/cm²), faster Temperature Response (up to 150℃/S), Longer Life Span (above 10,000 hours) and better Thermal Transfer Efficiency(>96%).
You can get boiling water in 3 seconds, in the rate 480ml per minutes (2,200w).
For applications where space is limited, this simple profile heater offers high thermal power density and fast response times to heat up or cool down (due to low thermal mass)
It's called "the most impact electric heating element", the ideal heating element to replace Immersion Electric Kettle Teapot Heating Element.
Electric Thick Film Water Heating Elements are special designed for Instant Water Heating Home Appliances, such as Water Dispenser, Water Geyser, Water Purifier and other home appliances water heaters.
With its tubular structure, it can heat water flow inside tube, by thick film electric heating circuit printed and sintered on tube surface. Its profile is simple and compact, it's easy to install and save lots space.

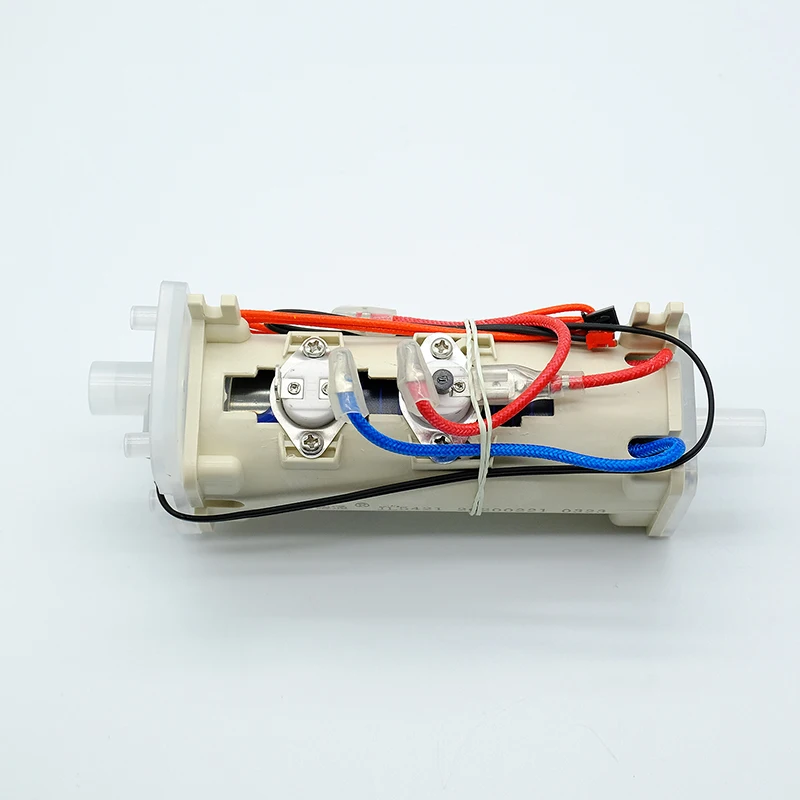

It’s equipped with automatic and one shot thermostats to prevent over heating.
Specification
| Dimension | 60mm*161mm | Heat Density | >60W/cm² |
| Ramp-Up Rate | 80℃/s | Thermal Efficiency | >96% |
| Heating Power | 2,200W | Service Life | >10,000 hours |
| Rated Voltage | 220v | Certificate | CQC, RoHS |
| Dielectric Strength | 1,500V/5mA/60s | Power Deviation | -10% - +5% |
| Leakage Current | ≤0.25mA | Insulation Resistance | ≥200MΩ |
| Type | PA66+ glass fibre, temperature resistance≥250℃ | Snap Action Thermostat | 16A, installed close to the heating tube’s heating circuit |
| Shield Thermistor | PTC | Grounding Type | Spot-Weld |
| Water Inlet&Outlet | Φ1/4 (20.95mm) | Heating Tube Dimention | Φ30mm*110mm |
If you are interested in our products
Click here to send us a message
Electric Instant Water Boiler Kettle Teapot just require such kind of drinking water instant heating element which takes small space with high power density.
It's the ideal heating element to replace immersion water heating elements.
Certification/Patent
Some clients have successfully applied UL/CE certificates for their finished products.

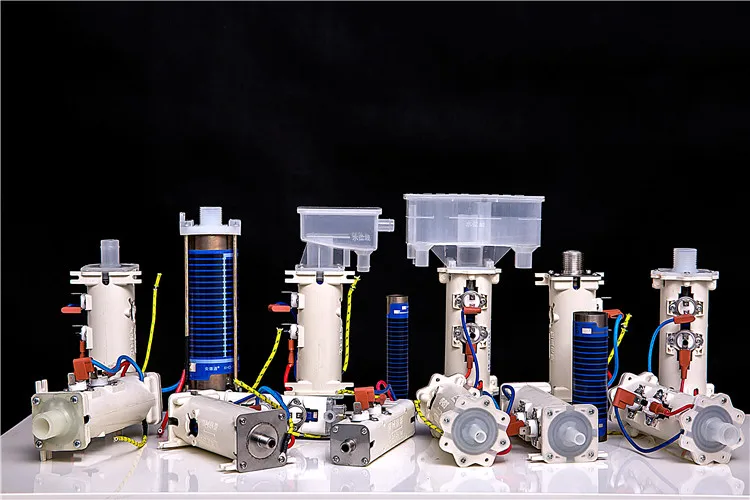

Related Products
Available Thick Film Heating Element inlet and outlet diameter are 10mm, 16mm, G1/2 (20.95mm)
Avaiable power watts are 2.2kw, 3kw
Mainly applied in Water Flow Instant Heating. Due to its long life time (more than 10,000 hours) and higher thermal transfer, it's ideal to replace traditional immersion water heating elements.
Applications
The most compact instant type heating element is the ideal heating element for novel and fashionable home appliances such as Water Dispenser, Water Purifier, Coffee Maker, Milk Machine, etc.
Some of our Thick Film Electric Heating Tubes are individual customer solutions which are designed to match our customers’ individual and specific requirements. During the development and application stages we work closely together with our customers in a partnership based on trust and mutual confidence.
 |  |
 |  |
About Us
Jieda locates in Xinxiang’s Hi-Tech Development Park, which is 650km away from Qingdao. Jieda was founded in 2010, is a high-tech manufacturer that specializes in design, research, produce and sales rare-earth metal thick film electric heating tubes/elements.
What is Jieda advanced in?
1. More than 5 years experiences in thick film electric heating tubes.
2. Fully mastery of thick film tube surface screen printing and sintering.
3. Main Process Flow in 10000+ Grade Air Purification Workshop.
4. First manufacturer to mass produce Thick Film Electric Heating Tube/Element in China
5. Available various Solutions for fluid heating, especially for Instant Water Heating Home Appliances, House Floor Heating and Industrial water flow heating.
6. Monthly production capacity is up to 300,000 pcs.
What is Thick Film Heating Tube/Element advanced in?
1. The tubular structure makes it possible to instant heat water flow inside tube, by the Electric Heating Circuit printed and sintered on the tube surface.
2. It can work more than 10,000 hours, in case of no DRY HEATING.
3. The thermal transfer rate up to 96%.
4. Power Density is up to 60w/cm²
5. Temperature Ramp-Up Rate 150℃/S.
6. Boiling water(95℃) is available in 3 seconds around.
7. Simple & compact profile brings more possibility in new products research and design.
Those thick film heating tubes/elements are widely applied in Instant Water Boiling, Instant Water Heater, Water Dispensers, Coffee Makers, Instant Electric Heating Faucets, Steam Generator, Air-Flow Heater, Floor Heating, Industrial Water Flow Heating, etc.
It can successfully replace the Traditional Electric Heating Tubes/Elements, change their structures and performance completely, which can reduce energy consumption, increase energy utilization and save space.
OEM & ODM Service
Heating Power, Voltage, Stainless Steel Tube Dimension, Raw Materials and other special requirements can be customized.
Packaging & Delivery
------ Packed in Carton Box, placed on Wooden Pallet.
------ By Sea, FOB Tianjin Port, 40HQ, 40 GP, 20 GP, LCL, or Mix with Others Factory, no Space Waste, Save Freight Cost!
------ By Air, FedEx, DHL, TNT, UPS...
------ Support Global Dilivery!
FAQ
| FAQ |
Q: What's Thick Film Heating Element? A: -Thick Film Heater is a new technical art which is use screen printing technology and new thick film material. It is printed with isolation dielectric, heating element and glass prevent on a substrate that is made by stainless steel, amd through drying firing process with 800°C. Thick Film Heater has become a new type of heater. |
Q: What’s the advantages of Jieda Thick Film Heating Element? to heat continuous water flow without water tank. 60W/CM² POWER DENSITY >80℃/S TEMPERATURE RANP UP |
Q: What's the lifespan of Thick Film Heating Tube / Thick Film Heating Element? |
Q: What's the inlet and outlet diameter? Thick Film Heating Element : Available with Ø10mm, Ø16mm and G1/2 OD20.9mm |
Q: Can I DIY it for personal use by myself? A: Our Products are mainly used as heating spare parts for water heaters in mass production, not recommended for Personal DIY. |
Q: Can the Thick Film be applied to Copper Pipe or Aluminum Pipe? A: It can not be applied on Copper pipe, but can work on Aluminum pipe. |
Q: How to get the suitable model for our application? and other special requirements, to recommend the suitable Thick Film Heating Elements |
Q: What's the operation attentions? 2. Please install it vertically, make sure water flow direction from bottom to top, to prevent DRY HEATING in partial area of heating tube. 3. Set the minimum flow rate according to tubes' power watts, ensure smooth flowing of water, to prevent vaporizing and dry heating 4. Make sure reliablility grounding. |
