Product Overview
Description

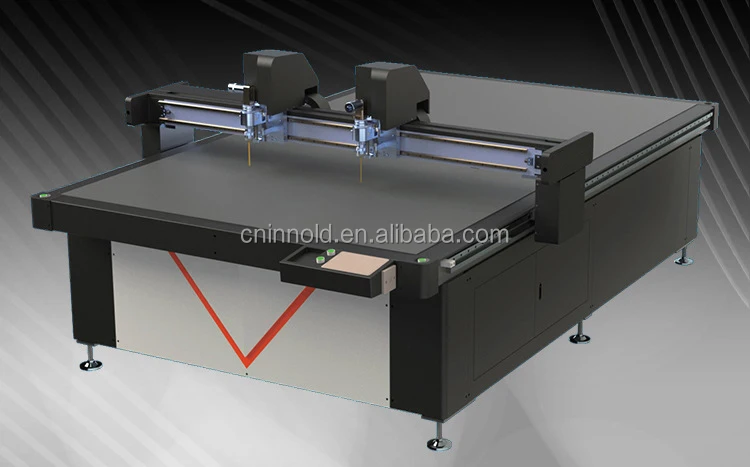

Working Long Time Laser Cut Foam Eva Hot Wire Cnc Cutter Sponge Die Cutting Machine

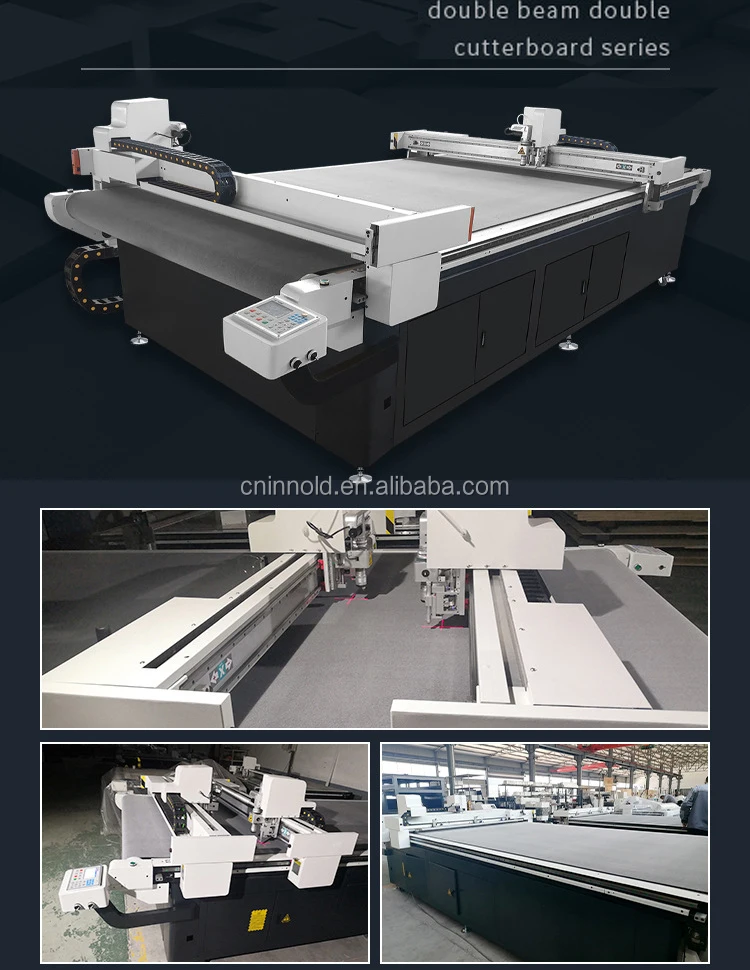

Bed steel structure+aerial aluminum modular structure, to ensure accuracy, ensure high -speed cutting bed stability.
Autonomous research and development of touch screen control system, simple operation, powerful function, single -headed double head, double -headed mutual translation, double dragon door cutting, visual positioning, projection cutting, cutting punching.
Product Description
Machine parameters of Sponge Die Cutting Machine:
Model | IN-1410 | IN-1814 | IN-2516 | IN-3020 |
Cutting area | 1400*1000mm | 1800*1400mm | 2500*1600mm | 3000*2000mm |
Land | 2700*1900*1400mm | 3100*2300*1400mm | 3800*2500*1400mm | 4300*2900*1400mm |
Wooden box | 2800*2000*1600mm | 3200*2400*1600mm | 3900*2600*1600mm | 4400*3000*1600mm |
weight | 6000kg | 800kg | 900kg | 1000kg |

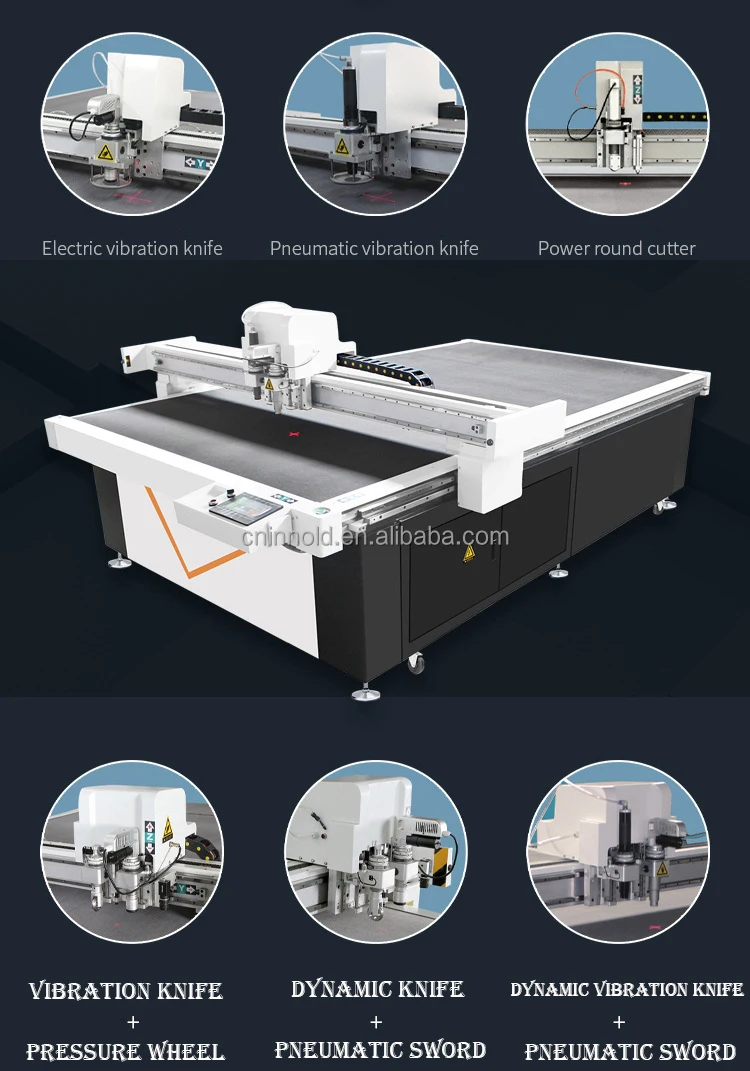

Cutting tool | Vibrating knife, drag knife, half knife, camera, drawing pen, cursor, pneumatic knife, press wheel,V slot knife | |||
cut thickness | ≤30mm | |||
cutting speed | ≤1200mm/s(actual speed depends on material and cutting pattern) | |||
cutting accuracy | 0.1mm | |||
repeatability | ≤0.05mm | |||

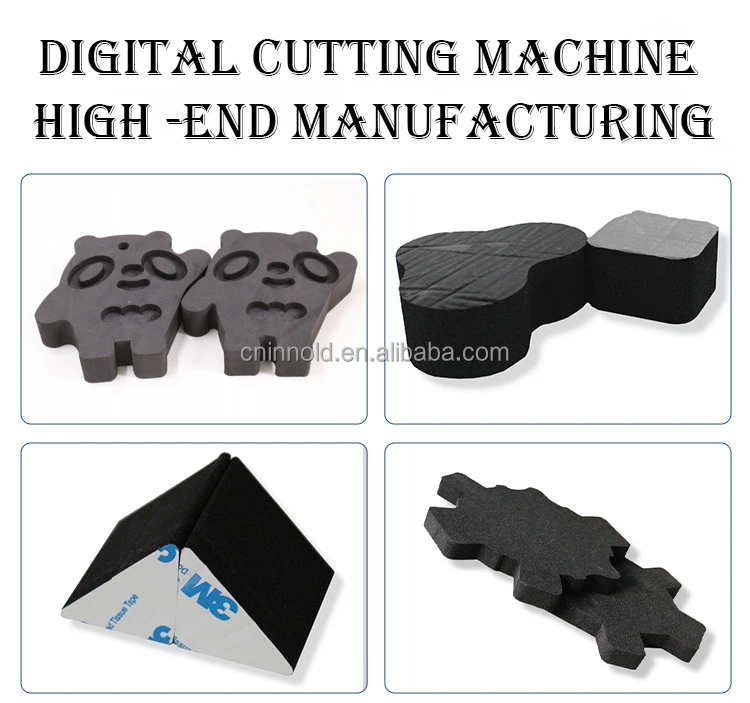

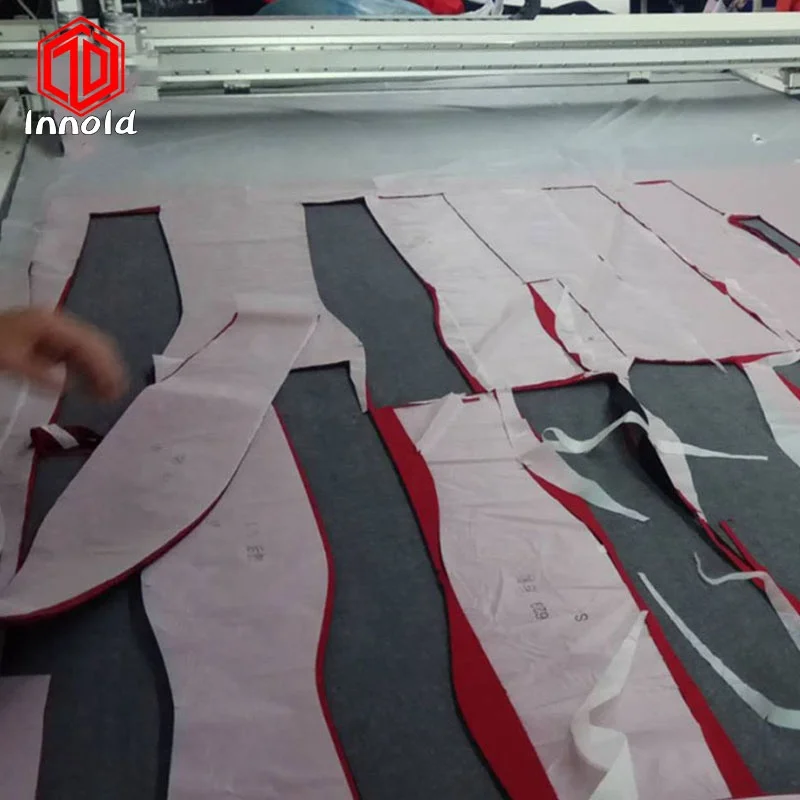

Cutting material | Can cut corrugated paper,KT board, car stickers, lamp pieces, printing cloth, flag Cloth, foam,EVA, PVC, etc | |||

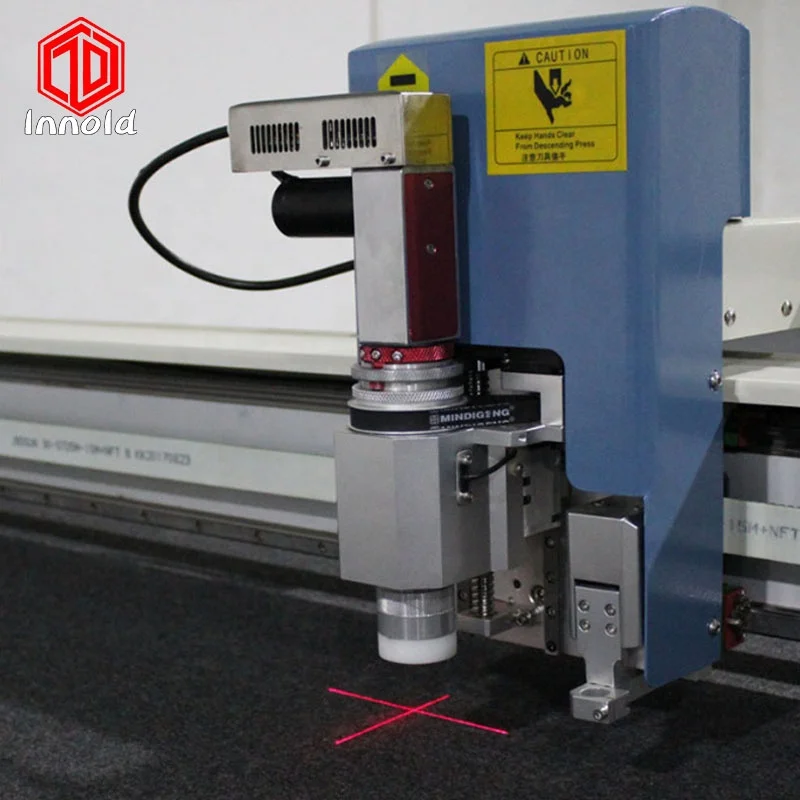

locate mode | Laser positioning, with CCD camera positioning | |||
fixed form | vac-sorb | |||
transmission interface | net opening | |||
Compatible software format | All kinds of CAD, Al, Coreldraw software can be output directly, without conversion, and with automatic optimization | |||
drive system | High precision linear guide rail, imported synchronous belt, intelligent digital control Service system | |||
drive motor | Delta servo motor and driver | |||
operation panel | The multilingual LCD meets the Debt panel | |||
voltage | AC 220v 380V +10%,50-60HZ | |||
Air pump power | 3-12KW(optional variable frequency air pump) | |||
work environment | Temperature :-10°C 40°C Humidity :20% 80%RH | |||
Advantage 1. The whole machine warranty for one year for free service and free upgrade for life.

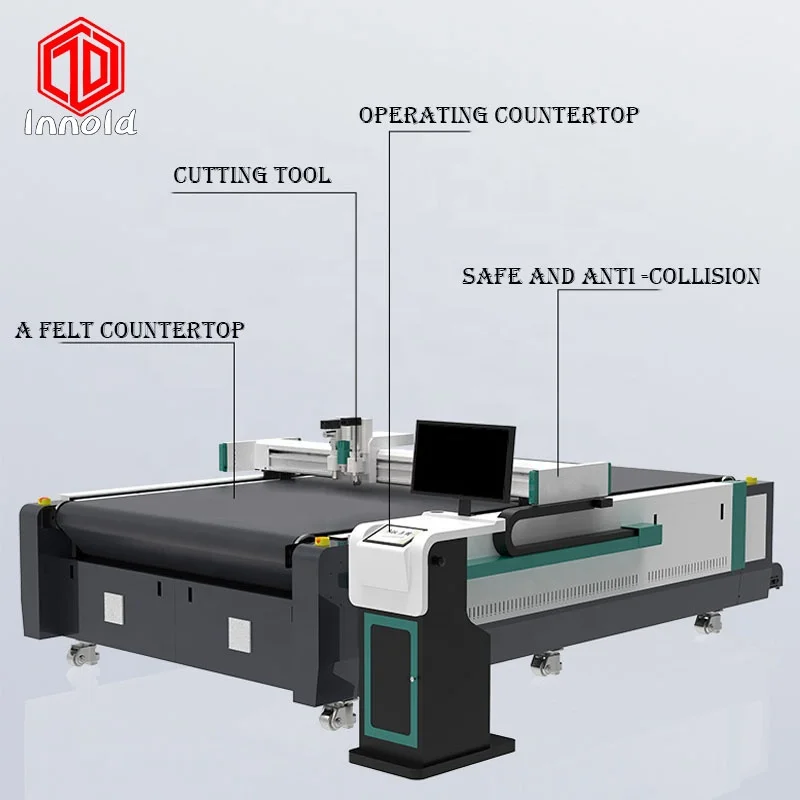

Advantages 2, bed steel structure+aerial aluminum modular structure, to ensure accuracy, ensure high -speed cutting bed stability.

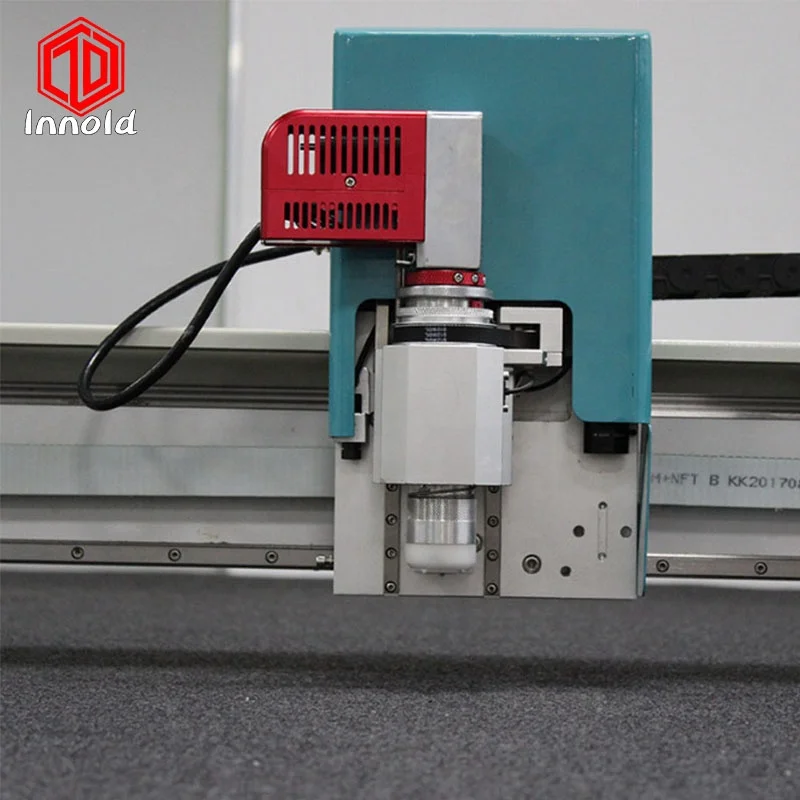

Advantages three, machine seat knife heads have passed accuracy, aging testing, high accuracy, and long service life.

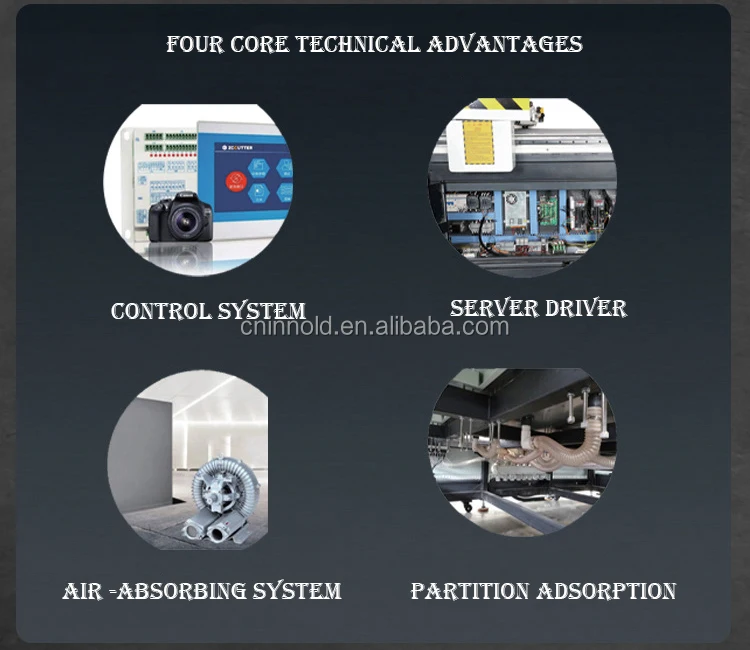

Advantages 4. Autonomous development of touch screen control system, simple operation, powerful function, single -headed double -headed, double -headed mutual translation, double dragon door cutting, visual positioning, projection cutting, cutting flush.
Advantage 5. Aluminum alloy vacuum adsorption platform.
Advantages 6. Integrated all -in -one beehives; use internationally popular 4mm felt configured on the countertop of the Lu bee box, strong height, no deformation, partitioning adsorption, super strong wind absorption.

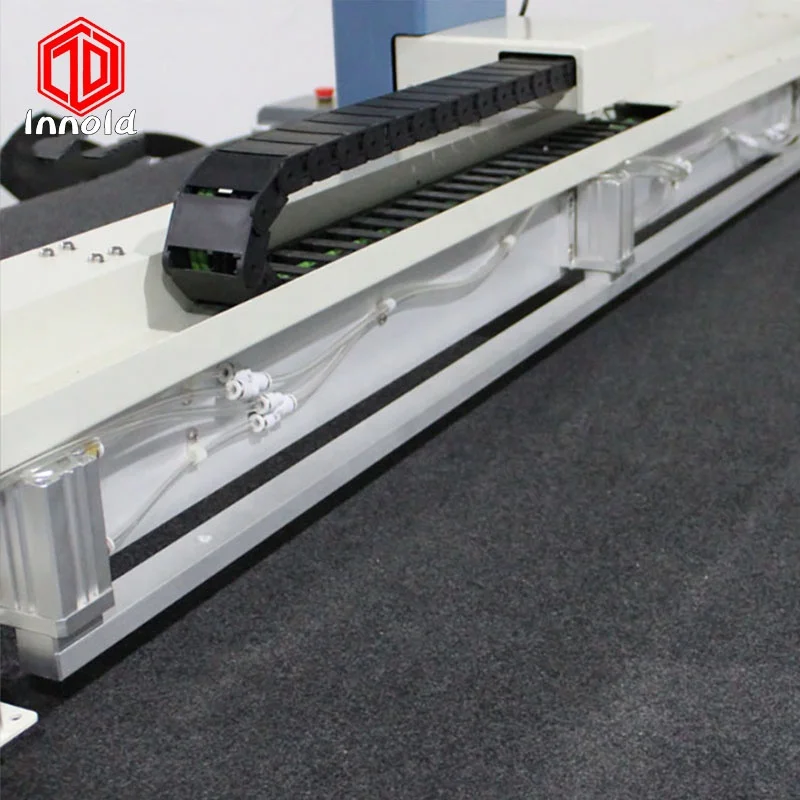

Advantages Seven, imported teas, adopt a high -precision square line guide rail, Taiwan imported rack transmission is matched with silver sliders. Fast speed. The long -term contact area of the use of a large load capacity is better to better ensure stability.
FAQ
1.What payment way can you accept of Sponge Die Cutting Machine?
Normally,the payment way is T/T or trade assurance,if you have else favored payment way,please inform us.We can discuss together.
2.How can you guarantee the quality of Sponge Die Cutting Machine?
The international production process and professional QC system of our factory is the best guarantee of high quality. And before shipping the machine,we will take a test video for you,after you confirm it,then we will ship it.
3.What is your MOQ of Sponge Die Cutting Machine,Can you give me discount?
The MOQ of machine is 1 set.we can discuss the price of actual order.And the price is related to your quantity(we can negotiate too).
4.Do you Arrange Shipment for the Sponge Die Cutting Machine?
Yes,Dear,for FOB or CIF price,we will arrange shipment for you. We will provide full support until you received the machine.
5.How long is the delivery time of Sponge Die Cutting Machine?
For standard machines,it would be 10-15 days;For non-standard machines and customized machine according to clien's specific requirments,it would be 20 days.
