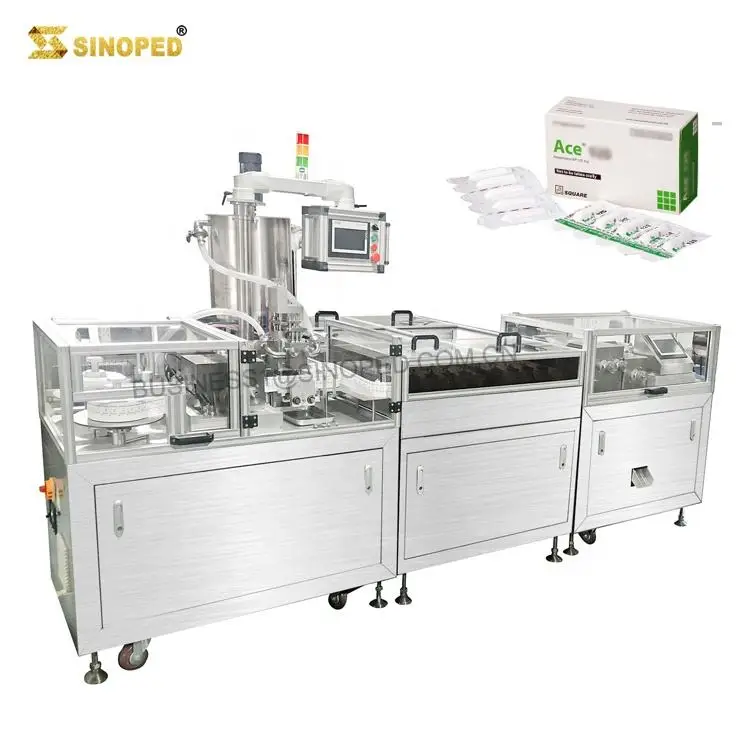

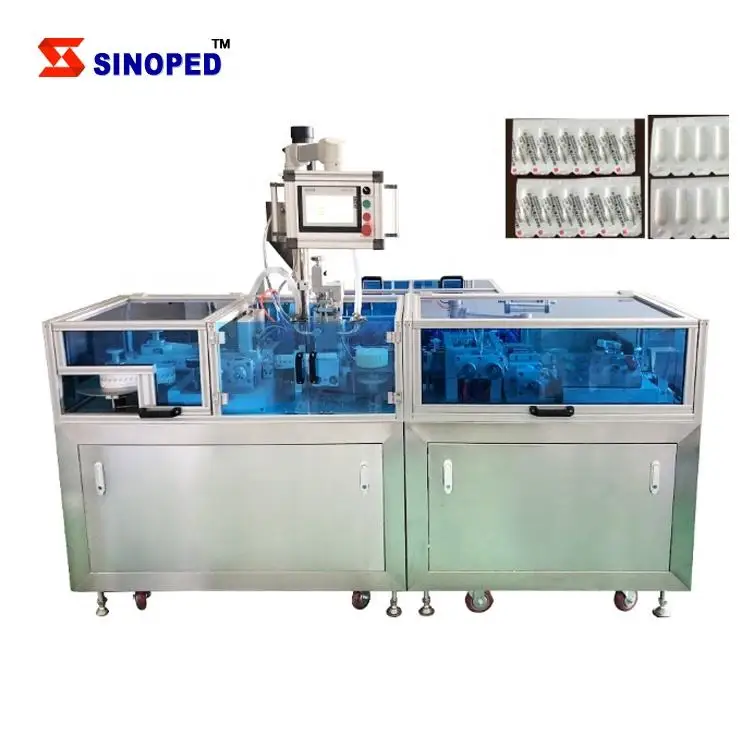

Sinoped Popular products Whole Production Line Automatic Making Equipment Suppository Filling and Sealing Machine filler
- Category: >>>
- Supplier: Sinoped Innovation International (Liaoyang) Co. Ltd.
Share on (1600723648995):
Product Overview
Description
Product Description

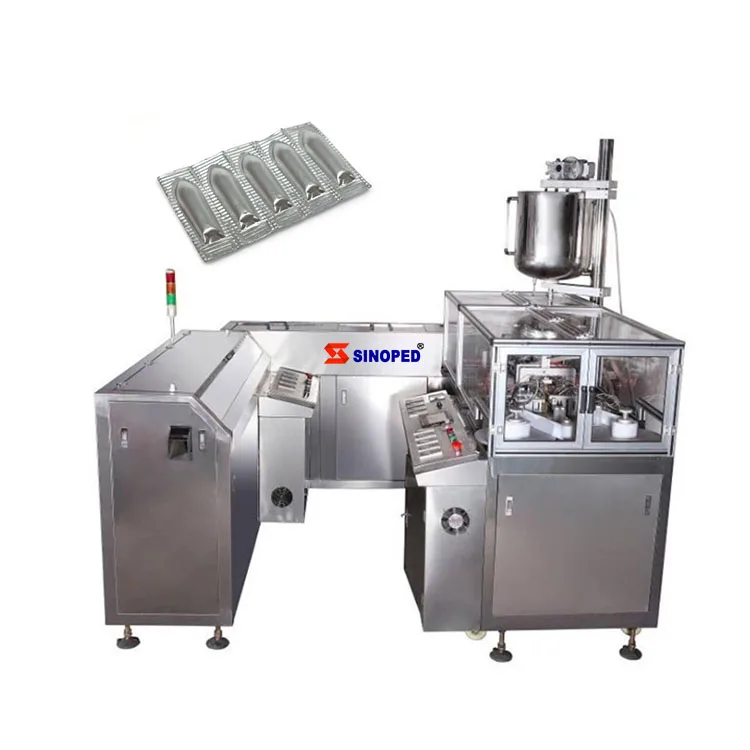

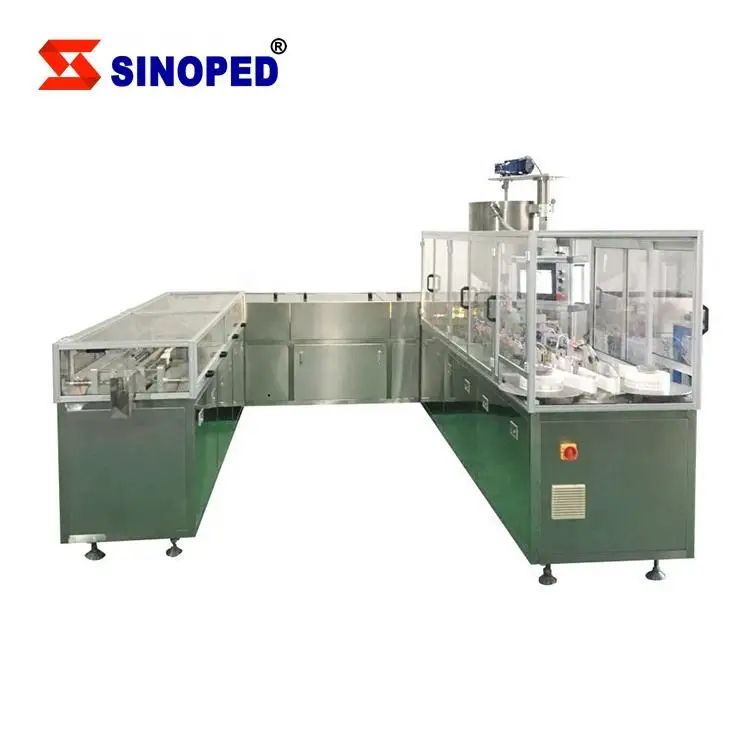

suppository filling machine
Working Principle:
1, Thermoforming:
The PVC/PE film into the forming area after preheating mold -- > forming mold blowing mold -- >blow film forming.
triangle knife cutting process and dotted line.

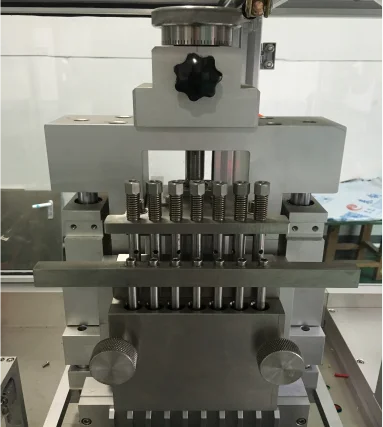

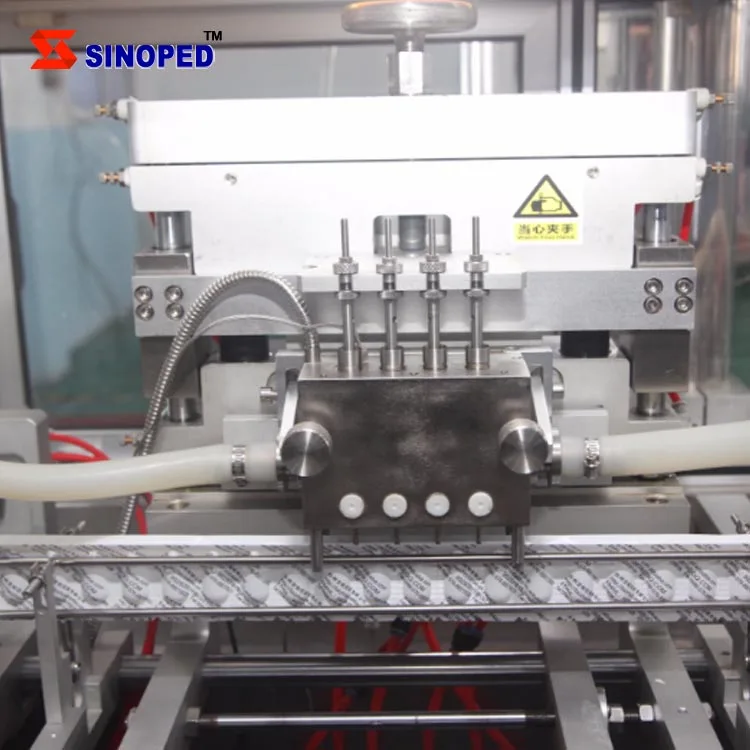

2, Filling:6 filling heads, forming suppository for one-time embedded type filling, filling accuracy + / - 2%, material barrel has electric heating insulation system, with stirring motor at the top to make the drug in a uniform state, material barrel pump into the drugs by the high precision of filling head, filling a residual drugs through the other end of the cycle to the raw material filling barrel again next time.

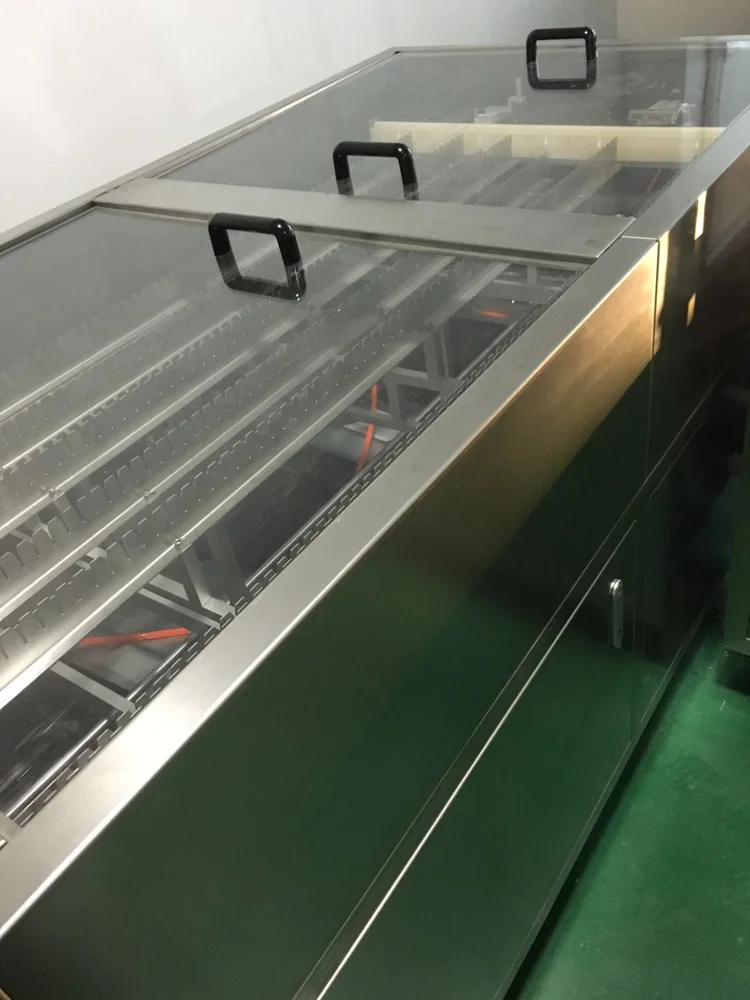

3, Cooling:
Drugs into the cooling racks after the whole filled, external cooling box is equipped with water chiller, cooling air through the cooling box of four condenser suppository of cooling rack to cool. sealing and part code:
4. Sealing and Cutting:
After cooling of the solid suppository into the sealing area: preheating mold -- -- > the sealing mould -- - > code mold. And then to shear a set of finished product for 5 and 6 grain (be) according to customer's requirements.
Working Principle:
1, Thermoforming:
The PVC/PE film into the forming area after preheating mold -- > forming mold blowing mold -- >blow film forming.
triangle knife cutting process and dotted line.
2, Filling:6 filling heads, forming suppository for one-time embedded type filling, filling accuracy + / - 2%, material barrel has electric heating insulation system, with stirring motor at the top to make the drug in a uniform state, material barrel pump into the drugs by the high precision of filling head, filling a residual drugs through the other end of the cycle to the raw material filling barrel again next time.
3, Cooling:
Drugs into the cooling racks after the whole filled, external cooling box is equipped with water chiller, cooling air through the cooling box of four condenser suppository of cooling rack to cool. sealing and part code:
4. Sealing and Cutting:
After cooling of the solid suppository into the sealing area: preheating mold -- -- > the sealing mould -- - > code mold. And then to shear a set of finished product for 5 and 6 grain (be) according to customer's requirements.
Output | 2400-3600granules/hr |
Single dosage | 0.5-5ml |
Dosage allowed | <±2% |

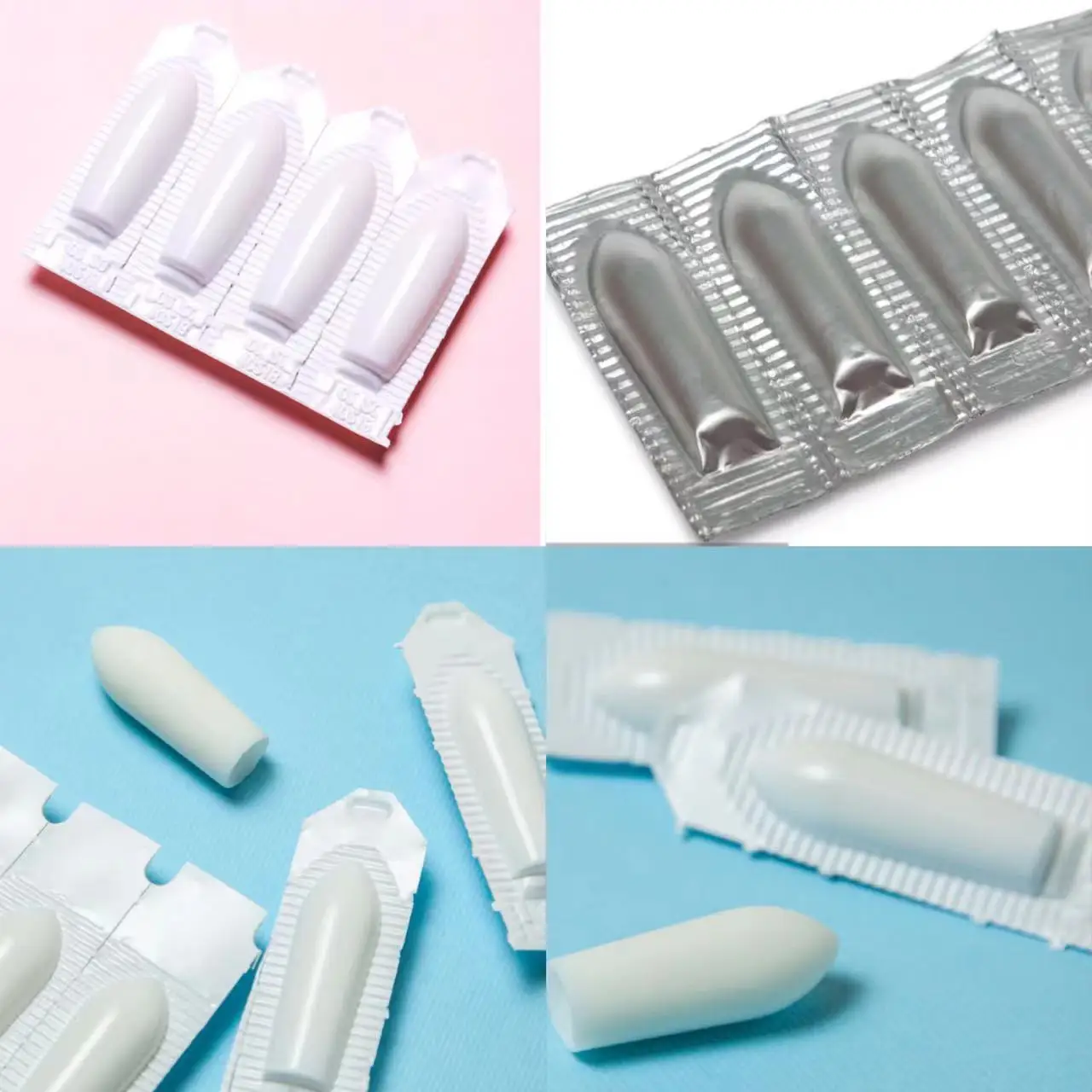

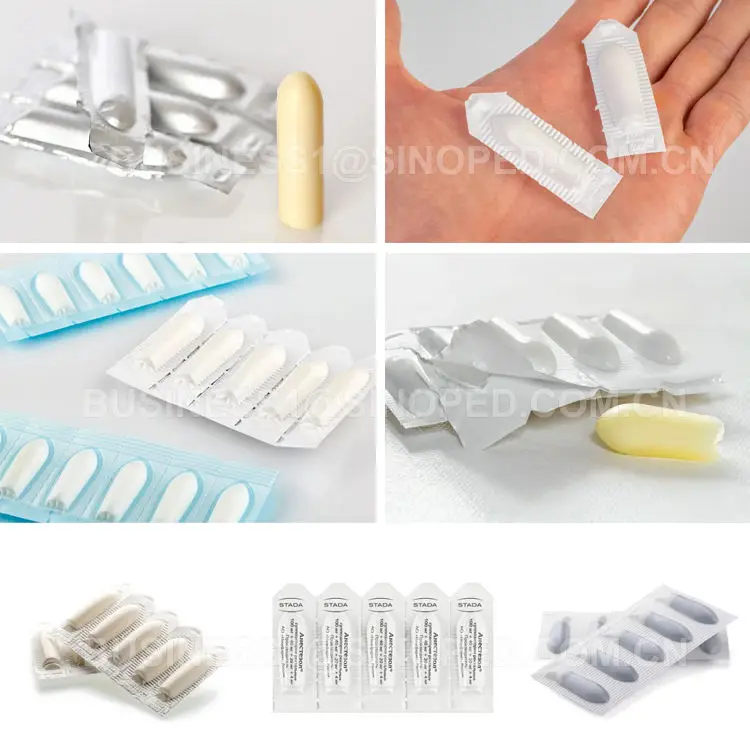

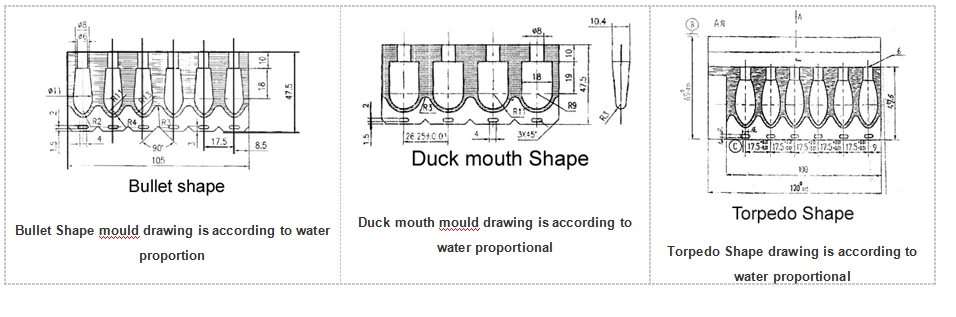

Suppository application form | Bullet-head form, duck-mouth form and other special forms |
Used to the host | Synthesis of glycerin fatty acids, glycerin gelatin, polyethylene glycol etc. |
Store the capacity of the liquid barrel | 20L |
Working atmospheric pressure | 0.6Mpa |
Consumption gas/minute | 0.6m3 |
Used water quantity | 15kg /hr(cycle using) |
The voltage of the power | The three phase AC 380V |
Total power | 2.5KW |
External dimension | 3200mm×1530mm×1600mm |
Total weight | 300kg |
Packing material | PVC, PVC/PE film, thickness 0.15mm |
Details pictures
Specification

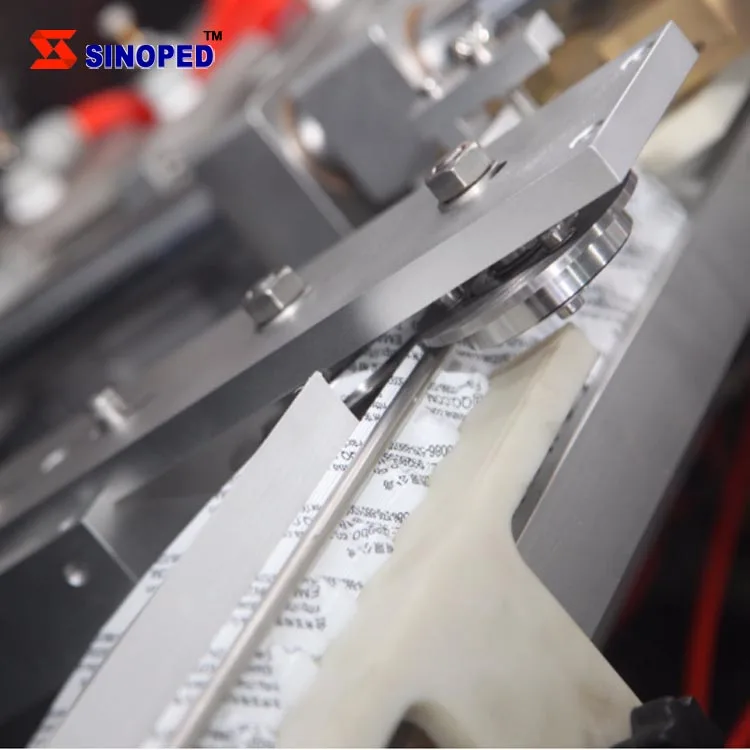

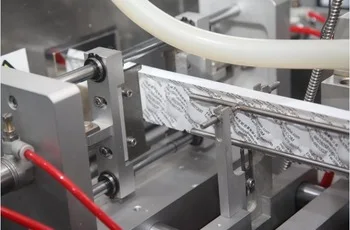

Can be made of different materials, plastic or aluminum foil,and the numbers can be adjusted on the machine The triangle knife will be cutting suppository top edge (cutting edge)，hob (top),counting shear
Why Choose Us

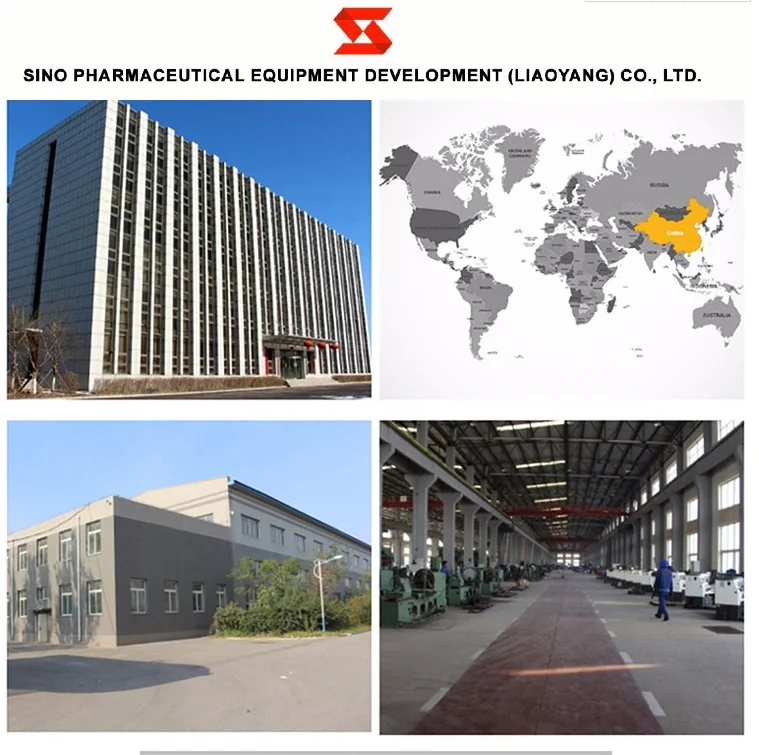

Company Profile
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc. Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as India, Indonesia, Pakistan, Thailand, Vietnam, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile.Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.

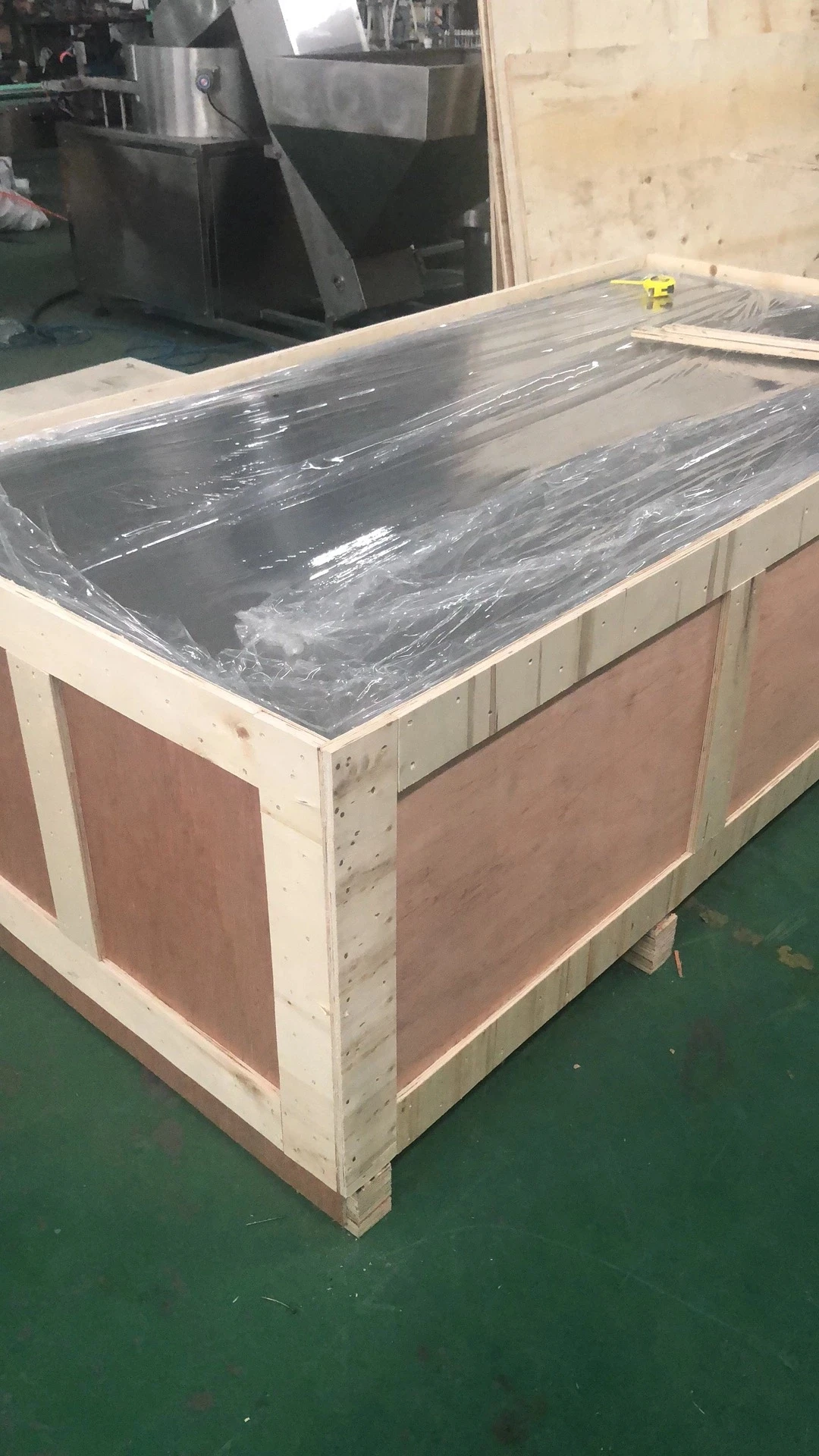

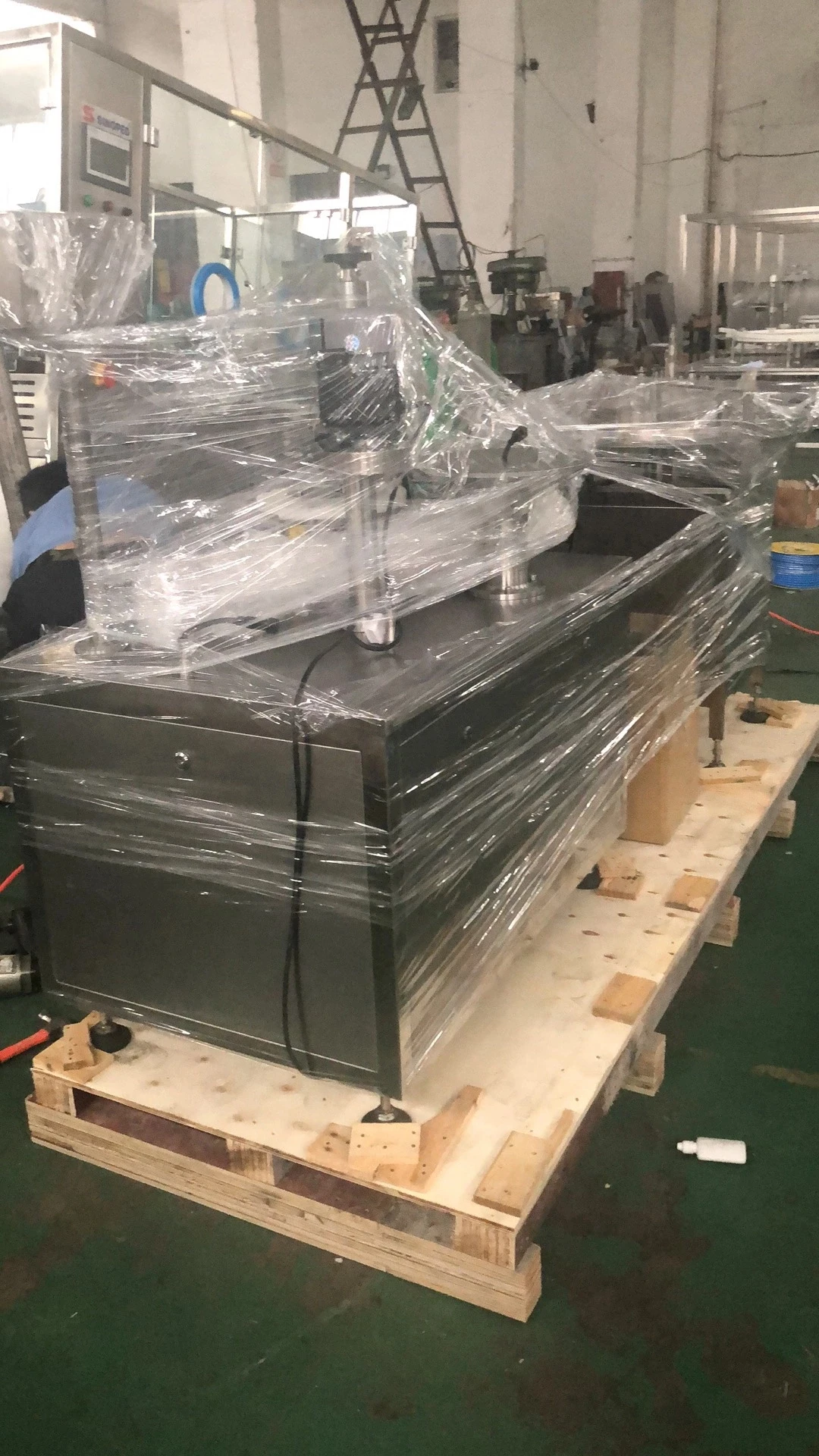

Packing & Delivery
Our Service

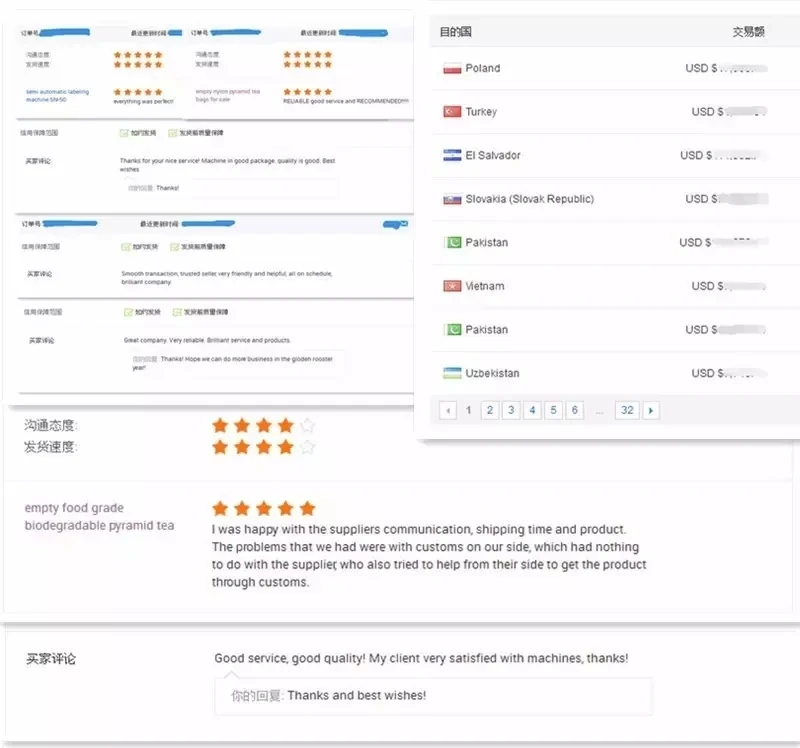

Feedback
