ZC ITX6412 Fanless Mini Itx Motherboard J6412 CPU 6 COM Ports 4 RS232 2 RS485 J6412 Motherboard
- Category: Motherboards >>>
- Supplier: Shenzhen,Zechuang,Weiye,Technology,Co.,Ltd.
Share on:
Product Overview
Description

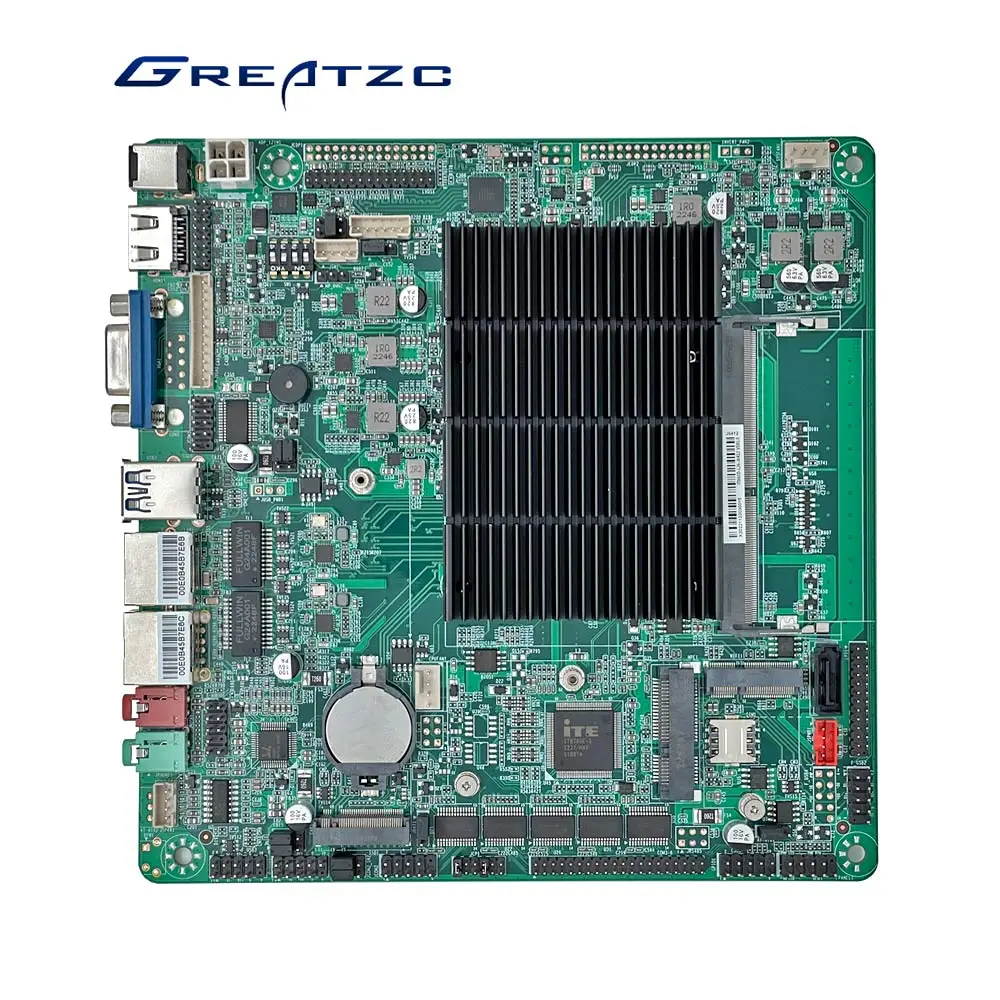

ZC-ITX6412 Fanless Thin Mini Itx Motherboard Onboard Intel Elkhart Lake J6412 CPU,1*HDMI,1*VGA,1*LVDS,1 or 2*RJ45,2*USB 3.0,6*USB 2.0,4*RS232+2*RS485/232
ZC-ITX6412 Fanless Mini Itx Motherboard J6412 CPU 6 COM Ports 4 RS232 2 RS485 J6412 Motherboard
Product Description
Main Features
1.) J6412 Motherboard Onboard Intel Elkhart Lake J6412
2.) Support 3 display VGA,HDMI, LVDS J6412 Motherboard
2.) J6412 Motherboard With 1 or 2 Realtek RTL8111H Gigabit
5.) 6 COM Ports,4*RS232+2*RS232/485 J6412 Motherboard
6.) J6412 Motherboard 1*SATA+1*M.2 for SATA/NVEM SSD
7.) 1*mPEICE Slot for WIFI/BL J6412 Motherboard
Processor | Intel Elkhart Lake J6412,4 Cores 2.0GHz Burst to 2.6GHz,TDP 10W |
Memory | 1*SO-DIMM DDR4 Slot,Max 16GB |
Display | Intel UHD Graphics for 10th Gen Intel Processors |
1*VGA+ 1*HDMI+1*LVDS,EDP Optional,Support 3 Display | |
Network | 1 or 2 Realtek RTL8111H Gigabit LAN,support Wake-on-LAN/PXE |
Storage | 1*7pin SATA3.0,6Gbps |
1*M.2 Key M Support NVME/SATA SSD | |
Audio | Onboard ALC897 7.1 6-channel high-fidelity audio controller |
Support MIC/Line-out, power amplifier-2 ohm 5W dual channel | |
Expansion Slot
| 1*mPCIE Half/full Size,Support WIFI/4G |
1*mPCIE Half Size(Customize) | |
Rear I/O Port | 1*12V DC Port |
1*HDMI | |
1*VGA | |
1*RJ45 (LAN2 either-or 2*USB 2.0) | |
1*Line out (green), 1*MIC(red) | |
2*USB3.0 | |
2*USB 2.0 (LAN2 either-or 2*USB 2.0) | |
Inside I/O Ports
| 1*JHDMI,2*8Pin (optional) |
1*JVGA,1*12Pin (same signal as DB15) | |
1*LVDS,2*15pin,Dual channel 24bit (either-or eDP) | |
1*Screen backlight power supply,1*6pin | |
1*eDP,2*15pin (choose one from LVDS, optional) | |
4 ore 6*USB 2.0,2*5Pin (1 LAN Version Support 4 USB 2.0,2 LAN Version support 6*USB 2.0) | |
1*Front audio,2*5pin | |
1*Amplifier,1*4pin | |
1*LPT | |
1*4pin ATX power | |
1*SATA Power | |
1* Front panel switch button and indicator,2*5Pin | |
6*COM (COM1-2 support RS485, COM1/2 9P is powered, optional support 4*485) | |
Fan | Fanless cooling design, reserved 1*4pin CPU fan,1*4pin system fan |
GPIO | Support 4 input and output GPIO |
BIOS | 128Mb Flash ROM |
Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
Operating System | Windows 10/11/Linux |
Power Type | DC 12V |
Operating Temp | -20℃ to +60℃ |
Storage Temp | -20℃to +70℃ |
Working Humidity | 5%-95% relative humidity, no condensation |
Size | 170mm x 170mm |
Company Information
Established in 2004,Shenzhen Zechuang Weiye Technology Co., Ltd,which specialized in Computer Motherboard,Industrial PC,OPS PC,Mini PC,Mini ITX Motherboard,3.5inch Motherboard,Thin Client PC,etc. is one of professional company in China.
With a SMT factory space of 2, 0000 square meters, has over 500 employees (among whom more than 30 are R&D engineers), advanced development equipment and comprehensive test facilities. With professional services team we can provide customers with fast services to help customers quickly deploy product solutions. Providing a variety of products and solutions, we develop some new products to the market each year.
Along with our product line, we provide OEM/ODM service for our customers and provide finished products to meet the standards of RoHS, CE, and FCC. Our skilled OEM/ODM teams and our specialized QC teams ensure all products from our company are defect-free and delivered on time.
With marketing strategic target "Based in China,Reaching the World",we have a mass of long-term and stable customers over 70 countries across the world, including Brazil, Chile, Comobia, the USA, Germany, Saudi Arabia, India, Indonesia, Malaysia, the Philippines, Thailand, Egypt and many other countries and regions.Our rich experience in telecommunication and consumer electronics, together with efficient collaboration with our global partners, had given us an enviable advantage. We believe in we are able to carry on its mission of applying technology to create products that will enrich peoples lives and protect properties.
Warmly welcome your inquiry for both OEM and ODM cooperation. With the support from you, we will create a wonderful future.Welcome to China,Welcome to Shenzhen Zechuang Weiye Technology Co., Ltd.
Certifications
Packaging & Shipping
FAQ
1.)Who are you?
We are Shen Zhen ZeChuang Weiye Technology Co.,Ltd
GREATZC is our own brand.
We are 15+ years specialise in designing,producing,supplying Thin/Starndard Mini Itx Motherboard,3.5'' Motherboard,Nano Itx Motherboard,Firewall Motherboards,Industrial PCs,Mini Computers,OPS PCs.
2.)Where can your products be used?
Our products mainly use for industrial production,banking,shops,supermarkets, transportation,medical and
other industries.They also application to ordering machines, cash registers,ATM,digital signage,
advertising machines, spot welders, electronic whiteboards, conference equipment,
teaching equipment, multimedia players and other equipments,and so on.
3.)What's your payment ways?
We accept T/T,L/C,Western Union,Paypal,Alibaba Trade Assurance,RMB Cash,etc.
4.)What's your shipping ways?
DHL/FedEx/TNT/UPS,etc;
Appointing shipping agent by buyer.
5.)Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Yes,we can do OEM/ODM.The charges for OEM service depends on the different level of customization.
Somes are free.
