50mm/100mm Eco High Density open cell cellular glass Acoustic Panel Sound Absorbing
- Category: >>>
- Supplier: Jiaxing Aiwei Insulation Technology Co. Ltd.
Share on (1600723668987):
Product Overview
Description
Products Description

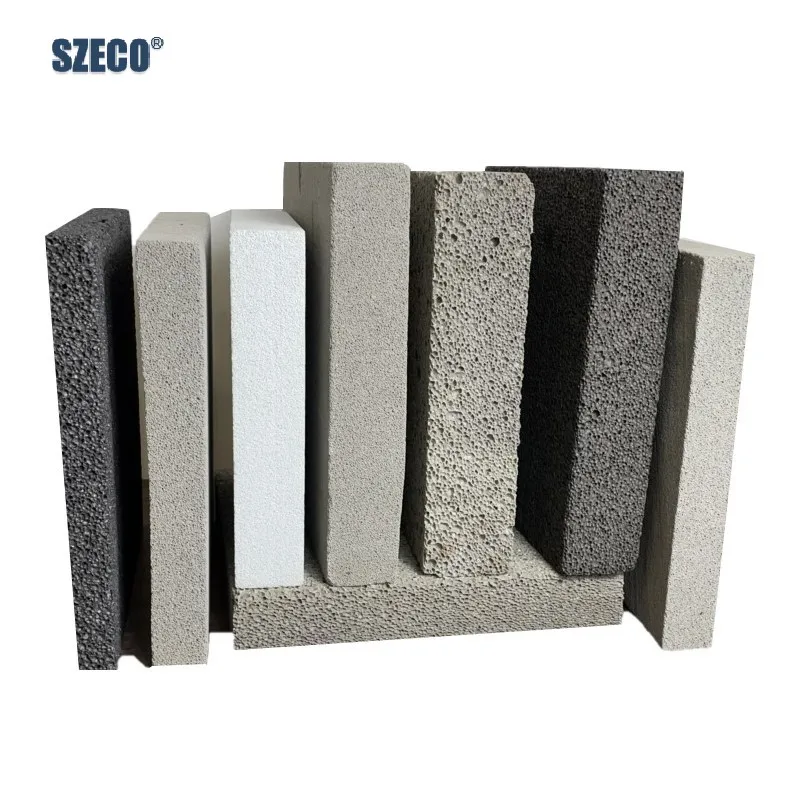

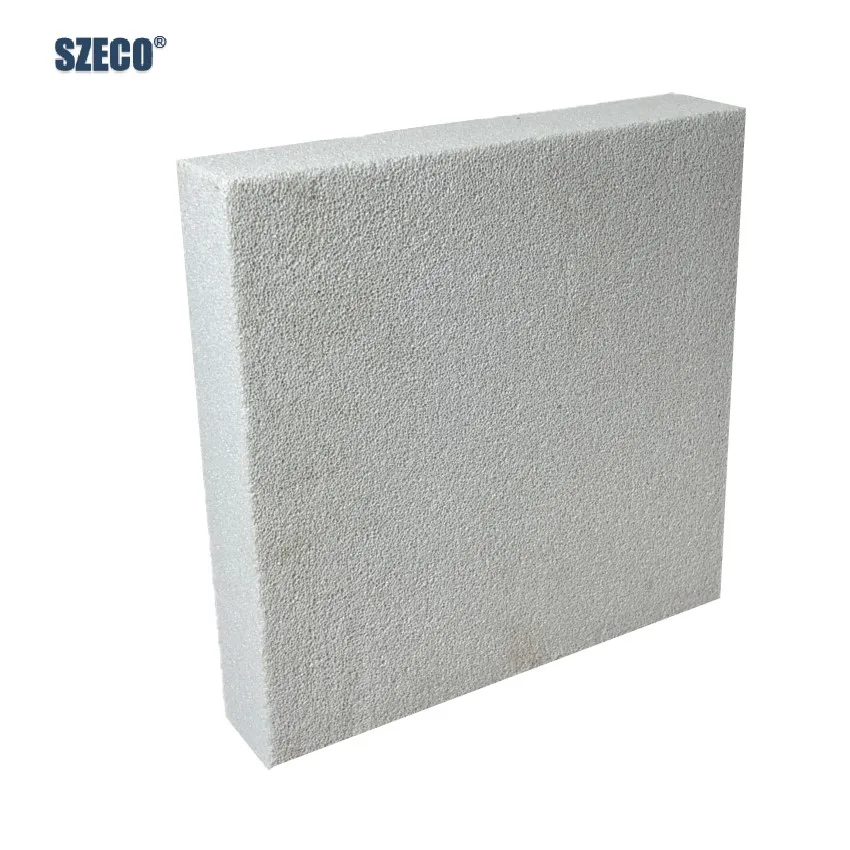

SZECO® Acoustic Panels/ Open Cell Foam Glass are made from recycled glass.from the surface to the inside of the three dimensional through the network microporous structure, it can make the sound waves in the pore vibration air,through the viscous effect of sound waves into heat energy consumption, play a silent effect. Because of it is resistant to climate change, earthquake and resistance to corrosion, heat and can stand the wind, sun, rain erosion without changing the mesh structure, at the same time, on the surface will not affect the sound-absorbing effect after processing,It can be used in the tunnel, subway, cinemas and theatres, studios and other need quiet environment, And viaduct, construction site, outdoor transformer and other high noise occasions.
The density of the product is adjusted according to the market demand, usually meeting the range of 200kg/m3-500kg/m3, by adjusting the formula ratio of foaming to produce products of different densities, high density will enhance the mechanical properties of the product, the application characteristics of the product itself, such as A1 fire rating, NRC performance remains unchanged.
After 1200 ℃ high temperature, raw material calcined to molten state after foaming, fire retardant, belong to A1 nonflammable material
The density of the product is adjusted according to the market demand, usually meeting the range of 200kg/m3-500kg/m3, by adjusting the formula ratio of foaming to produce products of different densities, high density will enhance the mechanical properties of the product, the application characteristics of the product itself, such as A1 fire rating, NRC performance remains unchanged.
After 1200 ℃ high temperature, raw material calcined to molten state after foaming, fire retardant, belong to A1 nonflammable material
Sound Absorption Coefficient | ||
Frequency | Sound Absorption Coefficient | |
(Hz) | αS | |
100 | 0.07 | |
125 | 0.06 | |
160 | 0.19 | |
200 | 0.21 | |
250 | 0.41 | |
315 | 0.51 | |
400 | 0.74 | |
500 | 0.96 | |
630 | 1.23 | |
800 | 1.28 | |
1000 | 1.21 | |
1250 | 1.14 | |
1600 | 1.14 | |
2000 | 1.14 | |
2500 | 1.17 | |
3150 | 1.14 | |
4000 | 1.06 | |
5000 | 1.06 | |
NRC | 0.92 | |
Product Paramenters
Property | Unit | Technical Data | Test Method | |
Density | Kg/m³ | 270 | GB/T6343 | |
Compressive Strength | Mpa | ＞1.2 | ASTM C165 | |
Fire resistance | Non Combustible(Class A1) | ASTM E84 | ||
Thermal Conductivity | W/(m.k) | 0.060 | ASTM C518/C177 | |
Water Absorption | Vol％ | 0.2 | ASTM C240 | |
Product quality is the base of an enterprise. AiWei has its own R&D testing center, where a full chemical analysis and physical testing can be done on various raw materials, intermediate product and final product. For different uses, we can research and develop the processing formula by ourselves to meet different application environment and customers' requirement. Meanwhile,advanced and reliable testing equipments and instruments are used to test and control the whole production process to guarantee produc .
AIWEI starts strict quality control from raw material selection. All raw materials to be purchased must follow the technical
specifications proposed by R&D testing center, and sampling test must be done for chemical and physical inspection before entering into warehouse. All production formula and processing data are provided by R&D testing center. R&D testing center makes random sampling test for each processing step as per lot, and only qualified products can go to next processing step. And R&D testing center is responsible for appearance quality and physical properties of final product as well.
specifications proposed by R&D testing center, and sampling test must be done for chemical and physical inspection before entering into warehouse. All production formula and processing data are provided by R&D testing center. R&D testing center makes random sampling test for each processing step as per lot, and only qualified products can go to next processing step. And R&D testing center is responsible for appearance quality and physical properties of final product as well.

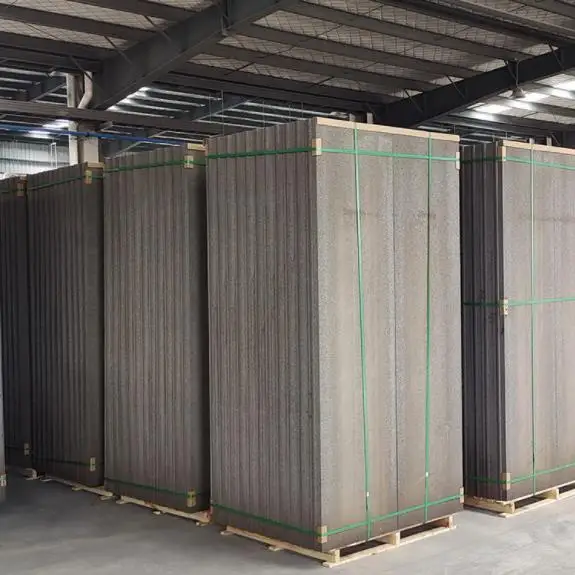

Packaging and Shipping
All products will have been strictly quality checked in house before packing.
All products will be well packed before shipping.
We accept OEM.
FAQ
Q: Are you manufacturer or trade company?
A: We are professional manufacturer of thermal insulation material, more than 21 Years.
Q: Do you accept sample order?
A: Sample order is acceptable. We can offer free sample, sample can be sent within 1~3 days after freight payment confirmed.
Q: Does your company and products has any certification to ensure quality?
A: We are in compliance with ISO14001, ISO9001, OHSAS18001 certificate etc. Our products have excellent chemical, physical features and stability.
Q: What services can AIWEI provide？
Q: What is AIWEI inspection process for Foam Glass?
A: Raw Material Inspection - Production Process Inspection - Factory Inspection - Parallel Sample Tracking System.
Q: What’s the delivery time of 1x40FCL/HQ' container loading order?
A: Within 3-20 days after receipt of prepayment.
A: We are professional manufacturer of thermal insulation material, more than 21 Years.
Q: Do you accept sample order?
A: Sample order is acceptable. We can offer free sample, sample can be sent within 1~3 days after freight payment confirmed.
Q: Does your company and products has any certification to ensure quality?
A: We are in compliance with ISO14001, ISO9001, OHSAS18001 certificate etc. Our products have excellent chemical, physical features and stability.
Q: What services can AIWEI provide？
A: * Any inquires will be replied within 0-12 hours.
* We are professional manufacturer and trade company. Welcome to visit our company and factories at any time!
* Any your idea on the packing we can help you to design and put into production. Customized product is available.
* High quality, reasonable and competitive price, fast lead time.
* All products will have been strictly quality checked in house before packing.
* All products will be well packed before shipping. Sample order prepared, about 3-10 days for delivery productions.
* We are professional manufacturer and trade company. Welcome to visit our company and factories at any time!
* Any your idea on the packing we can help you to design and put into production. Customized product is available.
* High quality, reasonable and competitive price, fast lead time.
* All products will have been strictly quality checked in house before packing.
* All products will be well packed before shipping. Sample order prepared, about 3-10 days for delivery productions.
Q: What is AIWEI inspection process for Foam Glass?
A: Raw Material Inspection - Production Process Inspection - Factory Inspection - Parallel Sample Tracking System.
Q: What’s the delivery time of 1x40FCL/HQ' container loading order?
A: Within 3-20 days after receipt of prepayment.
