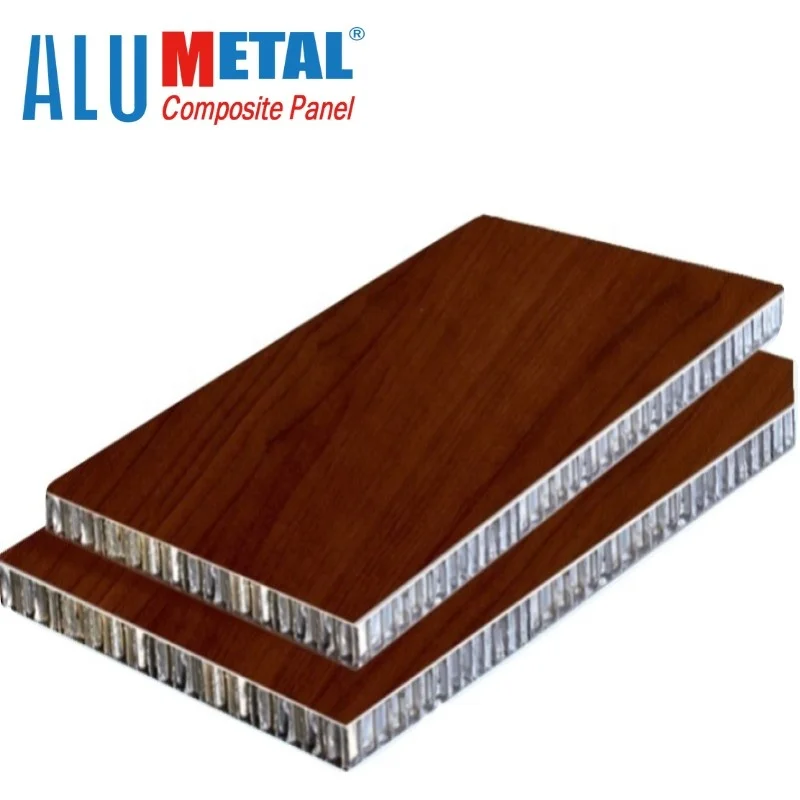

aluminum honeycomb sandwich sheet panels with different specification
- Category: >>>
- Supplier: Shanghai Alumetal Decorative Material Co. Ltd.
Share on (1600723673145):
Product Overview
Description
Product Description
Introduction

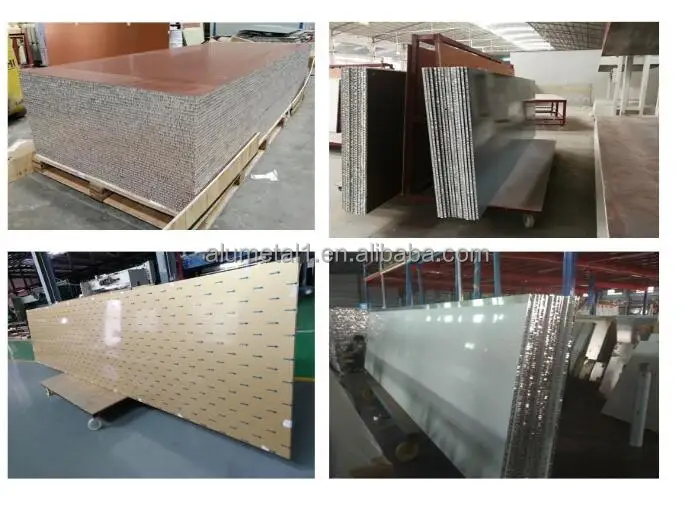

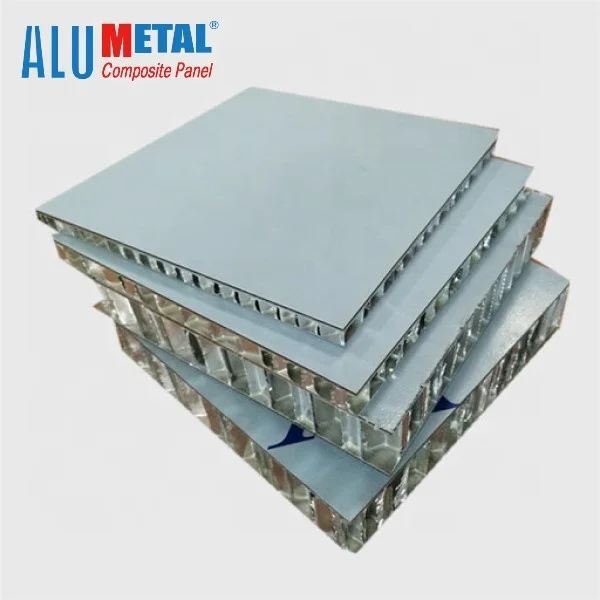

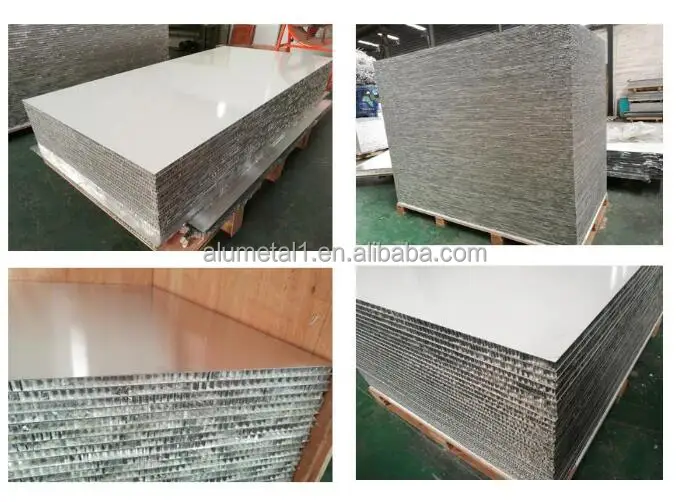

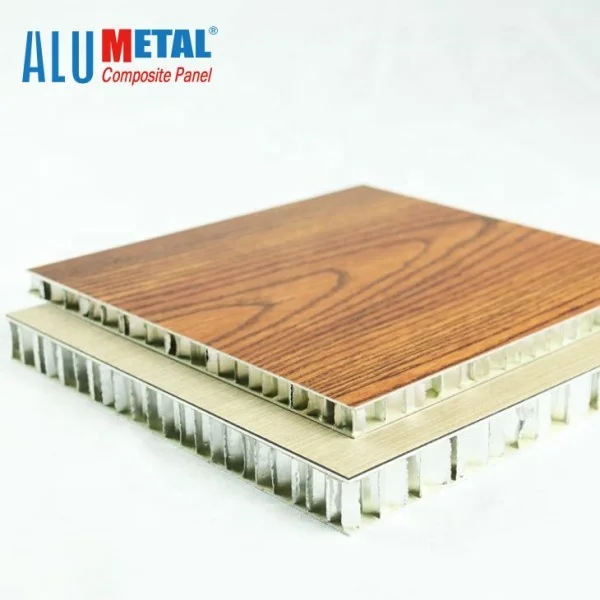

Alumetal Aluminum honeycomb panels are comprised of two layers of aluminum sheets on top and bottom sides with inner aluminum honeycomb
structure in the middle. The honeycomb structure is known to be lightweight while enhance the rigidity of panels in a large scale.Feature
Extremely Low WeightExcellent Strength
High Resistance to Moisture
High Resistance to Corrosion
Excellent Thermal Conductivity
Noncombustible
High Resistance to Fungi
Specifications Of Aluminum Honeycomb Panel | ||||||||
Panel Width | 1220, 1250,1500,1575mm ect | |||||||
Aluminum Alloy | A1100,A3003, A5052 | |||||||
Panel Length | 1000, 2440, 3000, 4000mm ,normally within 5800mm. for 20ft container custom accepted | |||||||
Panel Thickness | 5-500mm, normally 10, 15,20, 25,30mm | |||||||
Aluminum Thickness | 0.3 to 2mm | |||||||
Honeycomb core | Cell size,1/4",1/3",1/2”,3/4",4/5" ect. Aluminum foil thickness: 0.04-1.0mm | |||||||
Coating | PE coating , PVDF coating, Anodized, Mill finish | |||||||
Color | Alumetal color chart | Ral color | pantone color | custom color | ||||
Package and Delivery

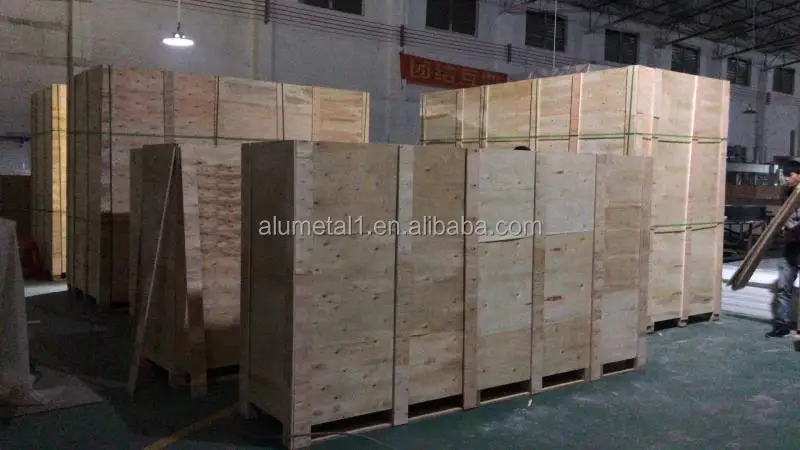

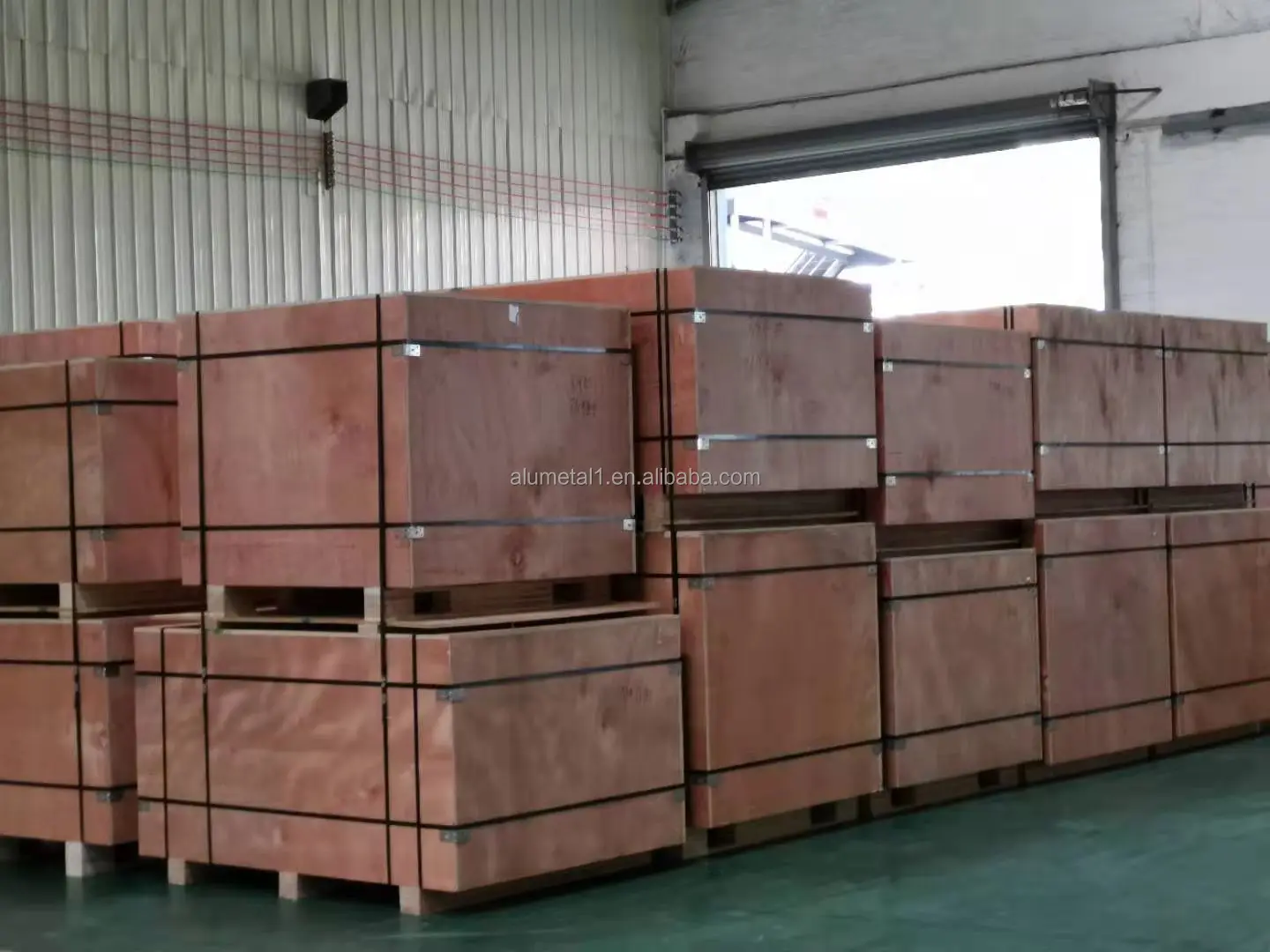

Standard export wooden case will be used to package the panels and then load into the container .
Application
Building Products
Commercial
Ground Transportation
Marine & Recreation
Alumetal Honeycomb Panels provide a flat, stiff, stable structure for use in building as a backing material to
metal, glass, stone, and other decorative surfaces. Uses include wall cladding, ceilings, canopies, and elevator interiors.
metal, glass, stone, and other decorative surfaces. Uses include wall cladding, ceilings, canopies, and elevator interiors.
Commercial
Alumetal Honeycomb Panels offer elevated mechanical properties; moisture, chemical and impact resistance; as well as
vibration dampening. The result is improved performance in doors, platforms, fixtures, and custom furniture among others.
vibration dampening. The result is improved performance in doors, platforms, fixtures, and custom furniture among others.
Ground Transportation
Alumetal Honeycomb Panels provide a lightweight solution for use in rail, automotive, truck, trailer,recreational vehicles, racing, and also military and specialty vehicles. Applications include walls, doors, floors, ramps,ceilings, bulkheads, seating, and shelves.
Marine & Recreation
Alumetal Honeycomb Panels offer a high strength-to-weight ratio that satisfies the demands of many applications. Sporting goods, boat decks, partitions, hatches, and doors are just a few examples.
Related Products
Company Profile
Shanghai Alumetal Decorative Material Co., Ltd. has 2m aluminum honeycomb panels and aluminum corrugated panel production line.
Every client from abroad is warmly welcomed to visit our company. We are together for the same item, building a beautiful city and a colorful world.
The annual production capacity is more than 30 million square meters and we have established sales network and service organization in more than 30 large and medium-sized cities in China.
Meanwhile our products are well accepted abroad like Europe,North America ,South America , Southeast Asia, the Middle East and Africa ,totally more than 70 countries .
Every client from abroad is warmly welcomed to visit our company. We are together for the same item, building a beautiful city and a colorful world.
Let’s share all happiness and success.
Certifications
Why Choose Us
Q1.What is your MOQ,Delivery Time, Payment?
A1:1. MOQ (Minimum Order Quantity): 50m² but it can be less if we have stocks
A1:1. MOQ (Minimum Order Quantity): 50m² but it can be less if we have stocks
2. Delivery Time: within 2weeks after receiving deposit
3. Payment: TT ,30% in advance ,70% against BL of copy or LC or DP ，other payment can be talked .
Q2.Do you have any test certificates?
A2:Yes, stable good quality is key for long time business cooepration.Factory have passed ISO9001:CE SGS, etc .
Q3.Do you service OEM?
A3: Yes, OEM accept. Custom size ,custom color ,custom protective film and custom shape ect .
Q4.What's the available panel size and thickness?
A4: 1. Width: 1000-2000mm; 1220mm is recommended and customization is allowed.
2. Length: accept custom length, recommend 2440mm, 3050mm, 4050mm, 5000mm
3. Panel Thickness:4mm-500mm.
4.Aluminum thickness:0.7 mm 0.8mm 1mm 1.2mm
Q5.Do you offer sample?
A5: Yes, samples are available with our Alumetal Color Chart
Q2.Do you have any test certificates?
A2:Yes, stable good quality is key for long time business cooepration.Factory have passed ISO9001:CE SGS, etc .
Q3.Do you service OEM?
A3: Yes, OEM accept. Custom size ,custom color ,custom protective film and custom shape ect .
Q4.What's the available panel size and thickness?
A4: 1. Width: 1000-2000mm; 1220mm is recommended and customization is allowed.
2. Length: accept custom length, recommend 2440mm, 3050mm, 4050mm, 5000mm
3. Panel Thickness:4mm-500mm.
4.Aluminum thickness:0.7 mm 0.8mm 1mm 1.2mm
Q5.Do you offer sample?
A5: Yes, samples are available with our Alumetal Color Chart
