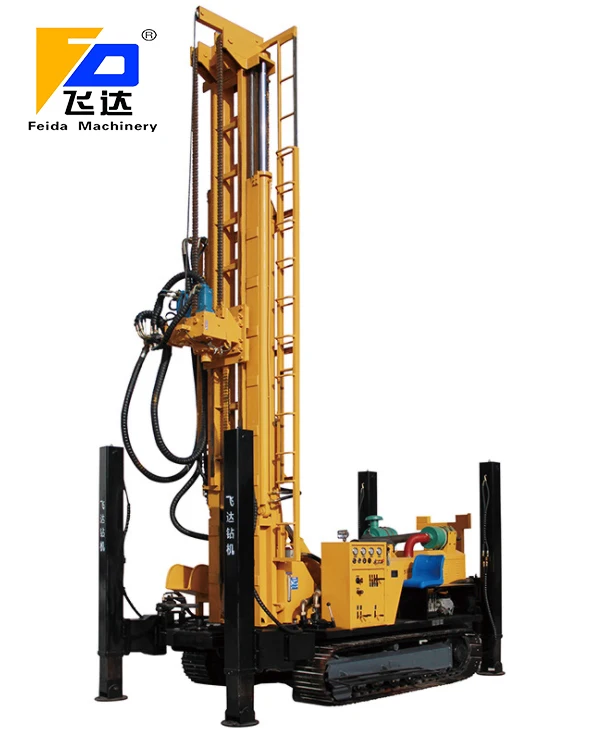

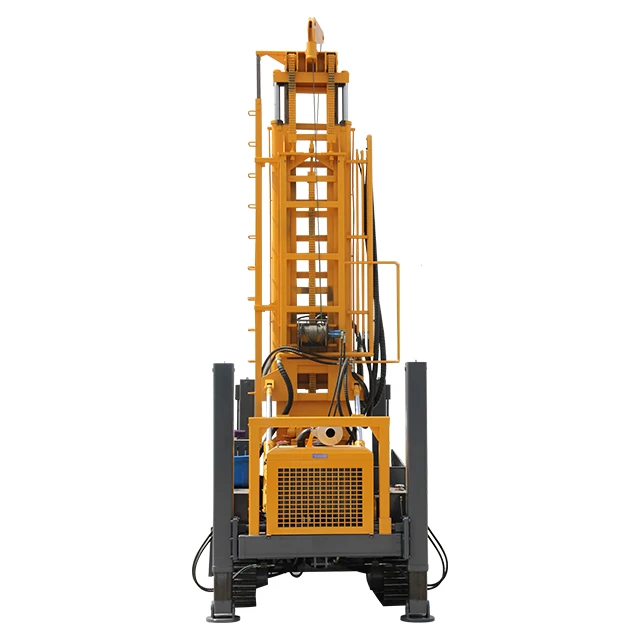

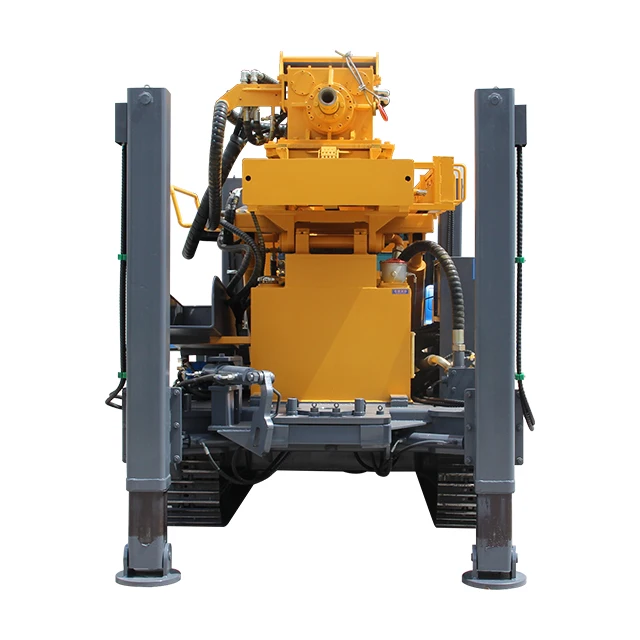

Factory direct sales 800 m deep drilling well drilling rig, hydraulic top drive.
- Category: >>>
- Supplier: Mengyin Feida Mine Engineering Machinery Co. Ltd.
Share on (1600723730370):
Product Overview
Description
Product Description

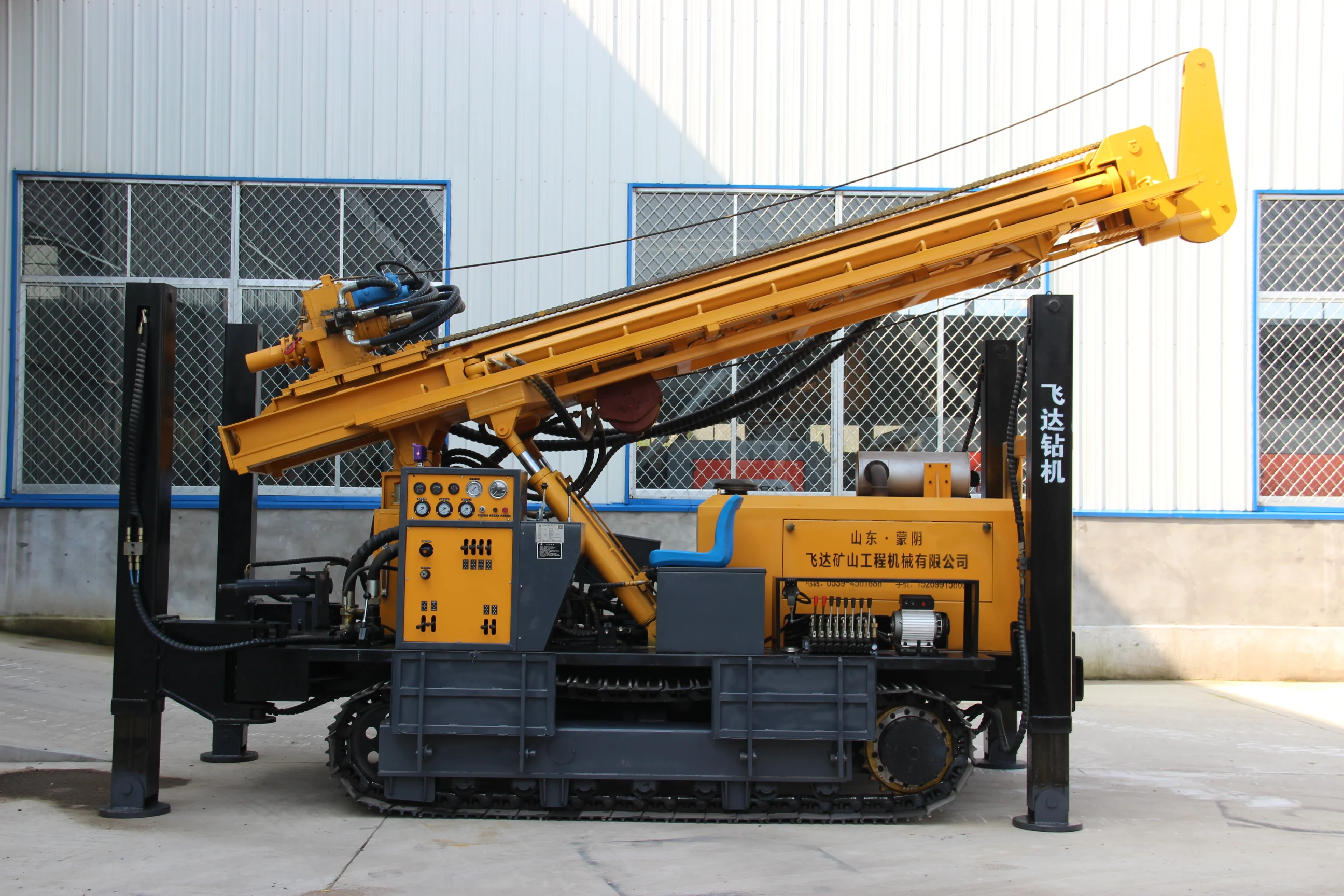

800 meter diesel hydraulic crawler portable water well drilling rig.
6.6m tower
Cummins Engine 194KW
Just send an inquiry and you will get our catalog.
Now some products have big discounts!
FY800 Water well drilling rig | ||||||
Model | FY800 | Walking Speed | 2.5km/h | |||
Weight | 13000Kg | Climbing Angles | 30Max. | |||
Hole Diameter | 140-400mm | Using Air Pressure | 1.7-3.5MPA | |||
Engine | Diesel Engine | Air Consumption | 17-42m³/min | |||
Drilling Depth | 800m | Swing Speed | 45-140rpm | |||
Engine Power | 194KW(Cummins engine) | The Penetration Efficiency | 15-35m/h | |||
Dimension | 6300*2300*2950mm | Rig Lifting Force | 30T | |||
Hoisting force of winch | 2T | Rapid Rise Speed | 20m/min | |||
Tower | 6.6m | Fasting Feeding Speed | 40m/min | |||
Drill rod Diameter | 102mm 108mm 114mm | Width of Loading | 2.95m | |||
Drill rod Length | 1.5m 2.0m 3.0m 6.0m | Swing Torque | 9000-14000N.m | |||
Main Features:

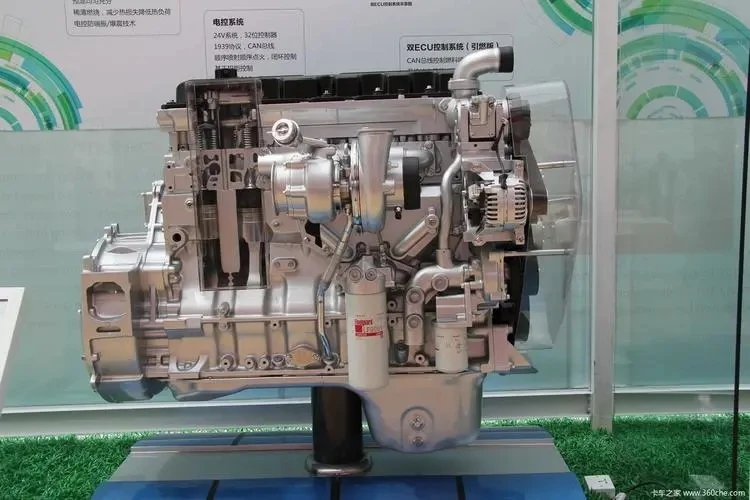

1. Equipped with a 194KW Cummins brand 6-cylinder turbo engine with strong power and long service life;
2. Patented design compound boom, double oil cylinder lift, strengthen the tower;

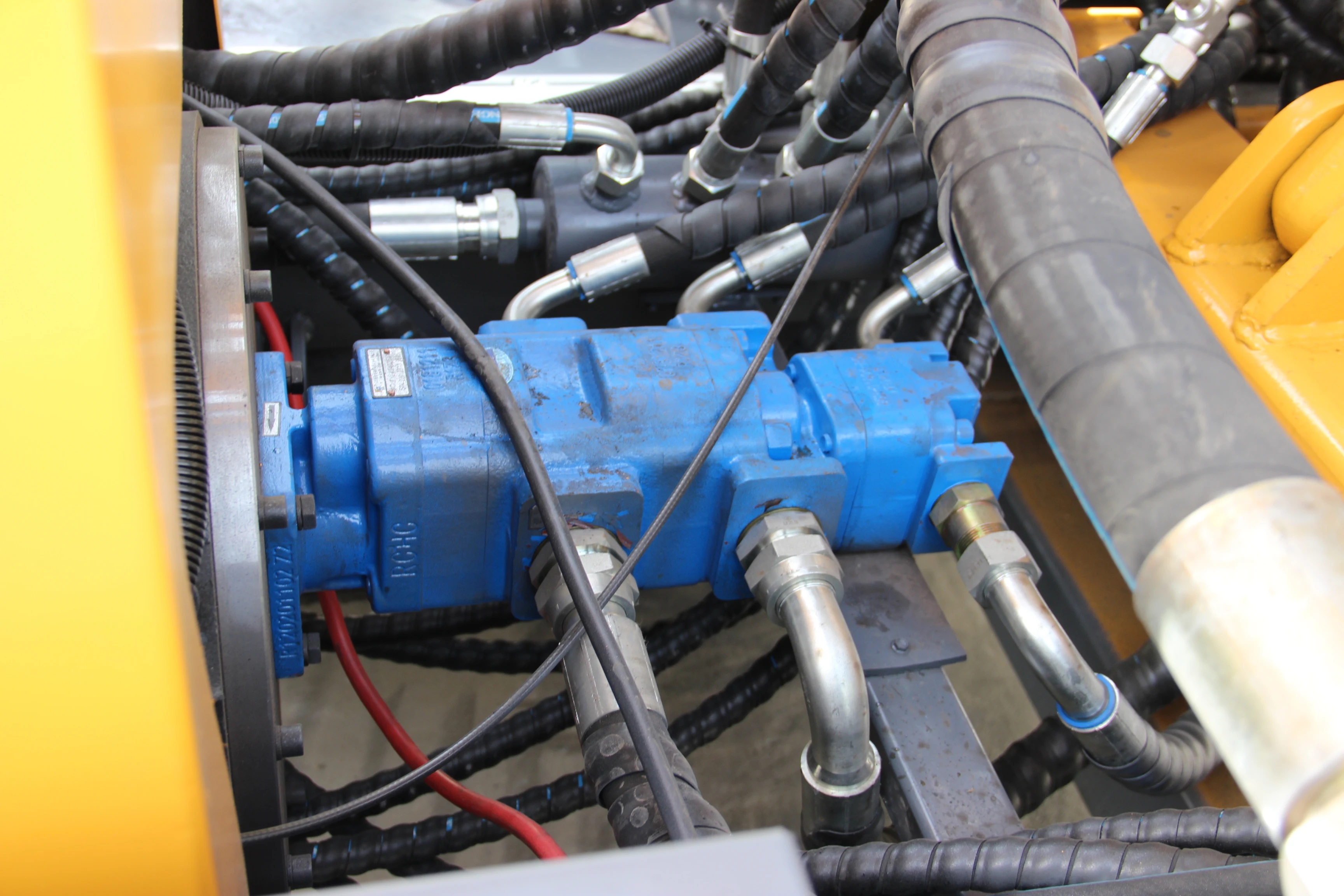

3. (Italy imported oil pump) 3 oil pumps, equipped with foam pump, winch, multi-function generator, front outrigger swing arm oil cylinder;
4. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
5. The diameter of the hole is large, the hole is deep, and the advancing speed is fast.
6. Drilling rig chassis: Reinforced steel crawler, large chassis, strong and durable, heavy bearing, wide chain plate, large tonnage.
7. Parallel transmission design, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.
8. The independent heat dissipation dual system adopts hydraulic oil temperature cooling and is equipped with traditional air cooling. long engine life
9. Equipped with dual systems: 1. Air power system with air compressor 2. Mud pump system with mud pump.
2. Patented design compound boom, double oil cylinder lift, strengthen the tower;
3. (Italy imported oil pump) 3 oil pumps, equipped with foam pump, winch, multi-function generator, front outrigger swing arm oil cylinder;
4. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
5. The diameter of the hole is large, the hole is deep, and the advancing speed is fast.
6. Drilling rig chassis: Reinforced steel crawler, large chassis, strong and durable, heavy bearing, wide chain plate, large tonnage.
7. Parallel transmission design, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.
8. The independent heat dissipation dual system adopts hydraulic oil temperature cooling and is equipped with traditional air cooling. long engine life
9. Equipped with dual systems: 1. Air power system with air compressor 2. Mud pump system with mud pump.

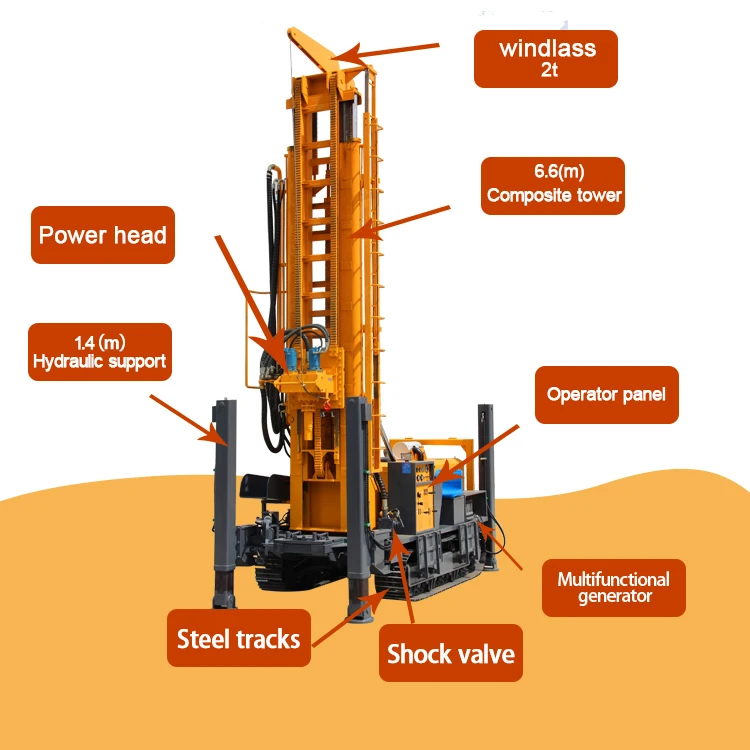

Product Show
Famous international brand, 153KW generator, strong power, long service life.

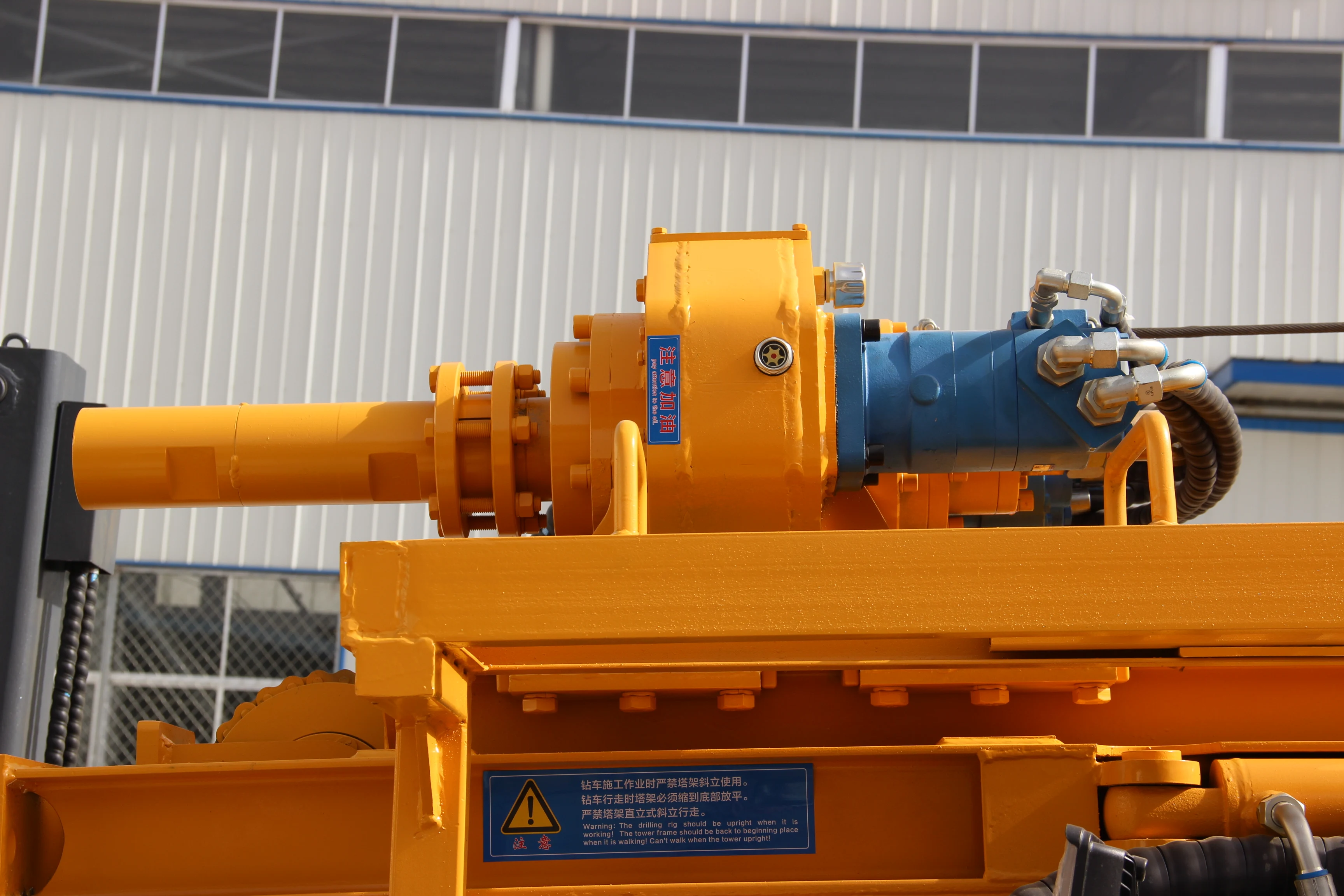

Power Head Device
Send the oil to the friction parts of the engine to lubricate the engine.

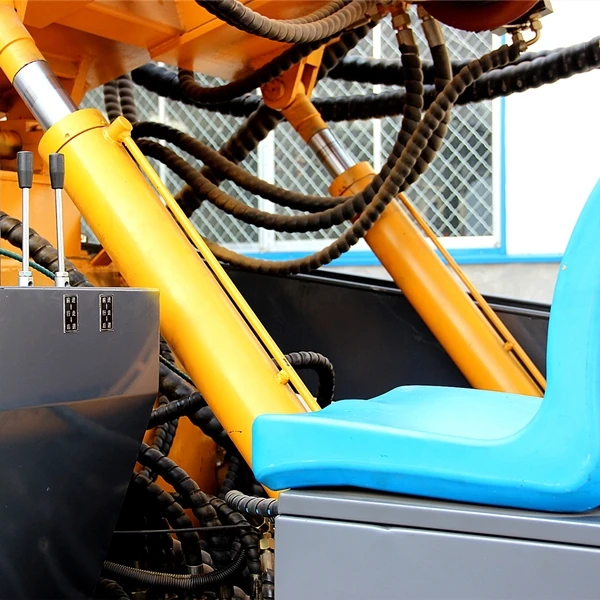

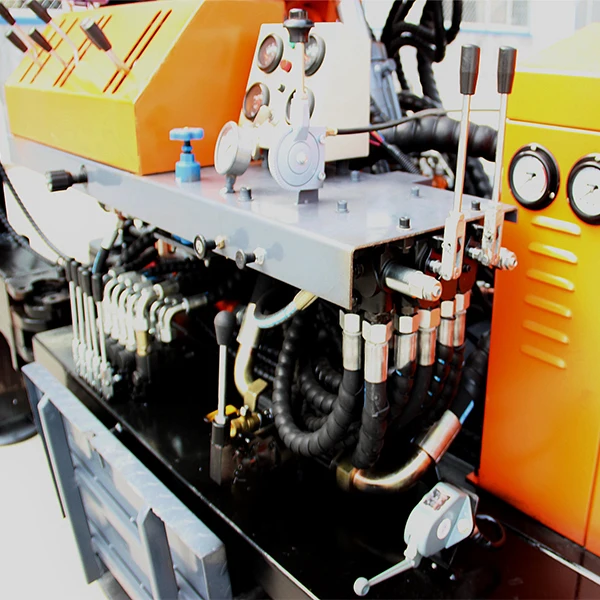

Play a control role, easy to operate, save time and effort.
Send the oil to the friction parts of the engine to lubricate the engine.

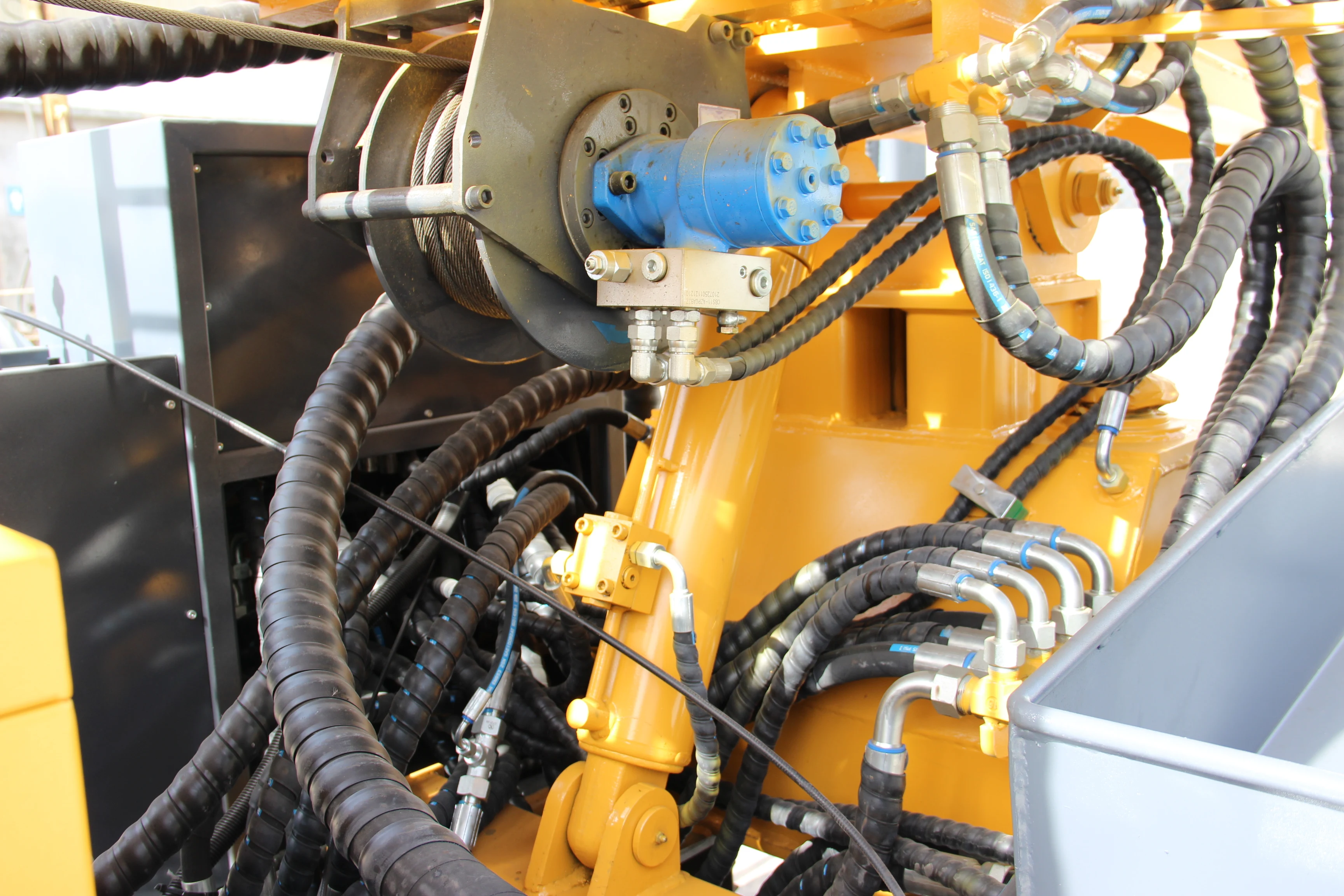

1500kg pulling force can assist the driller in loading and unloading drill pipe, drill bit and impactor, which saves time and labor
Hold up the arms of the tower.

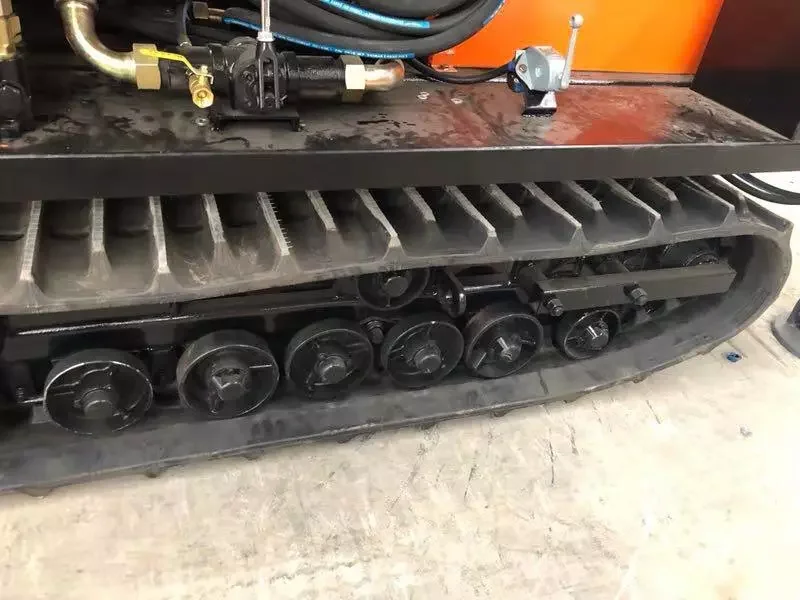

Steel and Rubber track for optional which adaptable to all terrains.

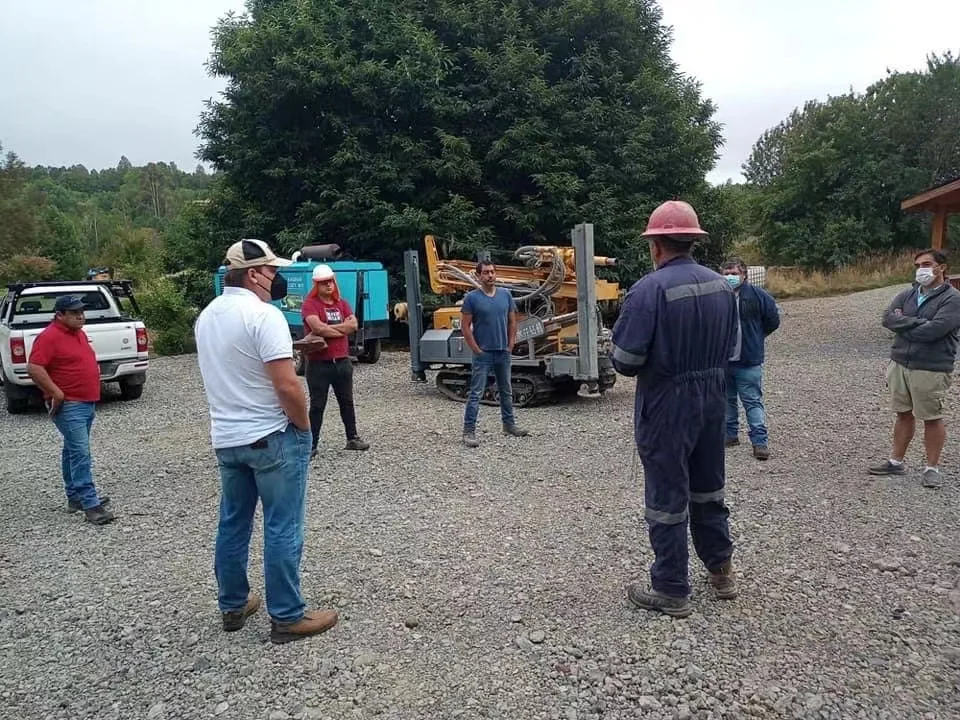

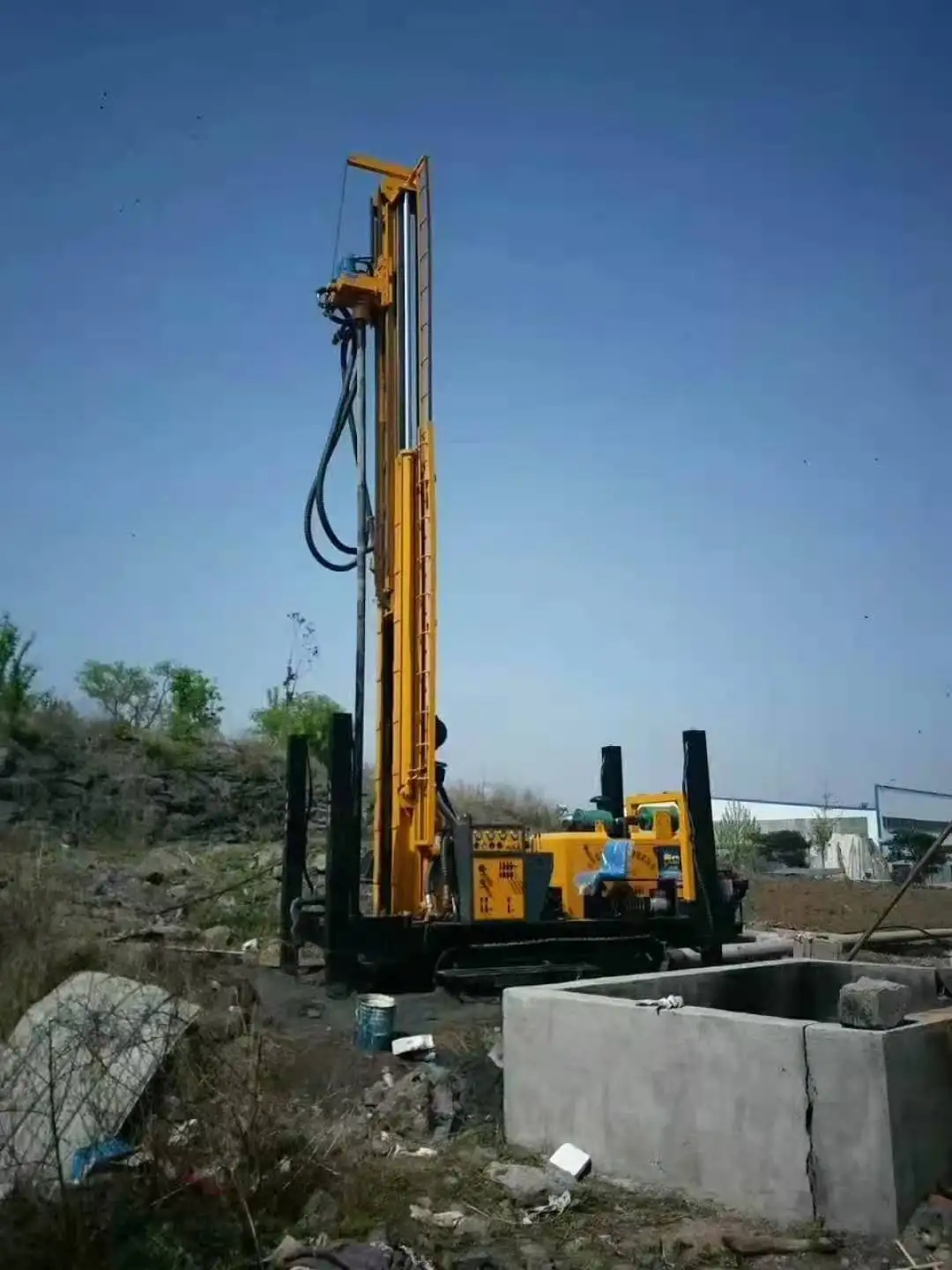

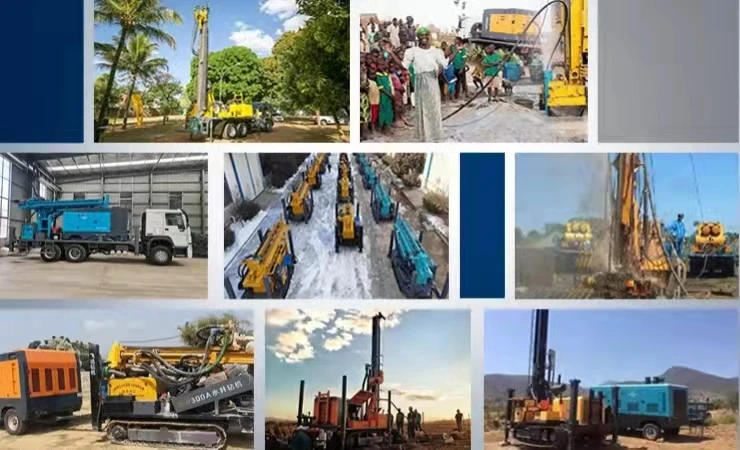

Application

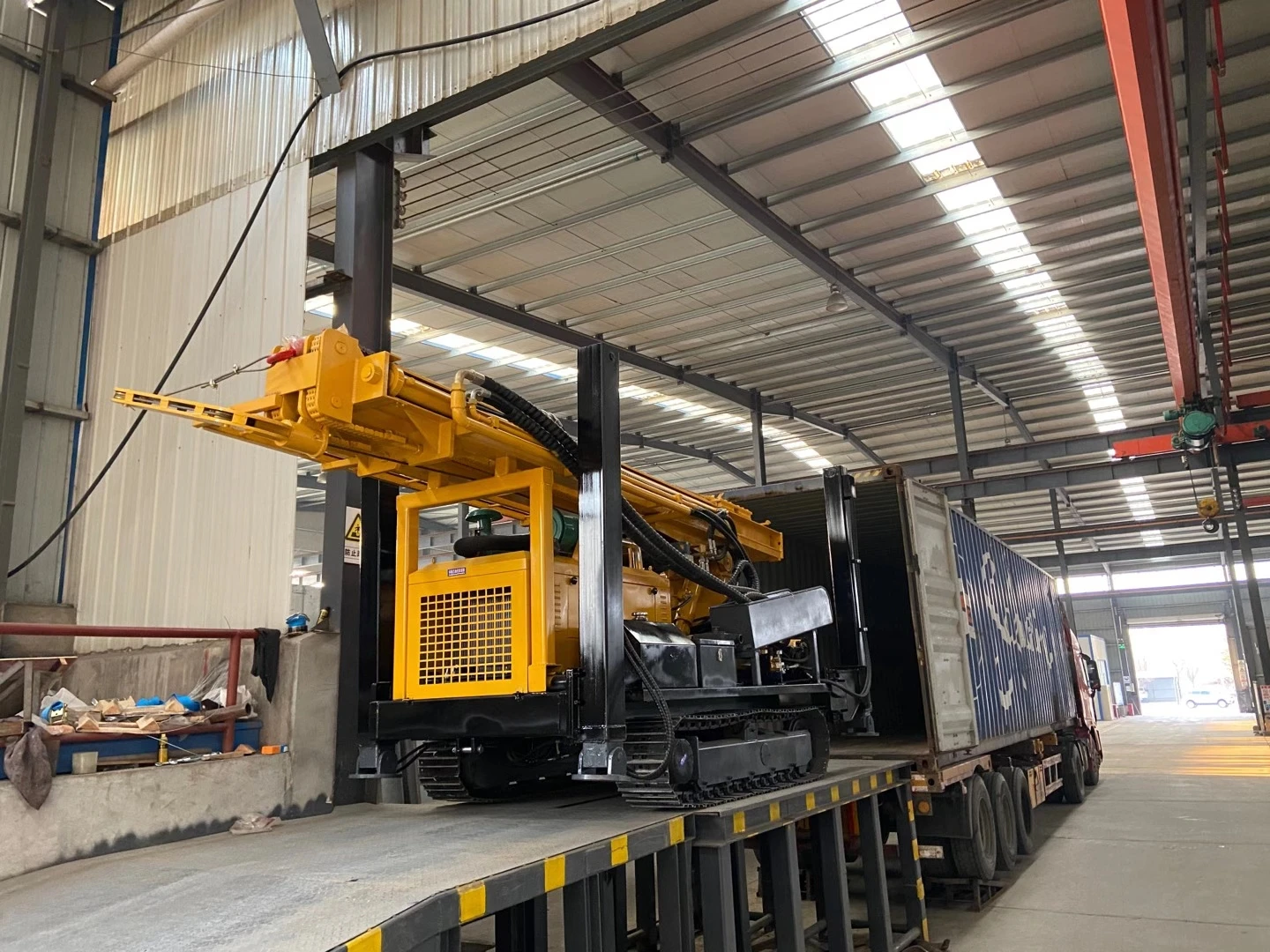

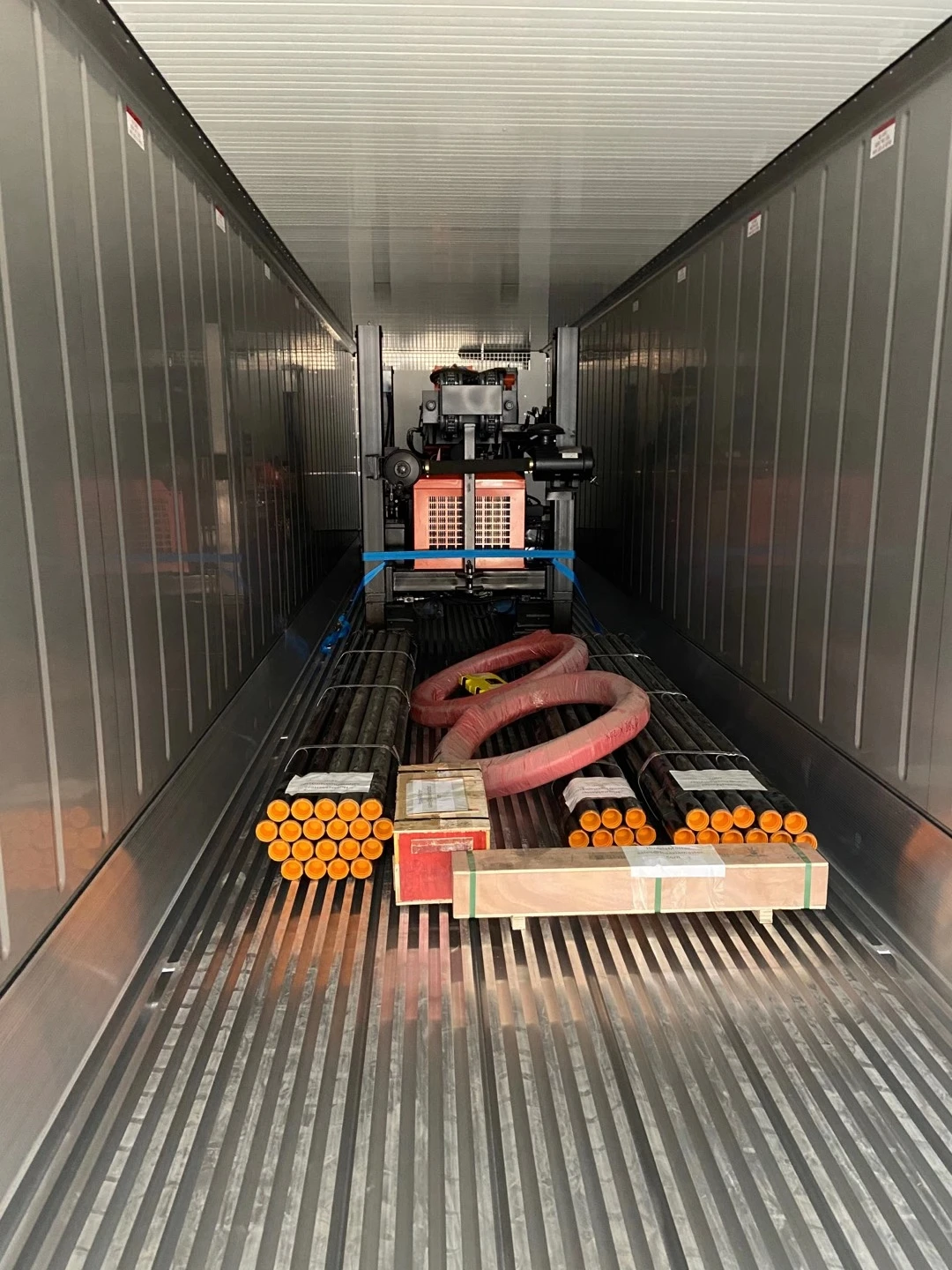

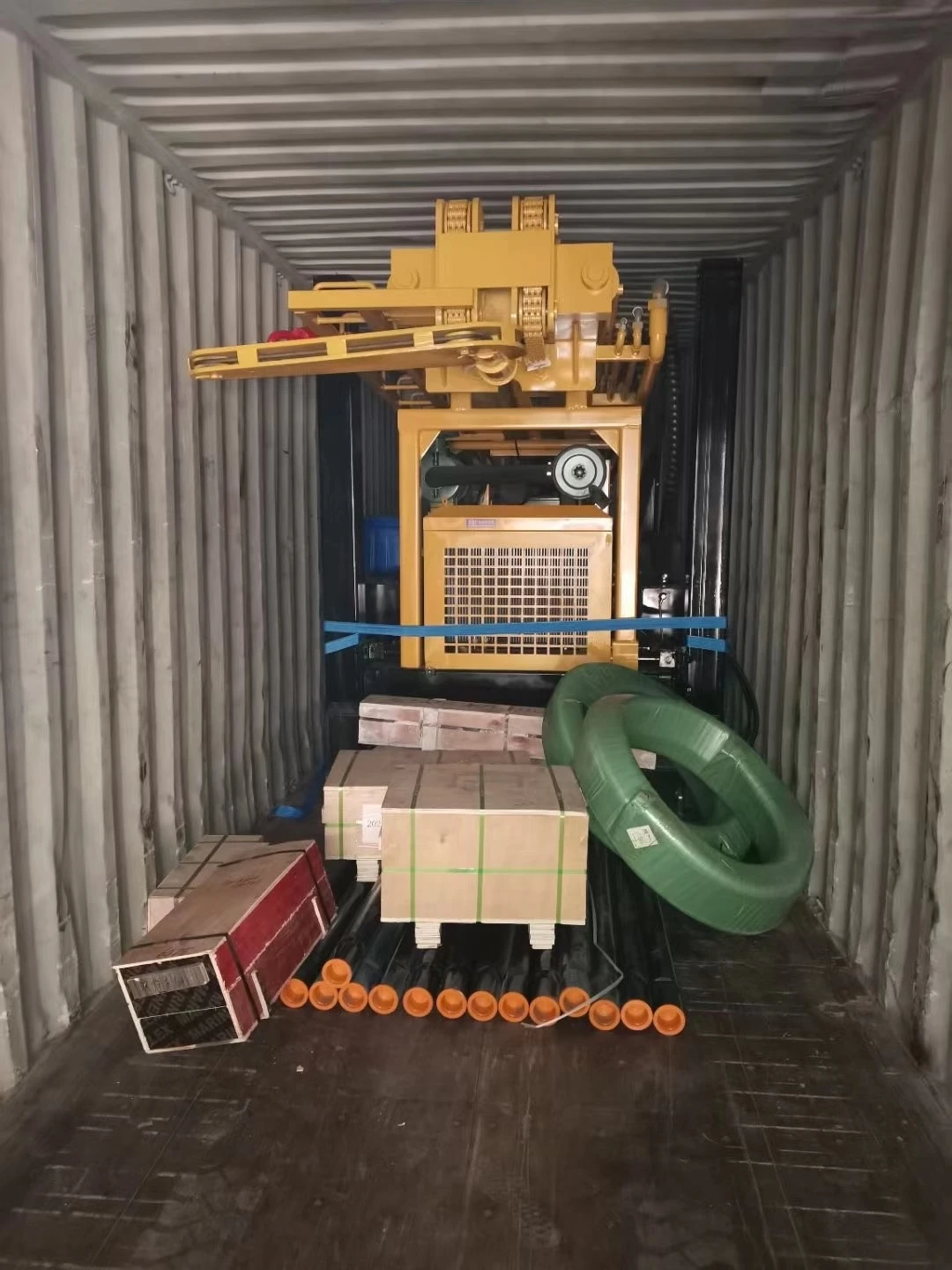

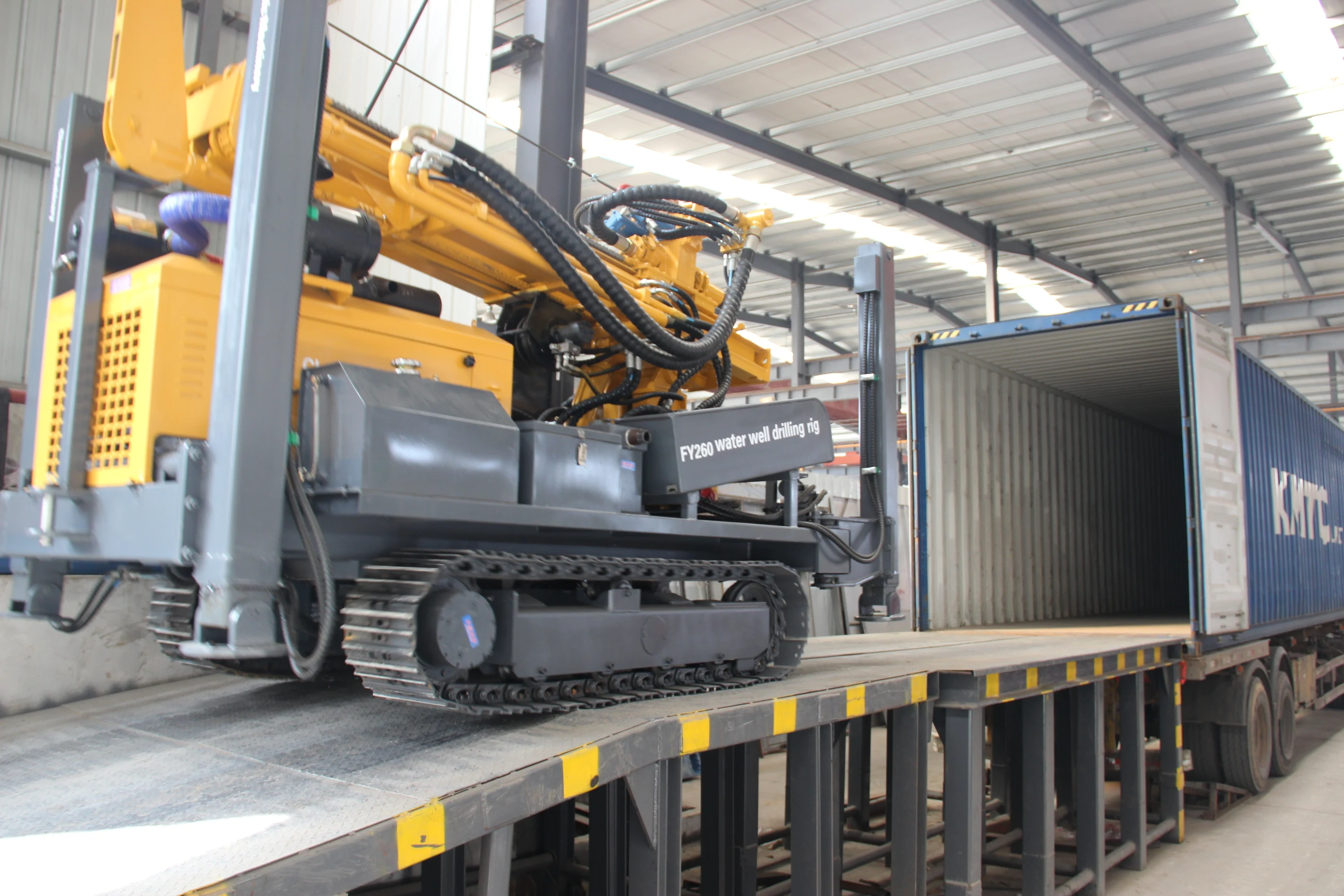

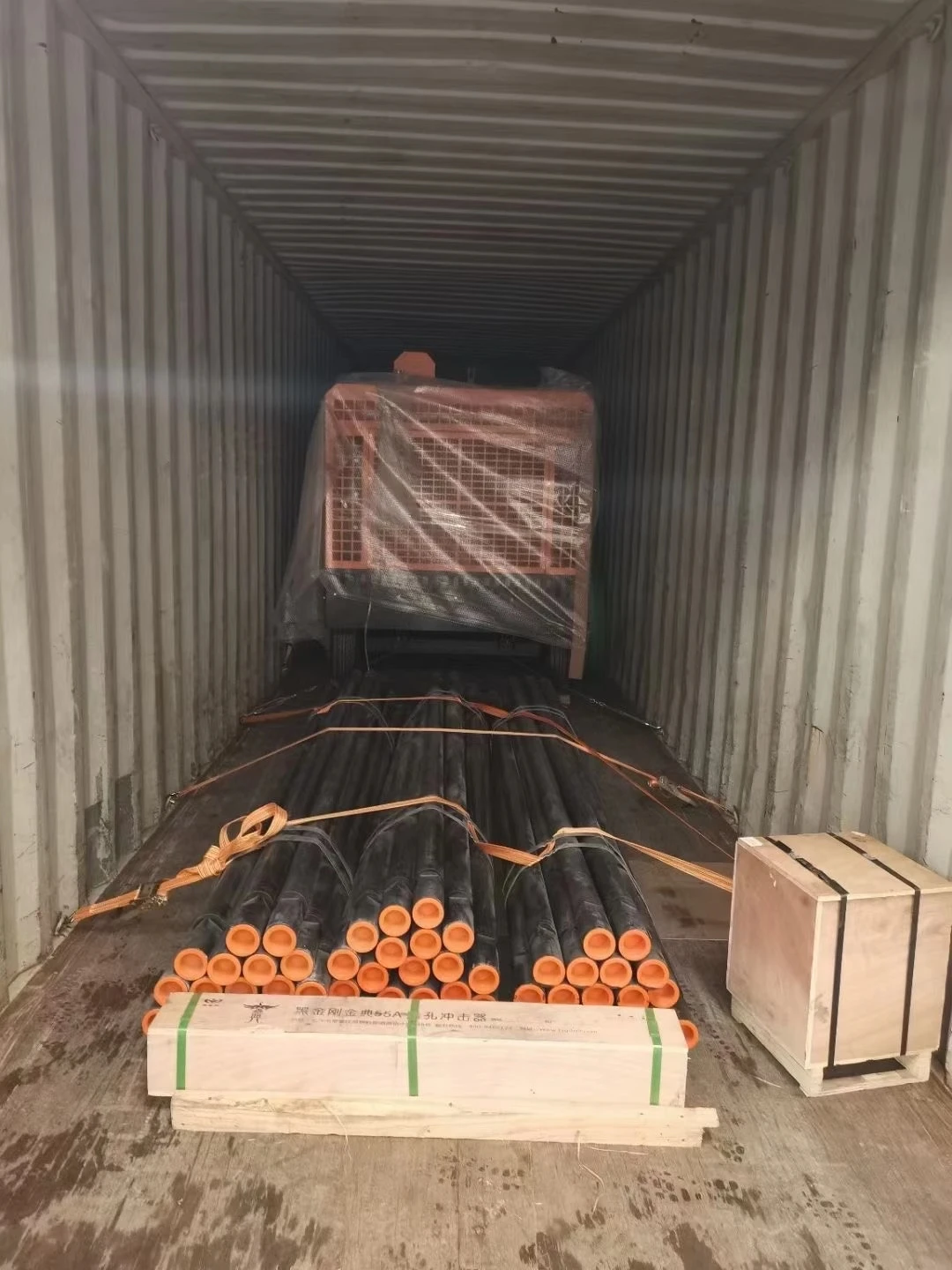

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided
LETTER OF PATENT

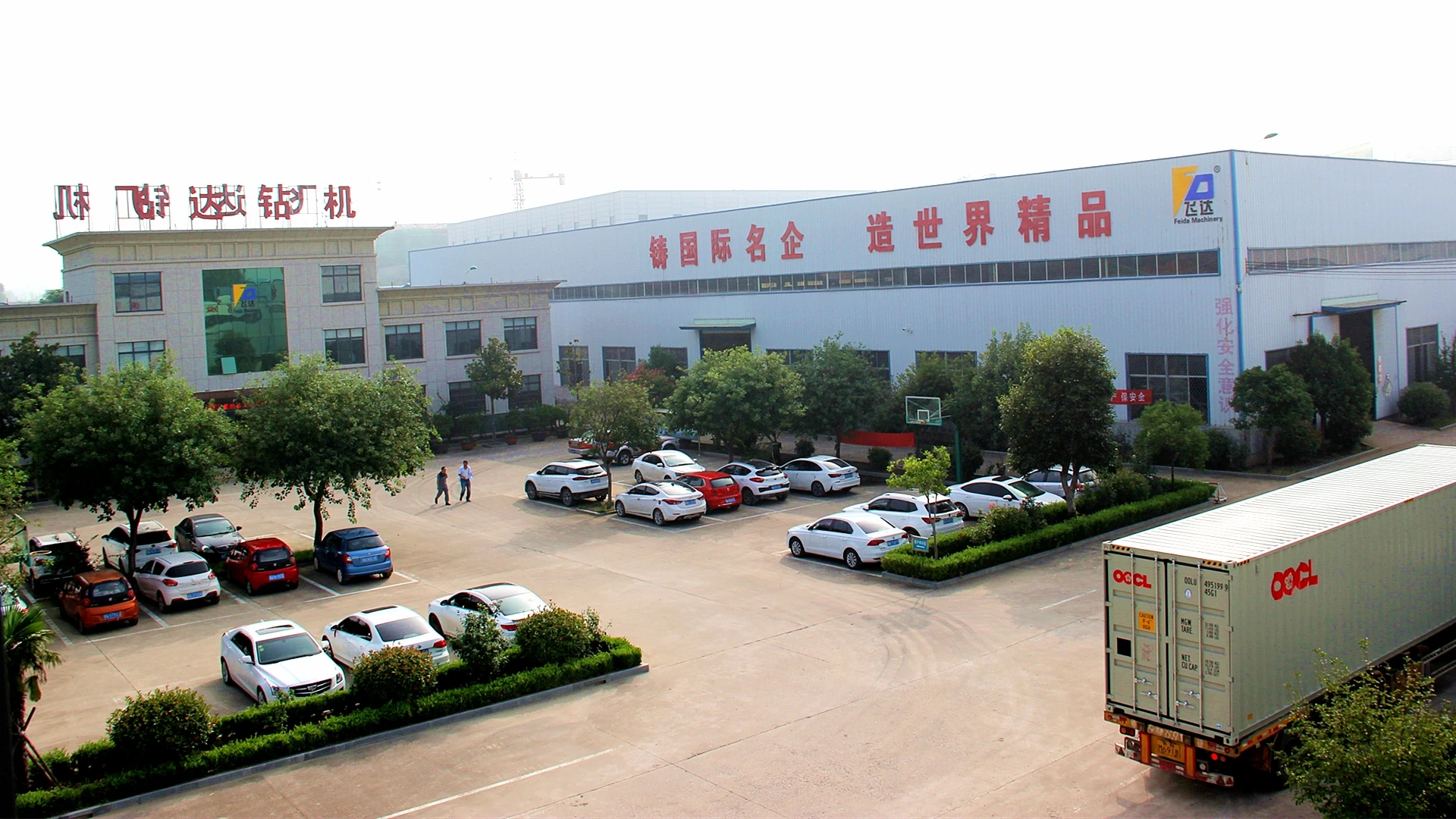

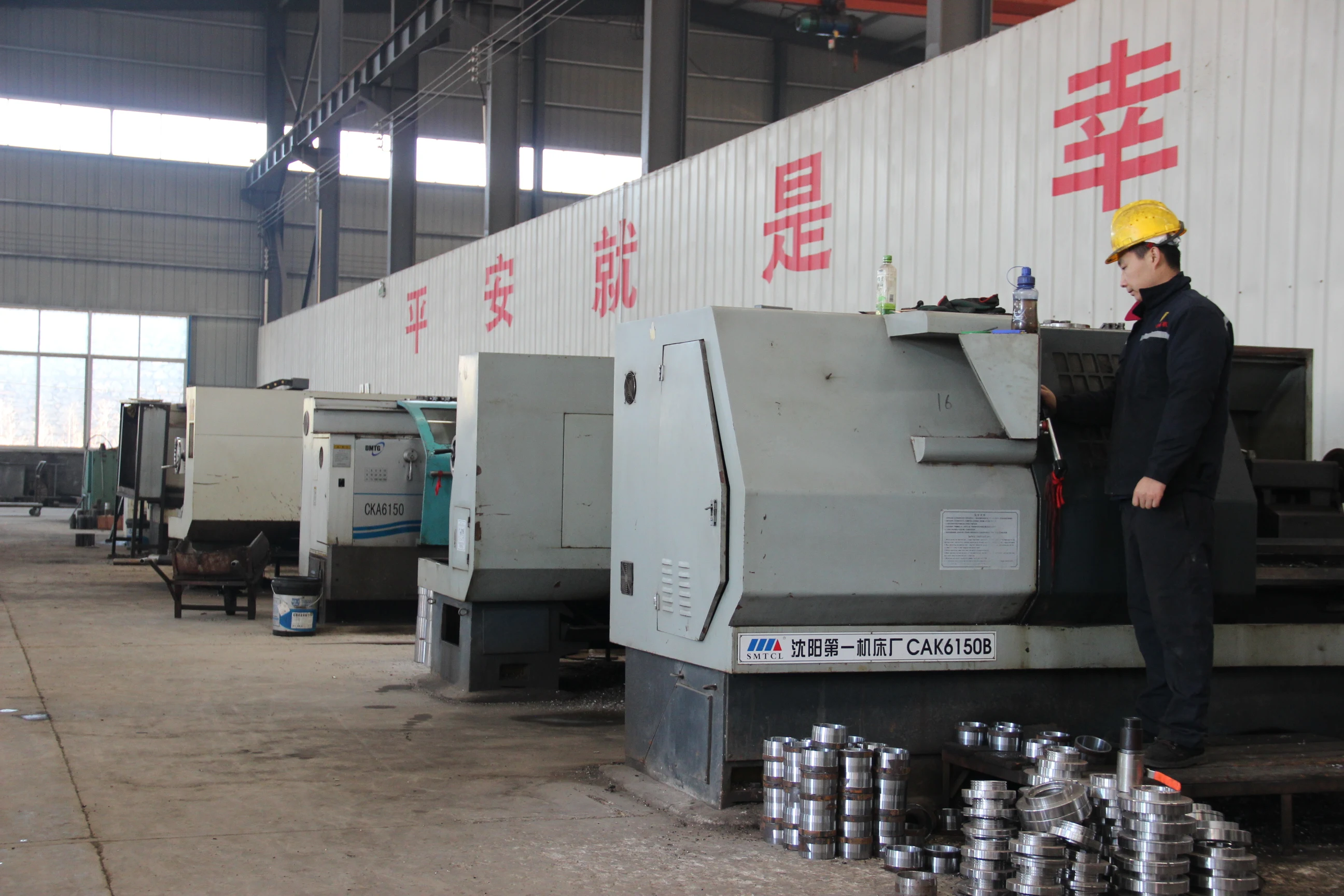

Company Profile
Mengyin Feida Mining Construction Machinery Co., Ltd. is the largest producer of well drilling rig and DTH drilling rig in Shandong Province. For more than 20 years since its establishment, the company has been committed to the development of professional production of submersible drilling rig, water well drilling rig, drilling tools and air compressor, and has obtained a number of national intellectual property rights patents. Feida drilling rig has passed ISO9001 international quality management system certification.
Water well drilling rigs !
Contact Us
FAQ
1.Why should you buy from us not from other suppliers?
Feida Mining Machinery Co., Ltd. has been researching and producing water well drilling rig, DTH drilling rig and supporting equipment for 20 years.FY series products have the characteristics of high drilling speed, economy and low failure rate
2.What can you buy from us?
Well Drilling Machine,Drilling Tools and Accessories,Screw Air Compressor
3.How can we guarantee quality?
Always a pre-production sample before mass production;always final inspection is done before shipment；and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.
4.Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
5.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in ShanDong,China.
6.Do you have any certificates for your machine?
All of our products coming with the certificates of CE,ISO9001.
