Precision Electrode Battery Die Cutting Machine

Product Overview

Description

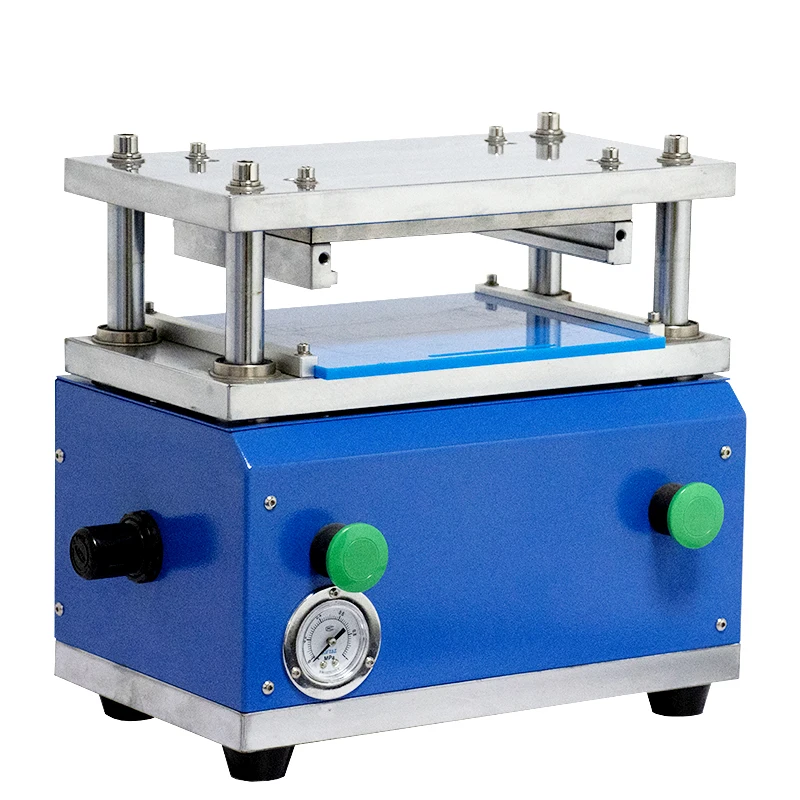

Precision Electrode Battery Die Cutting Machine

Model	Pneumatic Battery Electrode Die Cutter
Stroke	35mm
Vertical burr	≤12μm
Horizontal burr	≤20μm
Punching accuracy	±0.1mm
feeding way	manually
Max punching size	L85*W65mm Or customized according to requirements
Punching pressure	Max. 1T (0.5MPa compressed air) Punching the battery electrode recommended pressure 500Kg
equipment production capacity	800-2000 - ea/H die cutting efficiency is lower (sheet material)
Compressed air	0.5MPa If placed in a glove box, the gas used is the same as that used in the glove box.

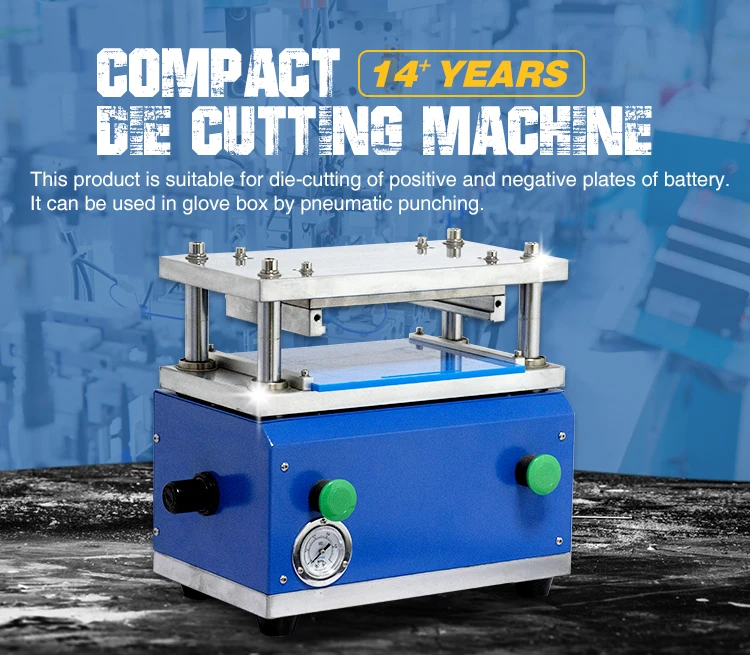

Pneumatic Battery Electrode Die Cutter Feature:

* replacement of die cutter is convenient, quick, consumable (die cutter is life about 30000 times);
* manual and continuous feeding, automatic discharging, and can automatically separate waste;
* no quality defects such as burrs, off powder, indentation;
* between manual and automatic, high efficiency, 800-2000 / per hour;
* simple operation, safe and reliable, beautiful appearance, small size.

We can also provide:
1.) A full set of lithium battery materials, including:
LiMn2O4, LTO, LiNiMnCoO2 (NMC), LiCoO2, graphite (MCMB) and other positive and negative battery materials; aluminum foil, copper foil, battery separator, etc.
2.) A full set of lithium battery equipment, such as:
Mixer--coating machine--oven--rolling machine--welding machine--slitting/cutting machine--winding machine--sealing machine, etc.
