lifepo4 614v lithium battery 400v 200kw salt battery pack for electric bus, lifepo4 96v 200ah battery pack
- Category: >>>
- Supplier: Hunan CTS Technology Co. LTD
Share on (1600723947816):
Product Overview
Description
lifepo4 614v lithium battery 400v 200kw salt battery pack for electric bus, lifepo4 96v 200ah battery pack

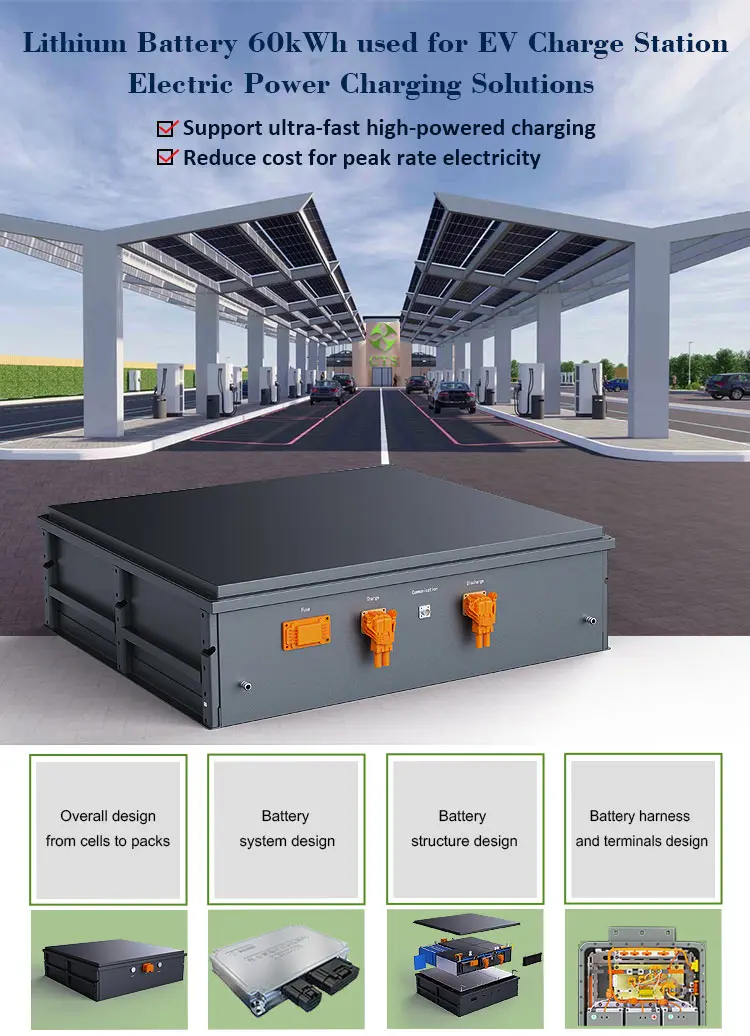

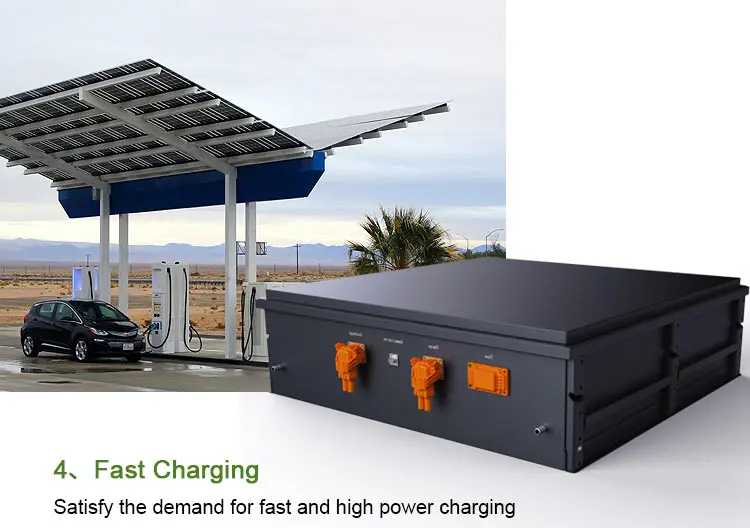

Support ultra-fast high-powered charging
Reduce cost for peak rate electricity
Parameters of 614v 100Ah Lifepo4 storage battery pack for charging station | ||||
No. | Items | Technical requirement | ||
1 | Battery type | 614.4V 100AH Lifepo4 Battery | ||
2 | Cell | 3.2V 100AH LFP Prismatic cell | ||
3 | Energy | 61440wh at 23±2℃ | ||
4 | Connections | 192S1P | ||
5 | Working voltage | 480V ~700.8V | ||
6 | Charging Voltage | 700.8V±0.15V | ||
7 | Discharge cut-off Voltage | 480V±0.3v | ||
8 | Standard Charging | 50A | ||
9 | Max Charge Current | 100A(CCS2 fast charging function) | ||
10 | Standard Discharging | 100A | ||
11 | Max Discharging Current | 160A/10S | ||
12 | Communication | CAN bus | ||
13 | Liquid cooling | support | ||
14 | BMS | BMS+ Relay | ||
15 | Housing | IP67 Steel Case | ||
16 | Dimension | 1200*1050*650mm | ||
17 | Working temperature | Discharging: -20 to 55℃ , Charging ：0 to 55℃ | ||
18 | Weight | About 600kg | ||
2 meters charging & discharging and communication cable, CAN card x 1. | ||||

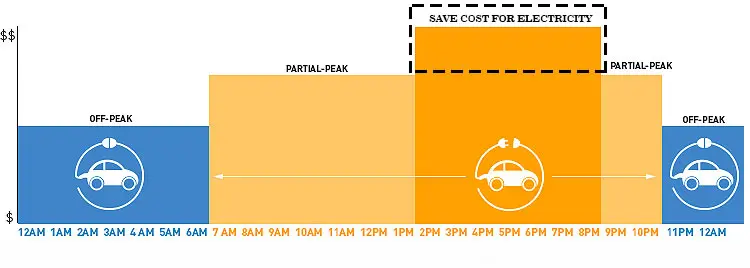

In some areas with large difference in peak and valley electricity prices, lithium batteries can store electricity when the electricity price is low, and release electricity when the electricity price is high,which can effectively reduce the charging cost.
1、Safer
Reliable lifepo4 cells, multi-tiered safety system.
2、Relieve the pressure of power grid and save the energy cost

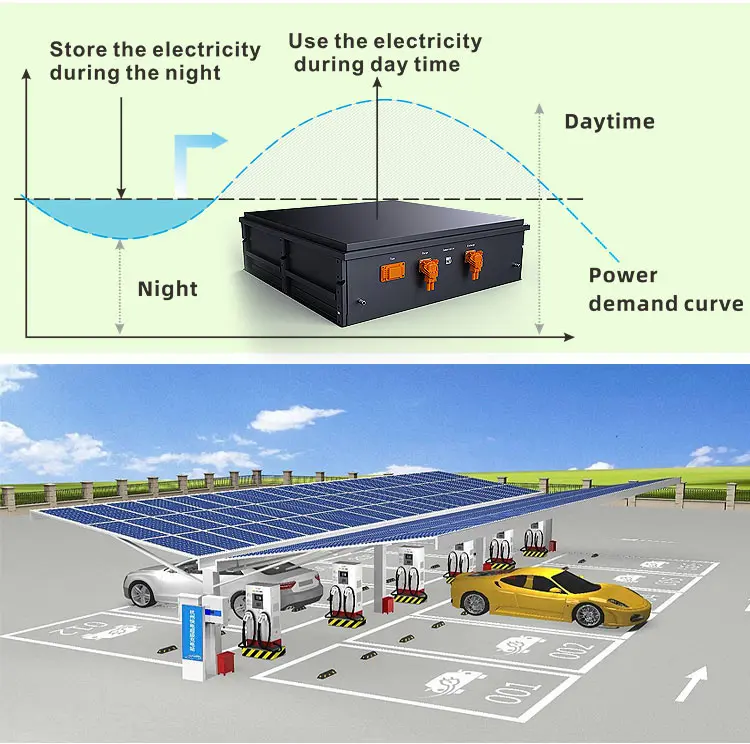

The energy storage battery gives full play to the function of storing energy and optimizing configuration: it is charged and stored at night when electricity consumption is low, and released to charging piles during the day when electricity consumption peaks to charge electric vehicles.
1. It alleviates the impact of the high-current charging of the charging pile on the regional power grid during the charging peak;
2. Through the peak-to-valley price difference, it can save energy cost and brings very high benefits to your project.
The energy storage battery gives full play to the function of storing energy and optimizing configuration: it is charged and stored at night when electricity consumption is low, and released to charging piles during the day when electricity consumption peaks to charge electric vehicles.
1. It alleviates the impact of the high-current charging of the charging pile on the regional power grid during the charging peak;
2. Through the peak-to-valley price difference, it can save energy cost and brings very high benefits to your project.
3、Longer life

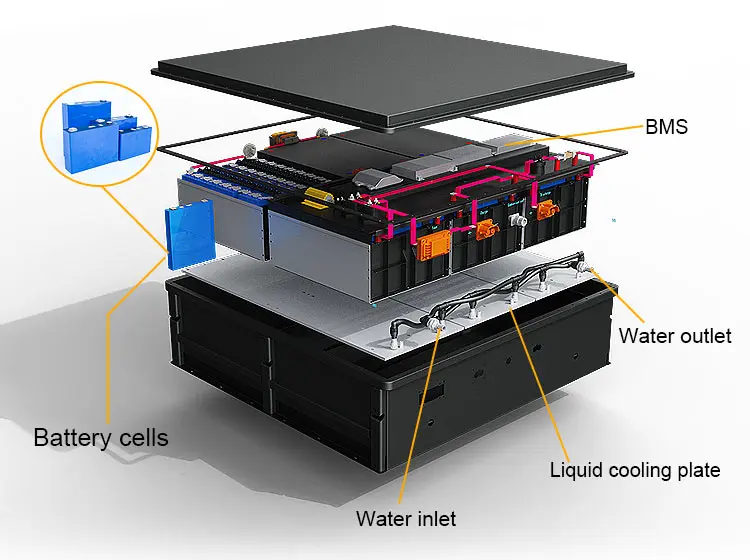

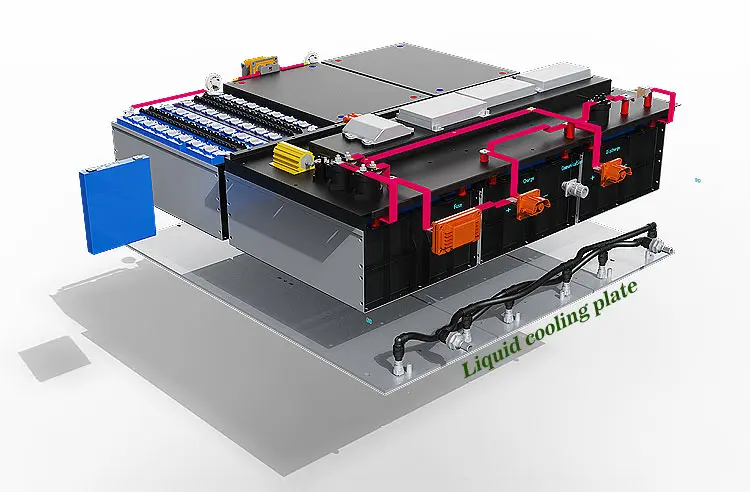

Redesigned liquid cooling system for improved thermal consistency and longer life.
Redesigned liquid cooling system for improved thermal consistency and longer life.
1. Electric vehicle charging and changing power station, various parking lots, residential areas, commercial centers and other places.
2. Government departments, banks, finance and other important departments that need uninterrupted power supply.
3. Colleges and universities, scientific research institutes, etc.
4. Stations, docks, airports, etc.
5. Enterprises and business centers with unstable power supply.
6. Outlying islands and remote mountainous areas, pastoral areas, etc.
7. Solar energy and wind energy complementary system.
3. Colleges and universities, scientific research institutes, etc.
4. Stations, docks, airports, etc.
5. Enterprises and business centers with unstable power supply.
6. Outlying islands and remote mountainous areas, pastoral areas, etc.
7. Solar energy and wind energy complementary system.
CTS new generation of lithium-ion battery will make sure the high-quality and safe battery application solutions.

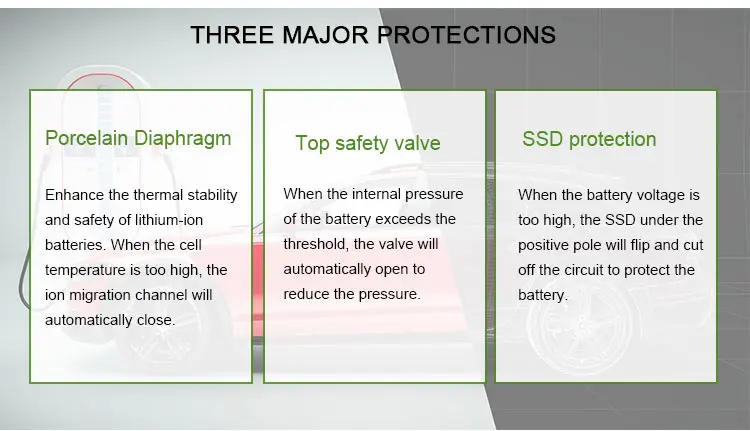

We own three level safety protection fully protects the battery.
We own three level safety protection fully protects the battery.
NMC 72V 200Ah Lithium battery | ||
Battery Type | NMC | |
Capacity | 200Ah @25℃ | |
Voltage | 72v | |
Weight | 130.5kg | |
Working voltage | 60v - 84v | |
Battery power: 14.4 kWh Client Country: Canada, in operation since 2015 | ||
NMC 96V 400Ah Lithium battery | ||
Battery Type | Lifepo4 | |
Cpacity | 400Ah @25℃ | |
Voltage | 96v | |
Weight | 337kg | |
Working voltage | 75-109.5 | |
Battery power: 38.4 kWh Client Country: New Zealand, In operation since 2020 | ||
NMC 144V 100Ah lithium battery | ||
Battery Type | NMC | |
Capacity | 100Ah @25℃ | |
Voltage | 144v | |
Weight | 130.5kg | |
Working Voltage | 120v - 168v | |
Battery power: 14.4 kWh Client Country: Thalaind, In operation since 2020 | ||
Lifepo4 144v 200Ah lithium battery | ||
Battery Type | Lifepo4 | |
Capacity | 200Ah @25℃ | |
Voltage | 144v | |
Weight | 192kg | |
Working Voltage | 120v - 168v | |
Battery power: 28.8 kWh Client Country: Germany, In operation since 2020 | ||
