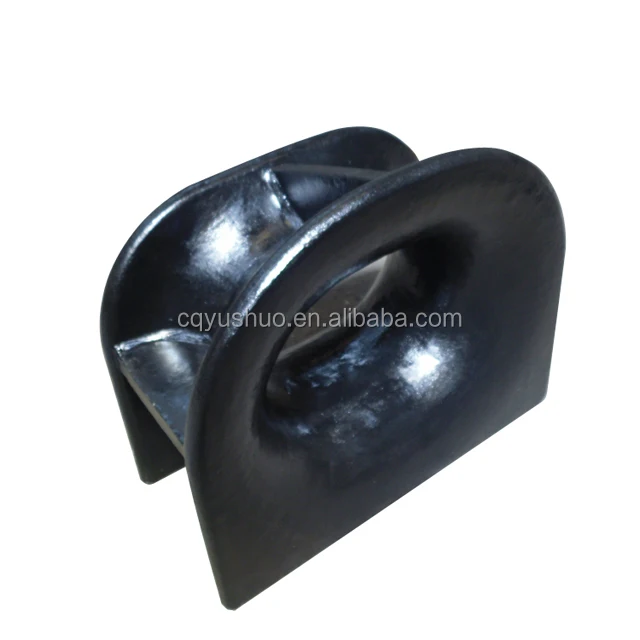

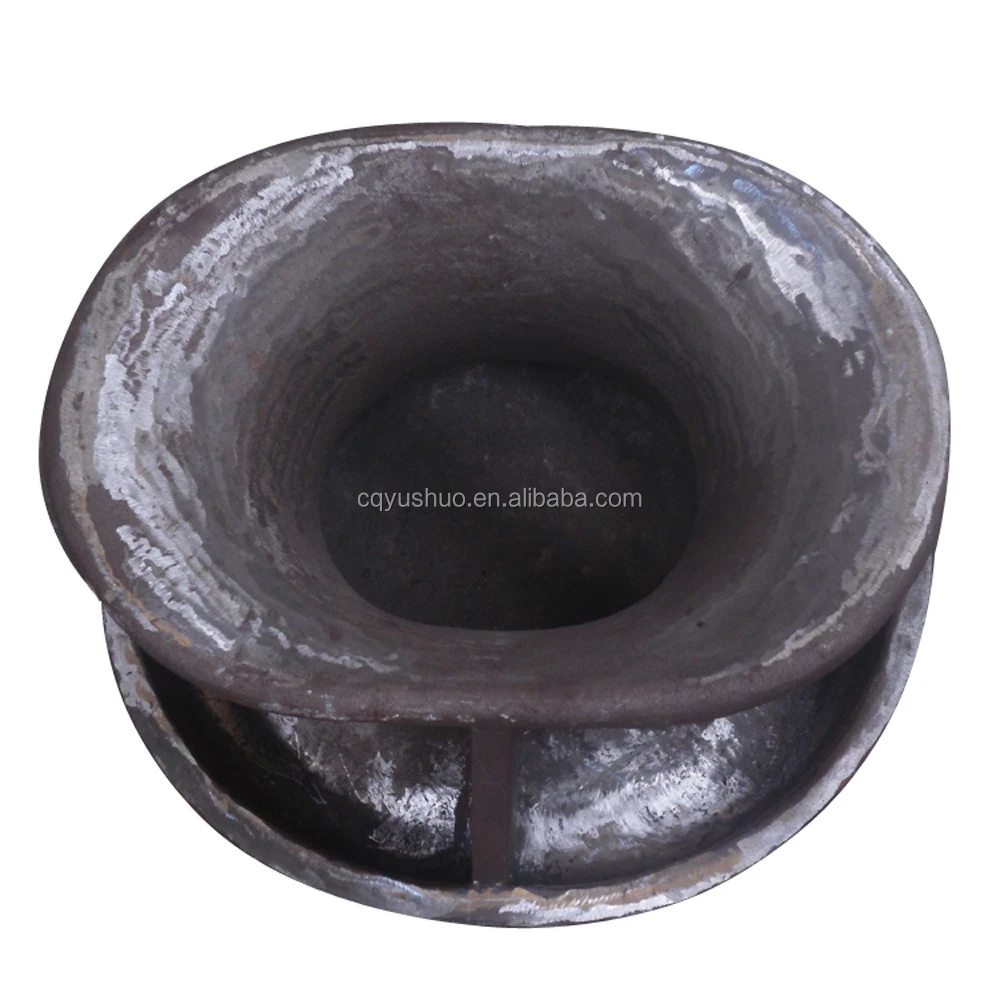

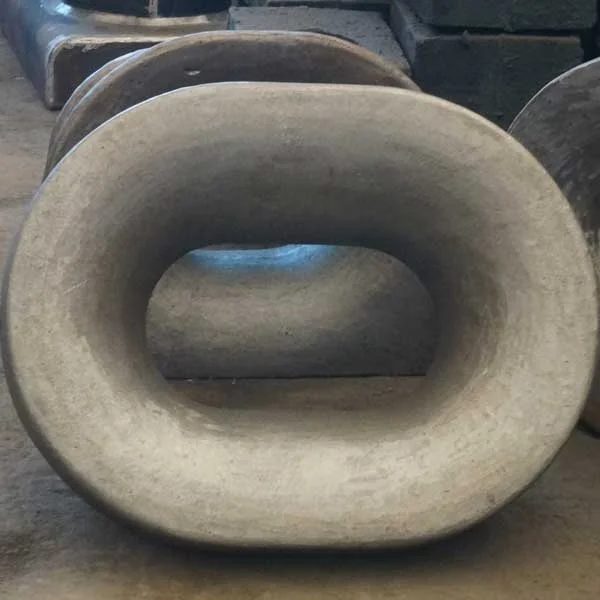

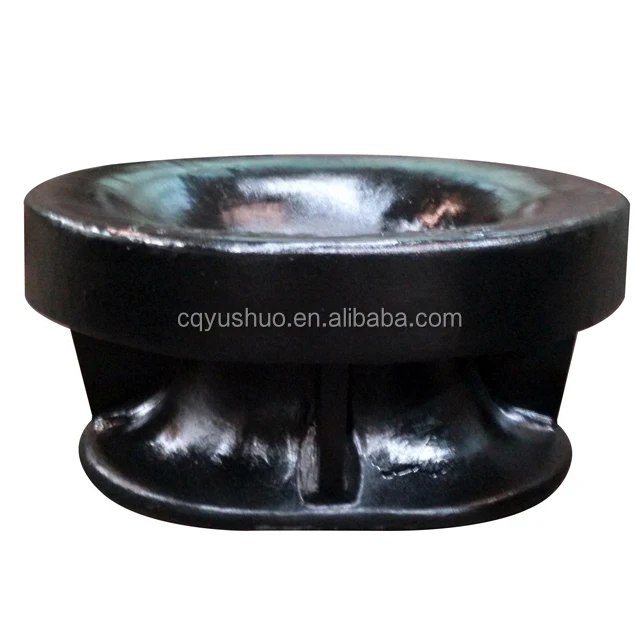

Ship Boat Marine Mooring Panama Chock

The mooring chock is a very important mooring equipment. In the process of mooring ship, it bears huge loads. Usually, the ship bollards and mooring chock are for the whole ship mooring use. The general bow and stern of ship blocks the bollard fairlead, quantity large. Of intermediate section above without or bollards, fairlead rarely. Fairlead is oblique chock more insurance, because it is closed, the cable will not jump out. The triangle chocks are widely used for small boats and different vessels, such as container vessel, tankers, bulk carriers, tug, dry cargo vessels, etc.
Marine mooring chock has two types: deck mounted chock & bulwark mounted chock. The material is casting steel ZG230-450 normally.
SWL will be from 8KN to 3000KN according to your requirements. IACS approved quality to withstand all conditions. BV, ABS, LRS, DNVGL, RS, IRS, CCS, KR, NK is available. We could also provide you with a customized design with CAD drawings.


Technical Parameters


JIS F 2017-1982 Panama Chock

JIS F 2017-1982 Panama Chocks are popular as mooring equipment, which can stand great loads when mooring ships and vessels. The JIS F 2017-1982 panama chocks are normally adopted for ships passing through the Panama Canal which are normally assisted by
locomotives using steel towing wire. These panama chocks meet normal mooring requirements and Panama Canal requirements. There will be also two type of JIS F 2017-1982 panama chocks according to their installation site: JIS F 2017-1982 deck mounted panama chock (AC type) and JIS F 2017-1982 bulwark mounted panama chock (BC type).

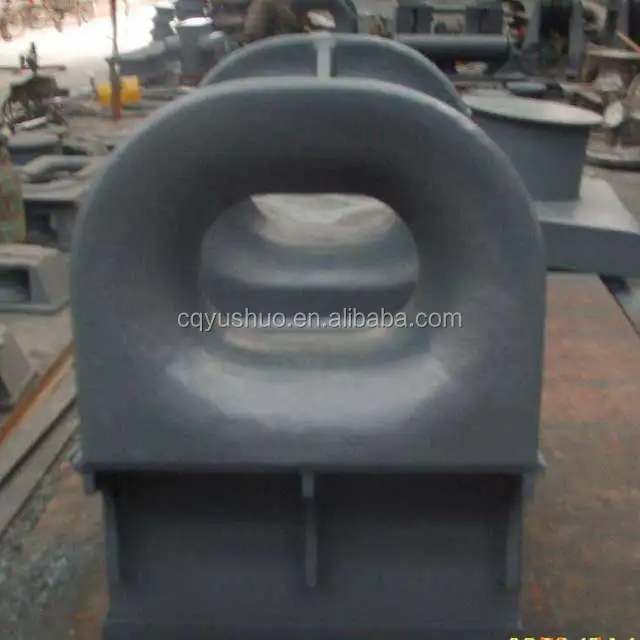

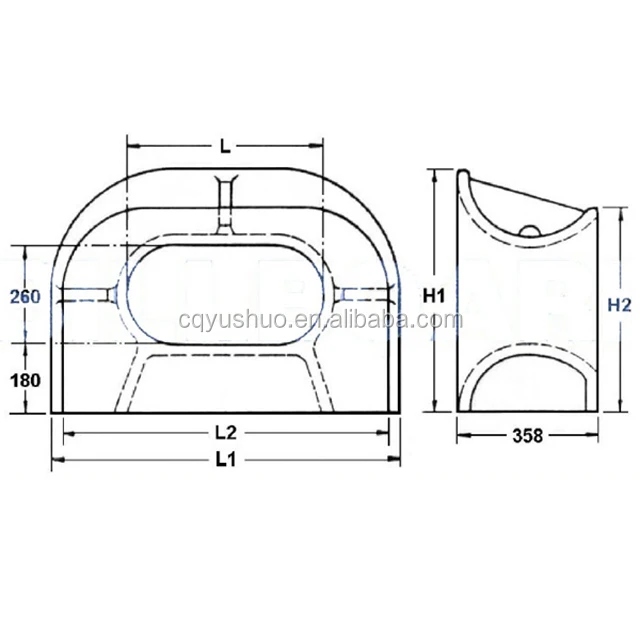

JIS F 2017-1982 Deck Mounted Panama Chock (Type AC)

Material: Cast steel
Weight: 293kg to 395kg
Finishing: the panama chocks shall be coated externally with an anti-corrosion protective finish.
Installation site: on the deck




JIS F 2017-1982 Deck Mounted Panama Chock (Type AC)
Nominal Size
(mm)
Dimensions(mm)
Weight
(kg)
L
L1
L2
H1
H2
310
310
708
652
639
541
253
360
360
760
704
640
542
289
400
400
804
804
642
545
323
450
450
856
856
643
547
351
500
500
908
908
644
549
395

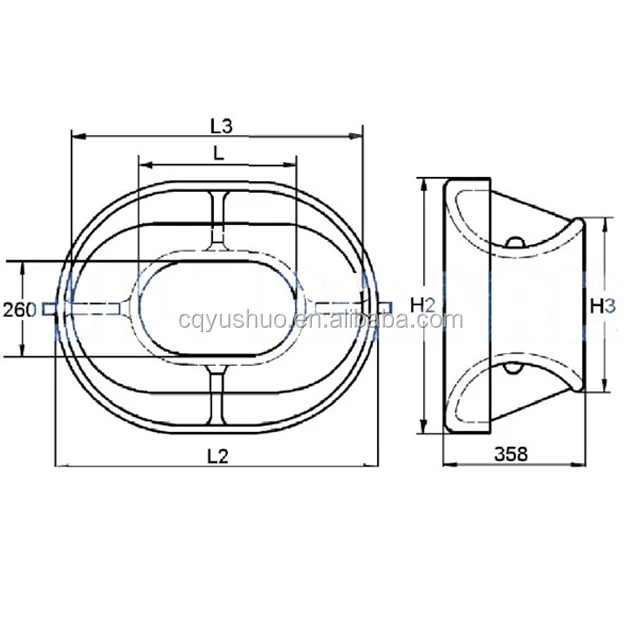

JIS F 2017 Bulwark Mounted Panama Chock (Type BC)
Nominal Size
(mm)
Dimensions(mm)
Weight
(kg)
L
L2
L3
H2
H3
310
310
734
652
684
462
276
360
360
788
701
688
464
305
400
400
832
750
692
470
344
450
450
886
802
696
474
385
500
500
940
854
700
478
422


Details Images

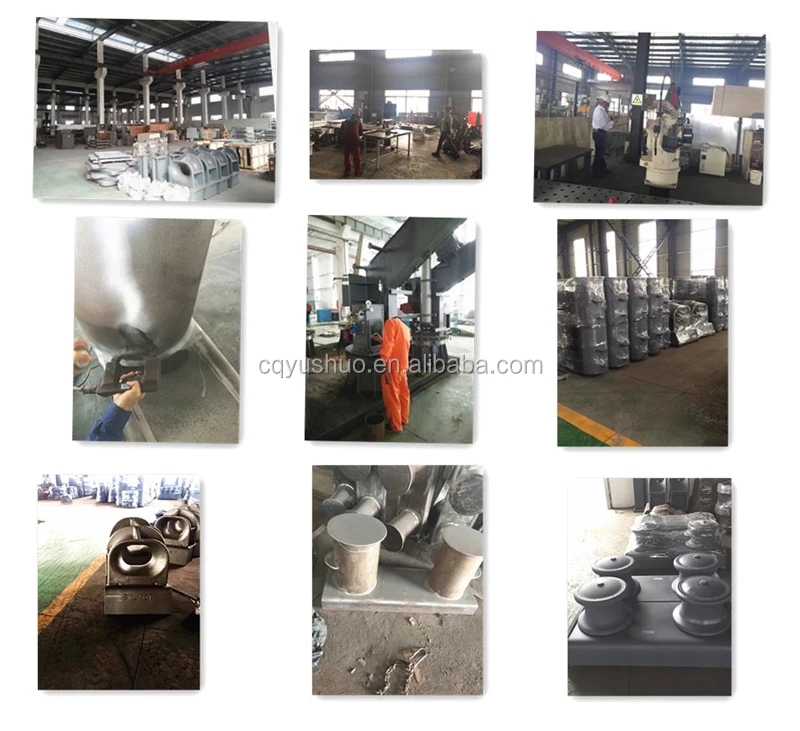

Production

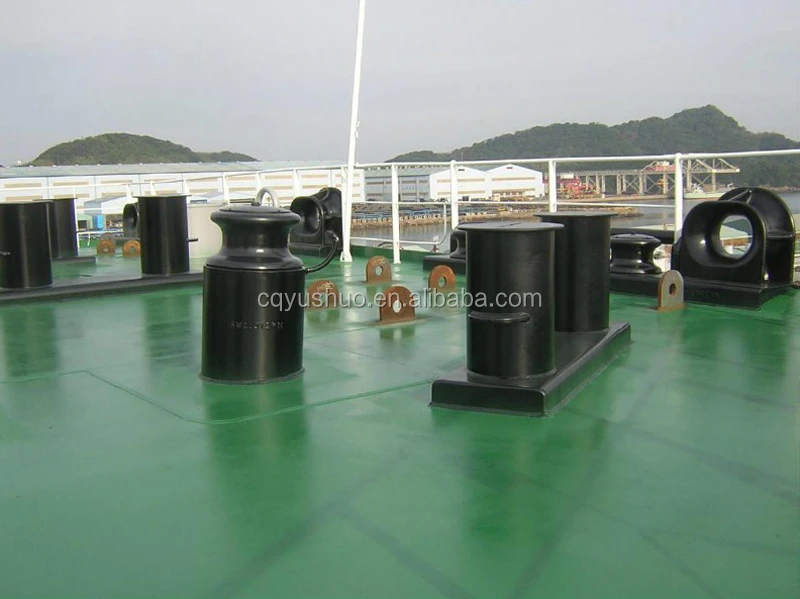

Product Application

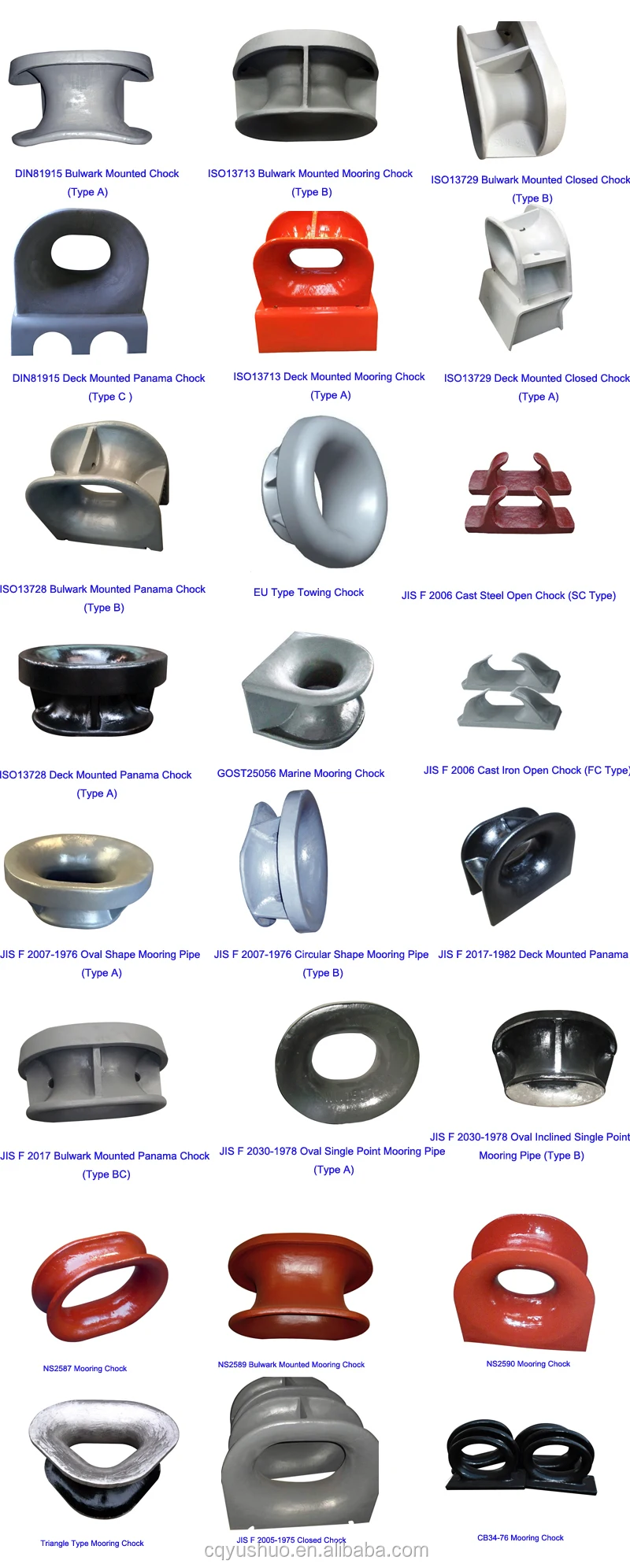

Related Products

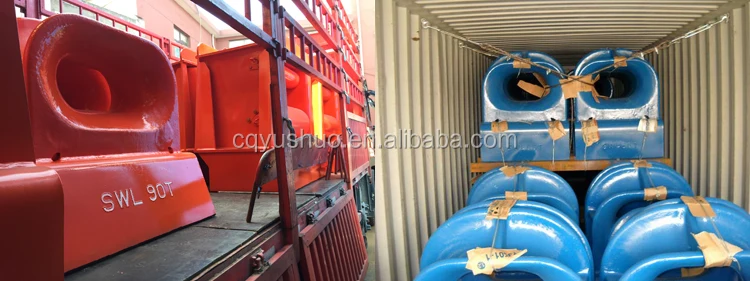

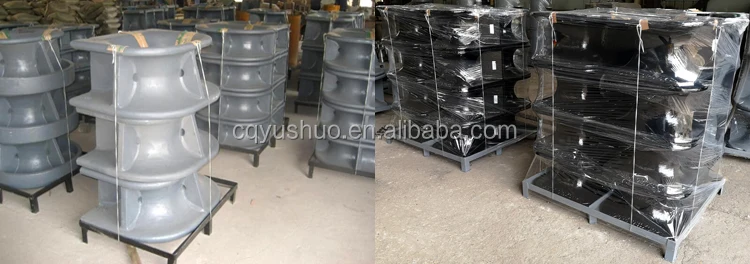

Packaging and shipping
