Automatic longitudinal seam automatic laser welding machine stainless steel pipe automatic linear welder
- Category: Seam Welders >>>
- Supplier: Jinan Haoyu Automation System Co. Ltd
Share on (1600724030754):
Product Overview
Description
Product Description
Product Description

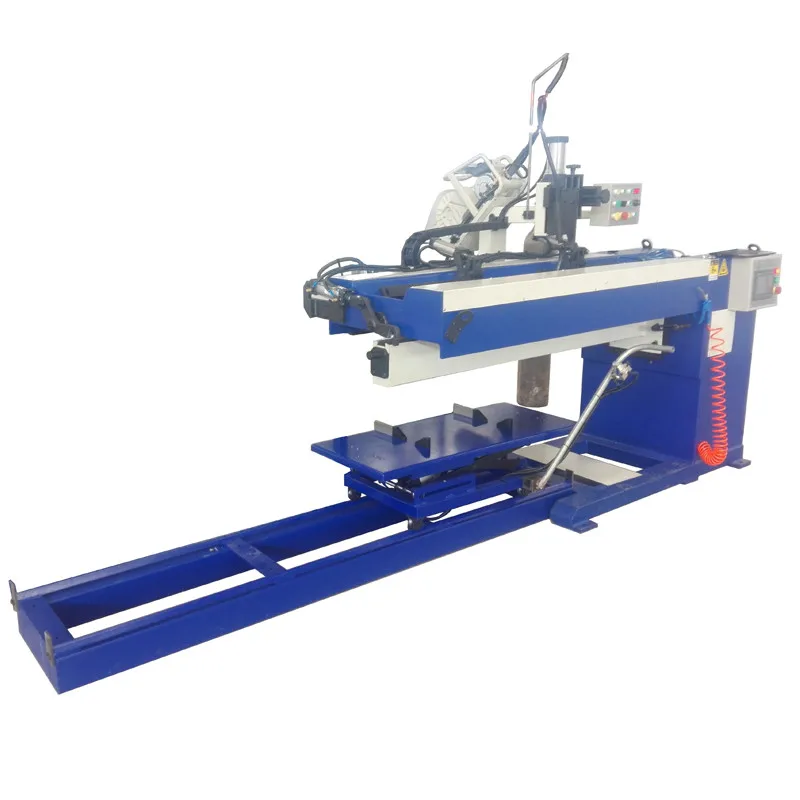

Automatic longitudinal seam automatic laser welding machine stainless steel tank automatic linear welder
Welcome to see more work video on our Yutube Channel : www.youtube.com/c/haoyucncweld
Technique Parameters
II Technique Parameters
| No. | Items | specification |
1 | Applicable diameter | customized as the pipe size |
2 | Applicable length | <3000mm |
3 | Material thickness | >0.8mm |
4 | Material | Steel or stainless steel or aluminum or cooper or cast iron or other metal |
5 | Control system | Japan Omron PLC and touch screen |
6 | Welding speed | 500~700mm/min |
7 | Welding torch moving range in left-right direction | 100mm |
8 | Welding gun lifting range | 100mm |
9 | Welding power source | Miller or lincoln or fronius or Japan OTC or panasonic or China Aotai |
10 | Machine working voltage | 380v 3phase 50hz for welding power 220v 3phase 50hz for automatic welding machine |
III Main structure
I.Machine function and Features
1.Automatically laser weld the longitudinal seam of the Pipe as customers’ drawing, Welding process will be continual and steady.
2.Before welding ,adjust the welding torch position.During the welding, the Pipe is fixed ,and the welding torch is drive by motor to move left and right on the beam ,the speed is adjustable to ensure consistent welding. After welding,the welding torch return the original point automatically.
3. the machine use Japan OMRON PLC to control the welding torch and other device and achieve the welding process, improve reliability.controls the whole machine operation.
4.use the MCGS brand touch screen as the setting interface ,it is convenient to change parameters and state conversion through the torch screen interface.The Arc start ,post gas time ,can preset the different set welding parameters for different size Pipe ,and recall to use when need.
5.The welding carriage move stroke and welding length are all can set on the touch screen ,and adjust the welding start position of welding carriage at any time by motor drive ,meet different size and different welding position.
6.the welding torch can manual fine adjust Three-dimensional direction to reach the best welding position .suitable different size cylinder Pipe. it can be locked after adjustment.Machine has good operating performance and low failure rate.
7.Adopt heavy duty welded machine bed, Pipe is positioned and fixed by double side copper plate and ,.convenient and quick for centering, good concentricity, and small deformation.
8.The machine equipped with the function of high voltage, slow wire feeding and arc ignition to ensure reliable arc ignition, as well as low voltage and low current arc closing and arc crater filling functions.
9. We are using copper clamping bar and copper back bar in your machine. They can be for steel, stainless steel and Aluminum. Copper bar is used to conduct both heat and electricity. Firmly clamp work-piece. It is also used to protect steel surface. Surface of the cylinder/tank will not have scratch and mechanical damage.

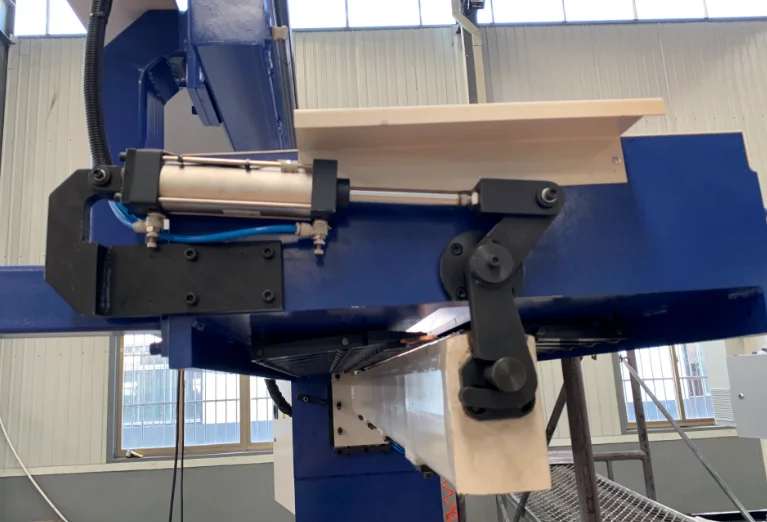

10.Easy assembly and fixation.Tank is centrally positioned and clamped by round core axis and pneumatic pressure plate. Cylinder/tank is centrally positioned by pneumatic pin.
11. Equipped with pneumatic cylinders to fix product. Cylinders are used to control copper clamping bar. They will fix longer tank firmly.
12.There is a water-cooling system and backside shield gas protection in the copper back bar for cooling the workpiece ,and reduce the oxidation of pipe
13.Push-type wire feeder is installed at the moving arm of the torch holder for short distance wire feeding and give stable feeding.Machine is with high welding voltage and slow wire feeding performance, which guarantees reliable arc igniting. Machine is also with low welding voltage and low welding current for filling crater.
14.Working Procedures
14.1.Loading the Pipe to the feeding lift trolley manually
14.2.Clamping the Pipe on the support shaft automatically
14.3. Supplying shielding gas automatically and Welding torch going down automatically
14.4. Completing the welding seam as the program automatically
14.5.Welding torch lifting up and go back to the original point automatically
14.6 Release the Pipe from support shaft automatically
