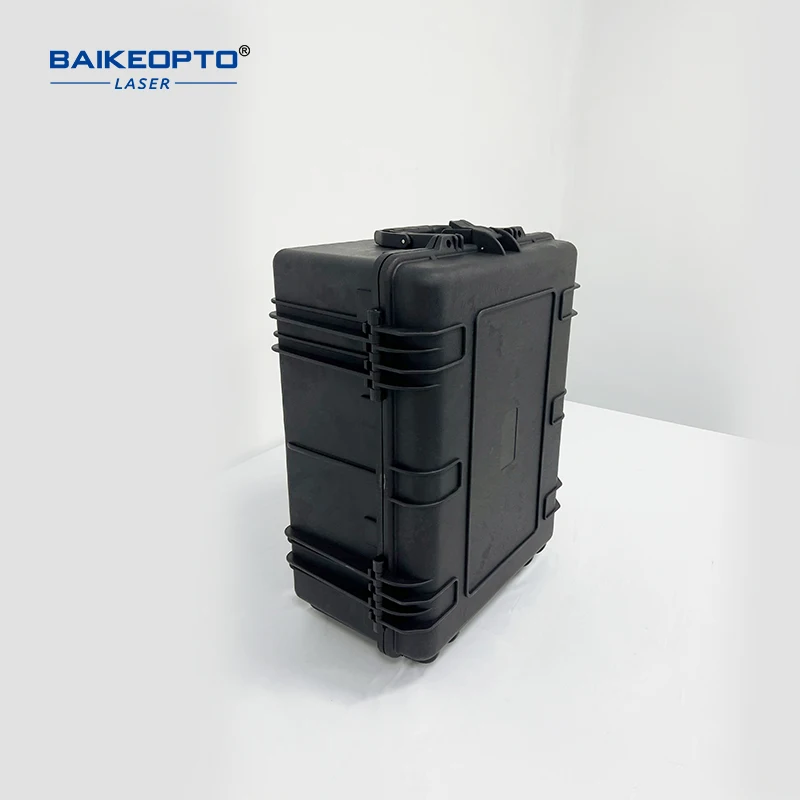

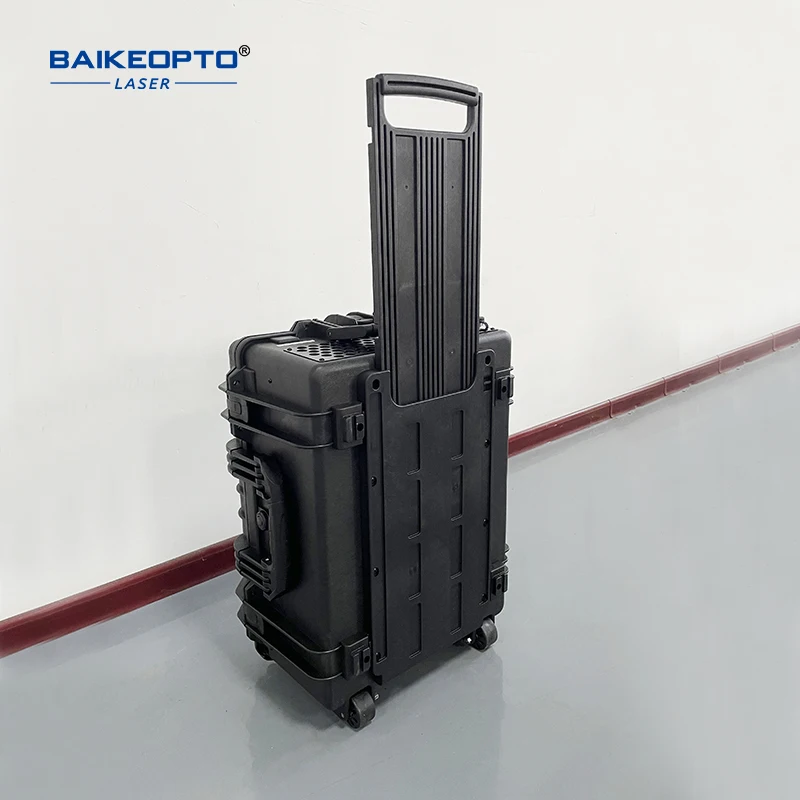

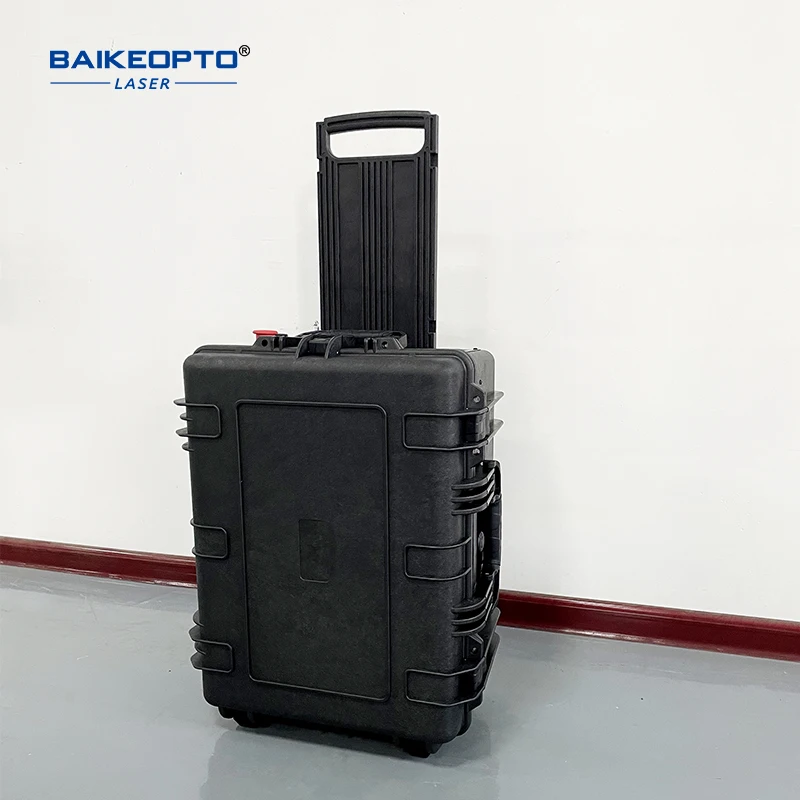

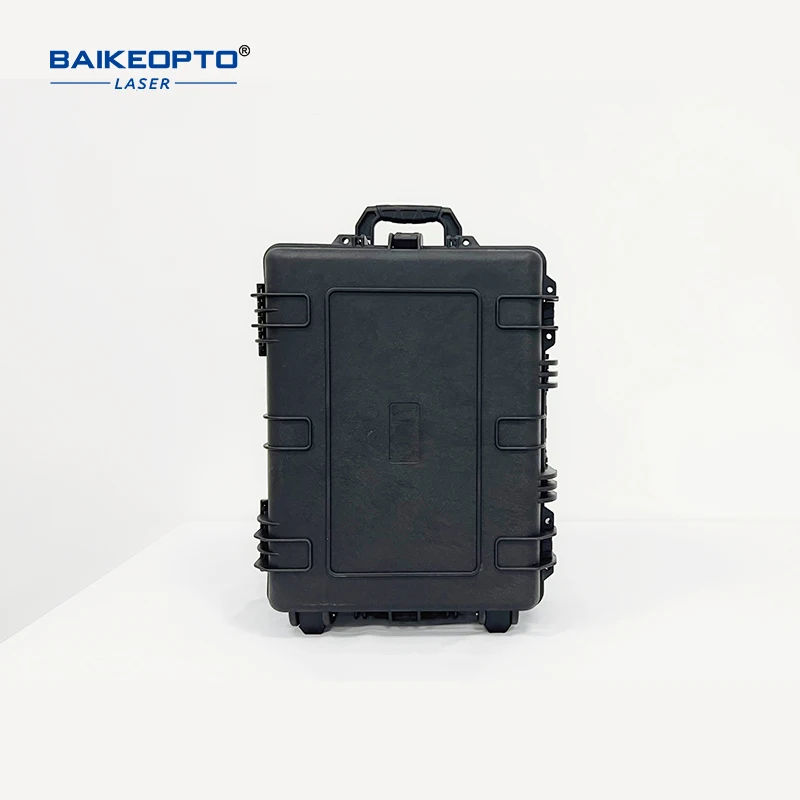

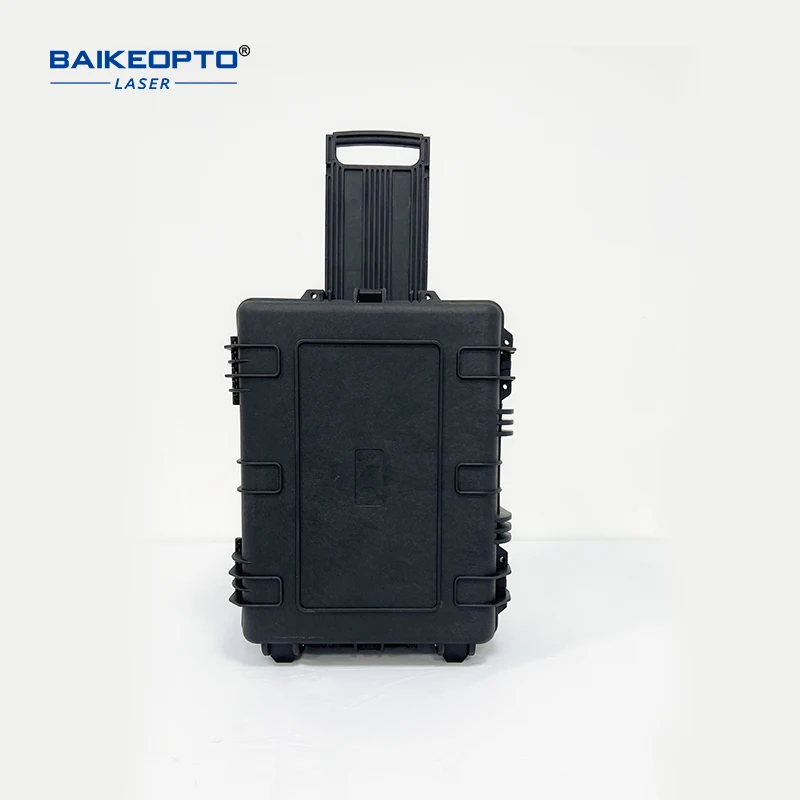

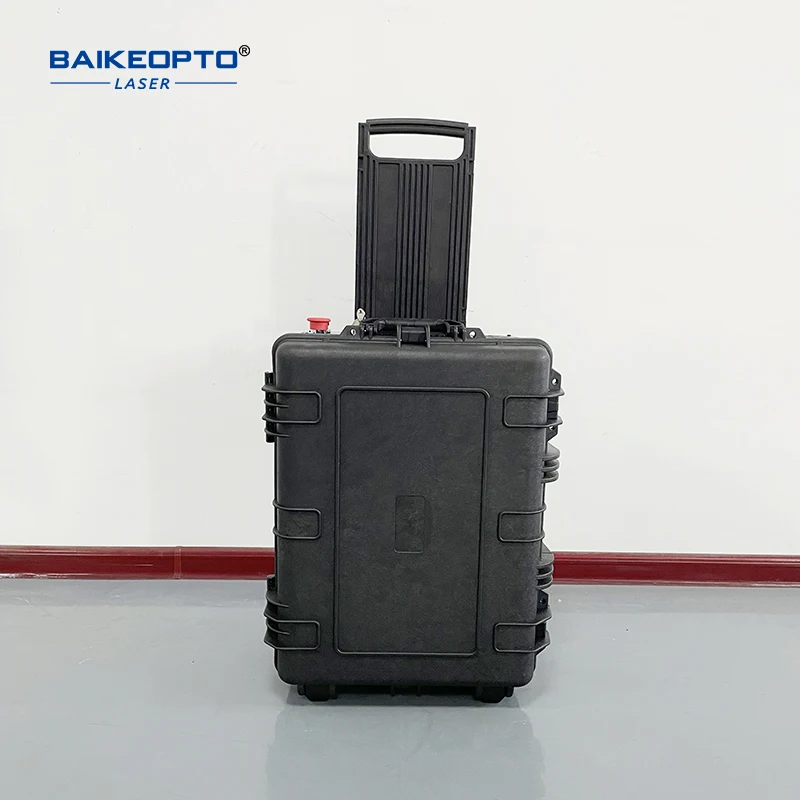

Mobile Trolley Case Rust Removal Surface 100W Laser Cleaning Machine for Metal/Oxide/Painting Lazer Derusting
- Category: >>>
- Supplier: Wuhan Baike Intelligent Technology Co. Ltd.
Share on (1600724087253):
Product Overview
Description
Product Description
Features
1. non-contact cleaning without damaging the matrix of the parts;
2. accurate cleaning, can achieve precise position, accurate size selective cleaning;
3. do not need any chemical cleaning liquid, no consumables, safety and environmental protection;
4. simple operation, hand-held or with the manipulator to achieve automatic cleaning;
5. ergonomics design, operating labor intensity greatly reduced;
6. trolley design, with its own moving wheel, easy to move;
7. High cleaning efficiency, save time;
8. laser cleaning system is stable with little maintenance;
2. accurate cleaning, can achieve precise position, accurate size selective cleaning;
3. do not need any chemical cleaning liquid, no consumables, safety and environmental protection;
4. simple operation, hand-held or with the manipulator to achieve automatic cleaning;
5. ergonomics design, operating labor intensity greatly reduced;
6. trolley design, with its own moving wheel, easy to move;
7. High cleaning efficiency, save time;
8. laser cleaning system is stable with little maintenance;
Product parameters
Operating environment | ||
Content | GY-FLC100SL | |
Supply voltage | Single phase220V±10% 50/60Hz AC | |
Power consumption | ≤800W | |
Working environment temperature | 5℃～40℃ | |
Working environment humidity | ≤80% | |
Optical parameters | ||
Average laser power | ≥100W | |
Power instability | ＜5% | |
Laser Working Mode | Pulse | |
Pulse width | 10-500ns | |
Maximum monopulse energy | 1.5mJ | |
Power regulation range (%) | 0-100 (Gradient Adjustable) | |
Repeat frequency (kHz) | 1-3000 (Gradient Adjustable) | |
Fiber length | 5m | |
Cooling mode | Air cooling | |
Cleaning Head Parameters | ||
Scan range (length * width) | Uniaxial: 0mm-100mm, continuously adjustable; | |
Biaxial: supporting 8 scanning modes | ||
Scanning frequency | The maximum is not less than 300Hz | |
Field mirror focal length (mm) | 160mm (Optional 210mm/254mm/330mm/420mm) | |
Depth of focus | About 5 mm | |
Mechanical parameters | ||
Machine size (Length, width and height) | About 500mmx680mmx200mm | |
Machine Weight | About 45Kg | |
Cleaning head weight (including isolator) | ＜0.9Kg | |
Mode of operation | Handheld | |

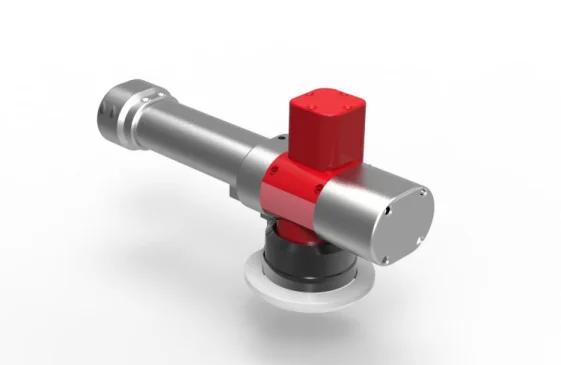

Structure of Cleaning Head

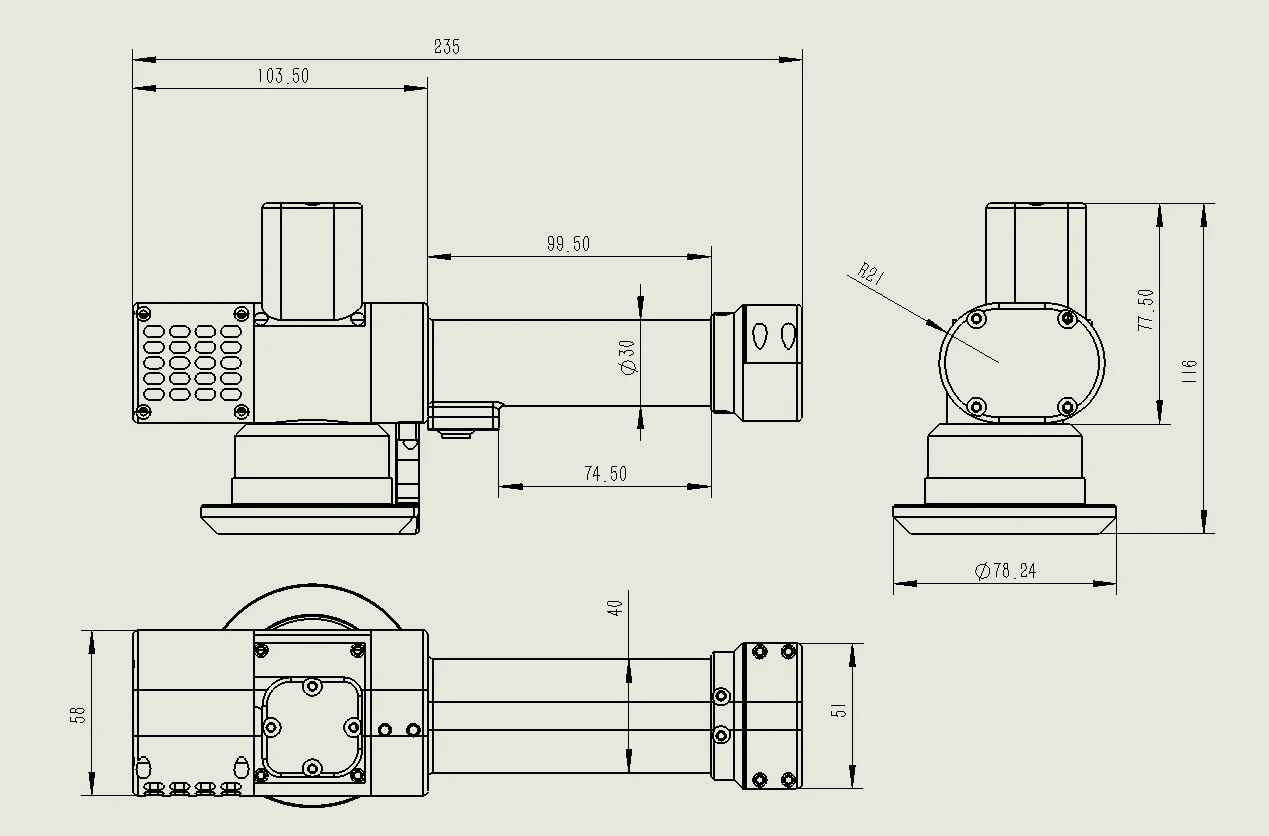

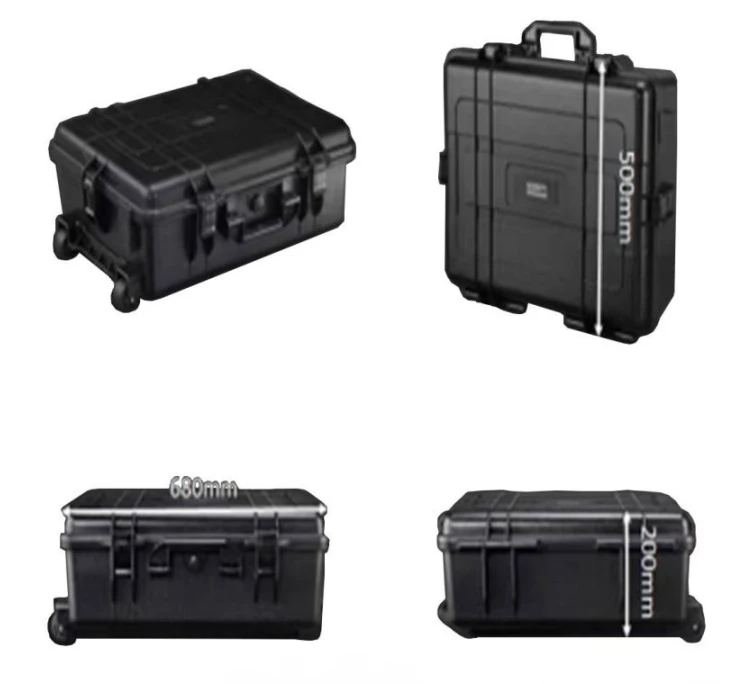

Overall dimension
Configuration list
Name of name | Model specifications | Units | Quantity |
Laser cleaning mainframe | BK-FLC100SL | Sets | 1 |
Laser cleaning head | QCDXYP200 | Sets | 1 |
Process database | Built-in | Sets | 1 |
Laser protective glasses | SD-3 | Optional | 1 |
protect the lens | 48*3 | Pcs | 5 |
Lens cleaning kit | Pcs | 10 |

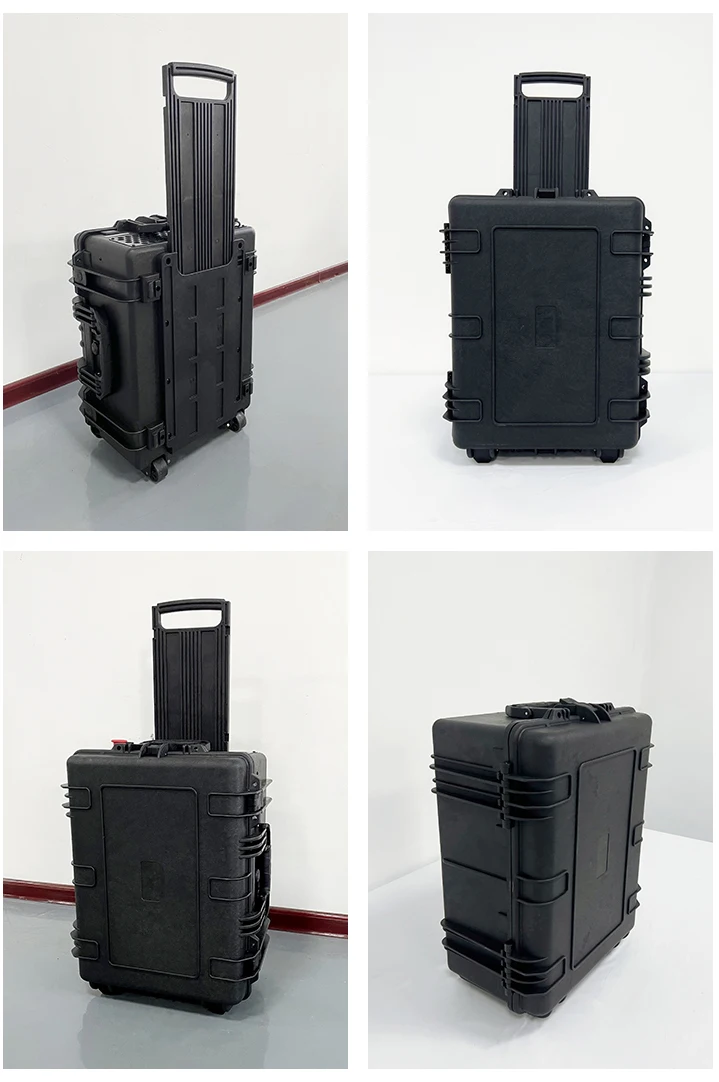

Detail Images

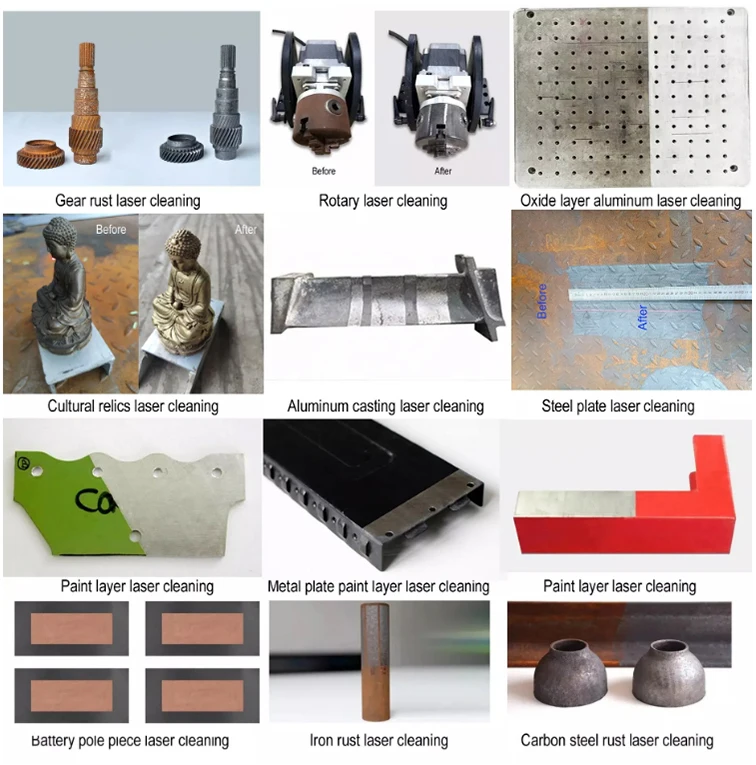

Application
