Hight Quality NPK Fertilizer Powder BB Fertilizer Mixer
- Category: >>>
- Supplier: Zhengzhou Gofine Machine Equipment Co. Ltd.
Share on (1600724101174):
Product Overview
Description
Product Overview
The main equipment of the BB fertilizer mixer adopts forward and reverse operation, and the material is mixed and output through a special internal screw mechanism and a unique three-dimensional structure. The mixing process of the BB fertilizer mixer is gentle, the material is discharged quickly, the operation is stable, the noise is small, and the original state of the material is basically not damaged. The equipment is novel in design, strong in practicability, low in price, small in floor area, large in output and even in mixing, and is deeply loved by customers.
Product Details
Product Parameter
Mixing Bucket Part | ||||||||||||
Geometric volume | Stirring volume | Barrel diameter | Tilt angle | Shape size | Installation size | Rotation speed | ||||||
3.6m³ | 2m³ | 1.6m | 13° | 3510*1600*1780 | 760*2750 | 0-10 | ||||||
5.2m³ | 3m³ | 1.8m | 15° | 4045*1800*2160 | 800*3300 | 0-10 | ||||||
6.1m³ | 4m³ | 1.8m | 15° | 4345*1800*2215 | 800*3600 | 0-10 | ||||||
8.5m³ | 5m³ | 2.05m | 14° | 4935*2050*2365 | 800*3900 | 0-10 | ||||||
9.6m³ | 6m³ | 2.05m | 14° | 4935*2050*2365 | 800*4200 | 0-10 | ||||||
10.2m³ | 7m³ | 2.15m | 16° | 5020*2150*2441 | 800*4200 | 0-10 | ||||||
11.8m³ | 8m³ | 2.2m | 16° | 5296*2200*2532 | 860*4530 | 0-10 | ||||||
13.2m³ | 9m³ | 2.2m | 14° | 5640*2200*2560 | 860*4900 | 0-10 | ||||||
15m³ | 10m³ | 2.2m | 14° | 60802200*2652 | 860*5300 | 0-10 | ||||||
Hydraulic system | The hydraulic transmission part adopts Keyi or Rongjiao reducer, joint venture plunger oil system, variable motor, domestic gear pump, cycloid needle motor, flow control reversing valve, large-volume radiator, so that the oil temperature is more constant. The system is more stable, and the output is faster and more uniform. | |||||||||||
Water supply system | Water supply in the form of compressed water tank. The capacity is 350L, 300L, 400L. | |||||||||||
Recommended Products
Quality Inspection

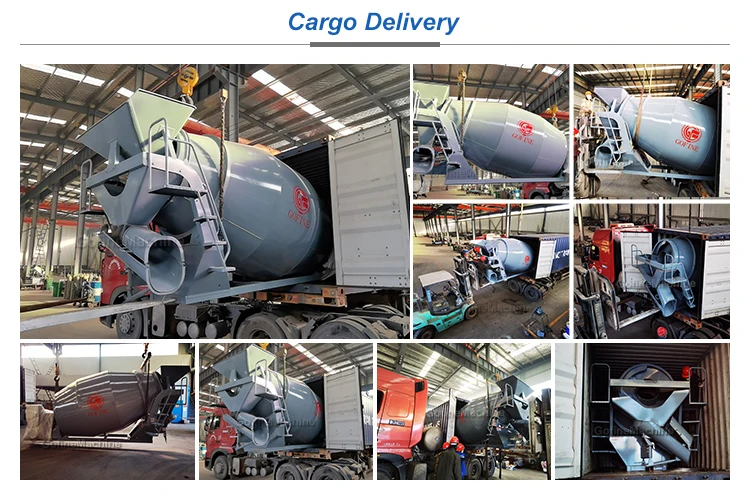

Packaging & Shipping
About Us
Zhengzhou GOFINE Machine Equipment Co., Ltd. located in Zhengzhou West Development Zone, is a large-scale fertilizer equipment supplier integrating the scientific research, production, sales, import and export services since 1987. GOFINE takes "Quality First, Customers Supreme" as its tenet,"Treat customers with honesty, create business with integrity" has been deeply rooted in the hearts of every GOFINE person. GOFINE are willing to cooperated with all the new and cooperated customers to create a glorious future together!
