Product Overview
Description
Kevin
Overview

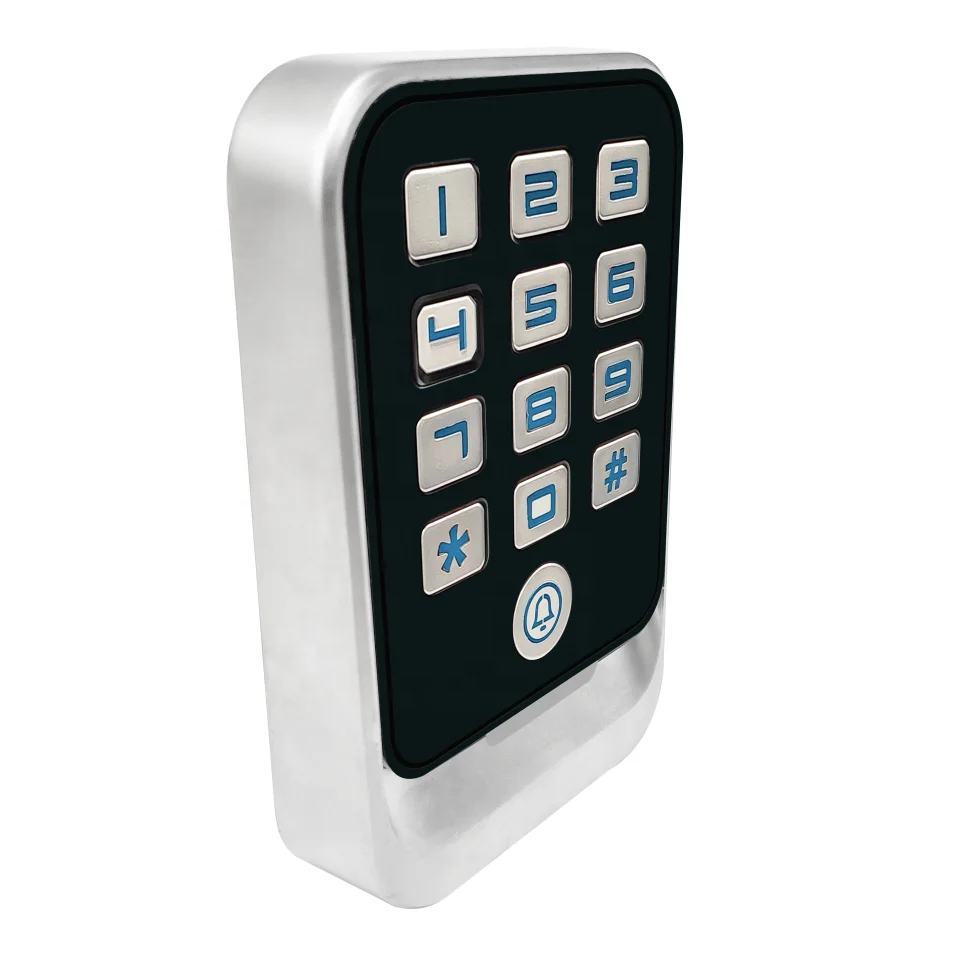

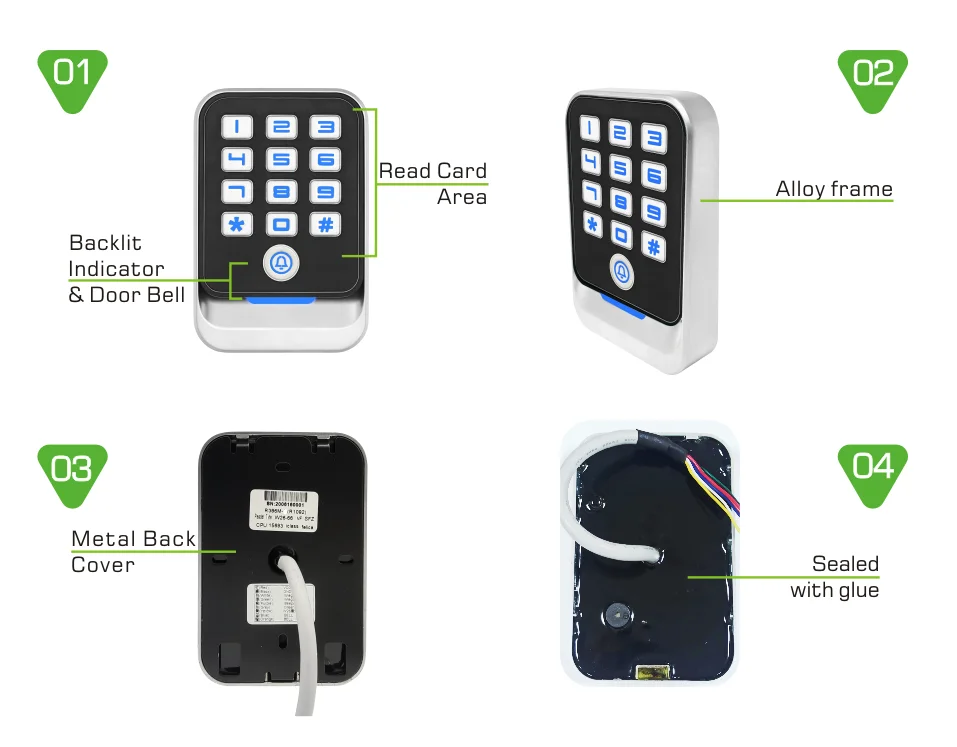

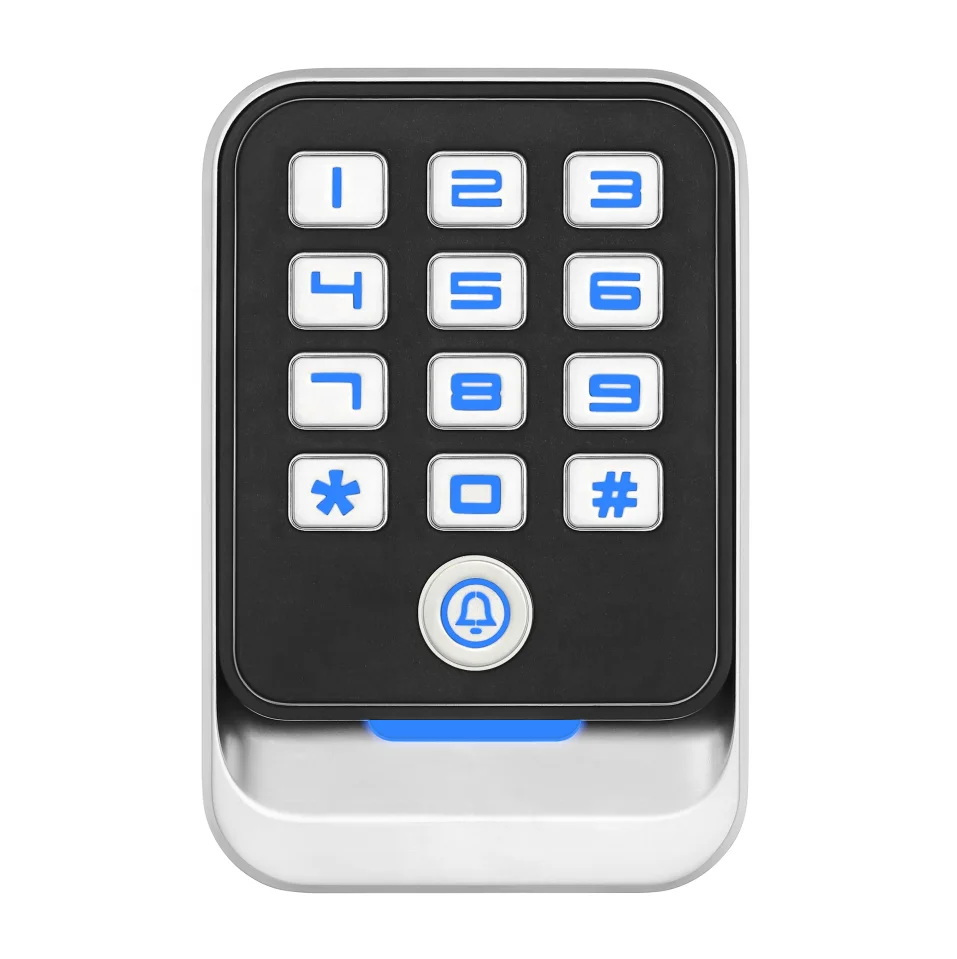

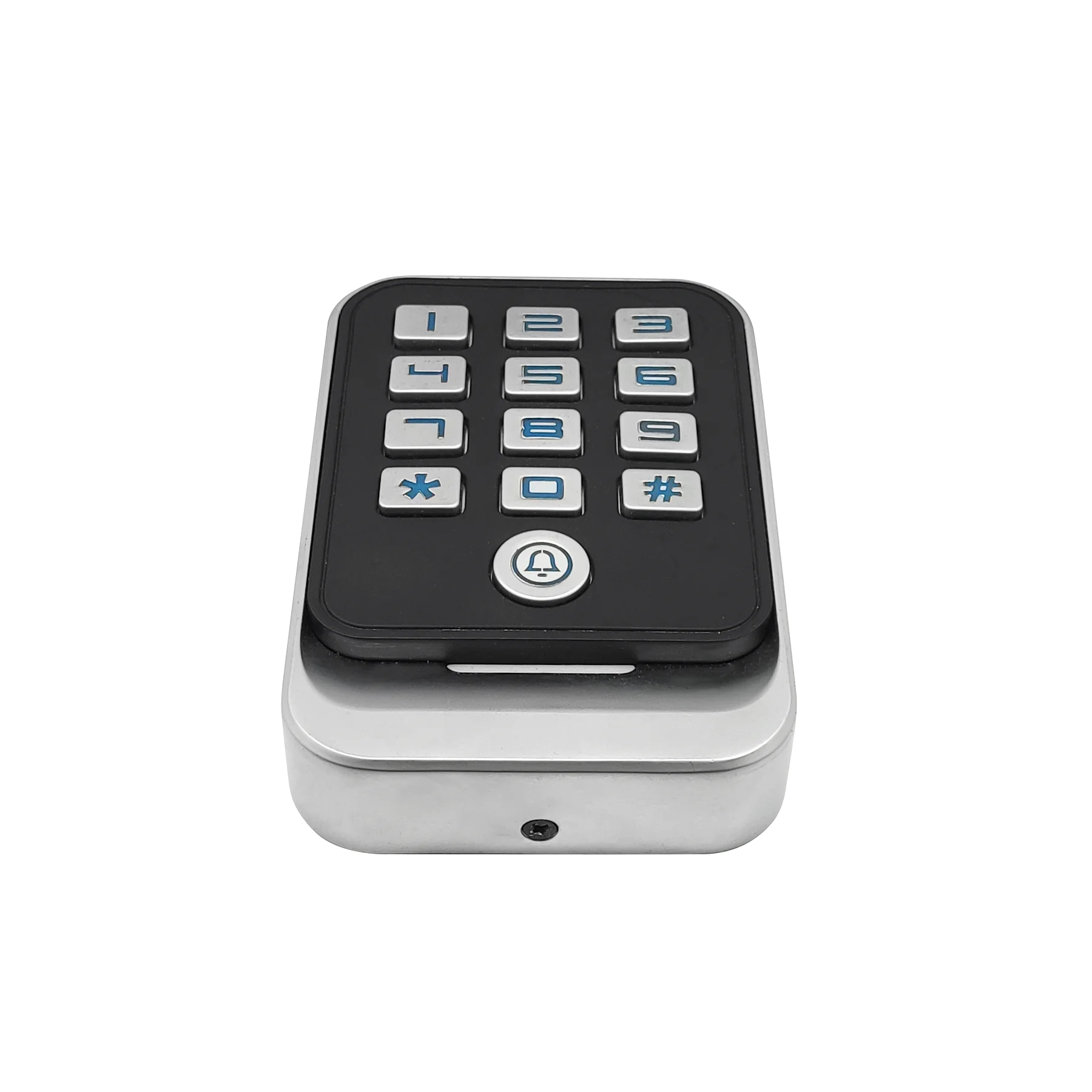

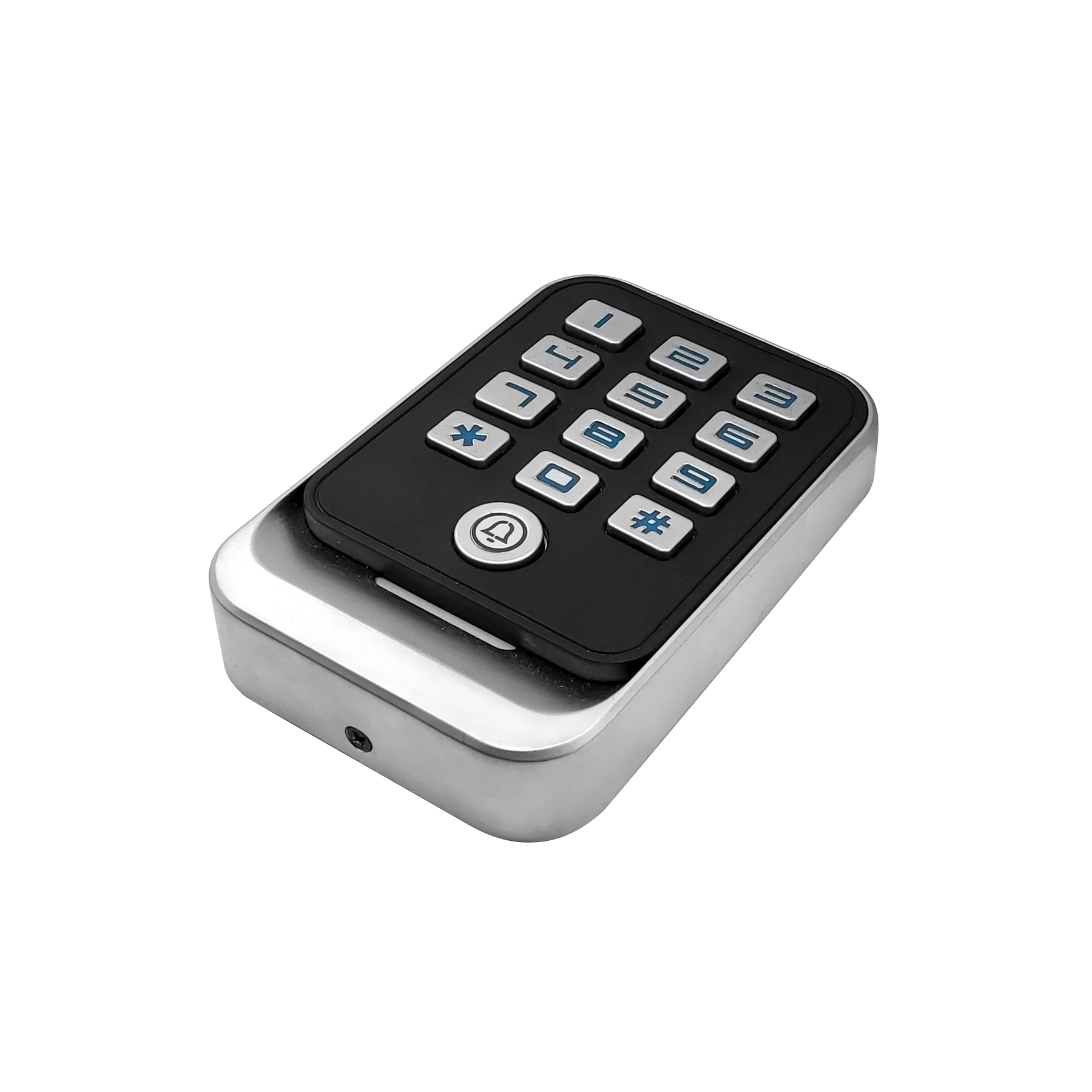

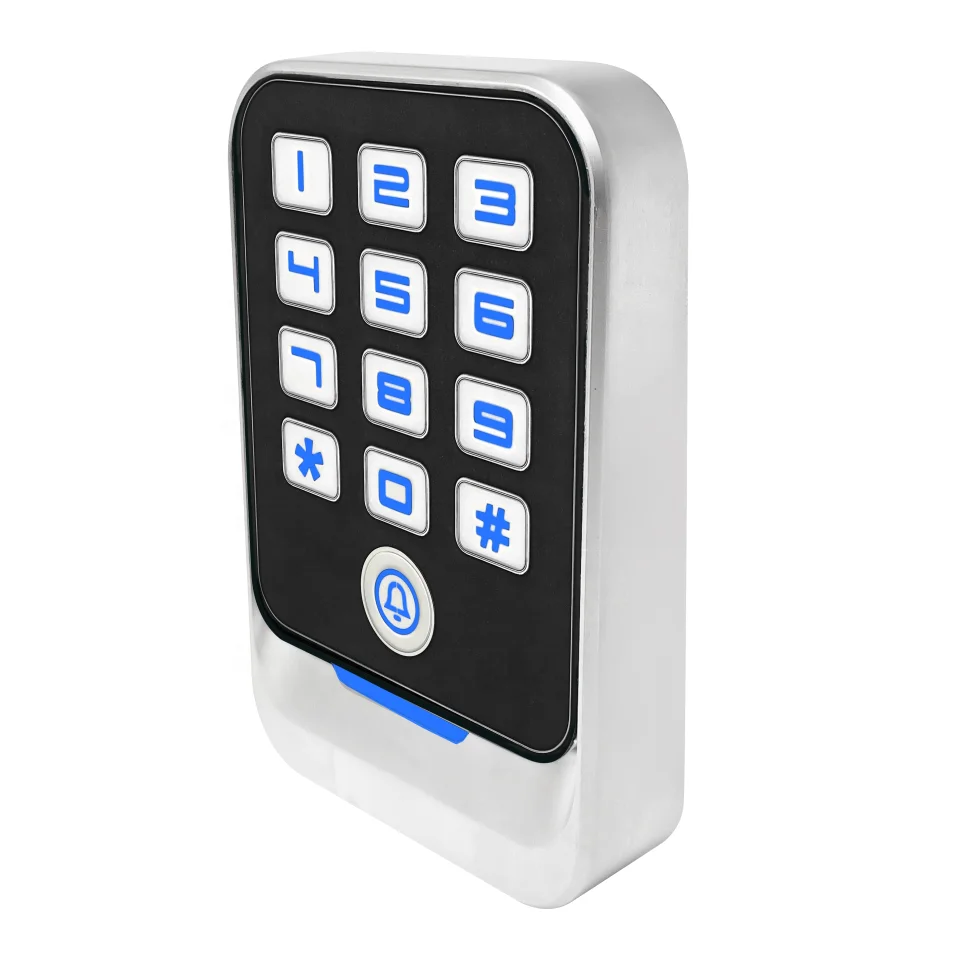

ZRT386 series integrated machine with physical keyboard is independently developed by our company. It built-in high-end microprocessor, strong anti-interference ability, high safety and reliability.
It supports using the management card, adding card, and deleting card to enter setting mode, which is easy to learn and convenient for users to quickly set up the machine.
It adopts non-contact card and password for access control, and can set three door opening methods: swipe cards,input password and swipe cards plus input password. It supports conventional non-contact ID cards or IC cards. It supports adding users, deleting a single user, deleting all users, etc. It is very convenient to use and can be widely used in access control, attendance management, security alarm, parking lot management, building automation, elevator control and other fields.

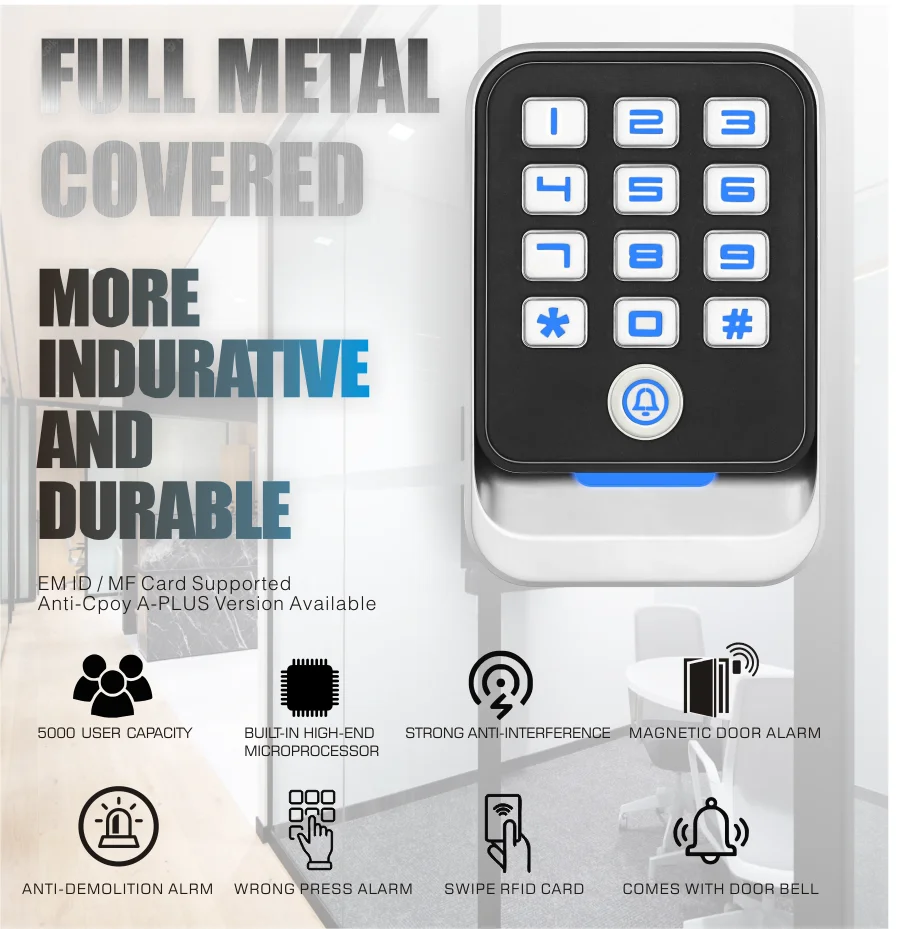

Features
- Support Wiegand output;
- Support to store 5000 users,high capacity;
- Support three door opening methods: swipe cards,input password and swipe cards plus input password;
- Ultra-low power consumption, luminous keyboard, independent password, cost-effective;
- Support operate by manage cards,add cards,delete cards,support copy users, PC computer management.
Specifications
Params | Description |
Card type | ID card |
Frequency | 125kHz |
Working voltage | DC 12V(±5%) |
Working current | Less than 200mA |
Standby current | Less than 150mA |
Sensing distance | 0~3cm(effect by cards and work environment) |
Working temperature | -20℃~+60℃ |
Storage temperature | -20℃~+80℃ |
Working humidity | 15% ~ 90% |
Storage | 5000 users |
Protection class | IP65 |
Electrostatic parameters | Contact 6kv, air 8kv |
Size | 120*80*22.67mm(tolerance±0.3) |

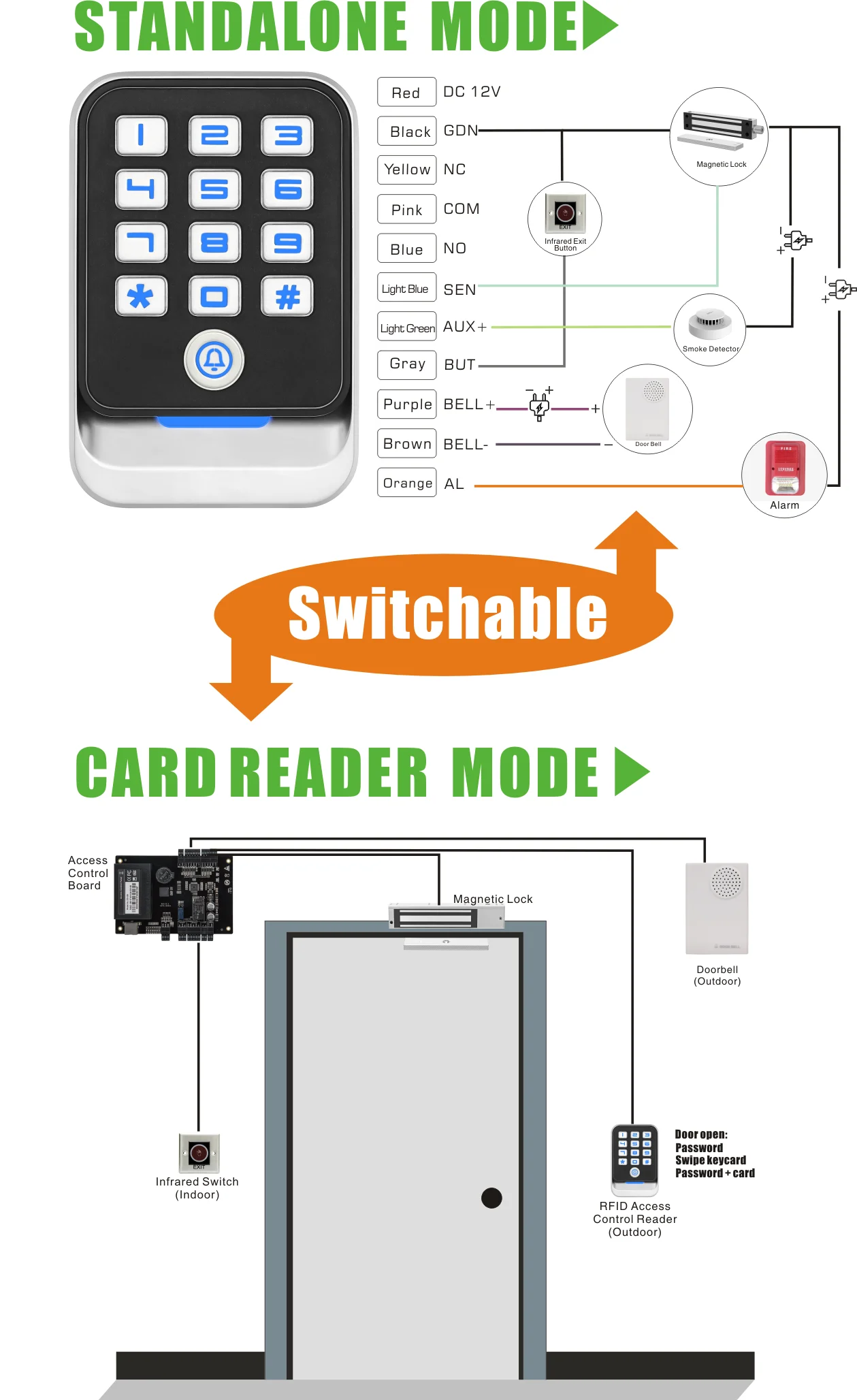

Wiring definition | Red: DC 12V, Light blue: SEN (door sensor)/LED, Orange: AL (alarm), Black: GND, Gray: BUT (exit switch)/BEEP, Purple: BELL+ (doorbell), Brown: BELL- (doorbell ), Light green: AUX+, Yellow: NC (normally closed), Pink: COM (common), Green: WD0/RXD (switched by 5,6 dial), White: WD1/TXD (switched by 5,6 dial) ), Blue: NO (normally open) |
Models
Models | Description |
ZRT386E | Integrated machine for ID cards,support EM4100, EM4102, EM4200 compatible card; support ID thick card, ID thin card, ID key-chain card; |
ZRT386M/B | Metallic integrated machine for IC cards 1. Support MIFARE Classic Mini/EV1, MIFARE DESFire EV1/Light/EV1/EV2/EV3, MIFARE Plus S/X , MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx; 2. Support physical card number of Chinese second-generation ID card; |
ZRT386M/C | Integrated machine for IC cards 1. Support MIFARE Classic Mini/EV1, MIFARE DESFire EV1/Light/EV1/EV2/EV3, MIFARE Plus S/X , MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx; 2. Support physical card number of Chinese second-generation ID card; 3. Support encrypt CPU card |

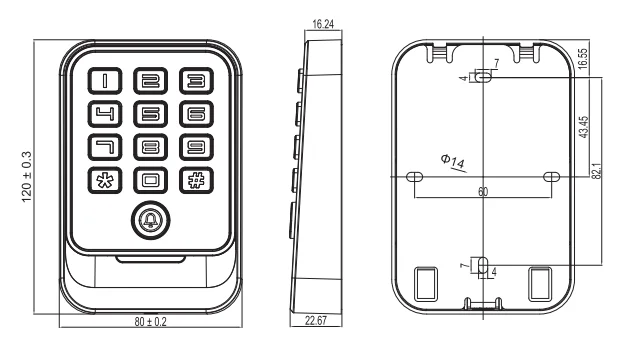

Dimension
.
