Optical 0.6X 5.0X Zoom Objective PCB Inspection Soldering Video Compound Microscope
- Category: >>>
- Supplier: Guilin FT-Opto Co. Ltd.
Share on (1600724388570):
Product Overview
Description

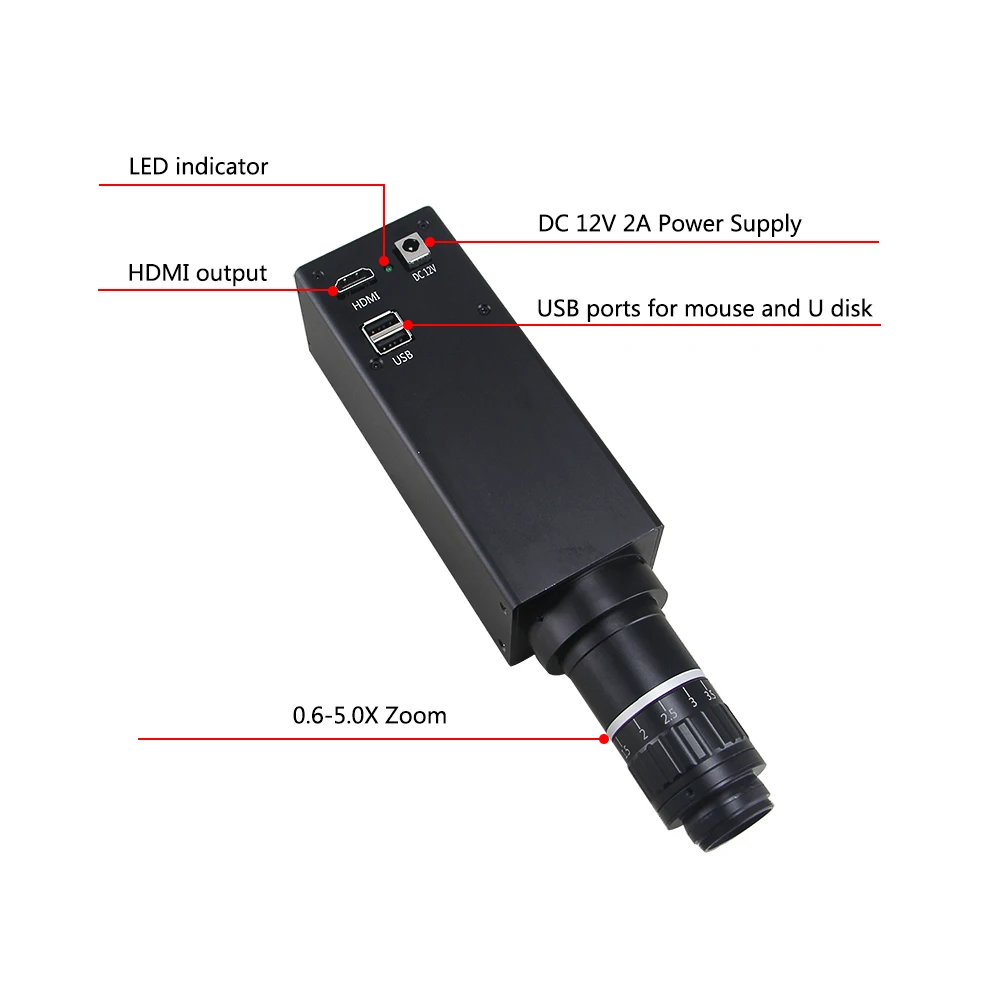

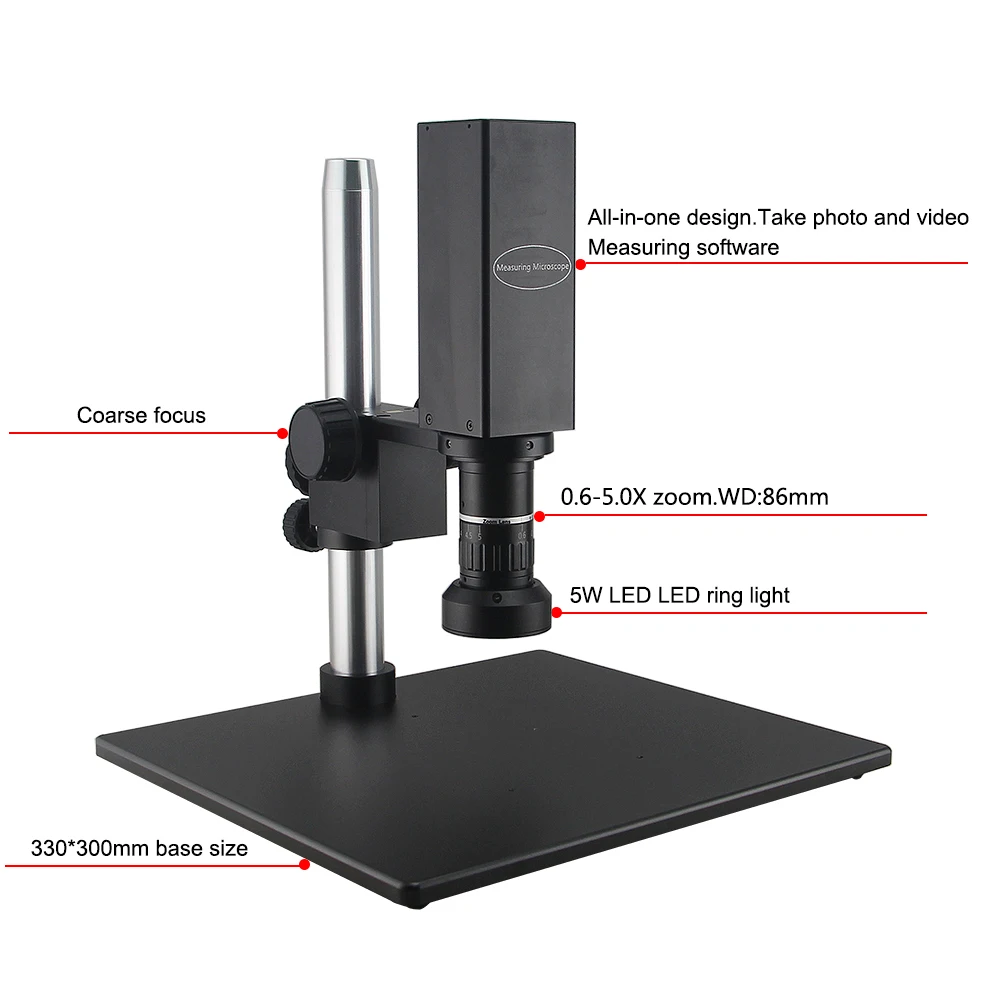

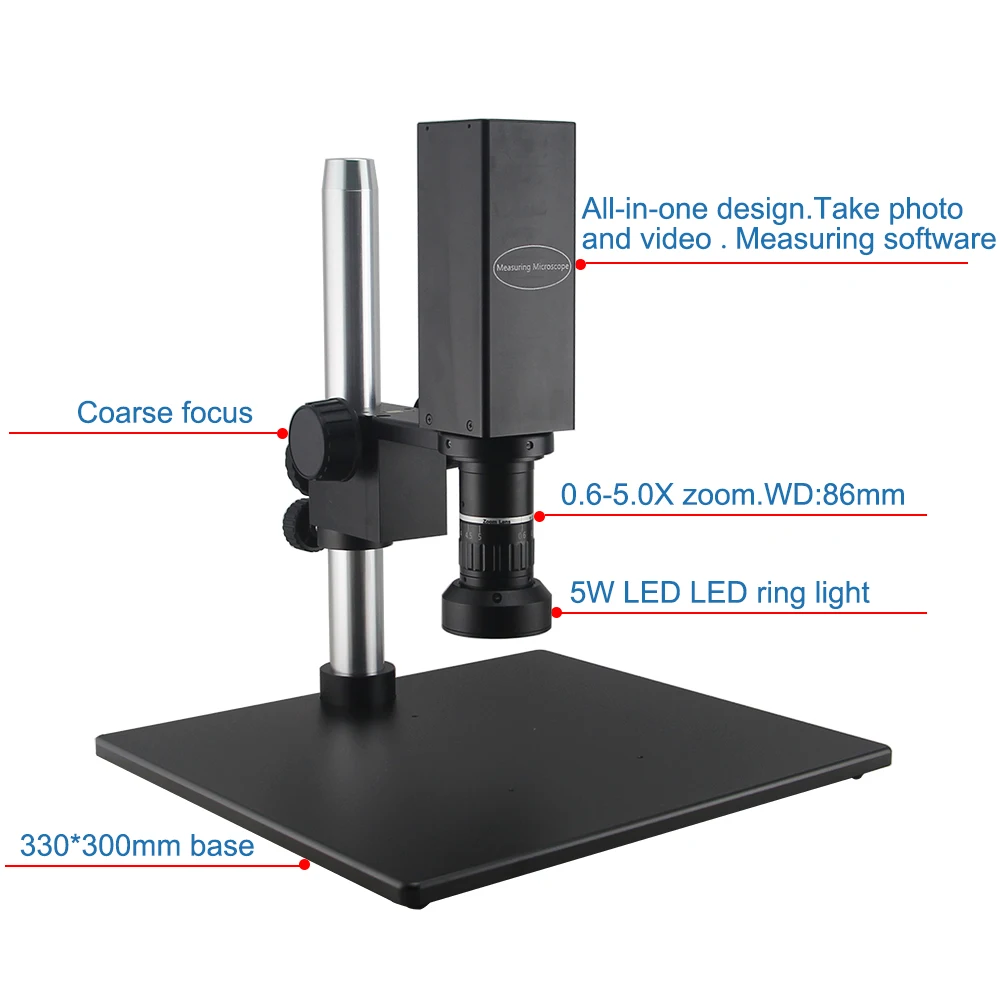

All-In-One Design Measuring Video Microscope
Measuring Order Inside、No Need Install
More Convenient
Easy To Operate
Elegant Appearance
Discription
1. Unique all-in-one machine design, simple and beautiful overall, more convenient to install and use

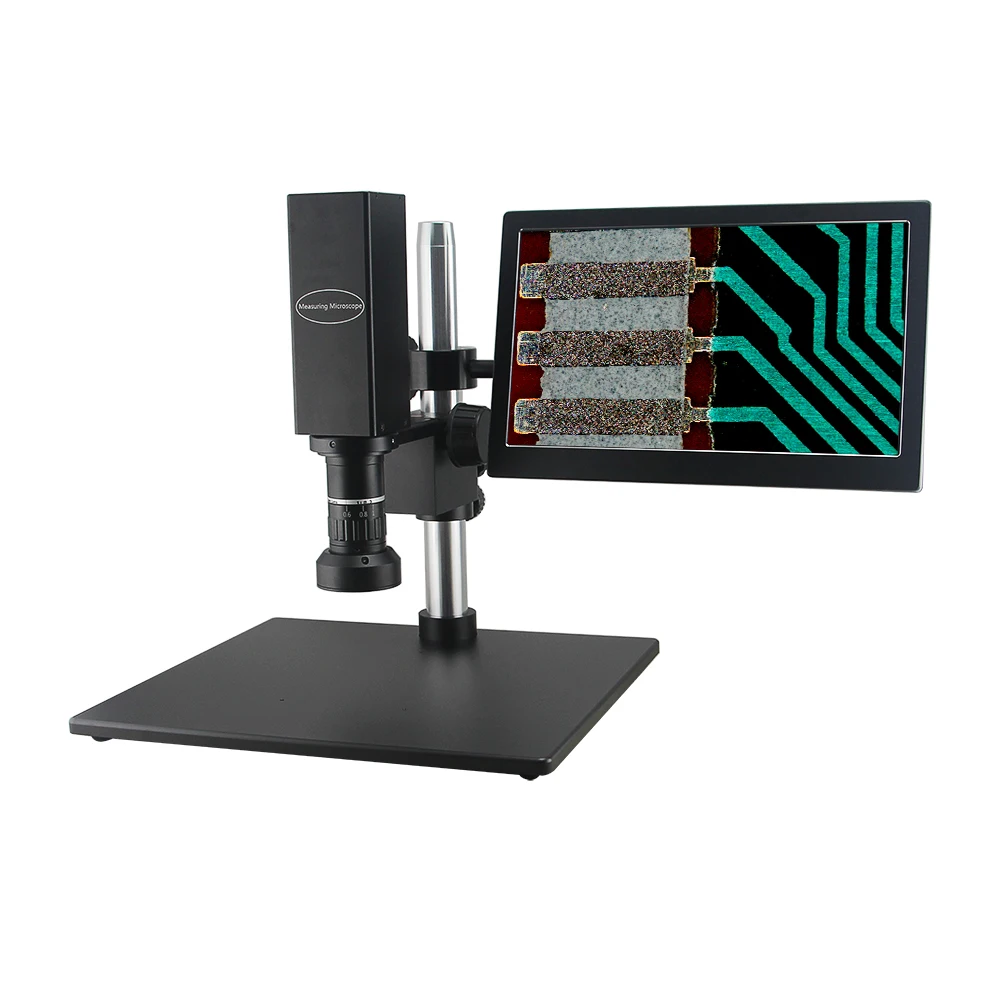

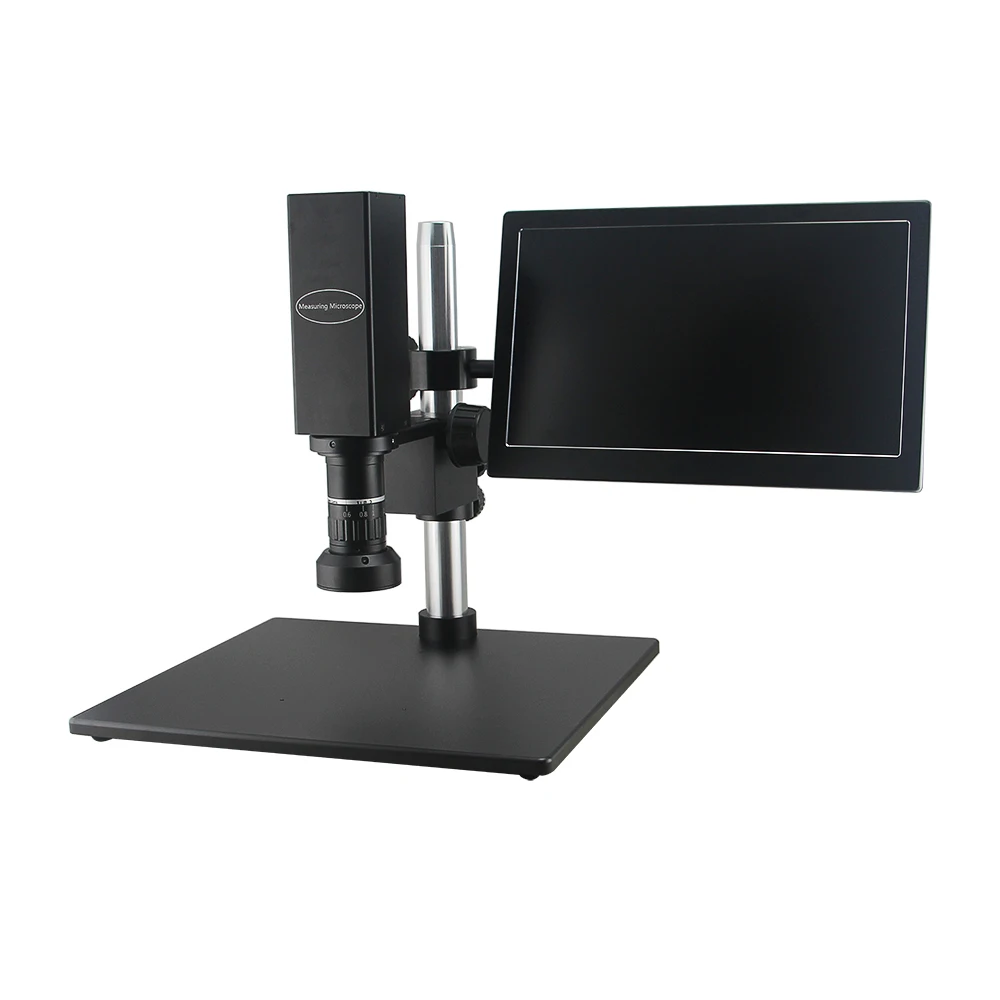

2. Built in smart measuring software. No need PC. Connected monitor directly.

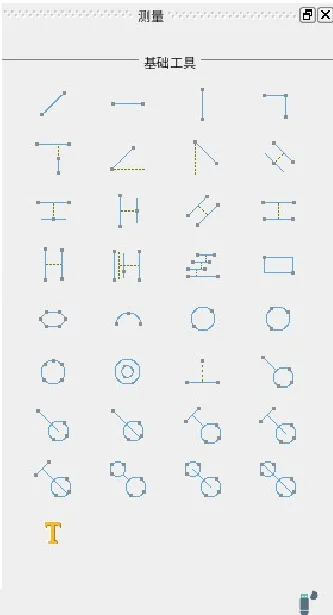

3. Microscope has the functions of measurement and overlay. It is easy to understand and adjust the parameter. It can observe different objects in various situations.
4. Measurement data can be saved with image or excel.
5. Support take photo and video to U disk. And we can browse the photo directly.
6. 1920*1080 full HDMI image. Excellent color reduction.
2. Built in smart measuring software. No need PC. Connected monitor directly.
3. Microscope has the functions of measurement and overlay. It is easy to understand and adjust the parameter. It can observe different objects in various situations.
4. Measurement data can be saved with image or excel.
5. Support take photo and video to U disk. And we can browse the photo directly.
6. 1920*1080 full HDMI image. Excellent color reduction.
Optical Parameter
Model | FM650IP | FM325IP |
Optical magnification | 0.6-5.0X | 0.3-2.5X |
Total magnification | 31-260X | 15-130X |
FOV | 8x6-0.96x0.72mm | 16x12-1.92x1.44mm |
Details

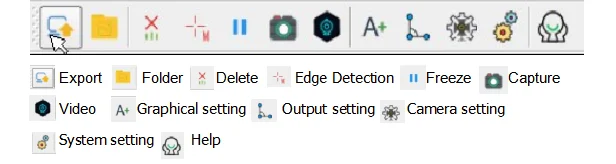

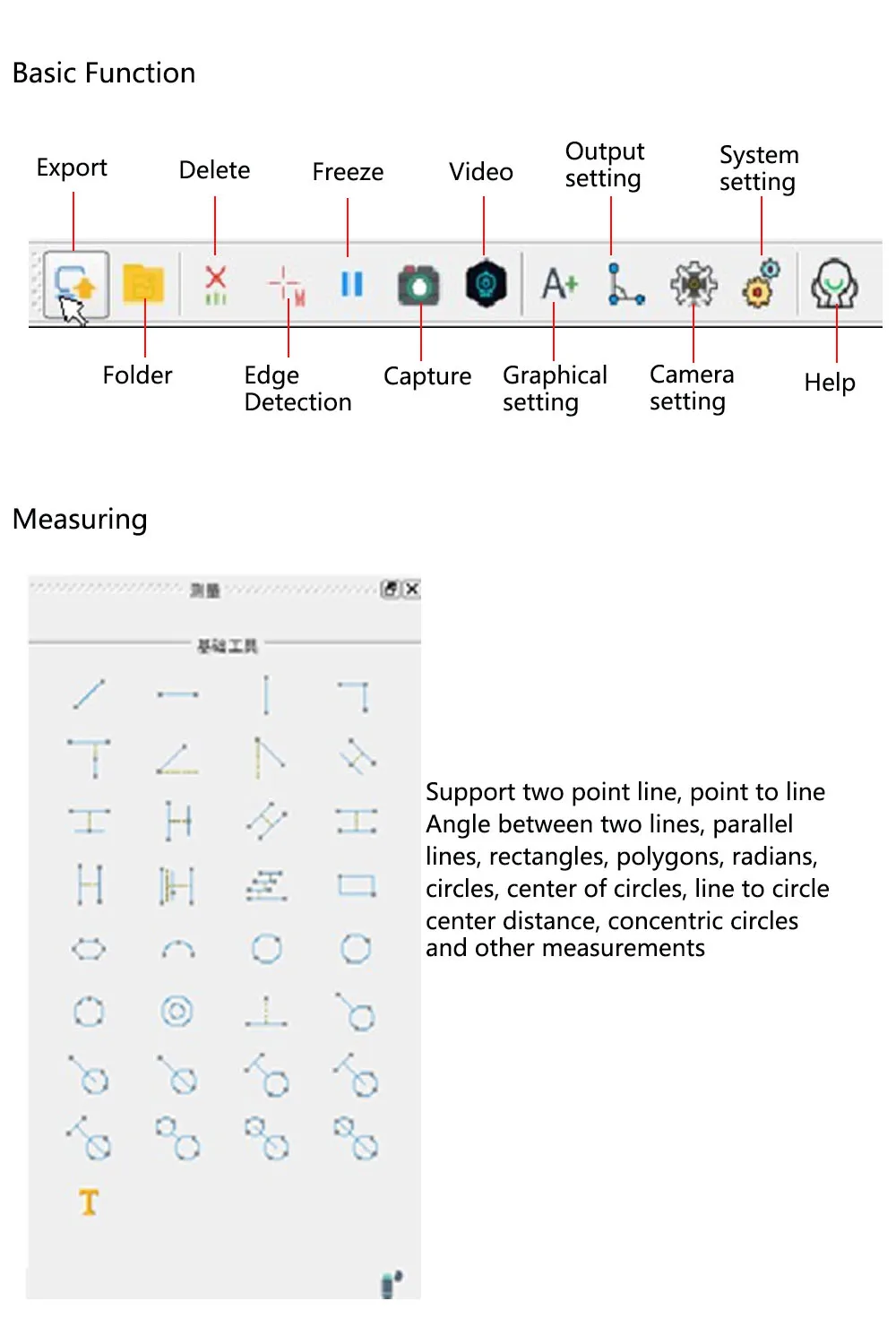

Basic Functions
Optional Accessories For You
Auxiliary Objective
FW23U Series
FW52M Series
FH65A Microscope Stand
FH65L Microscope Stand
Coaxial Device
Coaxial Device with Polarizer
LED Point Source
FH65Q Microscope Stand
FH65QL Microscope Stand
FH65QAL Microscope Stand
Accessories up to your choice
Auxiliary Objective | AW6503 | 0.3X , WD:270mm |
AW65038 | 0.38X,WD:205mm | |
AW6505 | 0.5X, WD:160mm | |
AW6506 | 0.6X, WD:130mm | |
AW6515 | 1.5X ,WD:50mm | |
AW6520 | 2.0X ,WD:39mm | |
Light source | LC6511 | Coaxial device |
LC6511P | Coaxial device with polarized | |
L6511 | LED point light for coaxial device | |
Stand | FH65 | Coarse focus post stand(standard stand) |
FH65L | Coarse focus post stand with transmitted light | |
FH65A | Coarse and fine focus post stand | |
FH65AL | Coarse and fine focus post stand with transmitted light | |
FH65Q | Coarse focus track stand | |
FH65QL | Coarse focus track stand with transmitted light | |
FH65QA | Coarse and fine focus track stand | |
FH65QAL | Coarse and fine focus track stand with transmitted light | |
Infinity plan achromatic objective | FW235U | 5X, NA：0.12mm，WD：26.1mm |
FW2310U | 10X, NA：0.25mm，WD：20.2mm | |
FW2320U | 20X, NA：0.40mm，WD：8.8mm | |
FW2340U | 40X, NA：0.60mm，WD：3.98mm | |
FW2350U | 50X, NA:0.7mm，WD：3.68mm | |
FW2360U | 60X, NA：0.75mm，WD：1.22mm | |
FW2360UA | 60X, NA：0.7mm，WD：3.18mm | |
FW2380U | 80X, NA：0.8mm，WD：1.25mm | |
FW23100U | 100X, NA：0.85mm，WD：0.4mm | |
LWD Plan APO objective | FW522M | 2X, NA:0.055mm, WD:34.6mm |
FW523.5M | 3.5X, NA:0.1mm , WD:40.93mm | |
FW525M | 5X, NA:0.13mm , WD:44.5mm | |
FW5210M | 10X, NA:0.28mm, WD:34mm | |
FW5220M | 20X ,NA:0.29mm , WD:31mm | |
FW5250M | 50X, NA:0.42 ,WD:20.1mm |
High Quality Working
Packing
Strong protection ,please be trustingly /good service get high reputation
Exhibition
Company Profile
Guilin Ft-Opto Co.,Ltd was founder in 2009 By Mr.Li Pei Who is an expert and the leader of Optical Microscope.
Clean and tidy workshop/Professional design/Exact working attitude
Choose us you are wise,we give you our warm welcome to come and visit our factory.We are the best.
