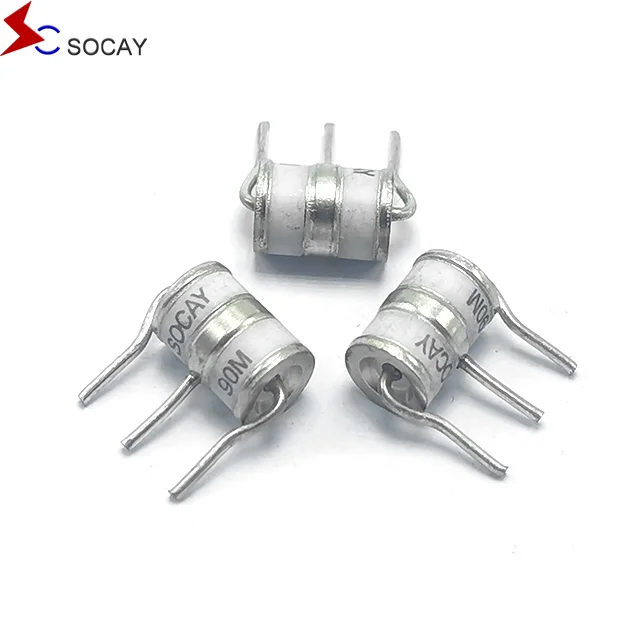

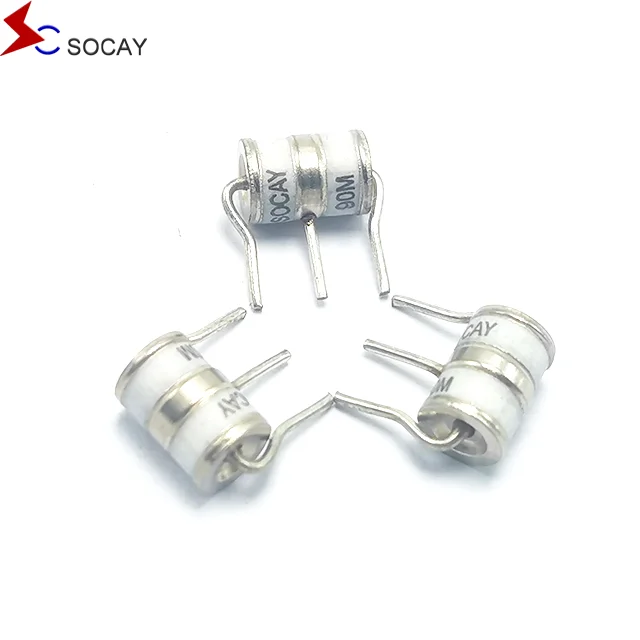

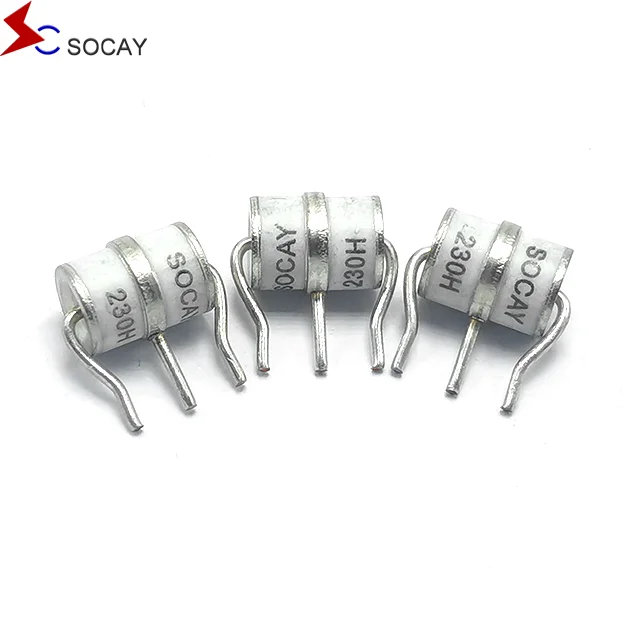

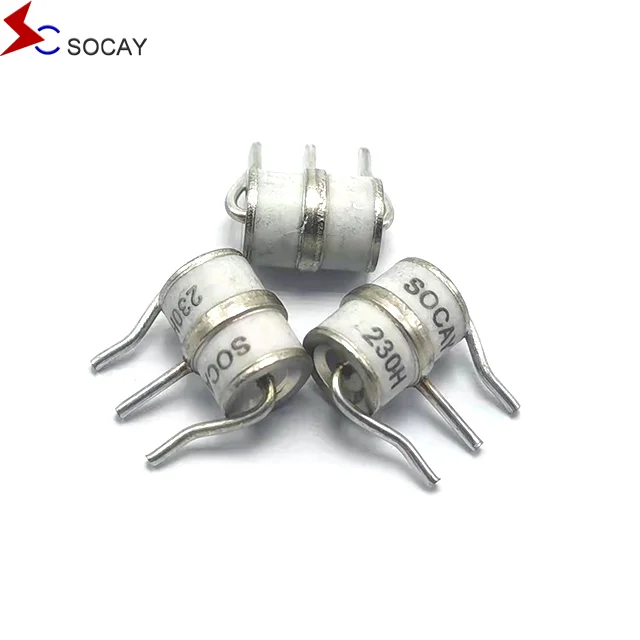

3 pole 3 Electrode 230V 350V ceramic gas discharge tube arrester
- Category: >>>
- Supplier: Shenzhen Socay Electronics Co. Ltd.
Share on (1600724398702):
Product Overview
Description
Product Characteristics
Materials | Nickel-plated with Tinplated wires |
Product Marking | SOCAY XXXH XXX -Nominal voltage H -20KA |
Glow to Arc Transition Current | ~1 Amps |
Glow Voltage | ~70 Volts |
Storage and Operational Temperature | -40 to +90°C |
Weight | SC3E8-XXXHM ~2.0g SC3E8-XXXHMF ~2.3g SC3E8-XXXHP ~2.1g SC3E8-XXXH ~1.8g |
Climatic category (IEC 60068-1) | 40/ 90/ 21 |
Features | -Non-Radioactive -RoHS compliant -Low insertion loss -Excellent response to fast rising transients -Ultra low capacitance -20KA surge capability tested with 8/20μs -pulse as defifined by IEC 61000-4-5 -Available with thermal failsafe option (add ‘F’ suffifix to part number) |
Applications | -Communication equipment -CATV equipment -Test equipment -Data lines -Power supplies -Telecom SLIC protection -Broadband equipment -ADSL equipment, including ADSL2+ -XDSL equipment -Satellite and CATV equipment -Consumer electronics |

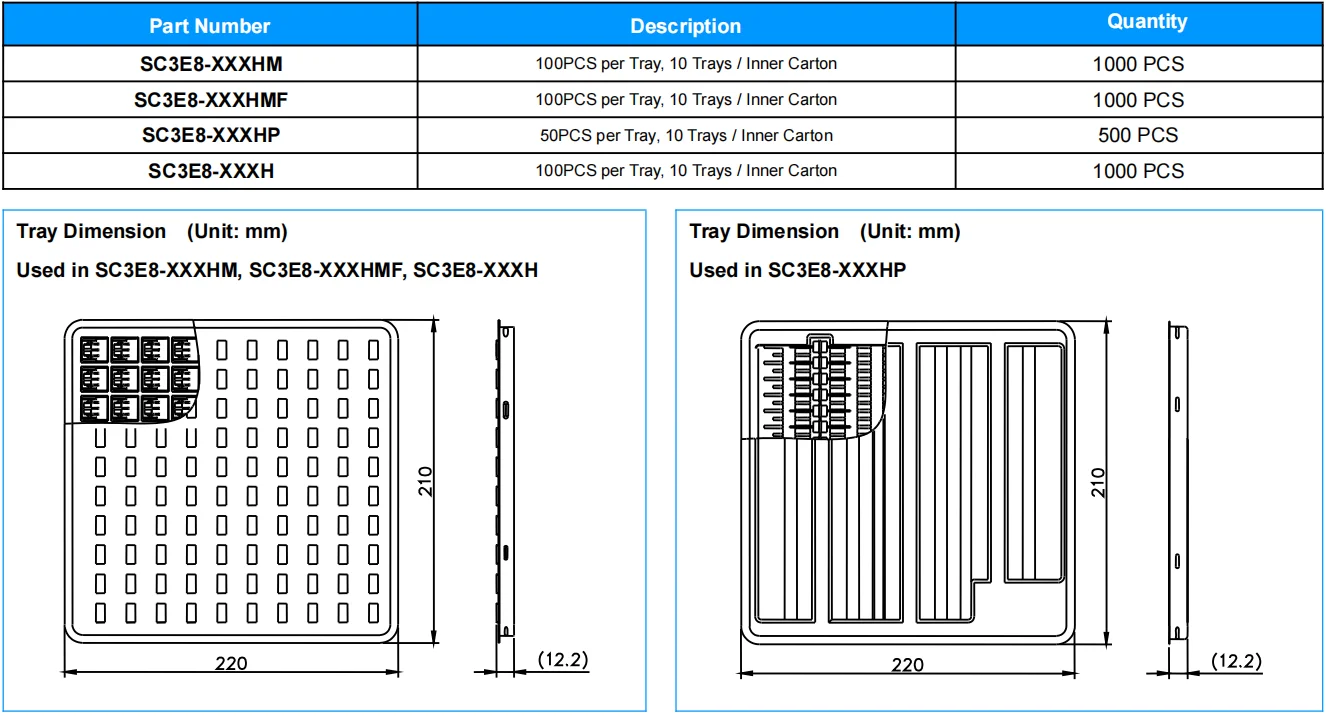

Packaging Information

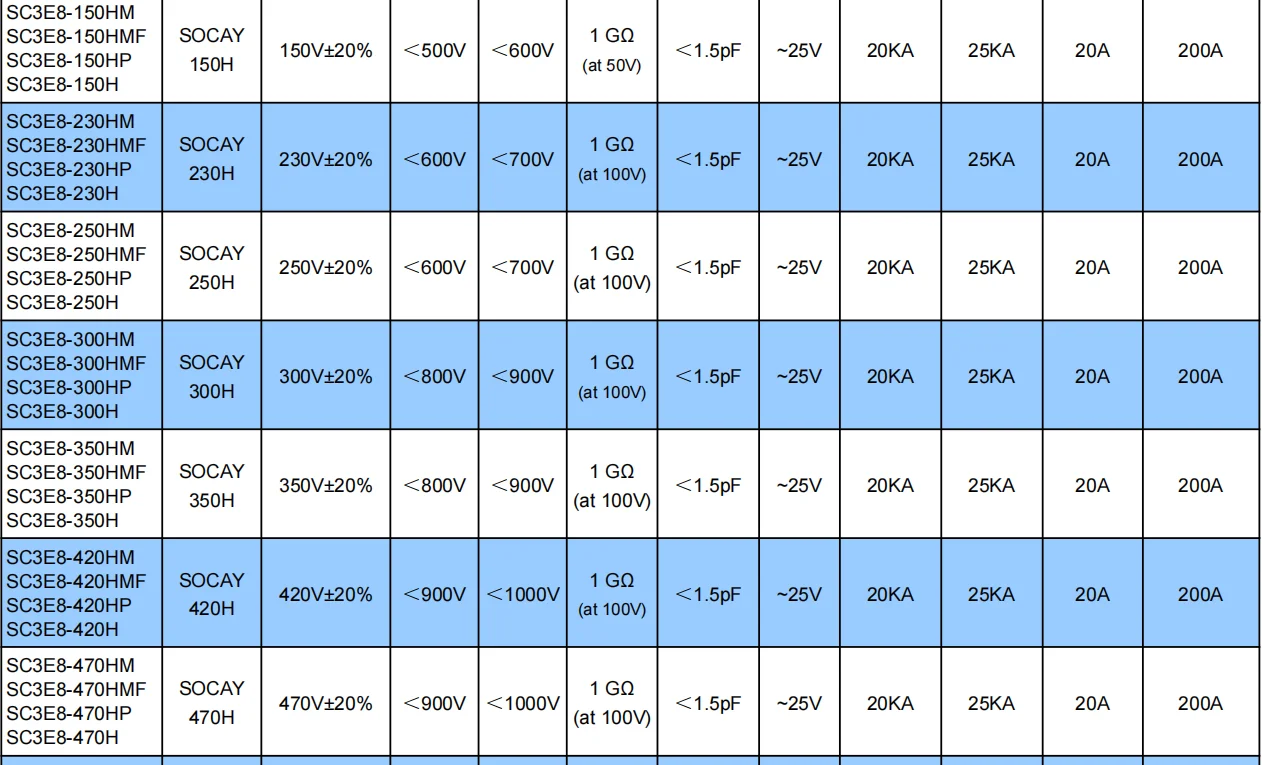

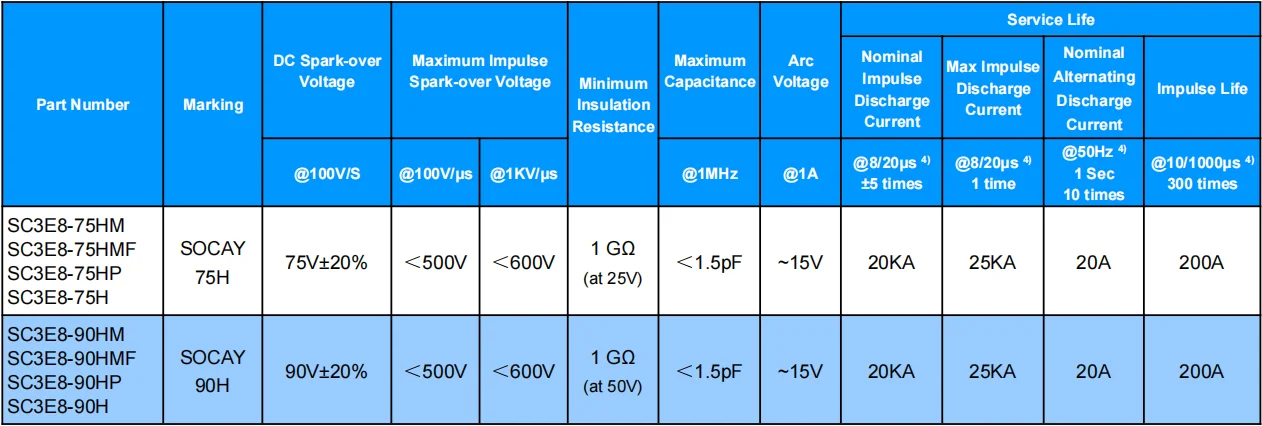

Electrical Characteristics

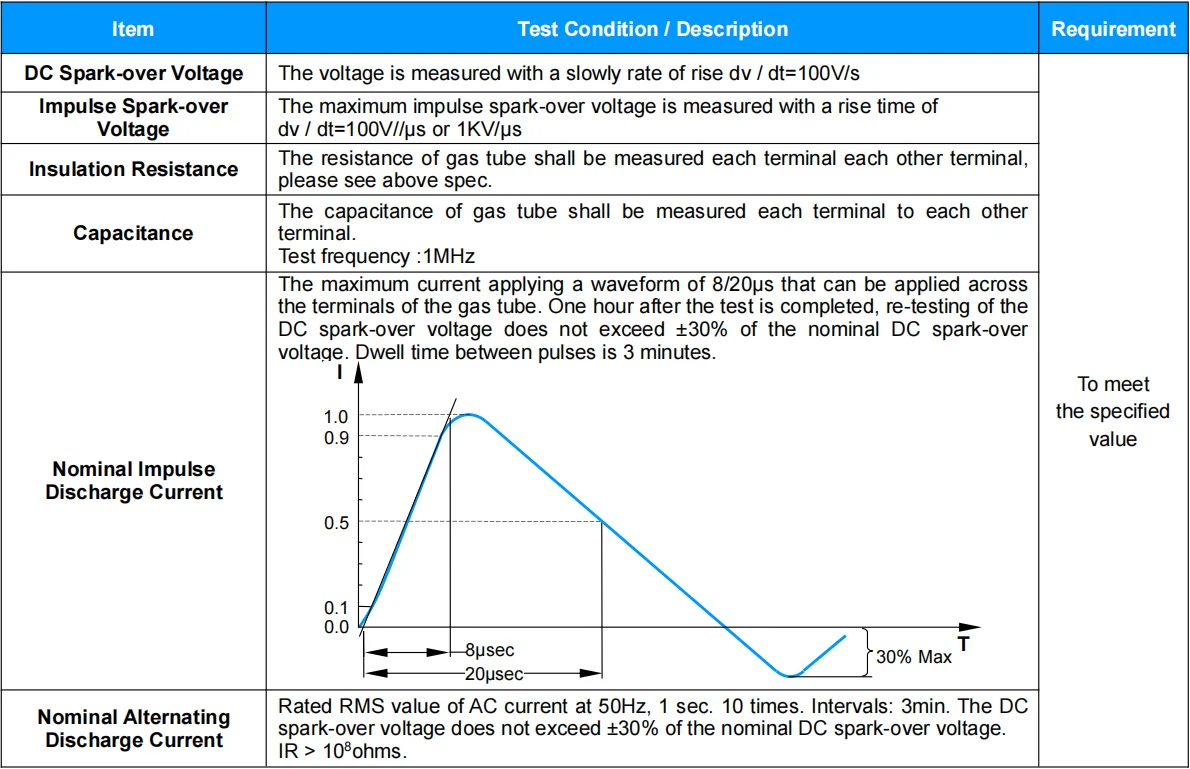

Electrical Rating

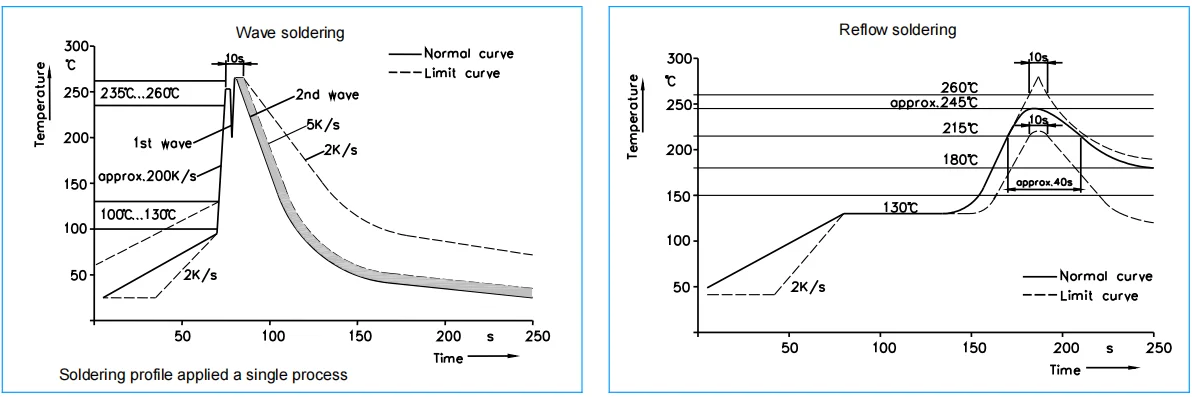

Recommended Soldering Profile
Soldering Parameters - Hand Soldering
Solder Iron Temperature: 350°C +/-5°C
Heating Time: 5 seconds max.
Heating Time: 5 seconds max.
Company Profile
Please feel free to contact us if you have any question.
Contact Person: Alice Xu
Phone Number/WhatsApp/Wechat: +8618775040331
Email Address: socay122@socay.com Factory Address: Floor 4, Building C, Hengxing Science park, No.19 Minqing Road, Longhua District, Shenzhen
Website: www.socay.com
Other Hot Products
FAQ
Q: May we get some samples?
A: Of course,samples are available
Q: What is product lead time
A: For GDT,TVS and ESD,lead time will take 3-4 weeks.For TSS,MOV,MLV,NTC,and PPTC,lead time will take 4-6 weeks.Accurate lead time will be further confirmed when we know your specific requirement.
Q: Do you support customization
A: Yes,we do.
