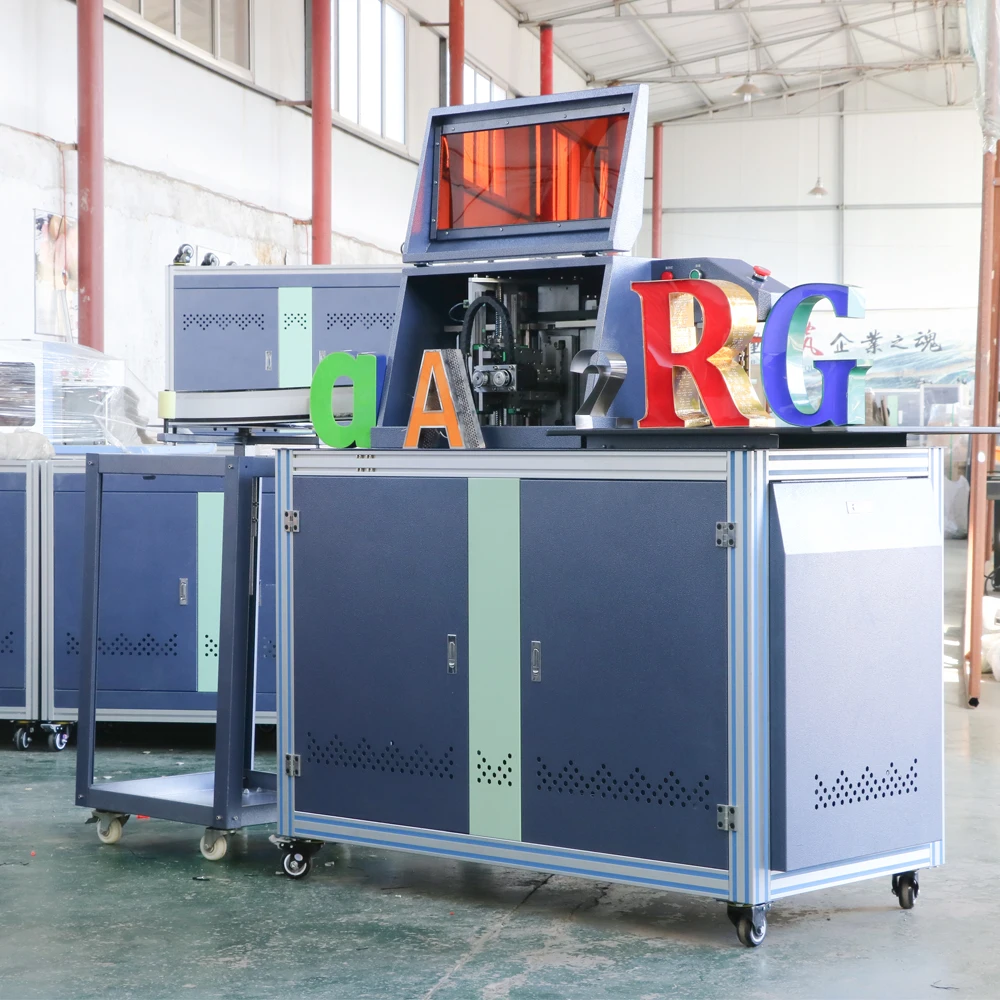

Multi function Aluminum Stainless Steel Channel Letter Bending Machine To Male All 3D Letters
- Category: >>>
- Supplier: Shandong Dahe Machinery Technology Co. Ltd.
Share on (1600724410249):
Product Overview
Description
Multi-function Aluminum Stainless Steel Channel Letter Bending Machine To Male All 3D Letters
Wechat/whatsapp: 008618866779238

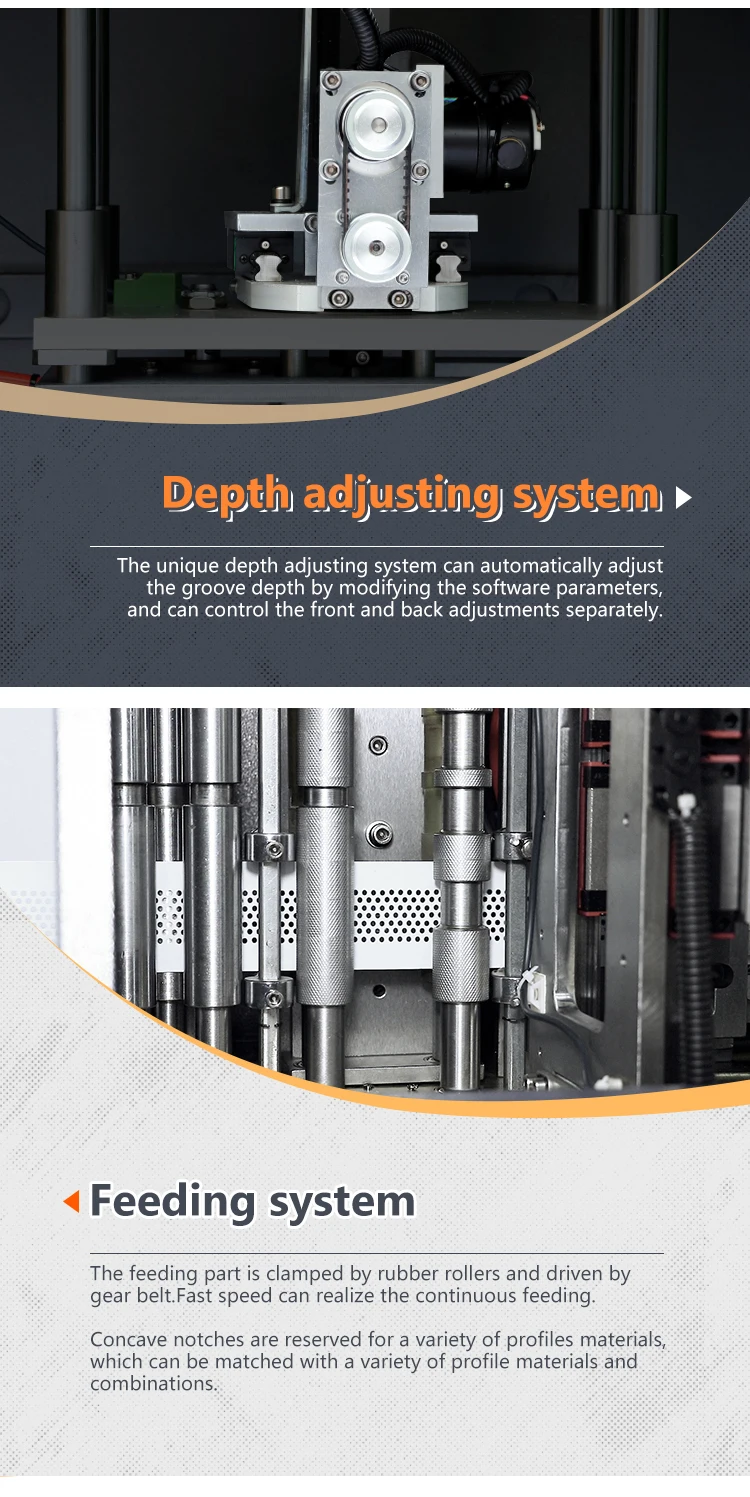

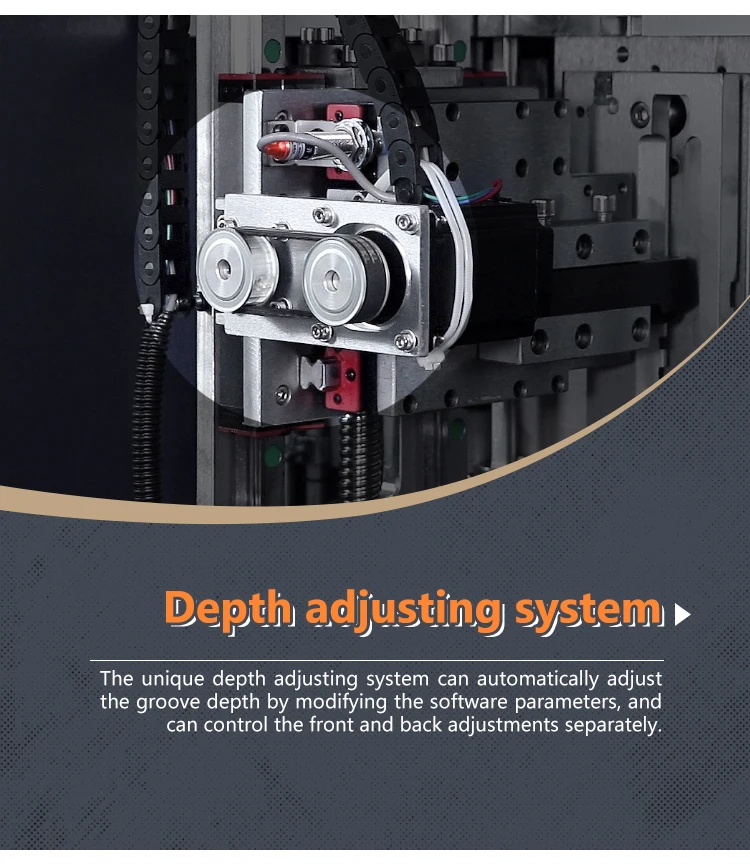

1.The grooving depth can be precisely controlled, and it is controlled by Number axis , so the precise depth of all kinds of materials can be achieved. |
2.Intelligent control of software and intelligent interference check can avoid interference collision in bending process. |
3.The symmetrical bending mode on both sides avoids interference in the bending process to the greatest extent, and greatly improves the bending strength. |
4.With the unique stainless steel planer and double slotting model of profile milling groove, it can be switched by one key according to the different characteristics of the materials, which is easy and convenient. |
5.It can read all kinds of vector files in PLT, AI and DXF formats, and match perfectly with engraving machine files. |
6.The feeding height is adjusted by rotary hand-wheel, which is easy to operate. |

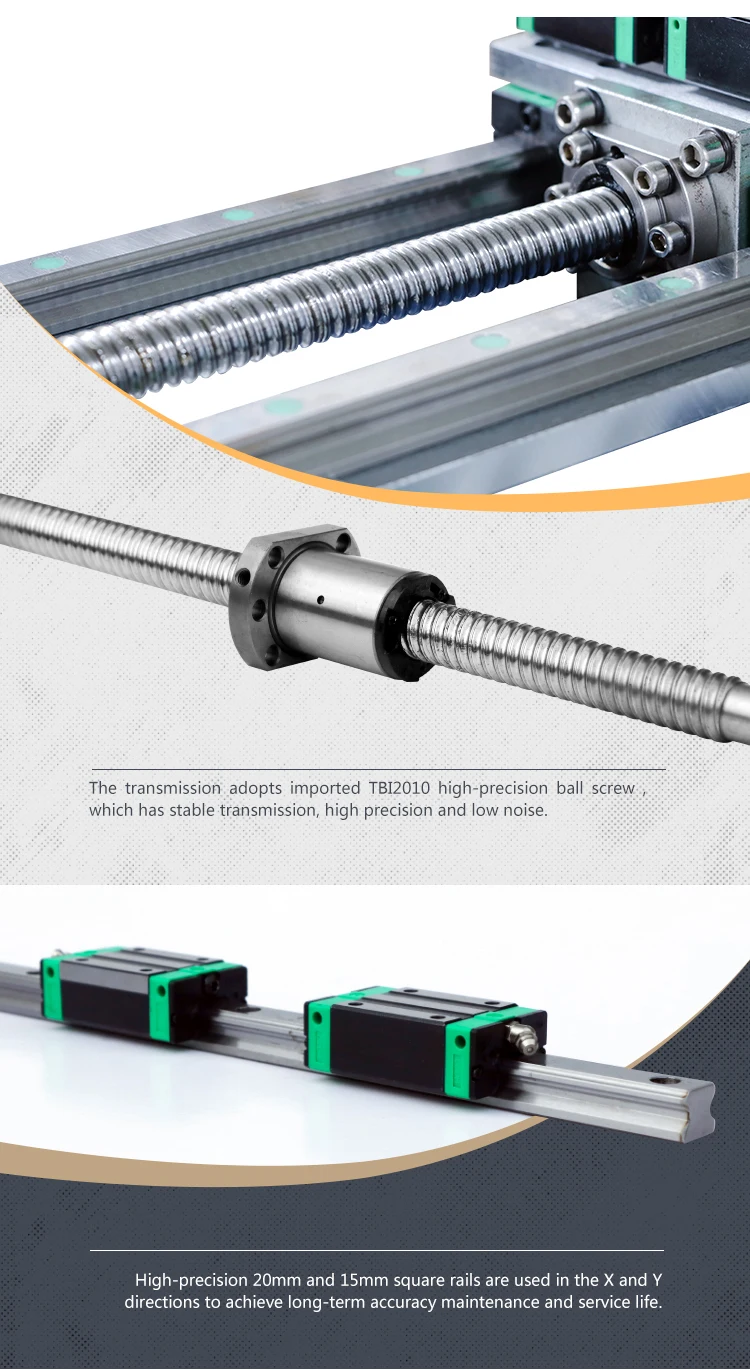

7.Intelligent adjustment of slotting depth is realized by using imported linear guide rail and high precision ball screw. |
8.Special specifications and requirements can be customized. |

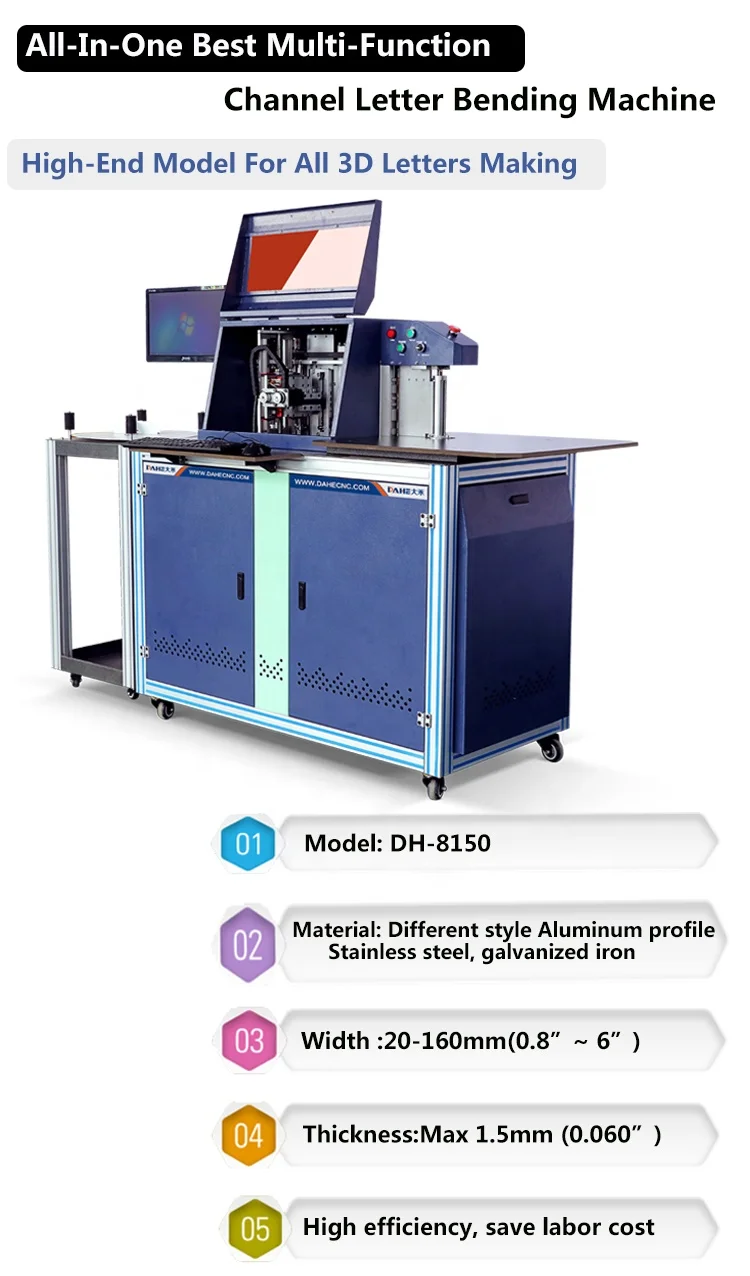

Model | DH-8150 |
Working principle | Auto feeding,notching and bending |

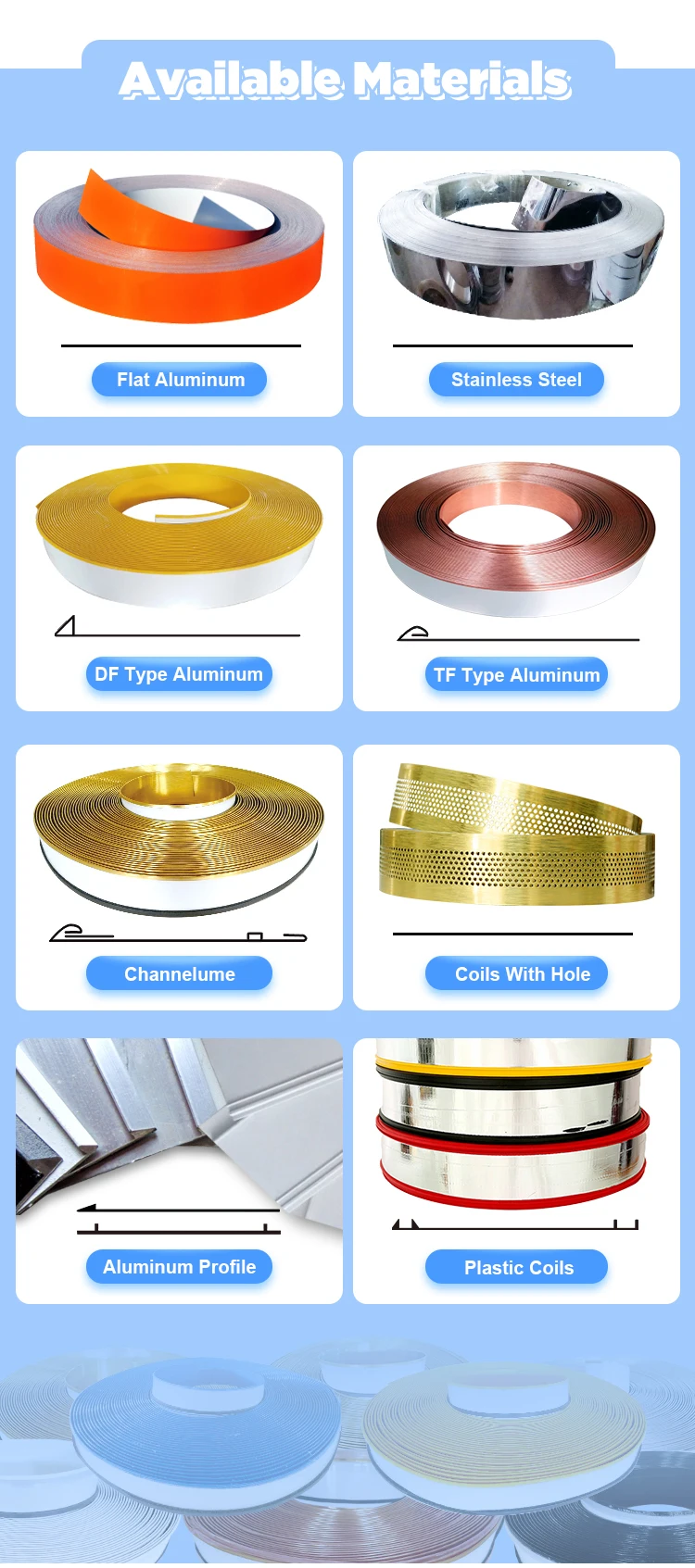

Applicable material | Stainless steel,Flat aluminum,Galvanized iron,Aluminum profile,Steel |
Bending Radius | ≥6mm |
Material width | ≤150mm, ≤160mm, ≤180mm, |
Material thickness | Stainless steel 0.3mm-1.0mm Aluminum:0.3mm-1.5mm |
Machine power | ≤2200W |
File format | DXF、AI、PLT |

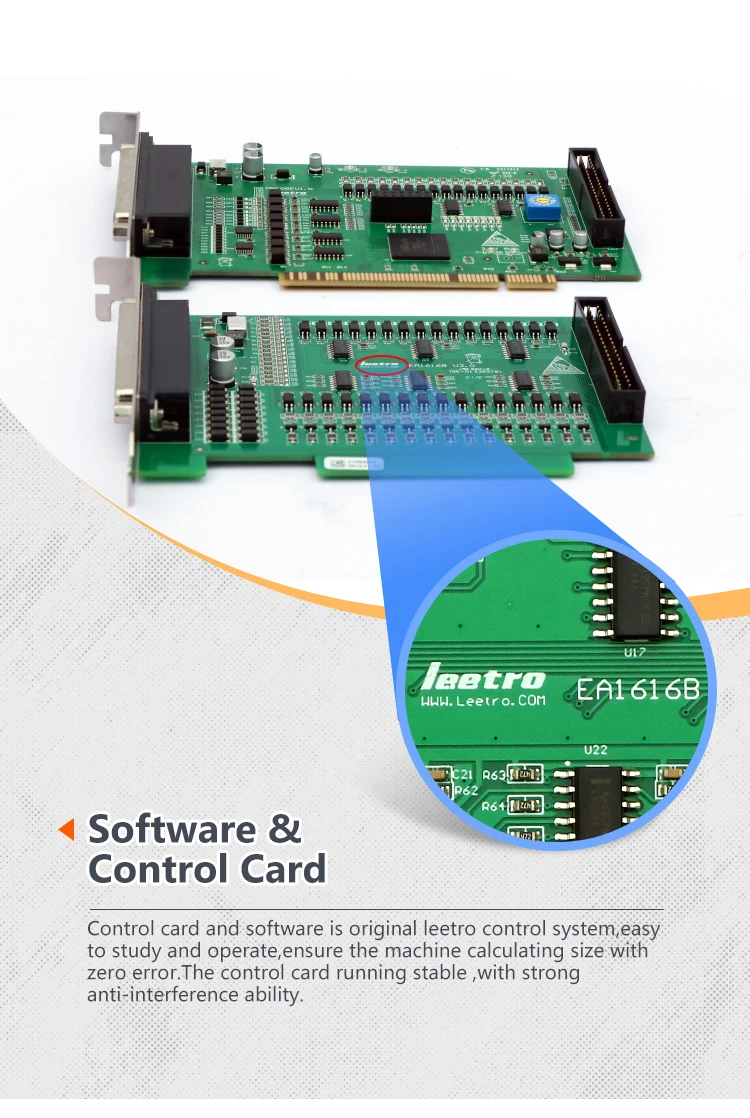

Supporting software | Leetro software CBS4 |
Machine weight | 385Kgs |

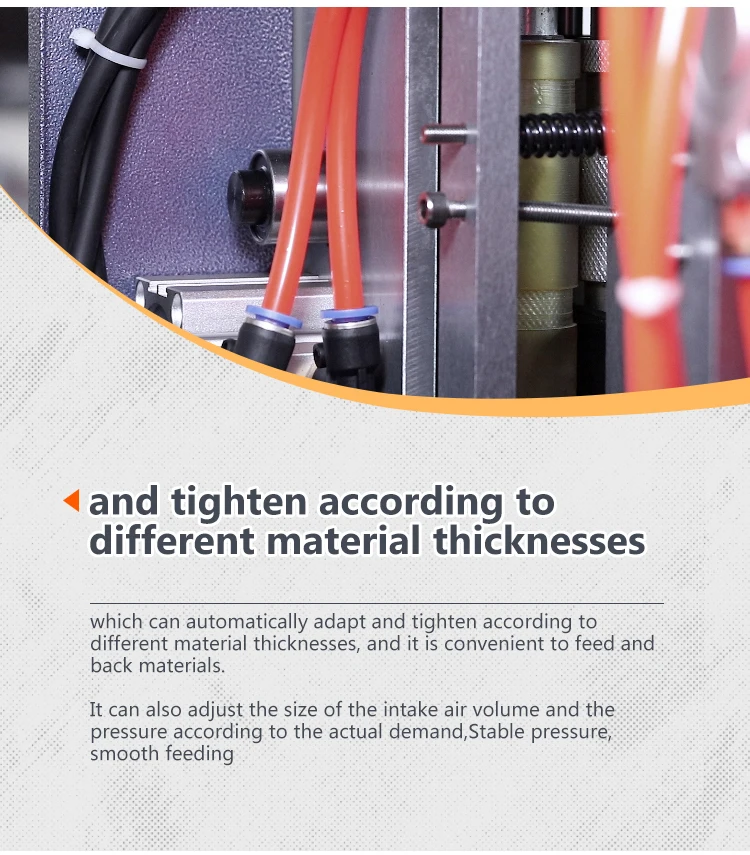

Gas pressure | 0.6Mpa |
Voltage | 220V50HZ1P |
Machine size | 1850mm*880mm*1350mm |
